Removing
Removing and installing air guidePreliminary work
Preliminary work for removing air guide
Removing and installing front apron.
Removing air guide
Removing air guide for middle radiator

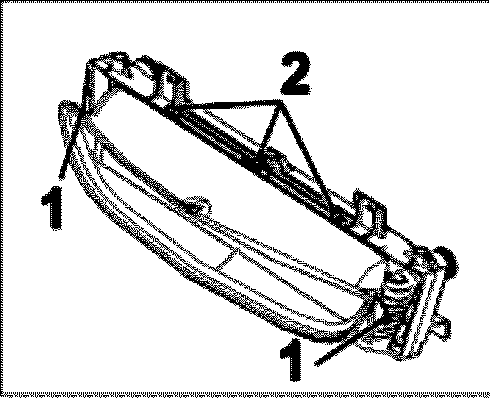

1. Pull off the air guide for the middle radiator. To do this, pull the right and left rubber tabs for the air guide off the radiator -1 -. Pull the top three rubber tabs up -2- and release them. Loosen the air guide around the radiator and remove it.
Removing air guide for side radiator

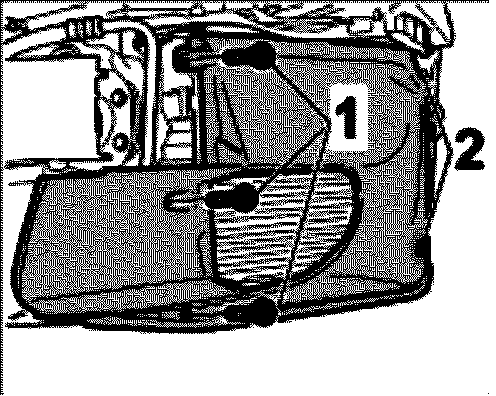

1. Remove the air guide at the left side. To do this, remove the three fastening screws -1- and pull the air guide sideways out of the plastic tabs -2-.

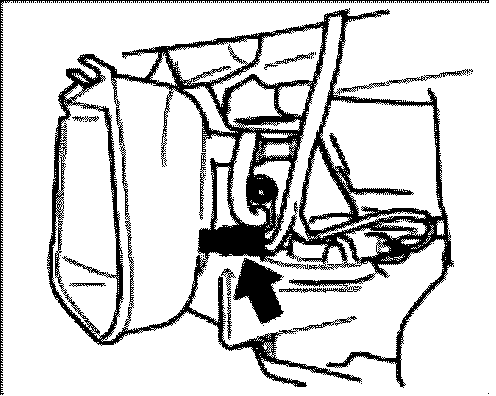

2. Remove the air guide on the right side in the same way as on the left. The temperature sensor must also be pulled out of the air guide from behind -arrow-.
The relevant radiator must be removed in order to remove the rear air guide.

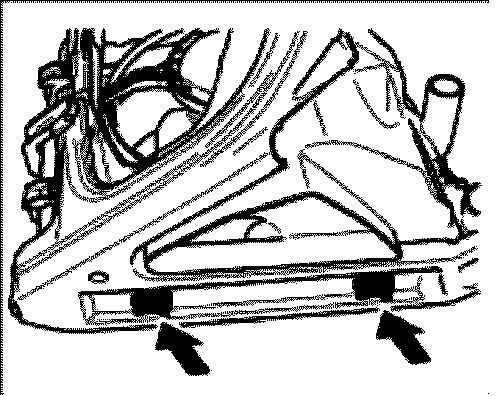

3. Remove the sheet metal clips and washers under the radiator bracket -arrows-. To do this, release the sheet metal clips using a suitable screwdriver and push them sideways out of the plastic pegs of the radiator. Pull the radiator from the bracket up out of the guide.

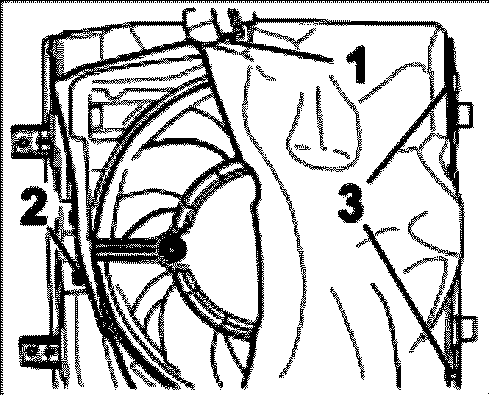

4. Disengage the rear air guide from the cooling fan. To do this, disconnect the cable plug -1 - and press the plastic lock together -2-. Then, lift the air guide out of the tabs -3-.
