Removal

Removal
1. Raise vehicle, remove rear wheel.

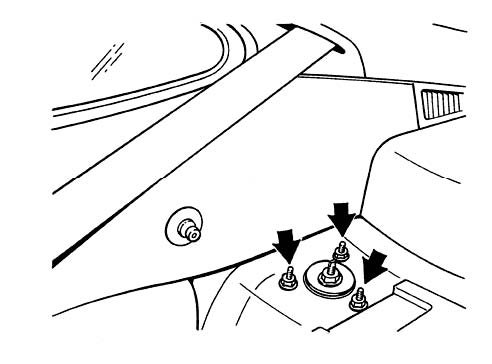

2. Loosen fastening nuts M10 (3 ea. / arrows) from the spring strut mount in the vehicle interior. Before doing this, mark the installed position of the spring strut mount (position of the three collar nuts).
3. Loosen stabilizer mount at stabilizer (counter with open-ended wrench).

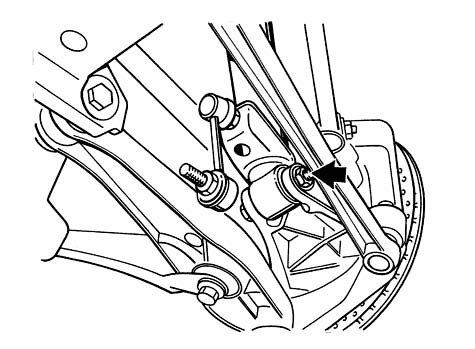

4. Loosen screw connection between spring strut/wheel carrier (arrow). Pull out (remove) spring strut.
