Removal and Replacement

552219 Removing And Installing Front Cover

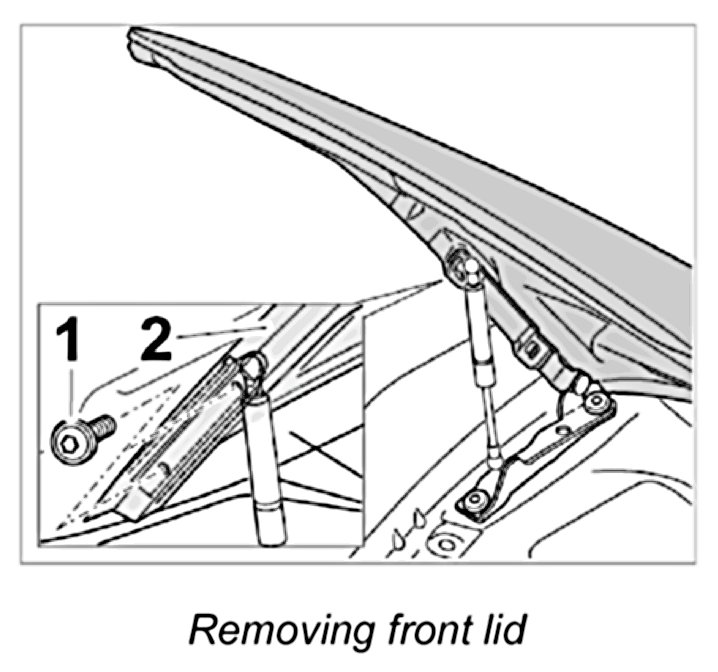

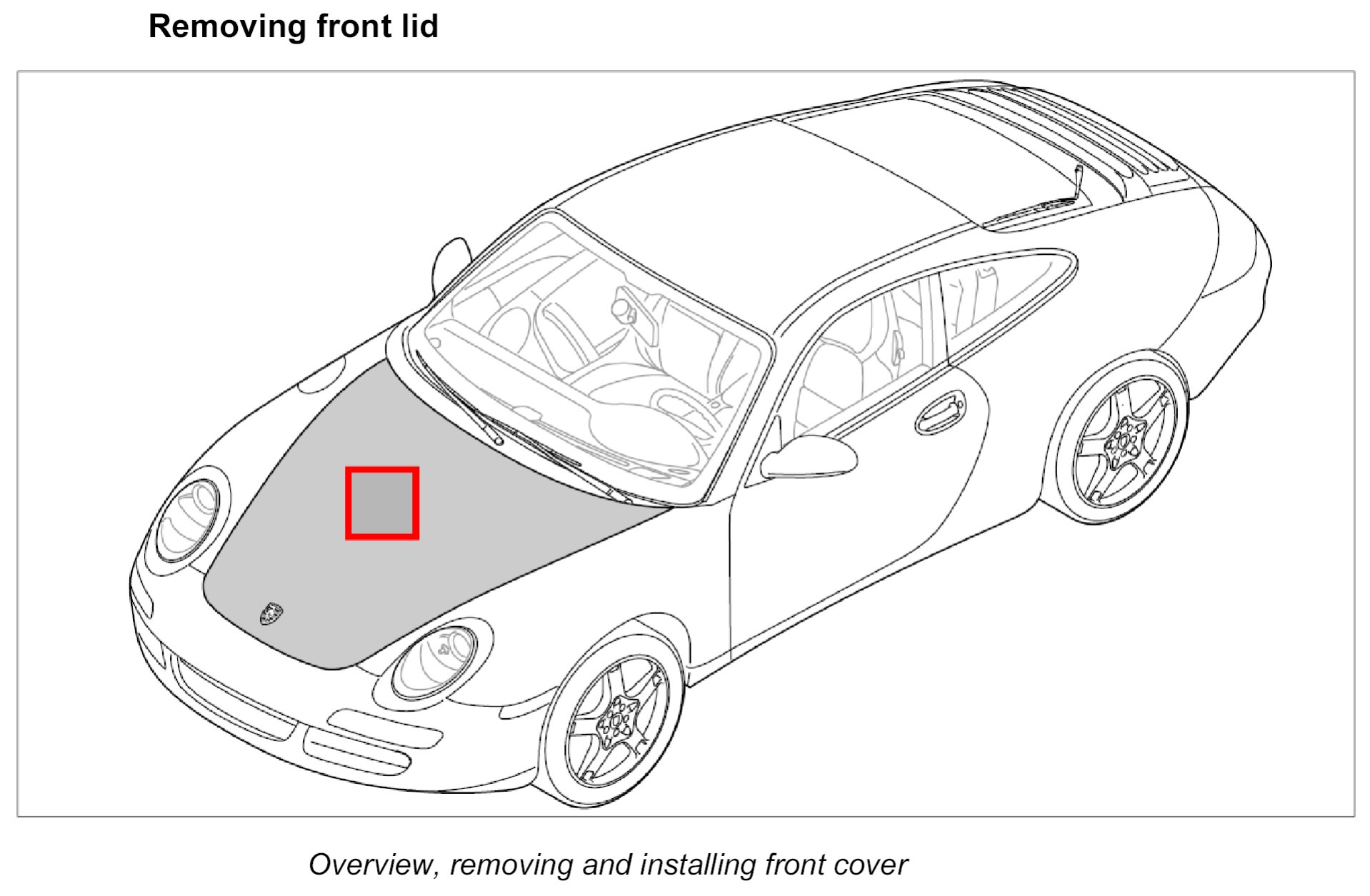

Removing front lid






1. Unscrew fastening screws -1- from the front lid -2-.

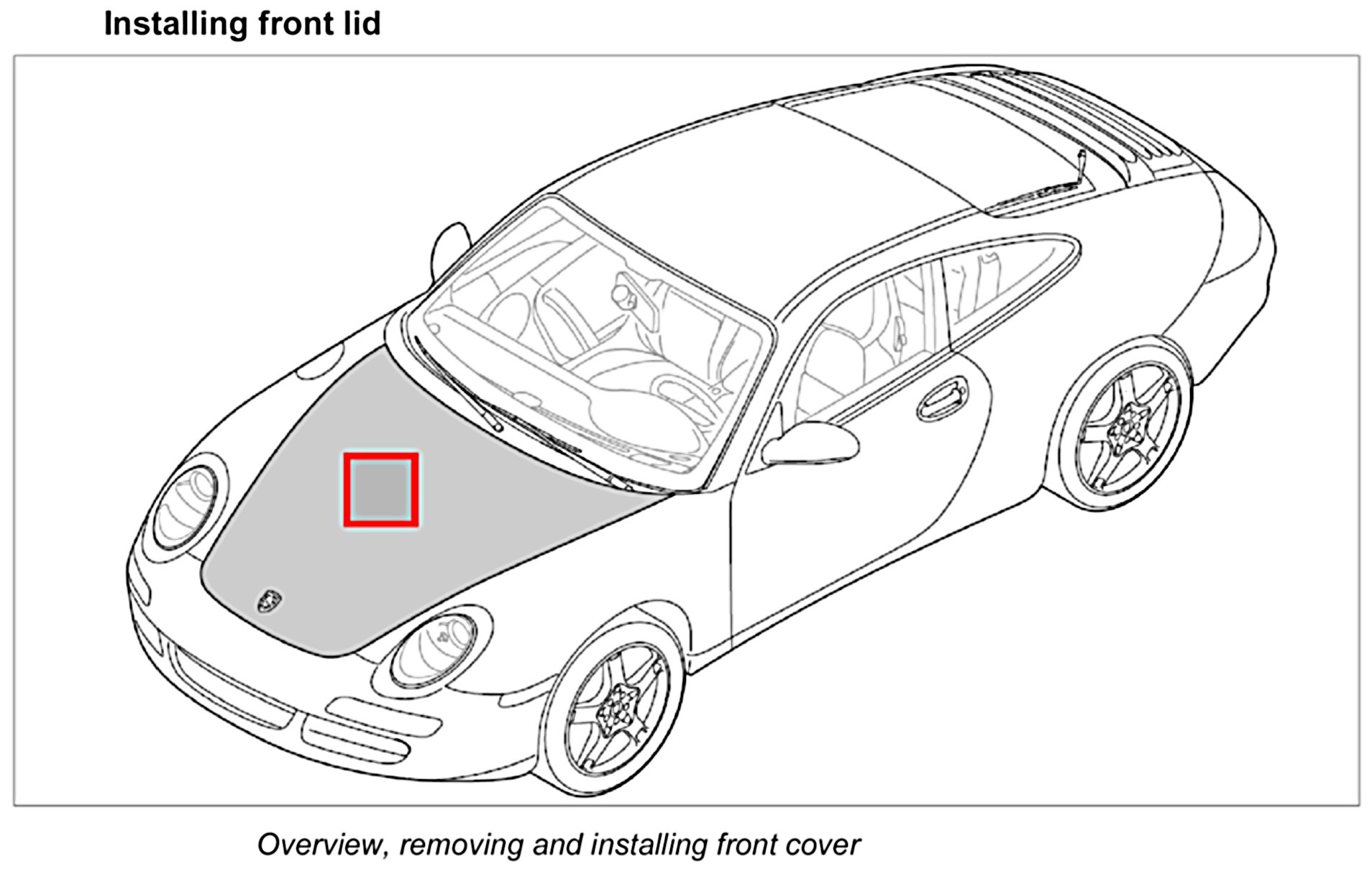

Installing front lid






1. Position lid -2- at the left and right hinges and tighten using the fastening screws -1-.

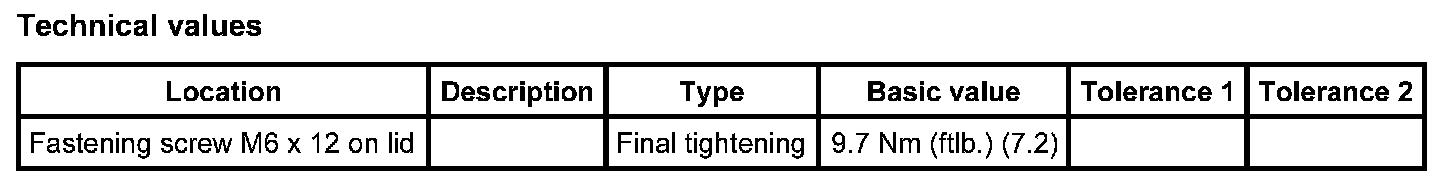

Tightening torque - Final tightening: 9.7 Nm (ftlb.) (7.2)






Reworking
Adjust front lid.
