Removing and Installing Tail Light

943119 Removing And Installing Tail Light

Removing tail light

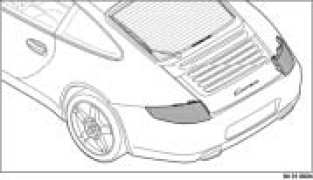

Installation position:

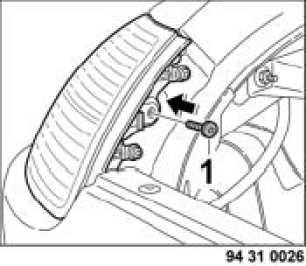

Unscrewing fastening screw:

1. Unscrew the fastening screw -1- for the tail light.

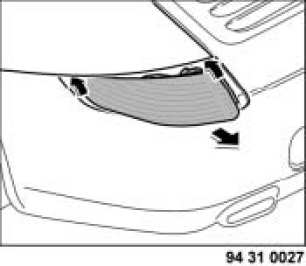

Removing tail light from guide:

2. Lift the tail light at the bottom and remove from the guide.

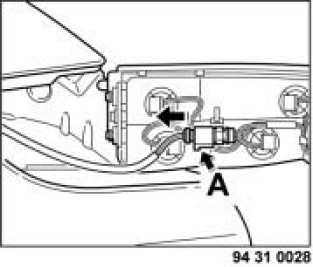

Releasing and pulling off connector:

3. Release the electric central connector for the tail light -A- and pull it off.
4. Remove tail light.

Installing tail light

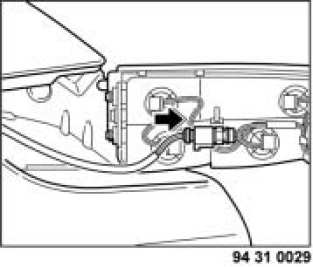

Connecting connector:

1. Push the central connector for the tail light together until the connector is felt to engage.
2. Push the electric lead into the rear wing and insert the tail light into the guide.

Tightening fastening screw:

3. Secure the tail light with the fastening screw -1-. Tightening torque 7.2 ftlb.

Information

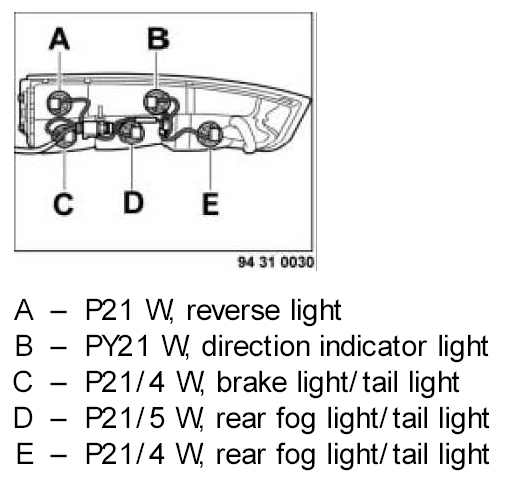

Lamp overview: tail light
