Removing and Installing PCM Display and Control Unit
Removing And Installing PCM Display And Operator Control Unit

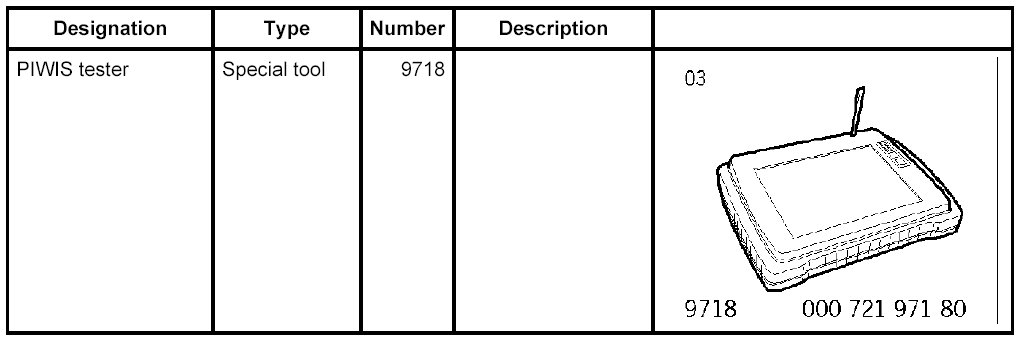

Tools
Preliminary work
Preliminary work for PCM display and operator control unit
Remove both covers on centre console.
Removing PCM display and control unit
Removing display for the PCM operator control unit
Switch off ignition and remove ignition key.
1. Loosen the side fastening screw a few turns.
2. Insert a hexagon-socket wrench sideways into the screw connection of the PCM detent hooks.

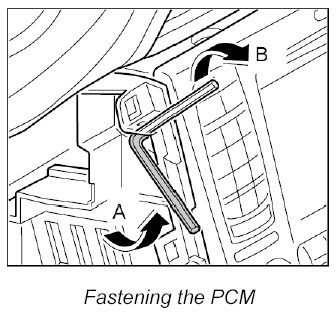

3. Close the detents (2 each side) with an Allen key -A- and carefully pull out the PCM.
4. For reinstallation, open the detents with the hexagon-socket wrench -B-.
The number of plug connections will vary, depending on the I No. (CD changer, amplifier, etc.).
The variant without additional audio components (external Most control units) has a jumper (output to input) connected to the optical waveguide plug.
5. Unlock antenna plug -D, E- and remove.
6. Unlock and disconnect the electrical plug connections in the order -A, B, C-.
Installing PCM display and control unit
Installing display and PCM operator control unit
1. Push on the electrical plug connections for the display and operator control unit in the sequence -C, B, A- and the antenna amplifiers -D, E- until the plugs are felt to engage.
2. Check that the locking tabs on the PCM are out, open the lock with an Allen key if necessary.
INFORMATION:
- Before sliding the PCM/radio into the installation slot, make sure that the electric lines are not trapped by the PCM/radio or damaged.
- After installation of a new display and PCM/radio operator control unit, the system must be activated with the PIWIS tester 9718.

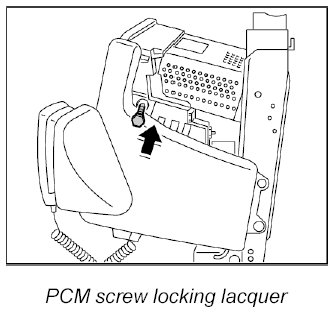

3. Push the navigation unit into the installation slot until the locks engage on the PCM housing.

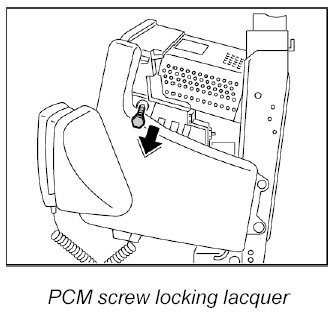

4. Screw in the locking screw for the PCM and tighten it.
Subsequent work
Subsequent work for PCM display and operator control unit
Install both covers on centre console.
Reading out PCM display and control unit
Reading from and writing to the PCM display and operator control unit
INFORMATION:
- When installing a new PCM/CDR in a vehicle, the PCM/CDR code specified in the PIWIS Infosystem should be available. Normally, the code is stored in the instrument cluster and is read out from the PCM/CDR.
- You can get the codes from the PIWIS Infosystem or from your importer by specifying the vehicle identification number.
- During coding, there should be a guaranteed power supply for the PIWIS Tester 9718. A battery charger with a current rating of at least 40 A must be connected to the vehicle battery.
- The PIWIS Tester 9718 instructions take precedence and in the event of a discrepancy these are the instructions that must be followed. Deviations may occur with later software versions.
- The procedure described here has been structured in general terms; different text or additions may appear in the PIWIS Tester 9718.
1. PIWIS Tester 9718 must be connected to the vehicle. Start the PIWIS Tester. Switch on ignition and press >>.
2. Select the vehicle type.
3. Press the >> key to move from the vehicle type to the list of control units.
4. Select PCM MMI using the cursor keys and press >>.
5. In the PCM MMI menu, select Control unit replacement using the cursor keys and press >>.
6. Select Read coding data using the cursor keys and press >>.
7. The PIWIS Tester screen displays the message Coding is being read out >>.
8. Switch off ignition and replace the PCM.
9. Switch on ignition and press << to return to vehicle type. For the control units, select Special functions and start the vehicle handover by pressing F8.
10. Read out and erase all fault memories.
11. Press >> to switch from the vehicle type to the list of control units.
12. Select PCM MMI using the cursor keys and press >>.
13. In the PCM MMI menu, select Control unit replacement using the cursor keys and press >>.
14. The data that was read out (see Step 7) is installed under the Write coding menu. Press >>.
15. The PIWIS Tester displays the message Coding being written >>.
16. In the PCM MMI menu, select Actual & nominal configuration using the cursor keys and press >>.
17. Compare the Actual/Nominal listing. Press F8 to start mapping. All installed audio components are now listed with a plus sign under Actual/Nominal.
18. Read out the fault memory again and erase it if necessary.
19. PCM is now taught.
Programming PCM display and control unit
Programming the display and operator control unit
INFORMATION: The procedure described must be applied when a control unit has to be replaced and the tester function Control unit replacement cannot be used.
1. Connect the PIWIS tester 9718 to the vehicle and start it. Switch on the ignition. >> Continue.
2. Switch on ignition << return to vehicle type, for the control units select Special functions and start the vehicle handover with F8.
3. Read out and erase all fault memories.
4. Switch from the vehicle type to the list of control units >>.
5. Select PCM and press the >>.
6. In the menu PCM, select PCM2 MMI und press the >>.
7. Select Control unit replacement with the cursor keys and press the >> key.
8. Select Write coding and write in the coding. (Even if no coding data was read out, the required data is loaded for the control unit.)
9. Select Coding and press >>.
10. Select Equipment and press >>.
The following codings can be performed:
INFORMATION:
- When installing a new PCM/CDR in a vehicle, the PCM/CDR code specified in the PIWIS information system should be available. Normally, the code is stored in the instrument cluster and is read out from the PCM/CDR.
- You can get the codes from the PIWIS info system or from your importer by specifying the vehicle identification number.
- During coding, it is essential to guarantee the power supply for the PIWIS Tester 9718. A battery charger with a current rating of at least 40 A must be connected to the vehicle battery.
- The PIWIS Tester 9718 instructions take precedence and in the event of a discrepancy these are the instructions that must be followed. Deviations may occur with later software versions.
- The procedure described here has been structured in general terms; different text may appear in the PIWIS Tester 9718 or additional information/steps may be displayed or required.
11. If the PCM code is not displayed with an *, then select the PCM code, enter, and code with F8.
12. Select Country coding and the relevant country, and code with F8.
13. Select Vehicle type vehicle coding and code with F8.
Vehicle type vehicle coding
911 (997)
Boxster (987)
14. Select Vehicle version vehicle coding and code with F8.
Vehicle version vehicle coding
Coup�
Cabriolet
Targa
15. Select Air conditioner and code with F8.
Air conditioner
Without air conditioner
With air conditioner
16. Select Units and code with F8.
Units
RoW (°C, litre, km)
UK (°C, gal, mph)
USA (°F, gal, mph)
17. Select Right/left-hand drive vehicle coding and code with F8.
Right/left-hand drive vehicle coding
Right-hand drive
Left-hand drive
18. Select Windscreen wiper/washer system and code with F8.
Windscreen wiper/washer system
Not present
Present
19. Select Rain sensor and code with F8.
Rain sensor
Not present
Present
20. Select Electronic air conditioner and code with F8.
Electronic air conditioner
Not installed
Installed
21. Select Daytime driving lights and code with F8.
Daytime driving light
Not installed
Installed
22. Select ASK amplifier and code with F8.
ASK amplifier
Not installed
Installed
23. Select Adjustability of orientation light and code with F8.
Adjustability of orientation light
Not installed
Installed
24. Select Multi-function steering wheel and code with F8.
Multi-function steering wheel
Not installed
Installed
25. In the other submenus (e.g. Porsche Assistance, Additional and freely-selectable codes, e.g., Sport watch) of Coding, further customer-specific settings can be selected and coded in the same way.
26. In the menu PCM MMI, change to MOST actual installed components list; here a version installed in the vehicle (e.g. CD changer) must be displayed
27. Change to MOST required installed components list; here too the same version (e.g. CD changer) must be displayed - if this is not the case, select the version and code with F8.
28. Select Required & Actual configuration and press the >>.
29. Compare the Actual/Required listing. Use F8 to start Mapping. All installed audio components must now be listed with a plus under Actual/Required. If this is not the case, the versions in the MOST actual installed components list or MOST required installed components list must be coded manually.
30. Use << to quit the menu PCM MMI and change to the menu PCM GW.
In the menu PCM GW:
31. Select Coding and press the >>.
32. Select Vehicle equipment vehicle coding and code with F8.
33. Select Vehicle type vehicle coding and code with F8.
Vehicle type vehicle coding
911 (997)
Boxster (987)
34. Select Vehicle version vehicle coding and code with F8.
Vehicle version vehicle coding
Coup�
Cabriolet
Targa
35. Select Air conditioner and code with F8.
Air conditioner
Without air conditioner
With air conditioner
36. Select Right/left-hand drive vehicle coding and code with F8.
Right/left-hand drive vehicle coding
Right-hand drive
Left-hand drive
37. Select Tuner parameters and code with F8.
Tuner parameters
Europe
USA
South America
Australia
Asia
(South) Africa
Japan
38. Press << to quit the menu PCM.
39. Read out fault memory of all control units and erase if required.
40. PCM is now taught.
41. If the PCM/vehicle equipment does not have a DVD navigation unit, then adjust the time/date using the SET button on the PCM and in the menu PCM system.
42. For vehicle equipment with DVD navigation unit, switch on the PCM in clear surroundings (to load GPS almanac); as soon as four satellites are identified the almanac will reload. The time is updated again when there is a plausible GPS reception (four satellites). The date and time are also adopted once the GPS almanac has been loaded; it may be necessary to change over to summer time (daylight-saving time). This time is transferred to the instrument cluster. If the time is then manually changed by means of the instrument cluster, this time is adopted by the PCM and synchronised with GPS time.
43. For vehicle equipment with telephone, the telephone is enabled again when the telephone PIN code is entered with the SIM telephone card inserted.
