Heating and Air Conditioning

Technical Data For The Air-conditioning System

Compressor type 7 SB 16

Refrigerant quantity 900 g refrigerant R 134a
Refrigerant oil in the compressor 195 ± 15 cb.cm ND 8

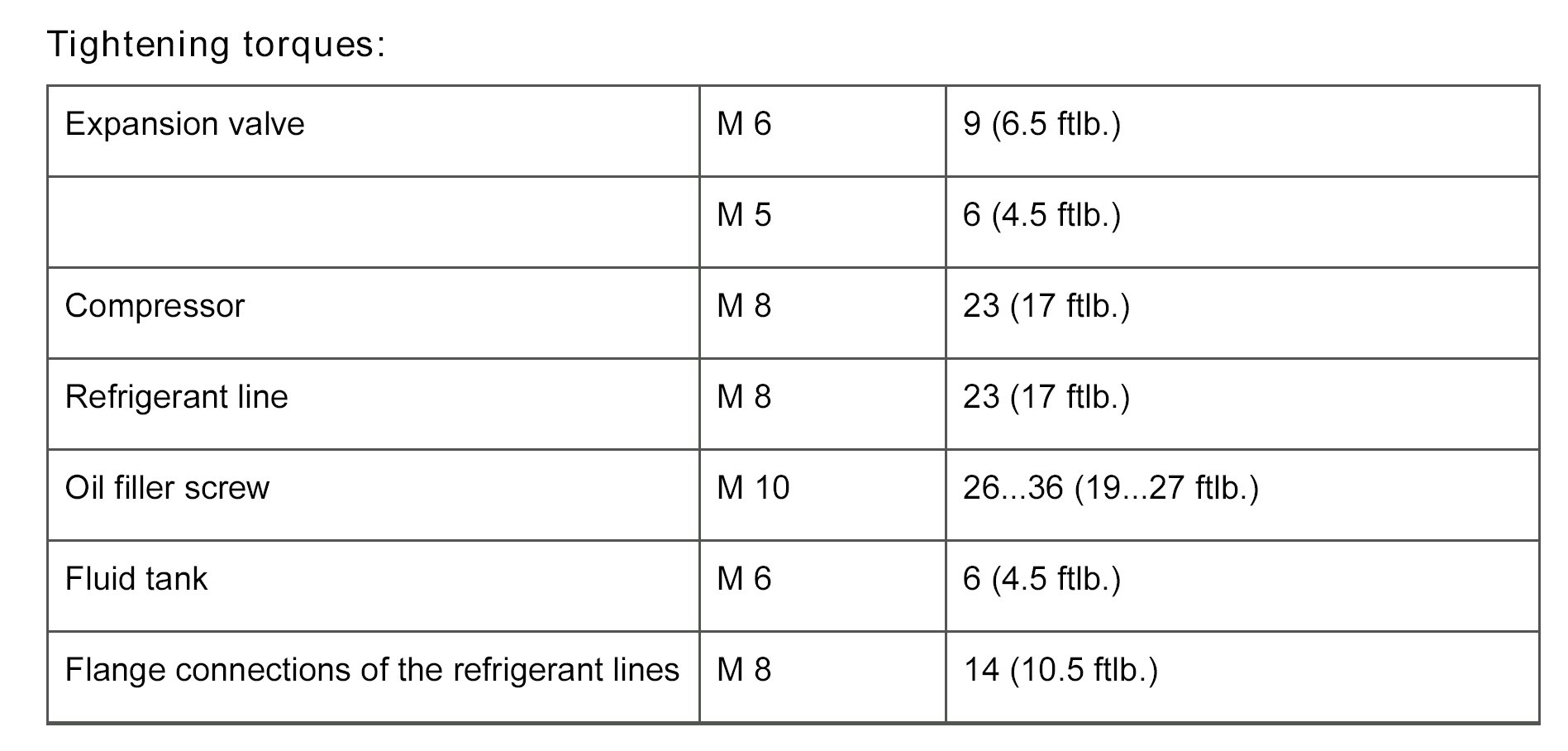

Tightening torques:







NOTE: When installing the refrigerant lines, the screw connections and the O-rings must be wetted with refrigerant oil.

The refrigerant oil must be disposed of as special-category waste.
