Removing and Installing Hardtop

Removing And Installing Hardtop

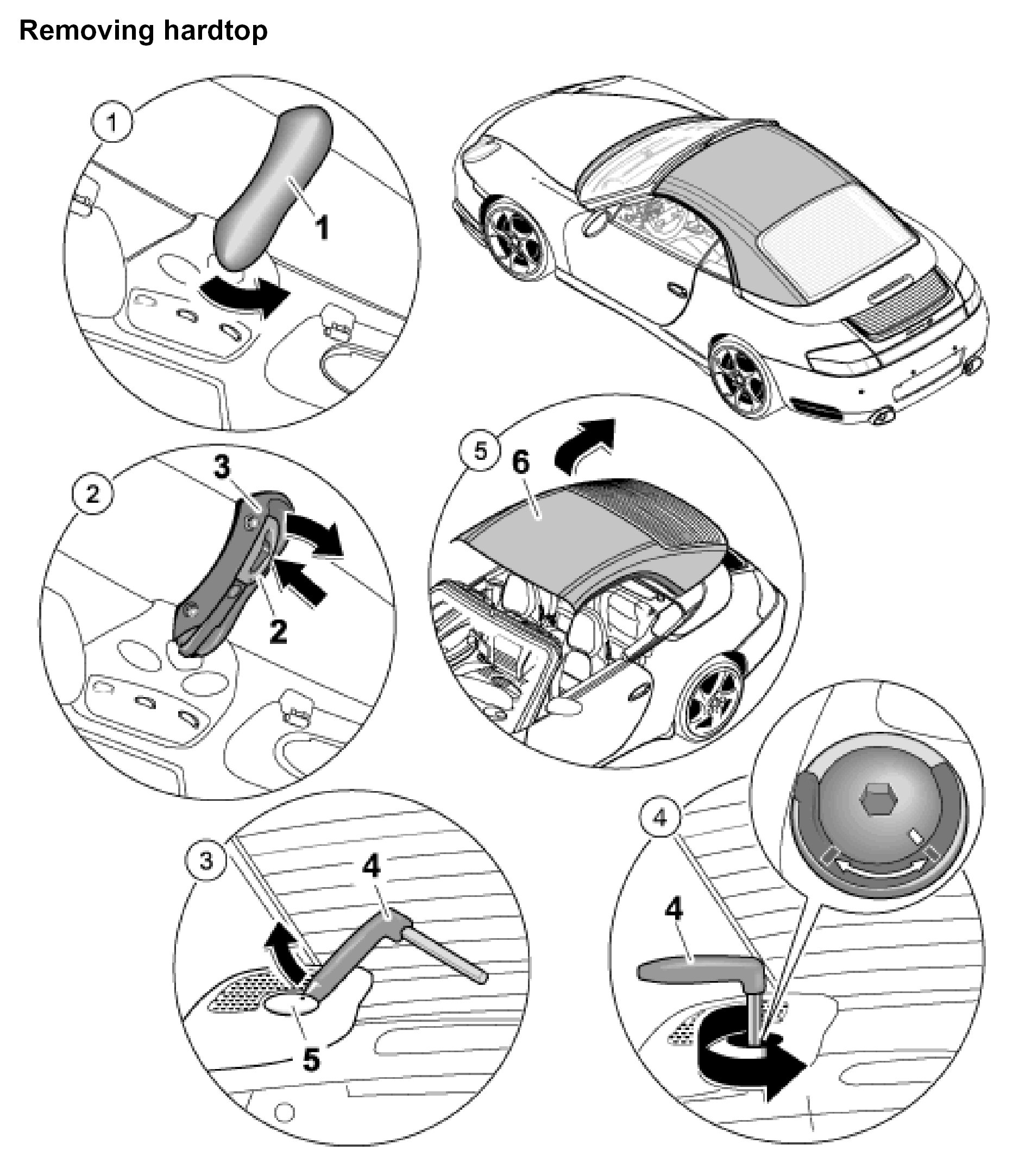

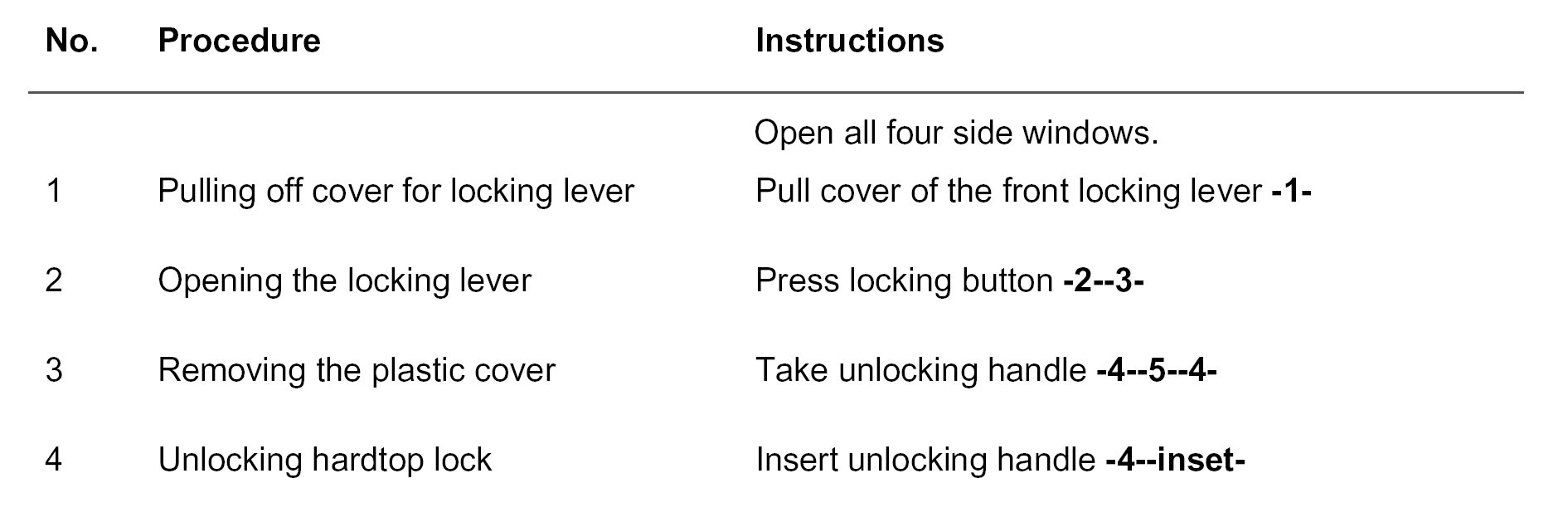

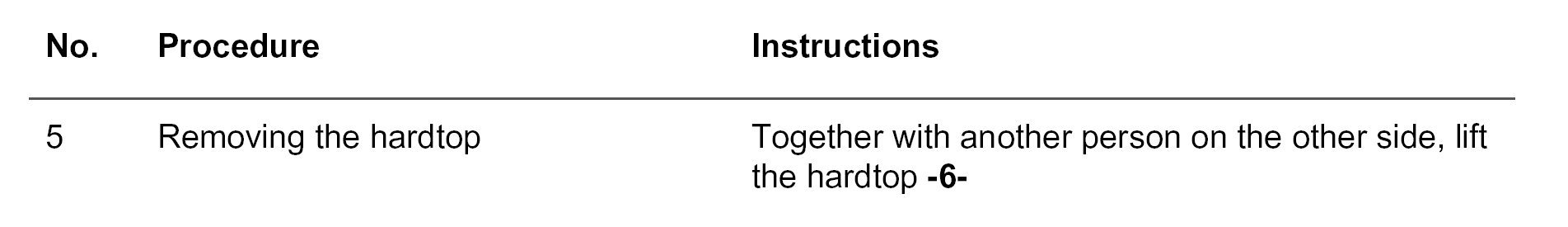

Removing hardtop










CAUTION:
- Hand can be trapped between the hardtop and convertible top compartment lid.
- Evenly lift the hardtop at both sides.

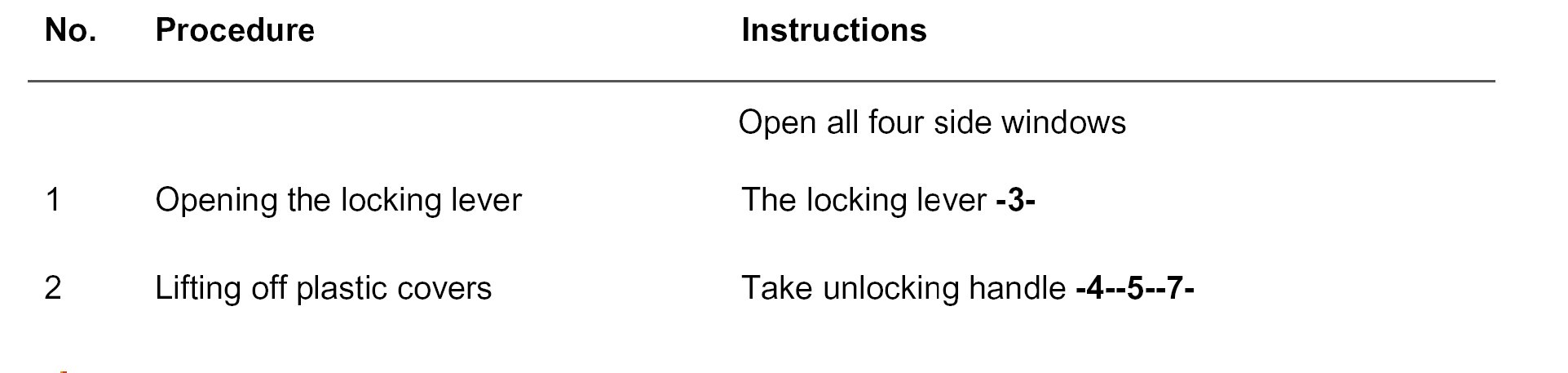

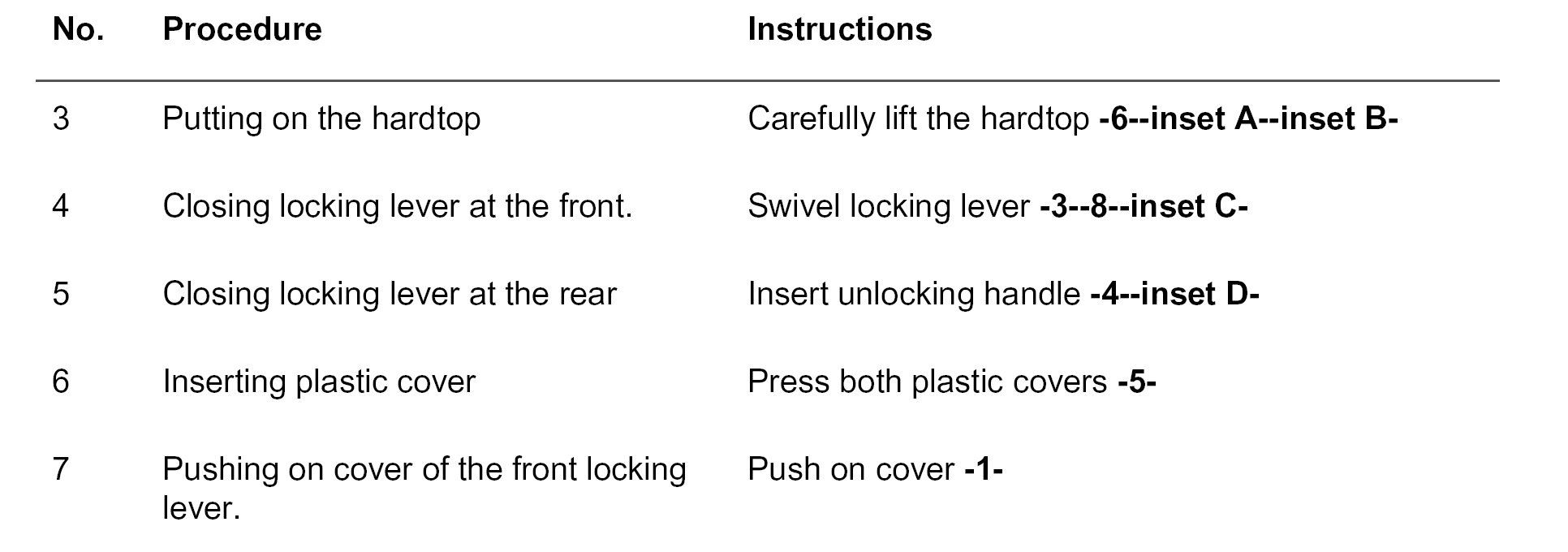

Installing hardtop










CAUTION: The hardtop lining and windstop can be damaged.
- Remove the windstop before fitting the hardtop.
