Instrument Cluster / Carrier
>>
Connector Assignment
Connector Assignment

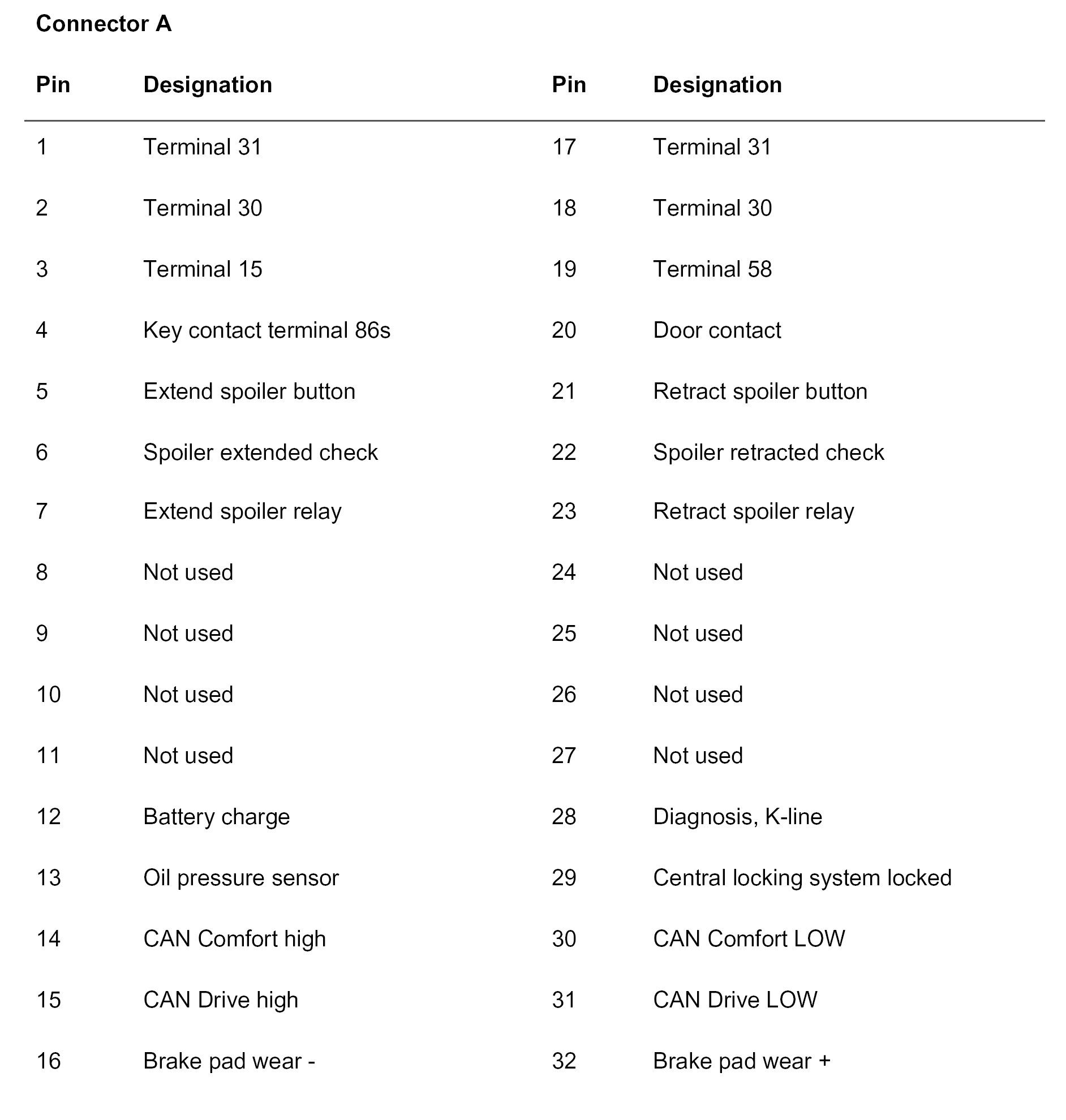

Connector Assignment (Part 1):

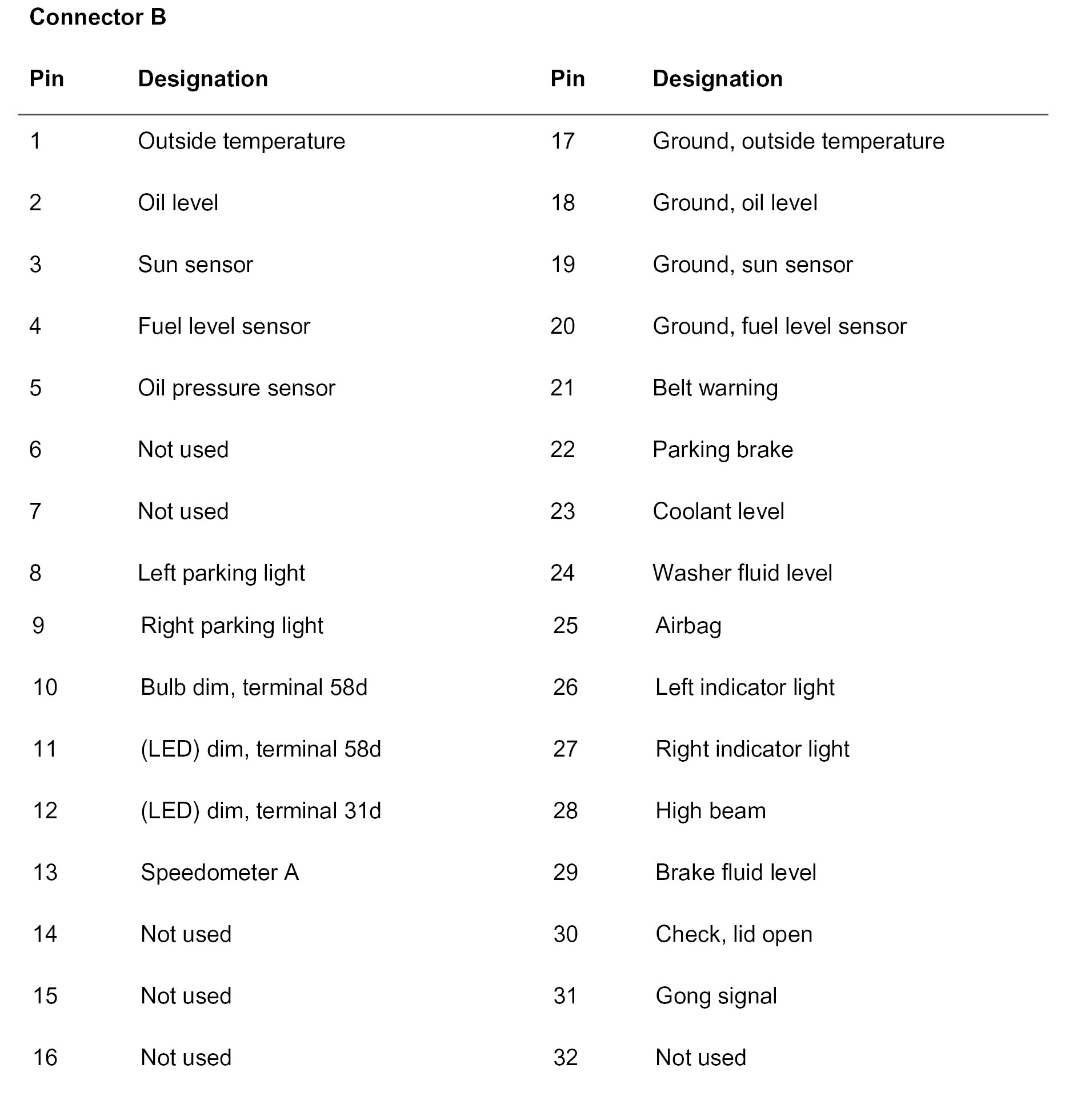

Connector Assignment (Part 2):

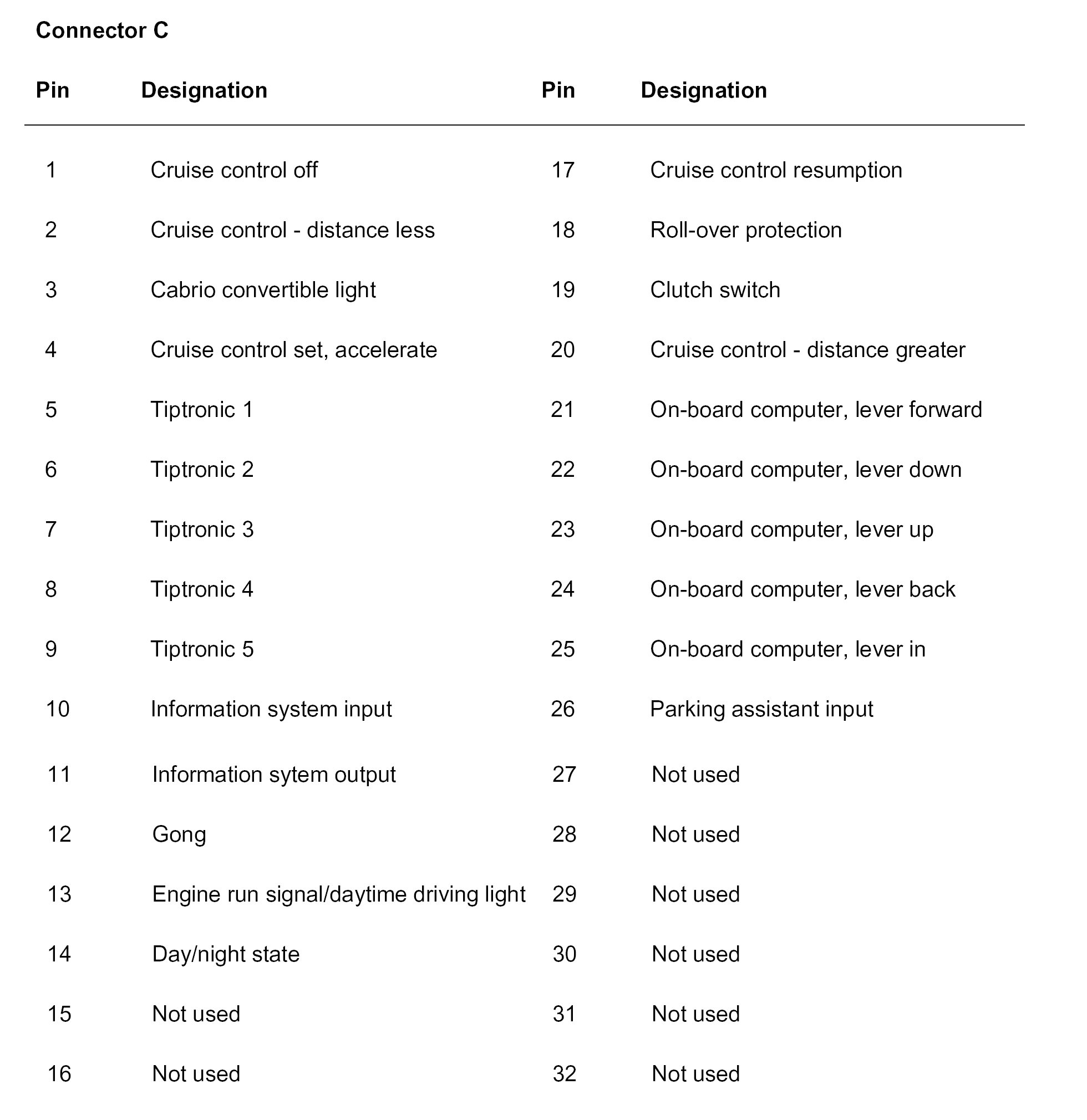

Connector Assignment (Part 3):
Connector Assignment (Part 4):
