911 Targa (996) F6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Restraints and Safety Systems
>>
System Diagram
>>
Passenger Protection - I
Passenger Protection - I

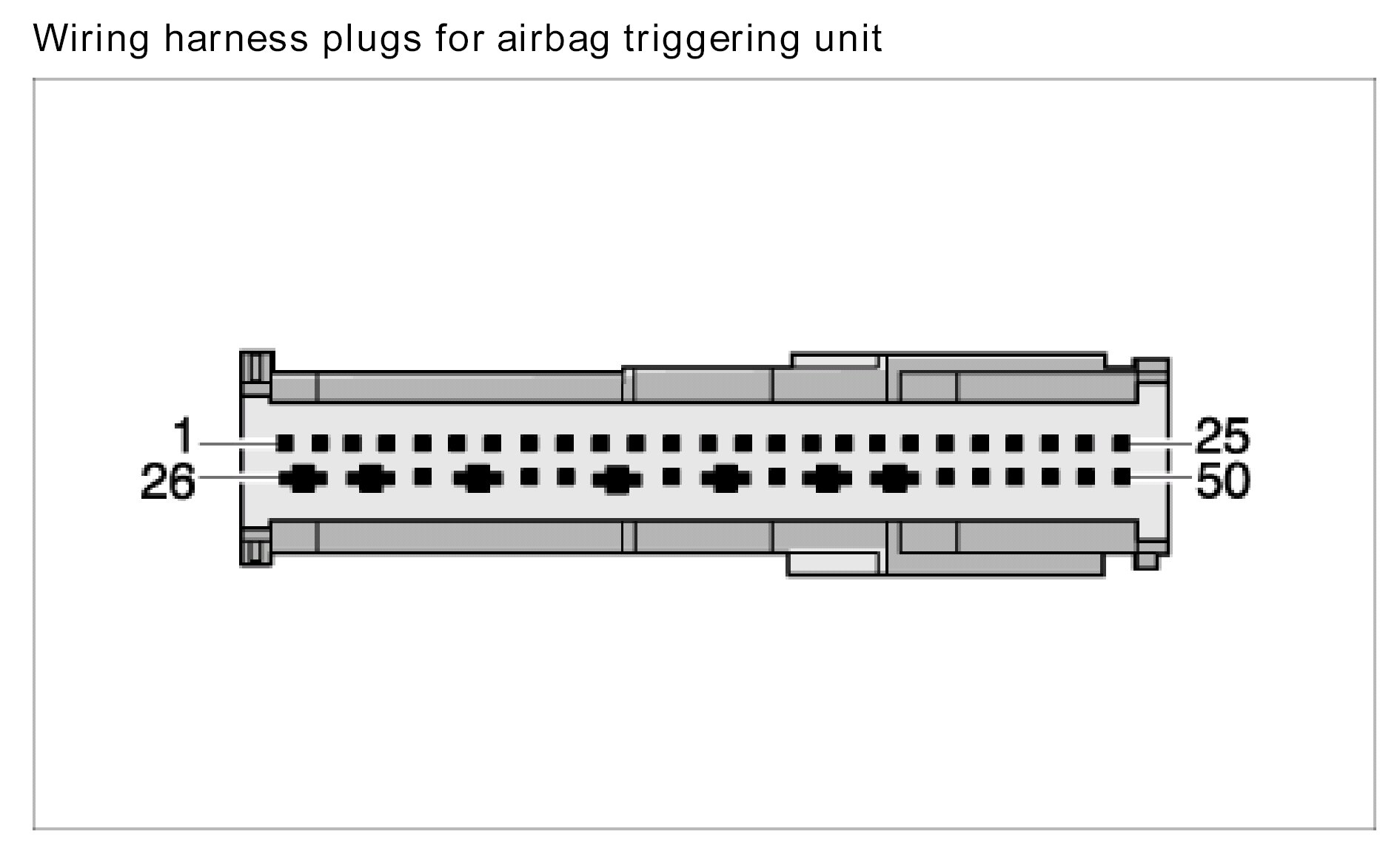

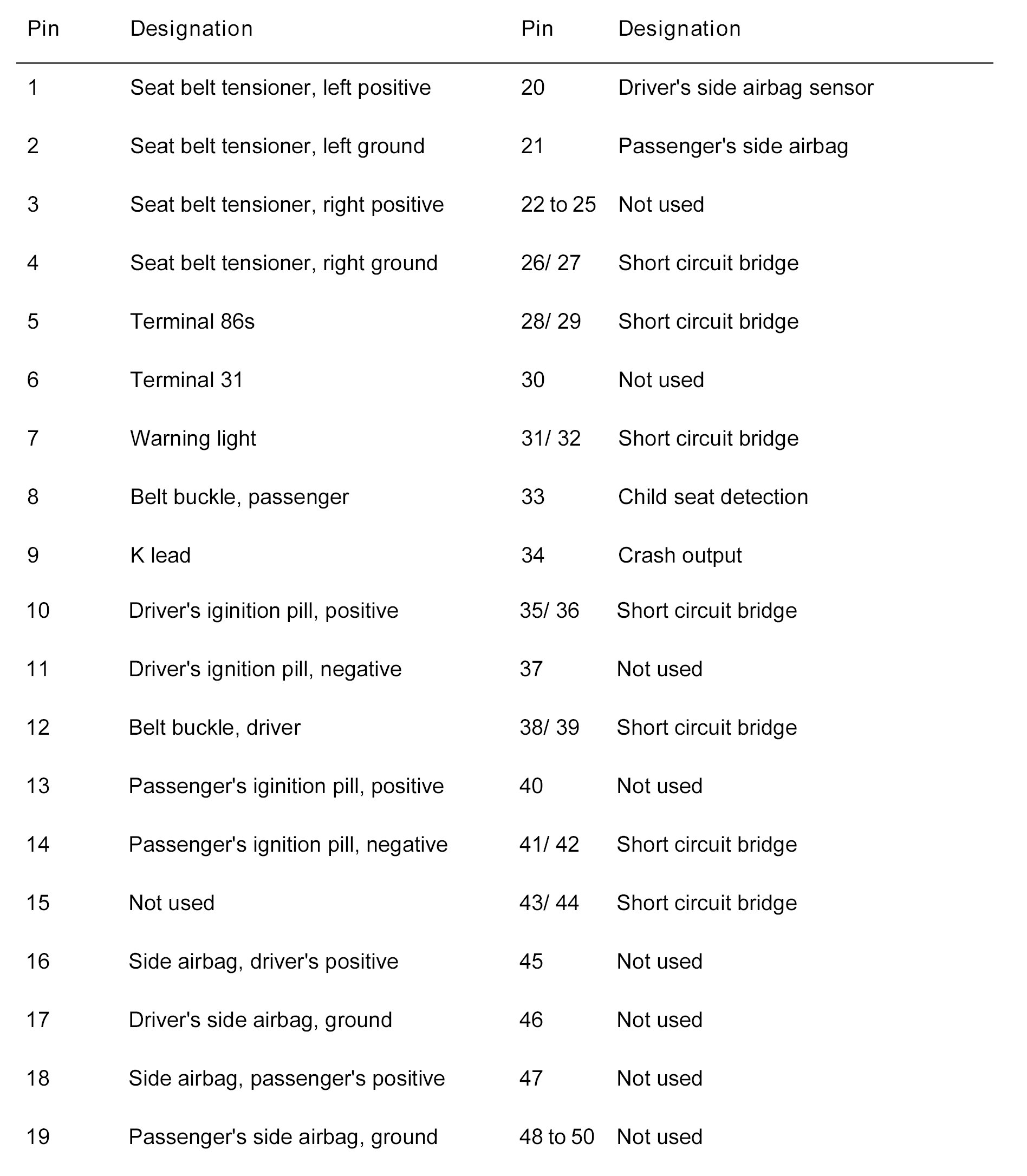

Connector Assignment (Part 1):
Connector Assignment (Part 2):
