Pinout Values and Diagnostic Parameters

Connector Assignment, - As Of MY 2002

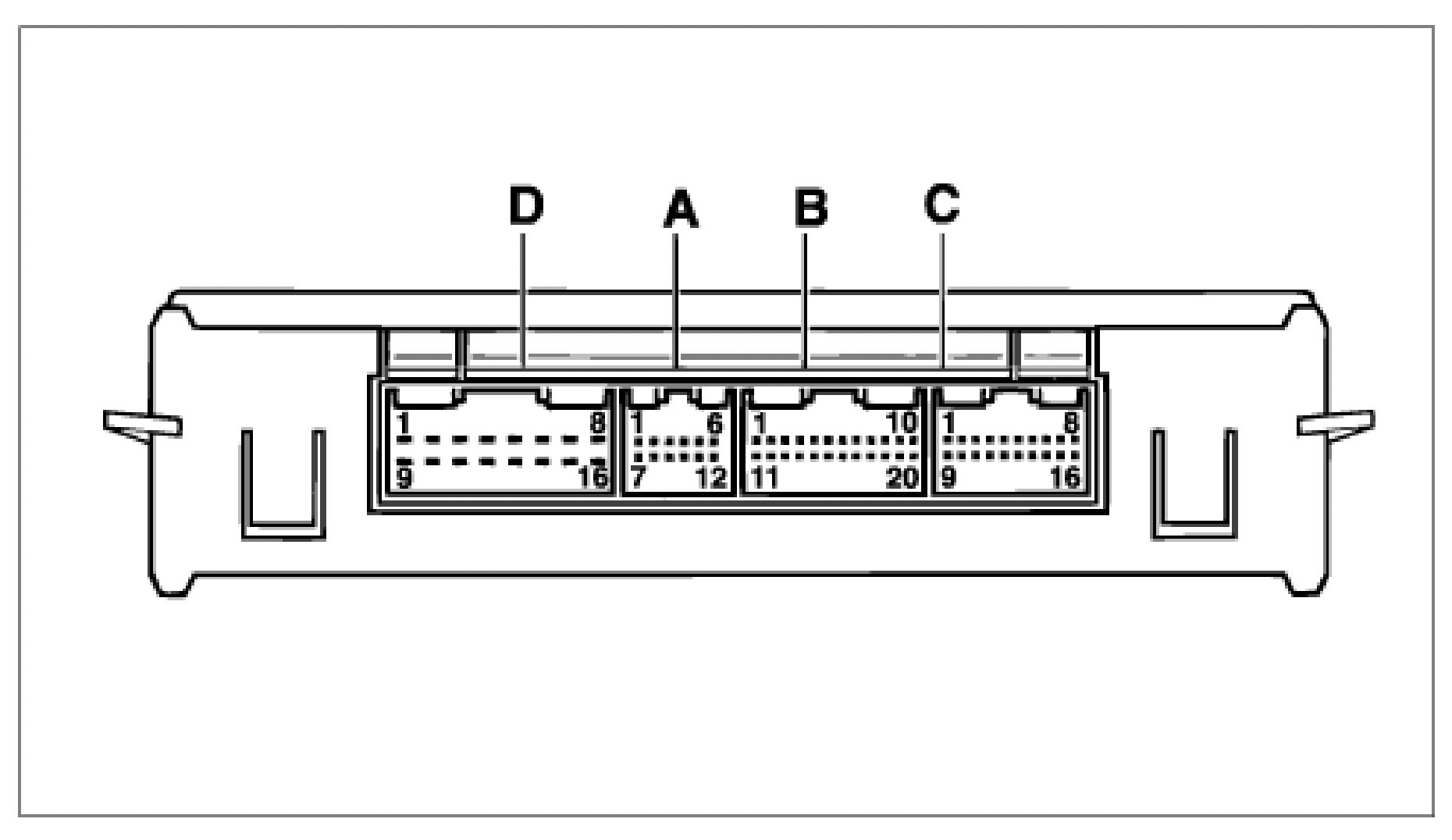

Connector assignment for air-conditioning control module

NOTE:
- The two connectors, A and C, are replaced by networking (used by CAN-Comfort Bus).
- The signals required for function or control are exchanged via the CAN Bus lines CAN Comfort high and CAN Comfort low.

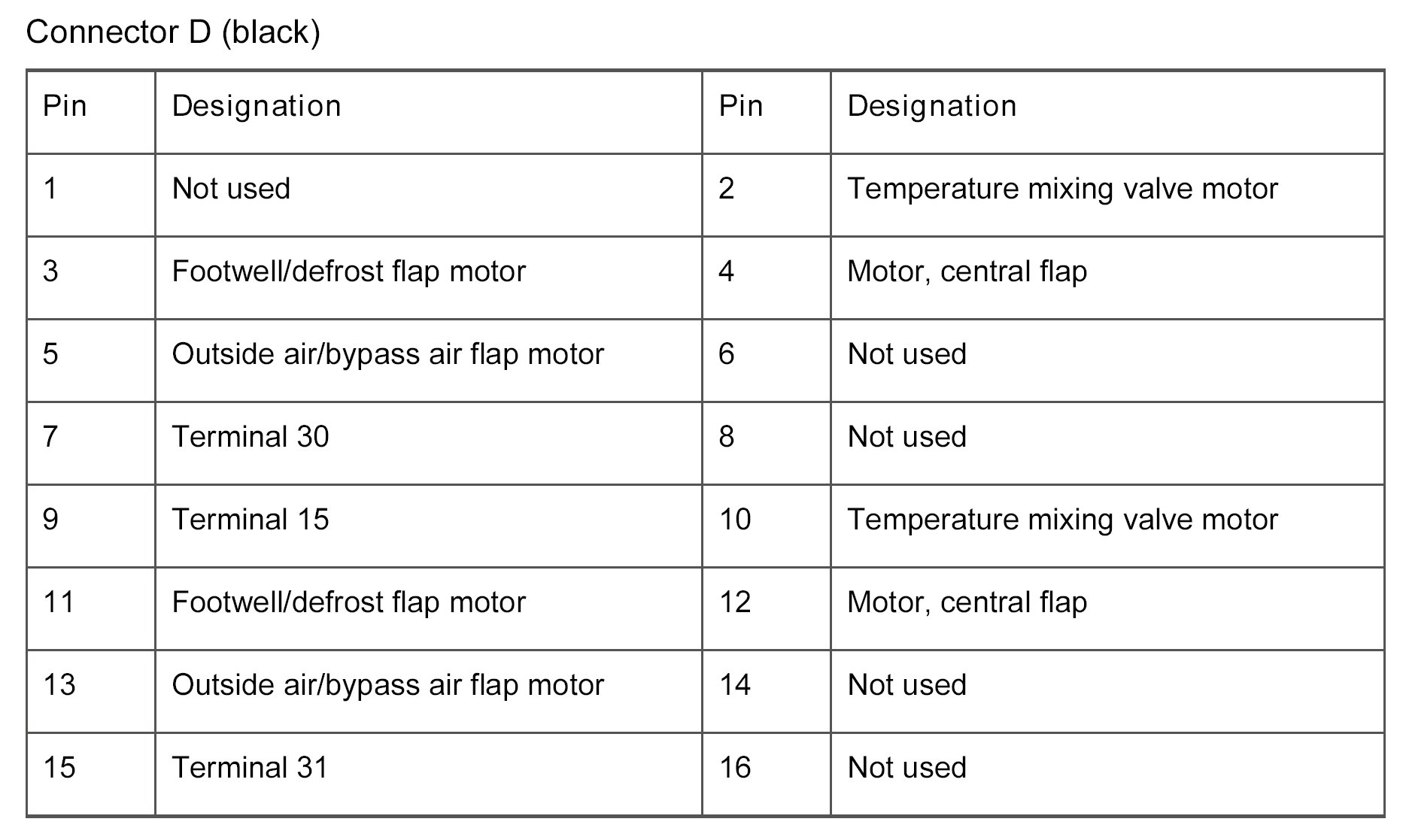

Connector Assignment, - As Of My 2002 (Part 1):

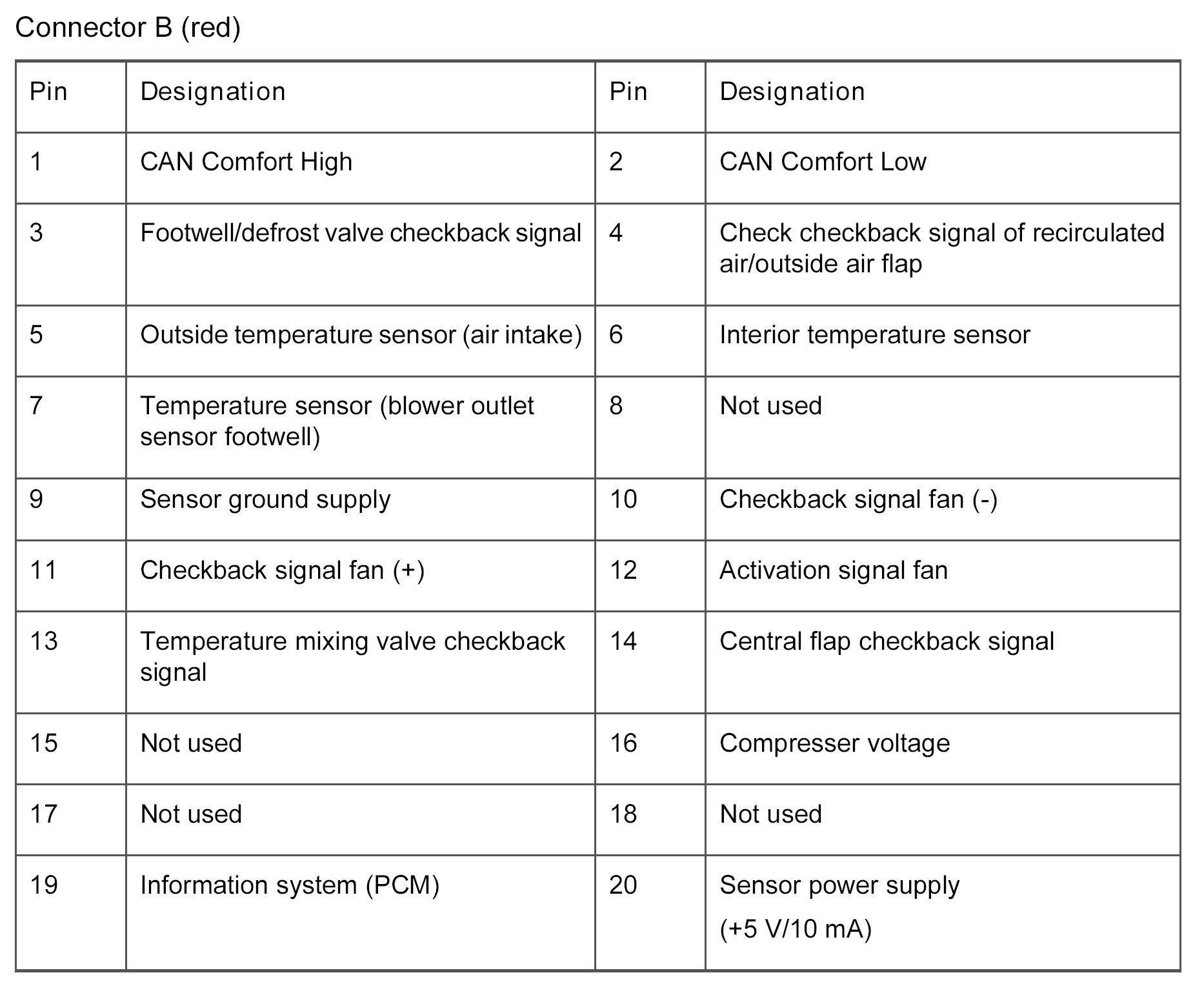

Connector Assignment, - As Of My 2002 (Part 2):

Connector Assignment, - As Of My 2002 (Part 3):
