Assignment of Spoiler Drive, Relays and Instrument Cluster

Assignment Of Spoiler Drive, Relays And Instrument Cluster

NOTE:
- In the case of the 911 Turbo (996), it is essential when replacing the spoiler drive, the relay no. 9 or the instrument cluster to note that only the variants listed in the table below can be installed together.
- Relay no. 9 is located on relay carrier 2.
- Variant 1 concerns the series launch vehicles up to production date 02.05.2000. This variant can no longer be installed. If the drive module is defective, a variant 2 module must be installed.
- Variant 2 concerns the vehicles as from production date 02.05.2000 up to the model change 2002. Instrument clusters with the index 01 can be installed as replacements for instrument clusters with index 00. Instrument clusters with index 02 are not suitable for replacing instrument clusters with index 01.
- Variant 3 as from model '02.

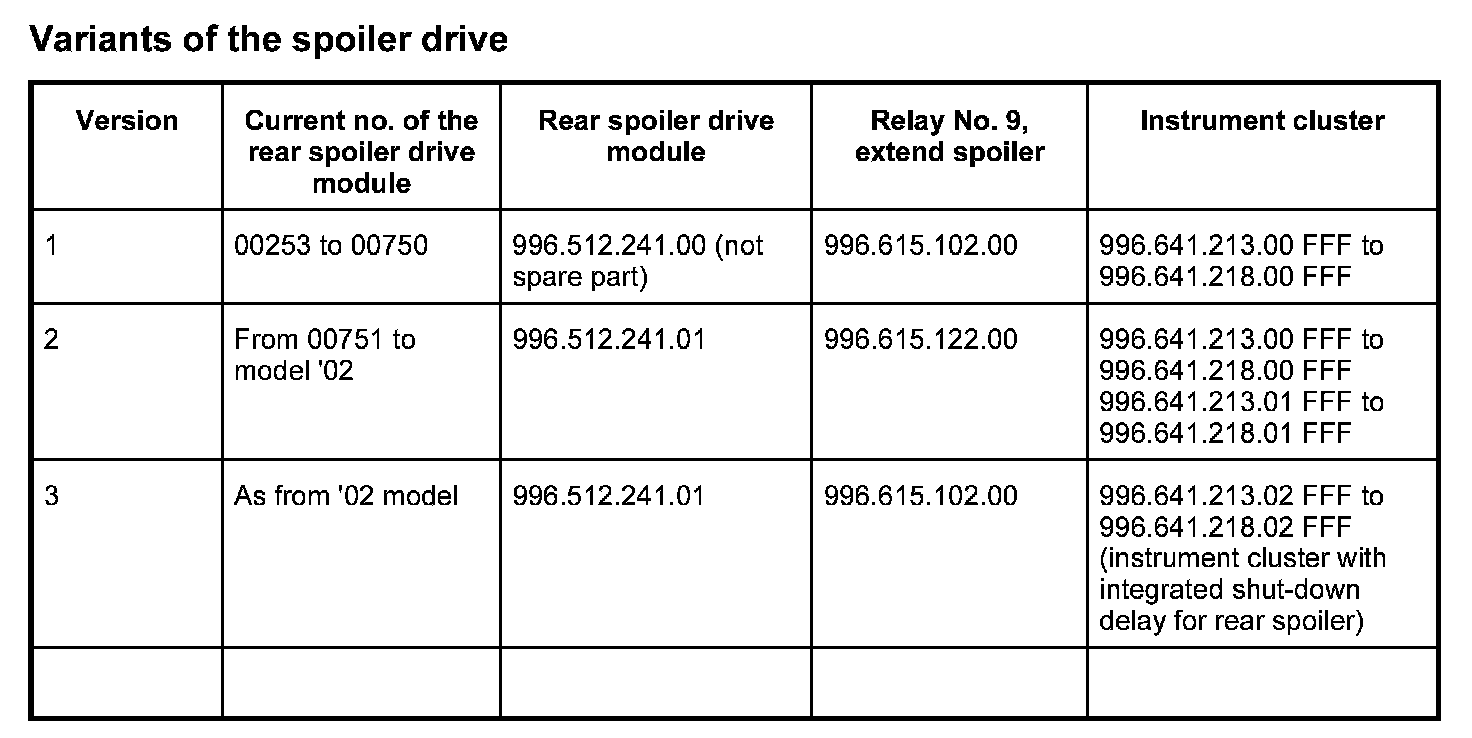

Variants of the spoiler drive
