Front Fender Liner: Service and Repair

WM 505619 Removing and installing front wheel housing liner

- Preliminary work

- Removing front wheel housing liner

- Installing front wheel housing liner

- Subsequent work

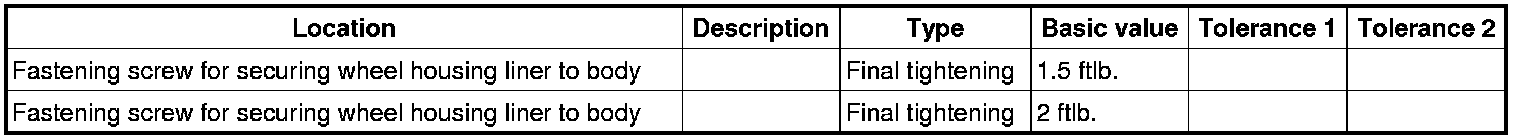

Technical values





Preliminary work

Preliminary work

Remove front wheel.

Removing front wheel housing liner

Remove front wheel housing liner - front section

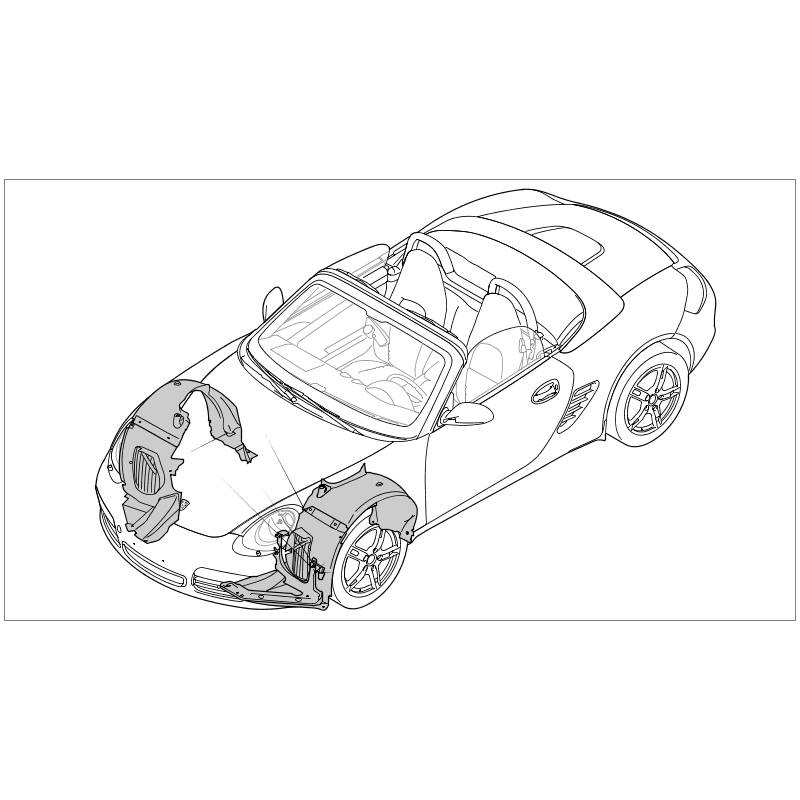

Installation position of front wheel housing liner

Information

The front part of the wheel housing liner can also be removed without disassembling the front wheels.

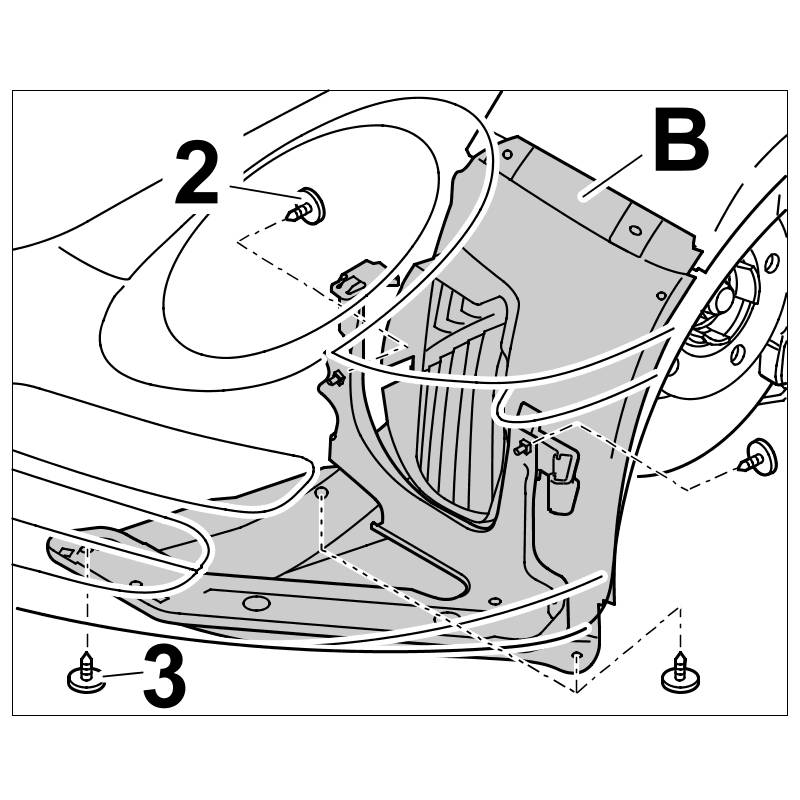

1. Unscrew fastening screws -2, 3- and remove wheel housing liner -B-.





Removing wheel housing liner part B

Installing front wheel housing liner

Install front wheel housing liner - front section





Installation position of front wheel housing liner

Information

- Push in wheel housing liner toward the outside up to contact in wing stop position.

- Ensure that the right wheel housing liner is guided through the opening on the wheel well.

1. Insert wheel housing liner -B-.





Fasten wheel housing liner part B

2. Screw in fastening screws -2- and tighten to the specified tightening torque-> Final tightening: 1.5 ftlb..
3. Screw in fastening screws -3- and tighten to the specified tightening torque-> Final tightening: 2 ftlb..

Subsequent work

Subsequent work

Fit front wheel.
