Removing and Installing Cover (Cold Air Bulkhead)



702219 Removing And Installing Cover (Cold Air Bulkhead)

Removing cover (cold air bulkhead)

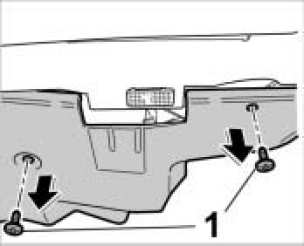

1. Unscrew both plastic screws -1- and remove the cover downwards -arrows-.


Removing Cover:






Installing cover (cold air bulkhead)

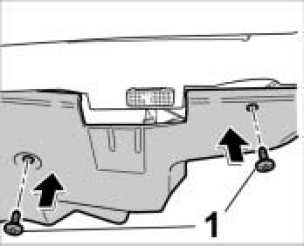

1. Position the cover from below -arrows- and screw in with the two fastening screws -1-.


Installing Cover:
