Disassembling and Assembling Remote Control

Disassembling And Assembling Remote Control

Disassembling remote control

INFORMATION: In the event of a complaint (remote control buttons too easily pressed), the silicone pad and buttons can be replaced with modified spare parts.

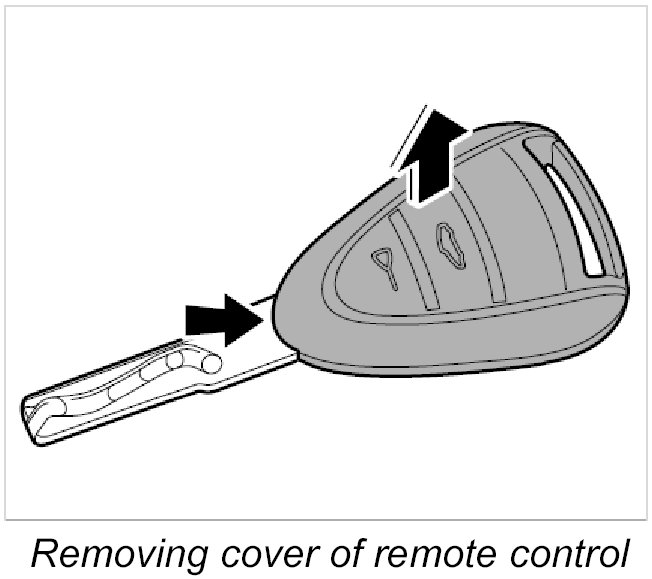

1. Insert a small screwdriver between the cover and the lower part of the remote control -arrow- and carefully lift the lid off.

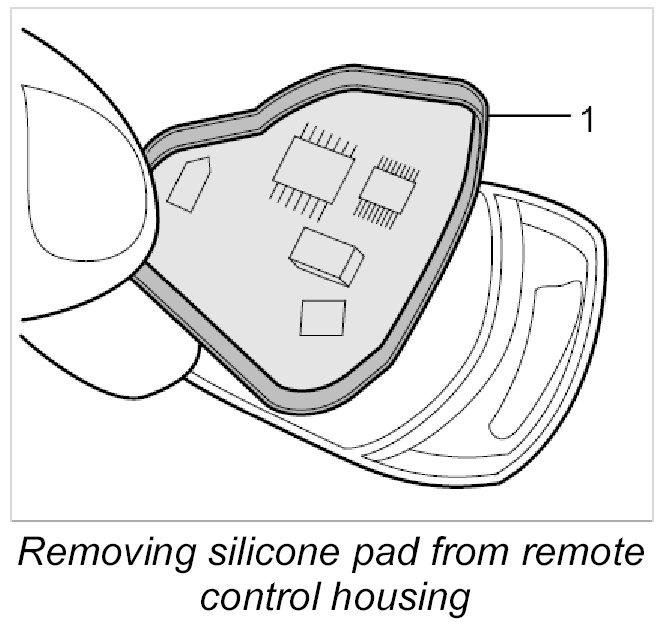

2. Remove silicone pad -1- with the printed circuit board (PCB) from the remote control housing.







3. Remove PCB -2- from the silicone pad -1-.

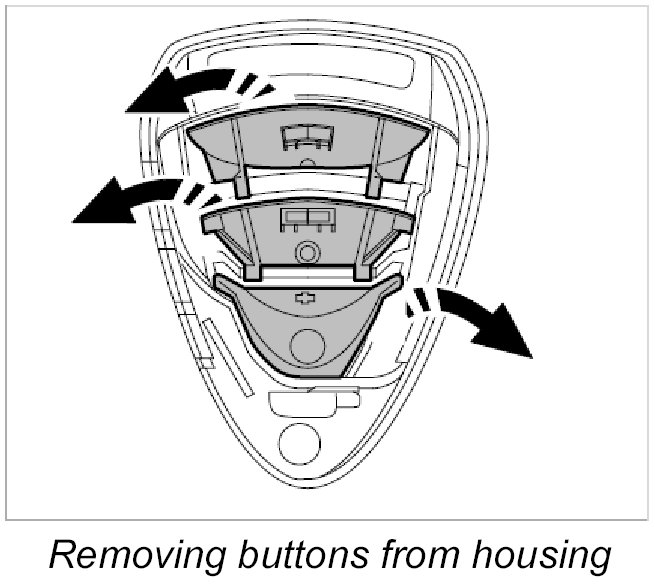

4. Lift up buttons (two or three, depending on the vehicle type) and pull them out of the remote control housing.

Assembling remote control

INFORMATION: In the event of a complaint (remote control buttons too easily pressed), the silicone pad and buttons can be replaced with modified spare parts.







1. Engage new buttons in the remote control housing.







2. Insert PCB -2- into the new silicone pad -1-.

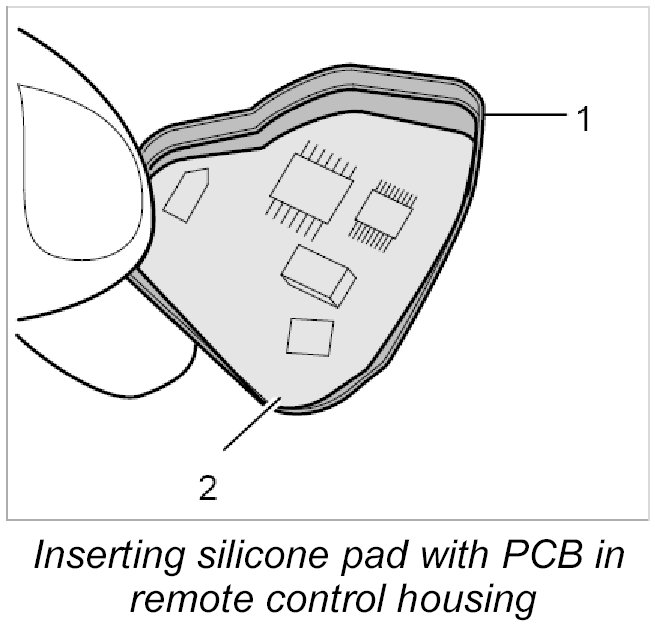

3. Insert silicone pad -1- with PCB into the remote control housing.







4. Position the cover on the bottom part of the remote control and press together until the cover clicks into place.
5. Test the remote control by pressing all the buttons one after the other.
