Mounting Roll-Over Bar On Assembly Fixture

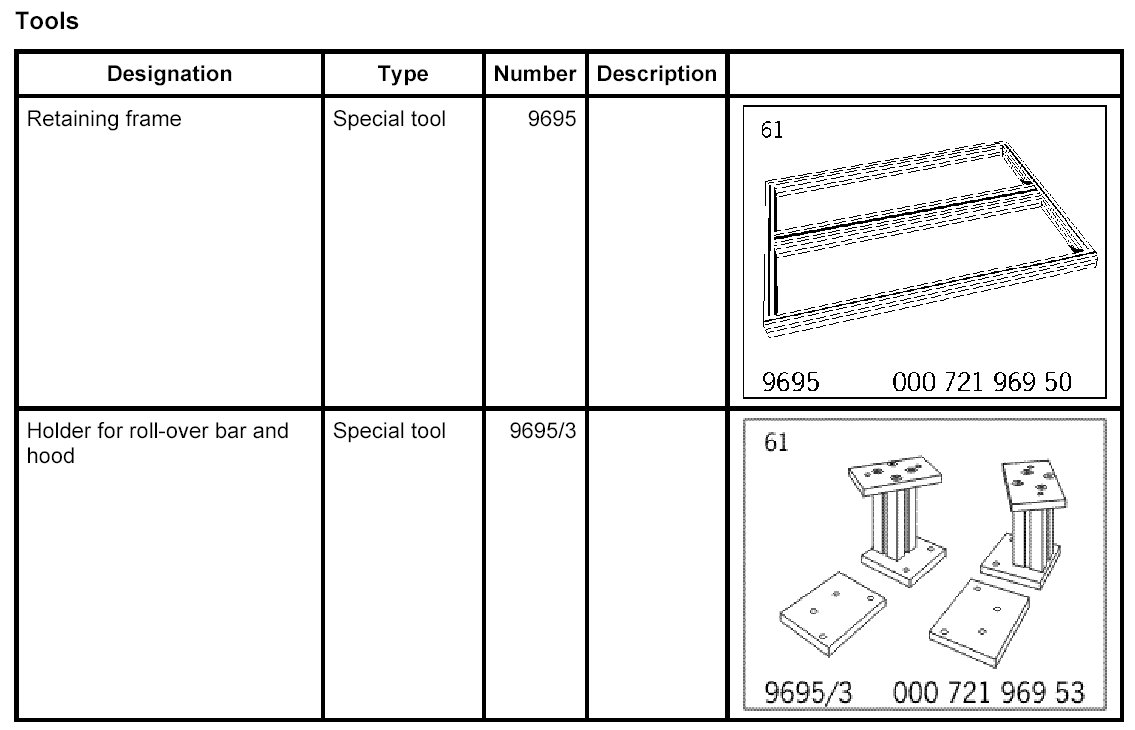

Tools







Technical values







Tools and materials

1. WE1082 Transmission Jack V.A.G 1383 A
2. Retaining frame 9695
3. Holder for roll-over bar and hood 9695/3

Mounting roll-over bar on assembly fixture

CAUTION: Risk of damage to roll-over bar when removed.
- Placing the roll-over bar on a level surface can damage it.
- Only work on the removed roll-over bar when the roll-over bar is mounted on the assembly fixture.







1. Get the assembly fixture ready.

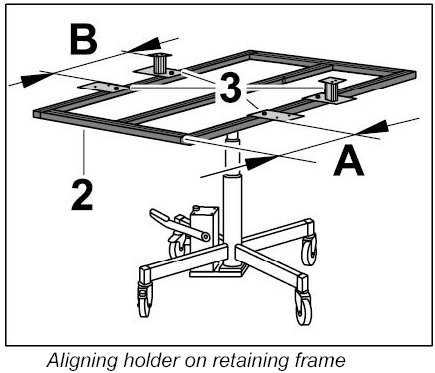

1.1. Insert retaining frame -2- into the transmission jack -1-.







1.2. Secure holder -3- on the retaining frame -2- at the positions shown using fastening screws and inlay nuts.
1.3. Align holder -3- on retaining frame -2- with dimension A: 600 mm and the dimension B: 315 mm ± 5 mm.

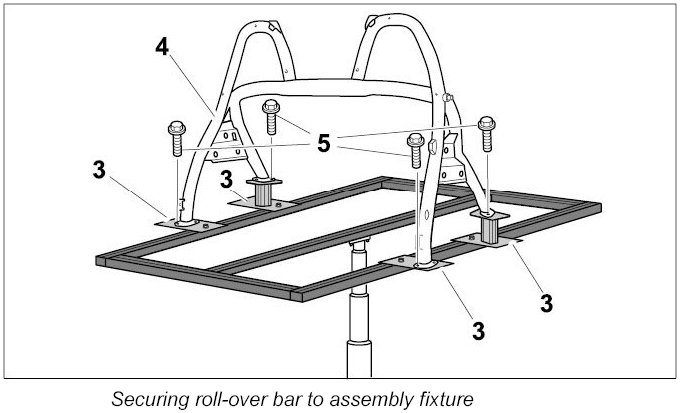

2. Secure roll-over bar to the assembly fixture.
2.1. Position roll-over bar -4- onto the holders -3- and secure with fastening screws -5- (M8 x 30).
