Removal and Replacement

WM 978409 Loosening and securing fuse box

Technical values





Preliminary work

Preliminary work for fusebox

Remove front left side section trim. -> 702419 Removing and installing front side section trim - section on "Removing"

Loosening fuse box

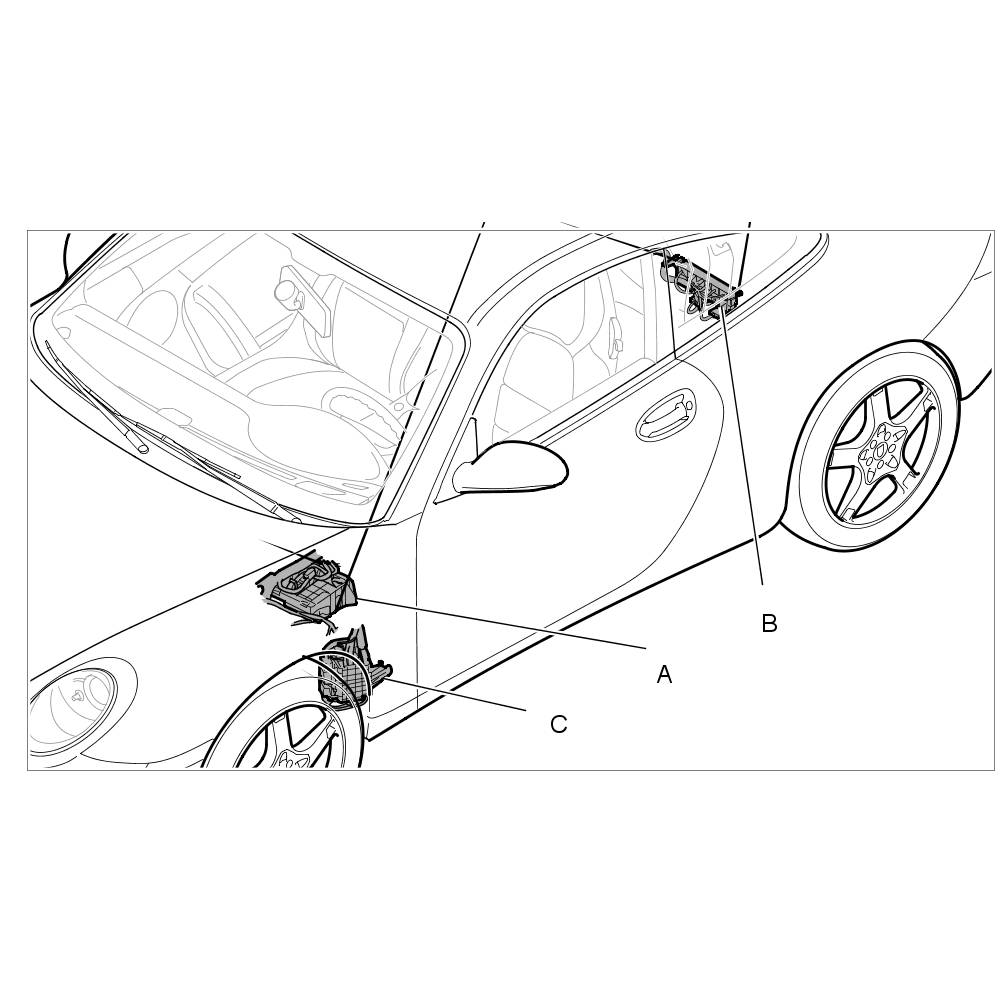

Installation position shown on the 911





1. Unclip electric plug connection at the fuse box and move it aside.

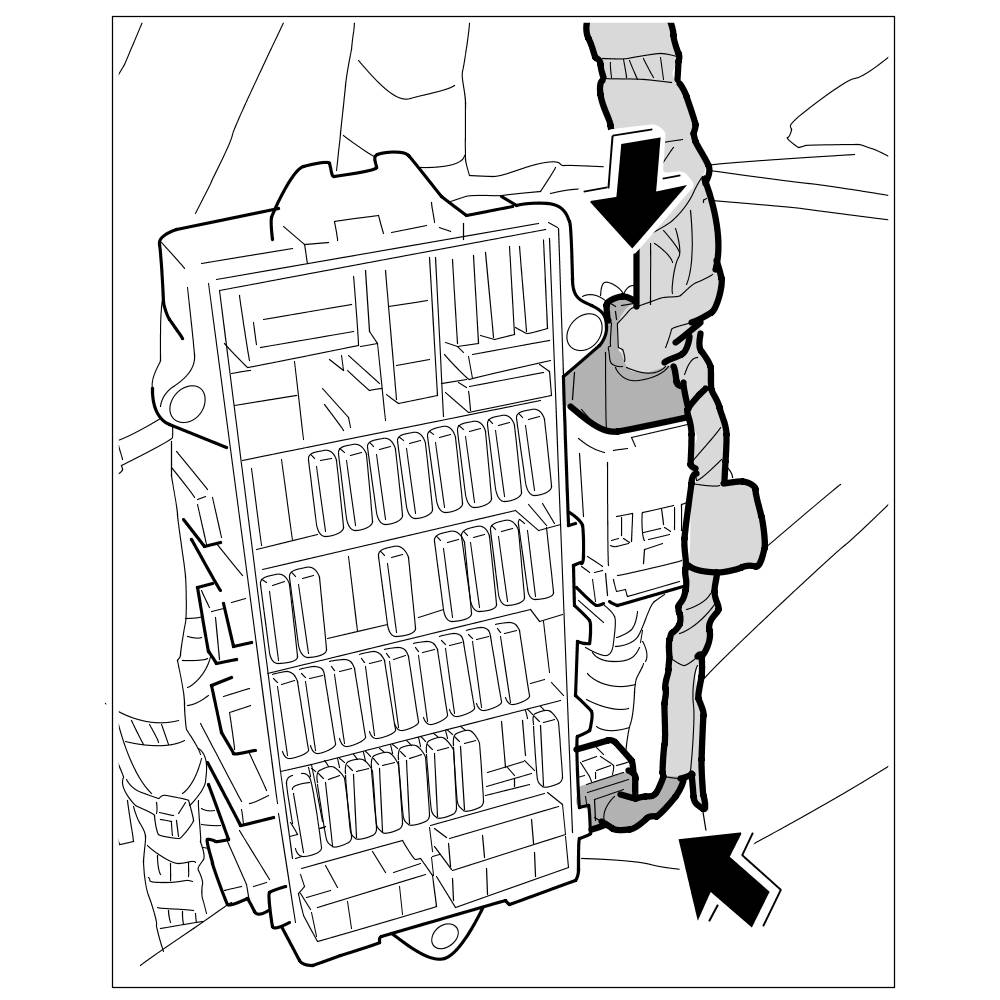

Unclipping electric plug connection

2. Unscrew the fastening nut -1- , pull the fuse box forward and disengage it from the support.

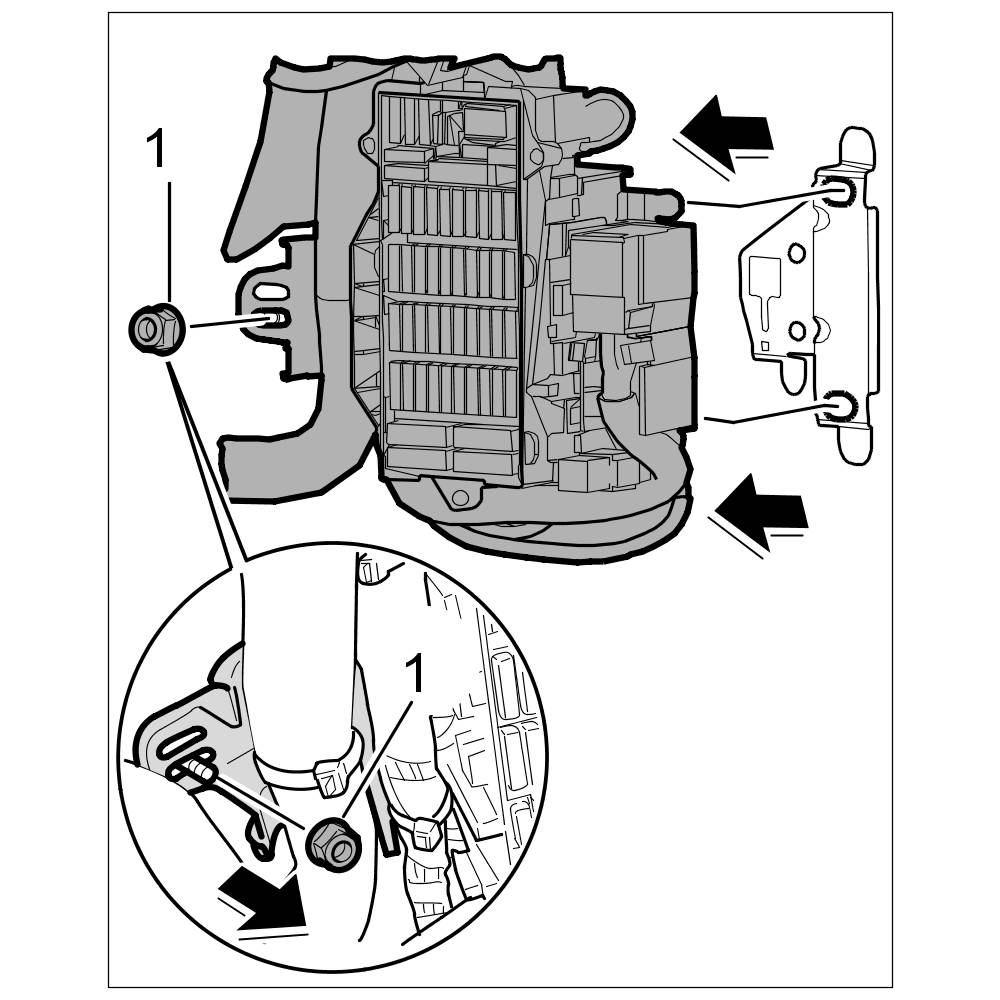

Unscrewing fastening nut

Securing fuse box

1. Engage the fuse box on the support and secure with the fastening nut -1-. Ensure that the electric lines are not trapped or installed live.=> Tightening torque: 9.7 Nm (7 ftlb.)





Tightening the fastening nut

2. Clip in electric plug connection at the fuse box.

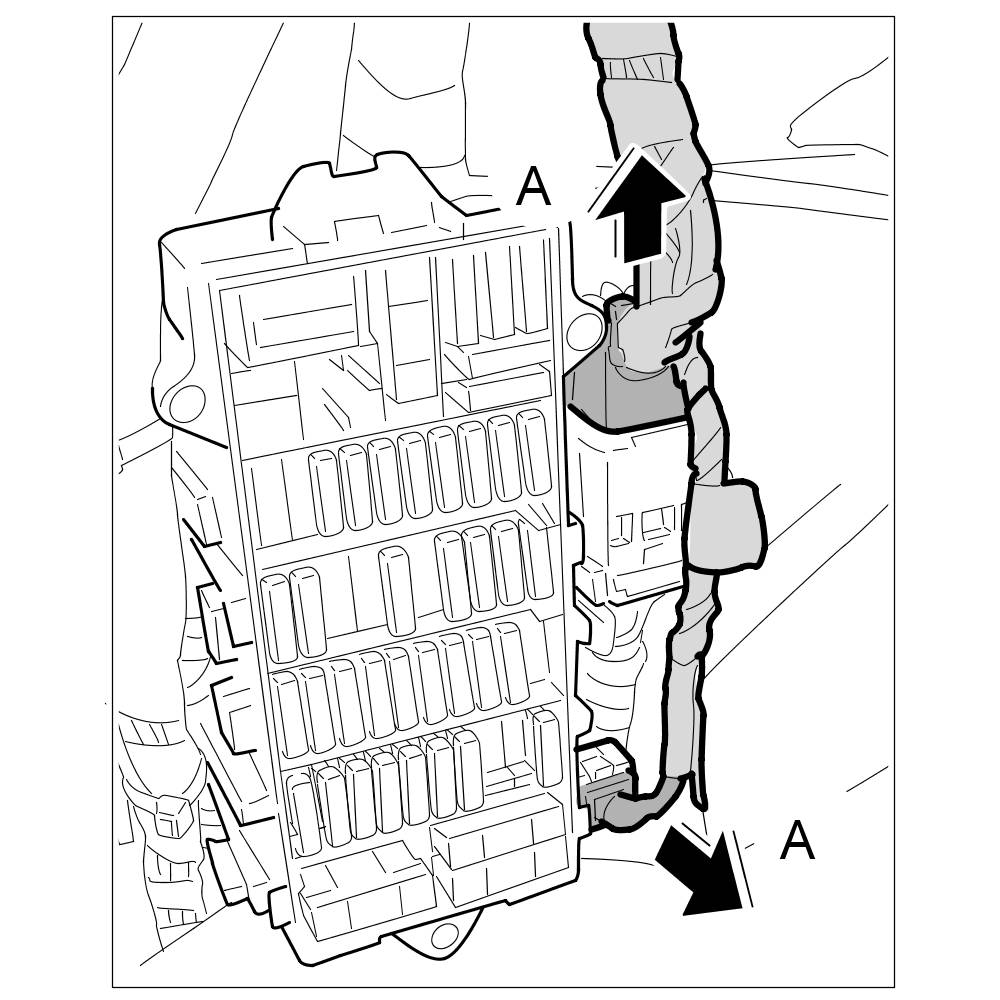

Clipping in electric connector

Subsequent work

Subsequent work on fusebox

Install front left side section trim. -> 702419 Removing and installing front side section trim - section on "Installing"
