Removing and Installing Selector Lever Cable
Removing and installing selector lever cablePreliminary work
1. Raise the vehicle at the prescribed jacking points.
2. Remove support plate.
3. Remove rear wall cover.
4. Remove engine-compartment lid.
5. Remove selector knob.
6. Remove centre console.
Removing selector lever cable
Loosening selector lever cable on automatic transmission

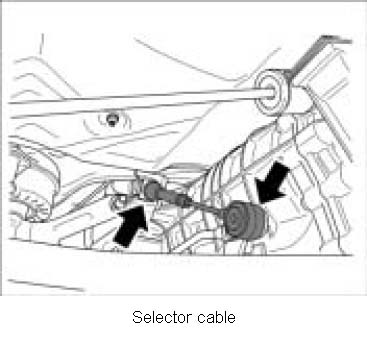

1. Lever selector cable off the ball pin and disengage from support bracket.
Detaching selector lever cable inside vehicle
1. Move selector lever to position P.

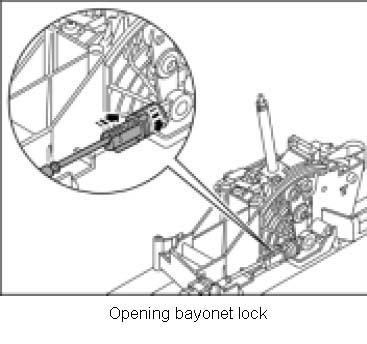

2. Open bayonet lock.
3. Detach adjustment pins.

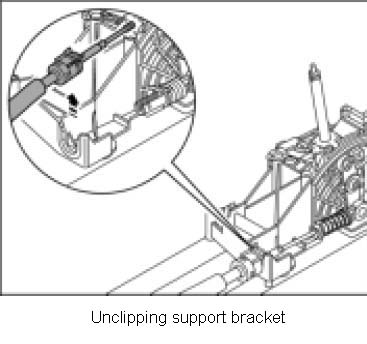

4. Unclip support bracket at selector frame.
Removing selector lever cable
1. Unclip selector lever cable.

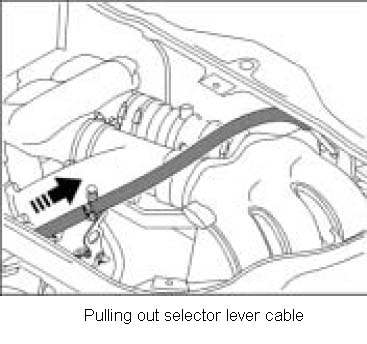

2. Pull end of selector lever cable -at transmission side - out through the opening in the engine compartment lid.

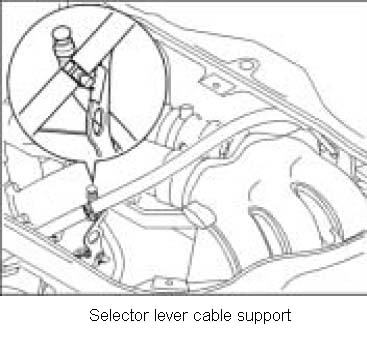

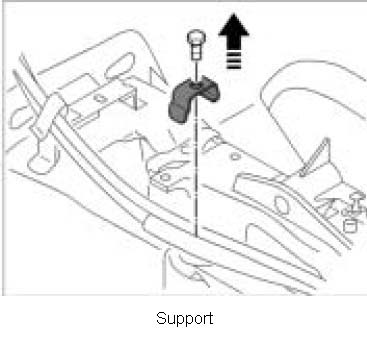

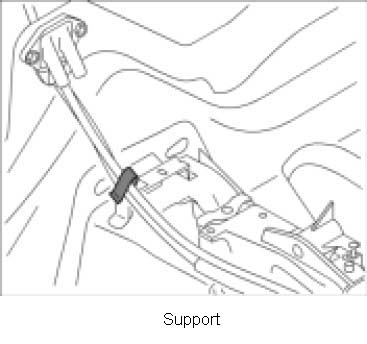

3. Remove support for selector lever cable.
4. Disengage selector lever cable from support.

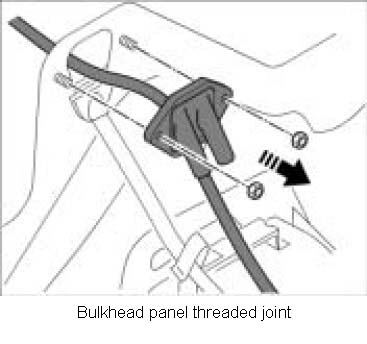

5. Remove fastening nuts and pull selector lever cable into the interior of the vehicle.
Installing selector lever cable

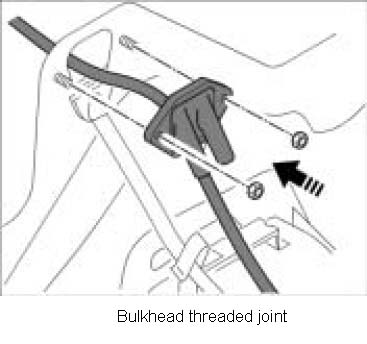

1. Push selector lever cable through the bulkhead panel from the interior of the vehicle and fit fastening nuts.
2. Engage selector lever cable in support.

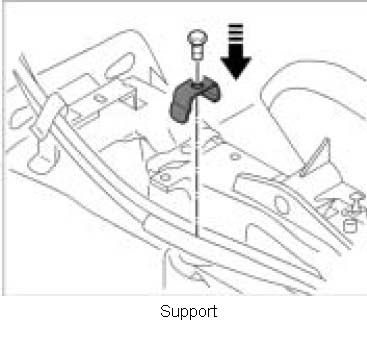

3. Fit support for selector lever cable.

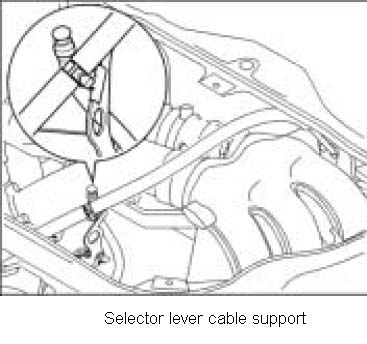

4. Push end of selector lever cable -at transmission side - into the opening in the engine compartment lid.
5. Clip in selector lever cable.
Securing selector lever cable inside vehicle
1. Clip in support bracket at selector frame.

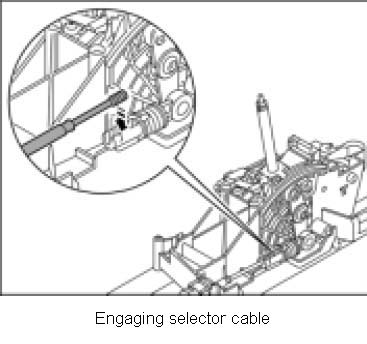

2. Engage adjustment pins.

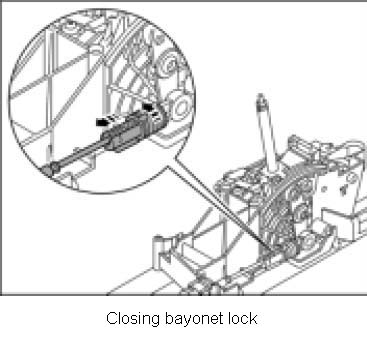

3. Close bayonet lock.
Securing selector lever cable on automatic transmission
1. Engage selector lever cable into support on transmission and press end piece onto ball head.
Subsequent work
1. Install centre console.
2. Install selector knob.
3. Install the engine-compartment lid.
4. Install rear wall cover.
5. Fit support plate.
