Removing Chain Case Lid

Removing chain case lid

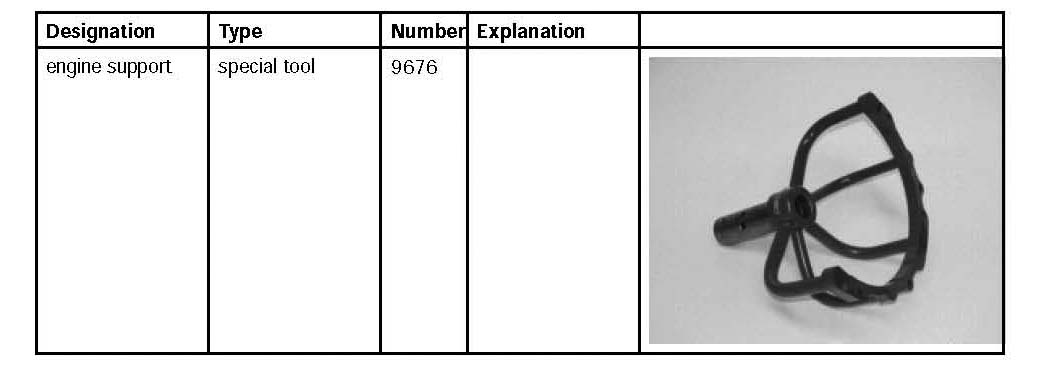

Tools





Preliminary work

1. Remove engine..
2. Separate engine from transmission and suspend it on the assembly support using engine support 9676.

Draining Engine Oil:

3. Drain off engine oil and dispose of it in accordance with the applicable national laws.
4. Remove cover for camshaft housing.

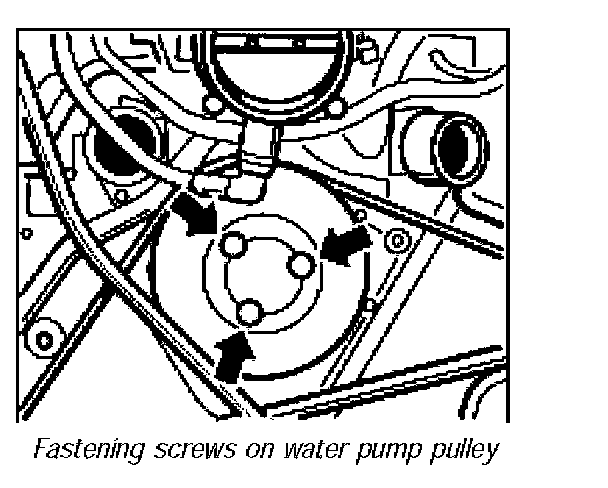

Fastening Screws On Water Pump Pulley:

5. Loosen (do not remove) the three fastening screws on the water pump pulley.

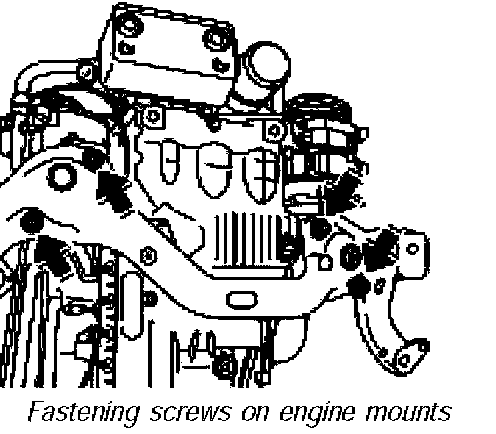

Fastening Screws On Engine Mounts:

6. Remove engine carrier. To do this, release the four fastening screws on the engine mounts.

Drive Belt:

7. Relieve and remove drive belt.

Information
Component overview

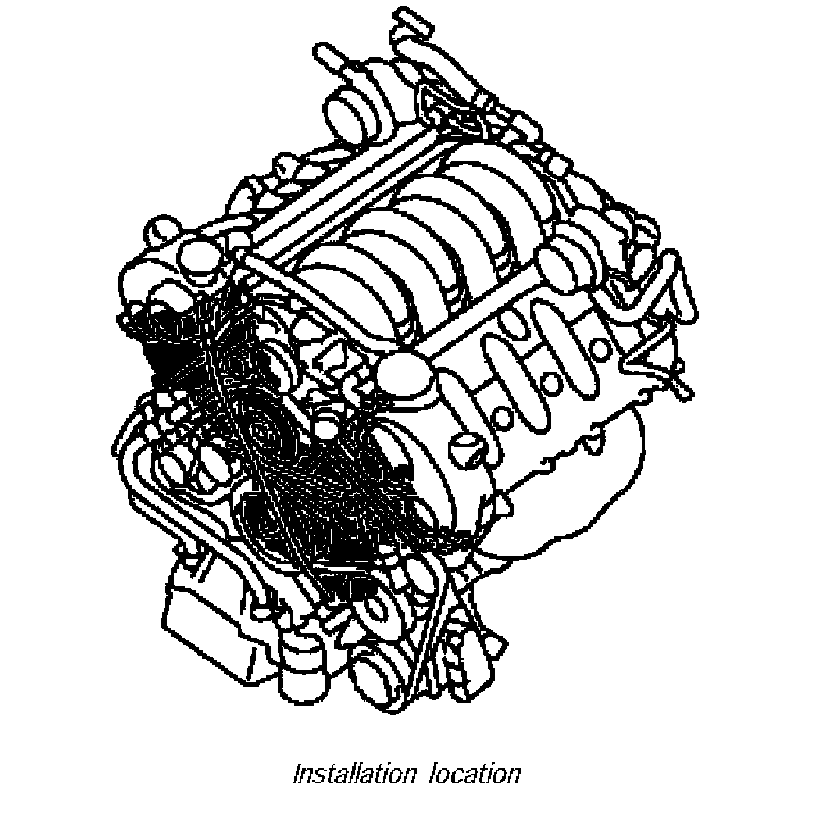

Installation Location:

Component Overview:

Removing chain case lid


Note: The description only explains how to remove the chain case lid. The removal of other components is described in the corresponding chapters.

Drive Belt - Overview:

1. Remove the belt tensioner. To do this, loosen the fastening screws -4 and 5- on the carrier and on the underside of the shock absorber.

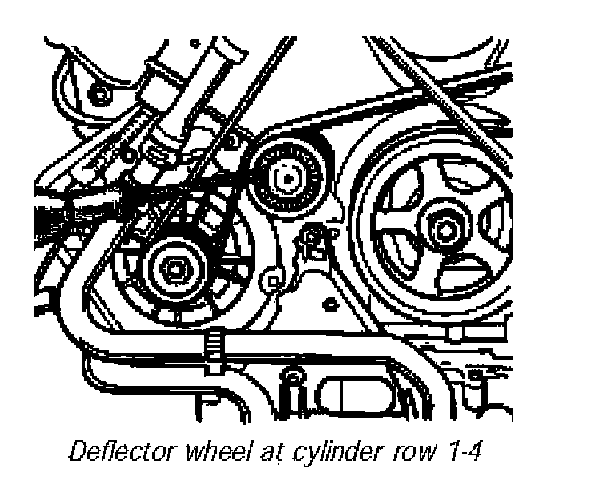

Deflector Wheel At Cylinder Row 1-4:

2. Remove the deflector wheel at cylinder row 1-4. To do this, lever off the lid and unscrew the fastening screw.
3. Remove water pump belt pulley.

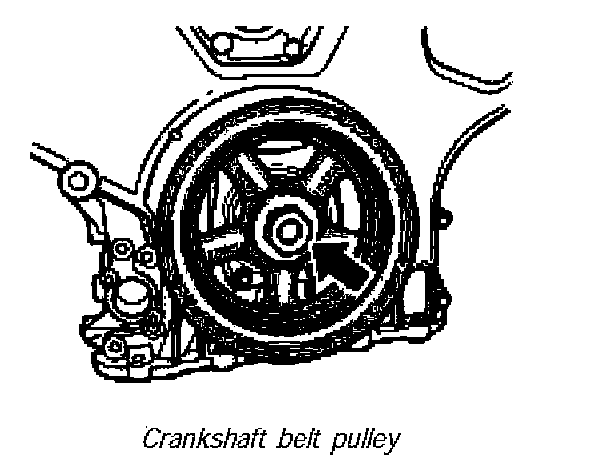

Crankshaft Belt Pulley:

Note: To ensure that the used fastening screw of the crankshaft belt pulley is not used again, mark it with a felt-tip pen.

4. Remove crankshaft belt pulley.

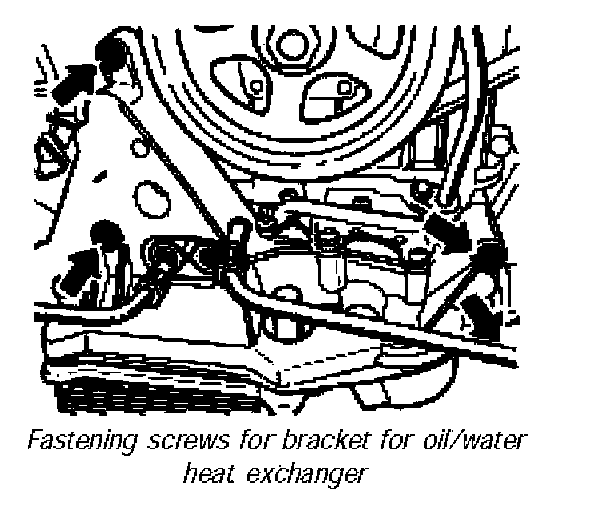

Fastening Screws For Bracket For Oil/Water Heat Exchanger:

5. Remove bracket for oil/water heat exchanger.

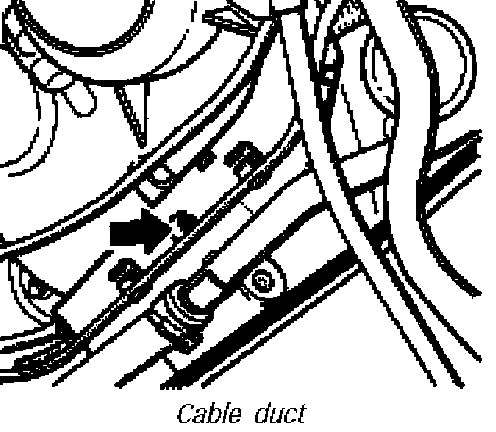

Cable Duct:

6. Remove cable duct at cylinder row 1-4.

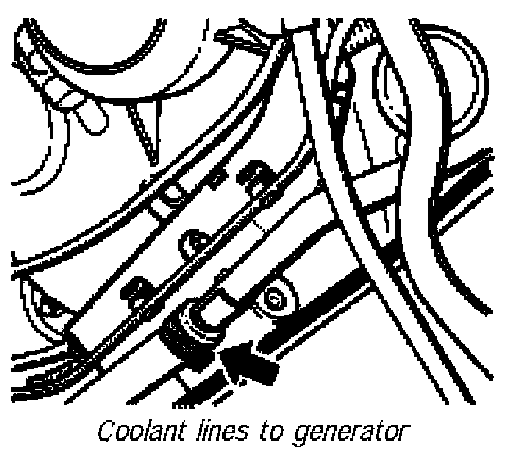

Coolant Lines To Generator:

7. Disconnect coolant line to the generator.

Installation Position Of Chain Tensioner:

8. Remove chain tensioner.
9. Remove oil dipstick.

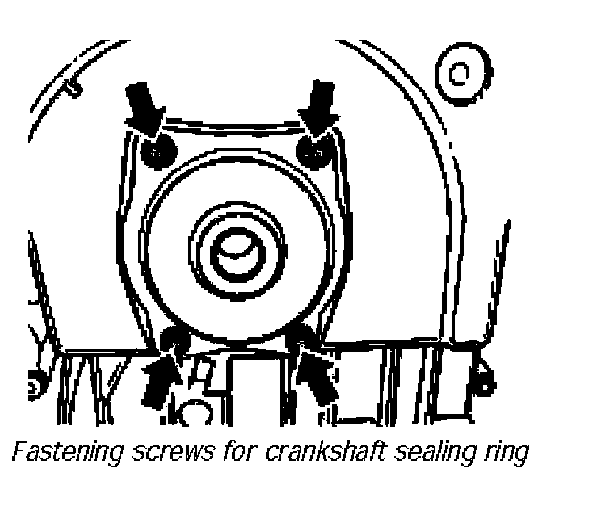

Fastening Screws For Crankshaft Sealing Ring:

10. Remove crankshaft sealing ring on timing case cover. To do this, loosen the four fastening screws.

ATTENTION: Risk of engine leaks!
^ When dismantling the timing-case cover, the sealing bead between the oil pan and crankcase can become damaged.
--> When dismantling the timing-case cover, the oil pan has to be resealed every time.

Tightening Sequence For Fastening Screws On Timing-Case Cover:

11. Remove timing-case cover. To do this, loosen all the fastening screws in reverse order (beginning with position 28).
12. Remove oil pan.
