CDR23 Input Signals



CDR23 Input Signals

The following queries can be run using this menu item:
- Key code
- Status of the optical performance check
- GAL (NLB)

NOTE: Deactivate the 'automatic traffic announcement' before performing the diagnosis on the CDR23. If this is not done, the system will crash (applies only to software version < 03).

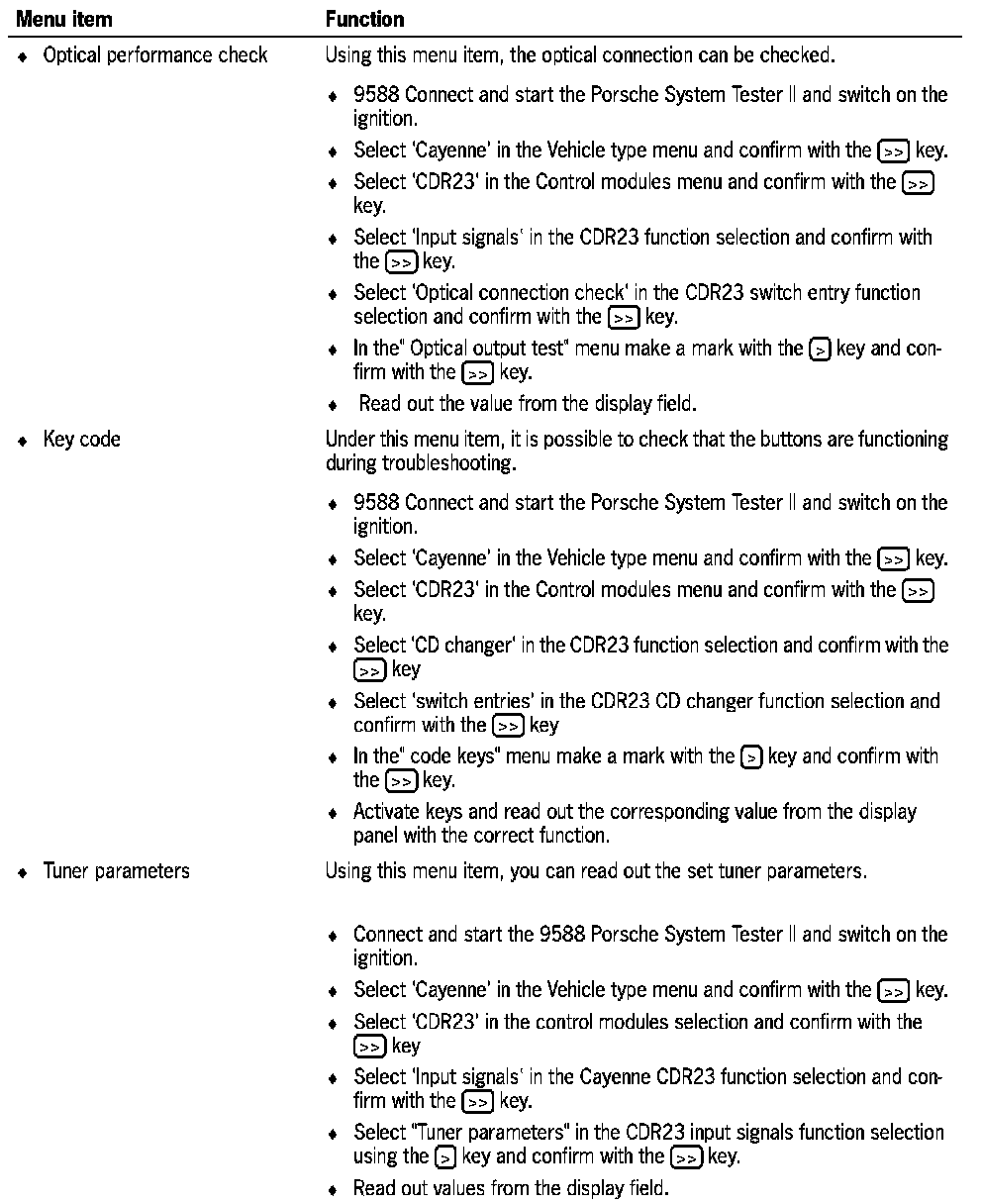

Part 1:

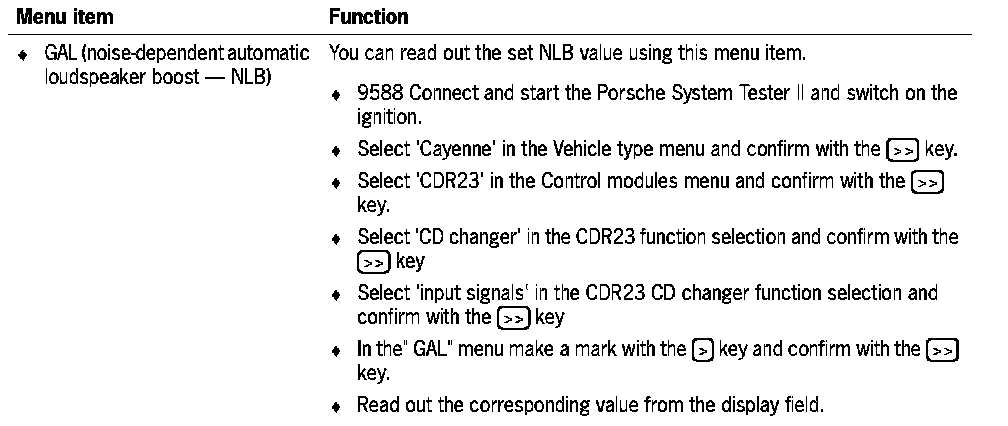

Part 2:
