Gateway Input Signals



Gateway Input Signals

The following queries can be run using this menu item:

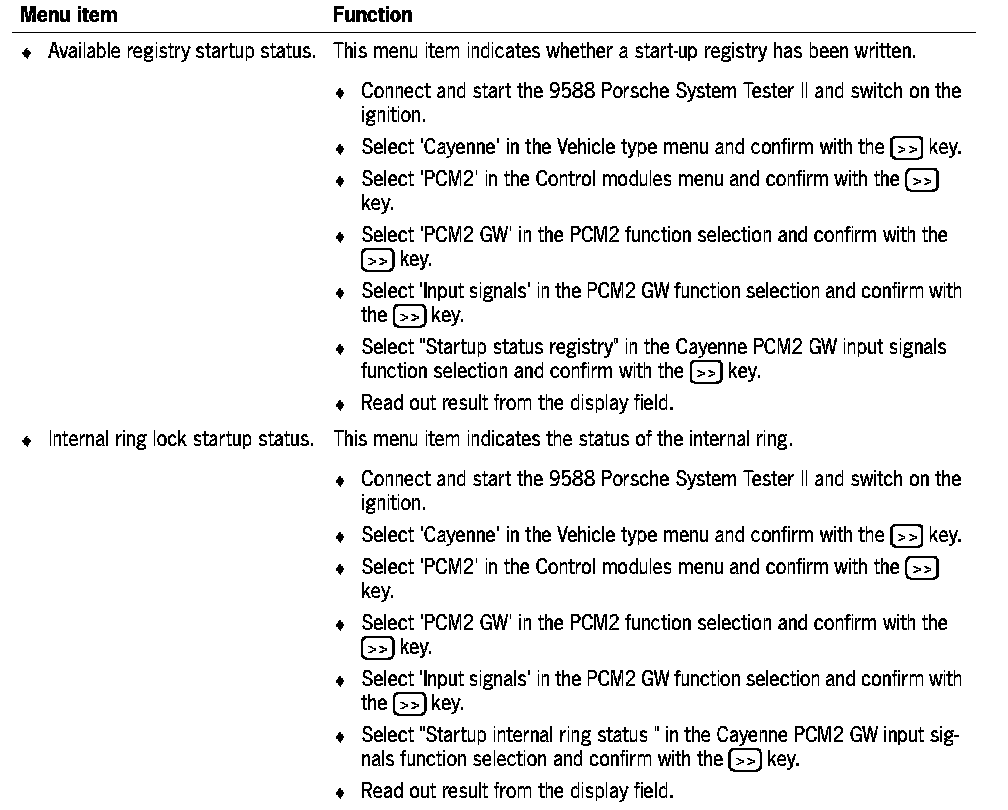

- Available registry startup status.
- Internal ring lock startup status.

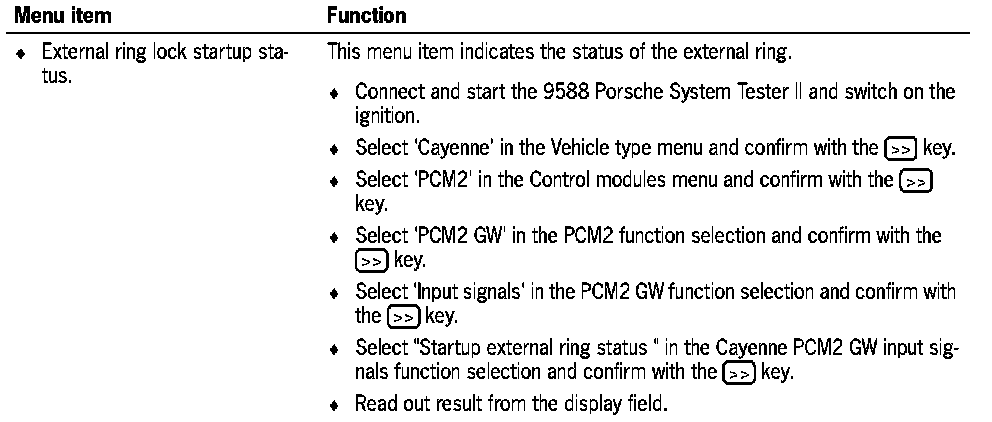

- External ring lock startup status.

NOTE: Deactivate the 'automatic traffic announcement' before performing the diagnosis on the PCM2. If this is not done, the diagnosis will abort (applies only to software version < 03).


Part 1:




Part 2:
