Windscreen Wiper

Fault code 1299

Gateway

Diagnostic conditions
- Ignition switched on
- Internal wiper motor control module function test

Possible cause of fault
- Communication problem with the gateway

Affected pins
Plug for wiper motor wiring harness:
- Pin 7 'CAN Infotainment (high)'
- Pin 8 'CAN Infotainment (low)'

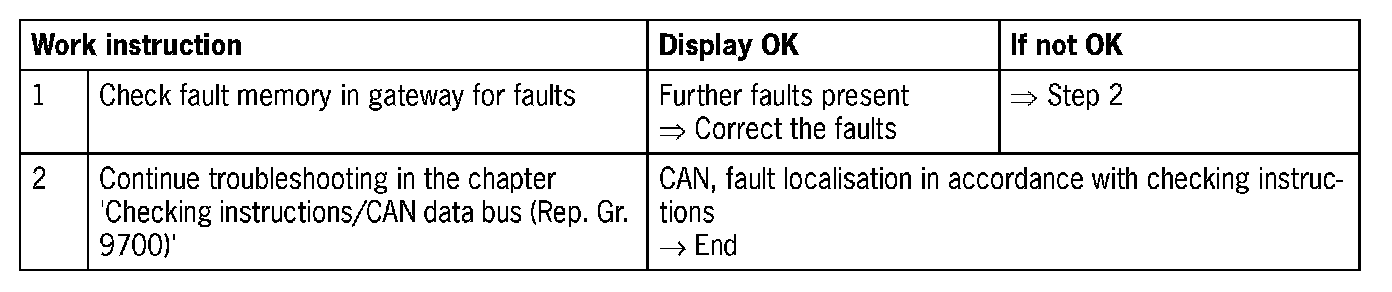

Diagnosis/troubleshooting

NOTE: If there is no incoming signal via CAN Infotainment using several control modules, CAN Infotainment must be checked for open or short circuits. Refer to 'Checking instructions/CAN data bus'.
