P0018

P0018

Inlet Camshaft Position In Relation To Crankshaft, Bank 2 - Above/Below Limit

Diagnostic conditions
- Battery voltage between 10 V and 16 V
- Time after the engine is started longer than 10 seconds

Possible cause of fault
- Timing set incorrectly
- Chain extended
- Camshaft adjuster loose
- Rotor of inlet camshaft sensor in incorrect position
- Inlet camshaft sensor not installed correctly

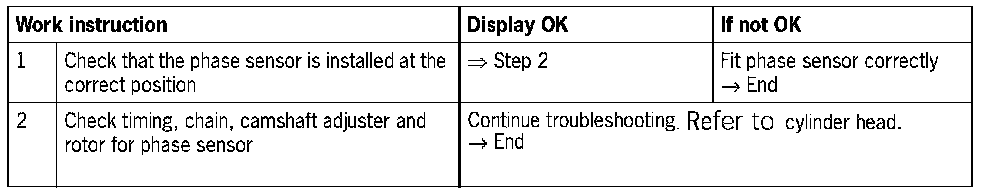

Diagnosis/troubleshooting

NOTE: The fault 'P0018 - Below Limit/Above Limit' is set if the position is not within the prescribed adjustment range (± 12 °NW).
