Computers and Control Systems: Tools and Equipment



Tools For DME 7.1.1 Troubleshooting

WARNING:
Danger of injury while working with special tools
- Never hang the 9588 Porsche System Tester II over the steering wheel

NOTE: Plug-in contacts are ideally matched to the connector system. Manipulating the pins can cause contact problems. Always use suitable measurement tools, adapter plugs and test cables.

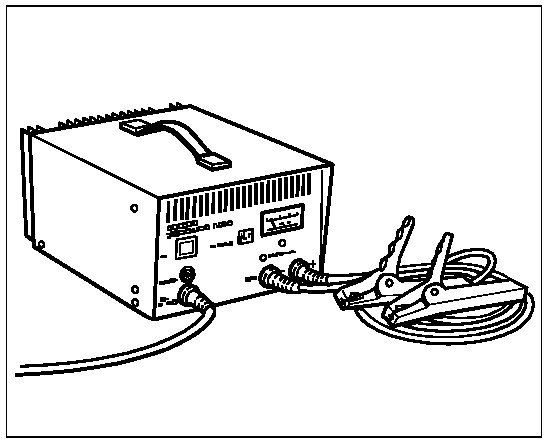

Battery charging device

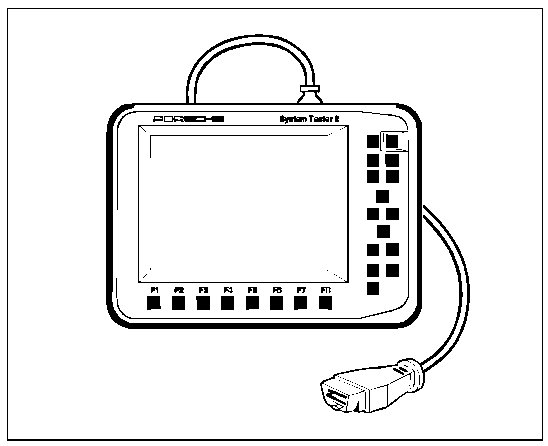

9588 Porsche System Tester II

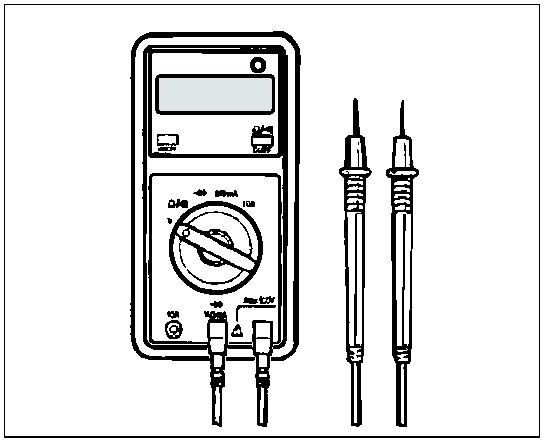

Digital multimeter

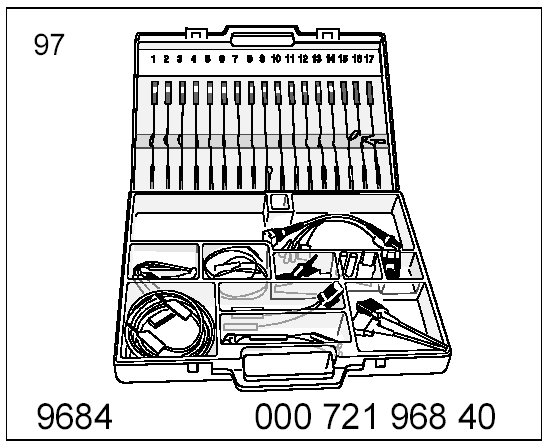

9684 Set of measuring aids

173 Universal test box, 105-pole

This test box if for diagnosing the following systems:
- Control unit DME 7.1.1
- Tiptronic control module

173-1 Adapter cable, DME 7.1.1

This adapter cable is specially designed for diagnosing the DME 7.1.1

9160/1 Tester







Mityvac II vacuum tester with pressure gauge
