Adjusting Multi-Functional Switch 2WD

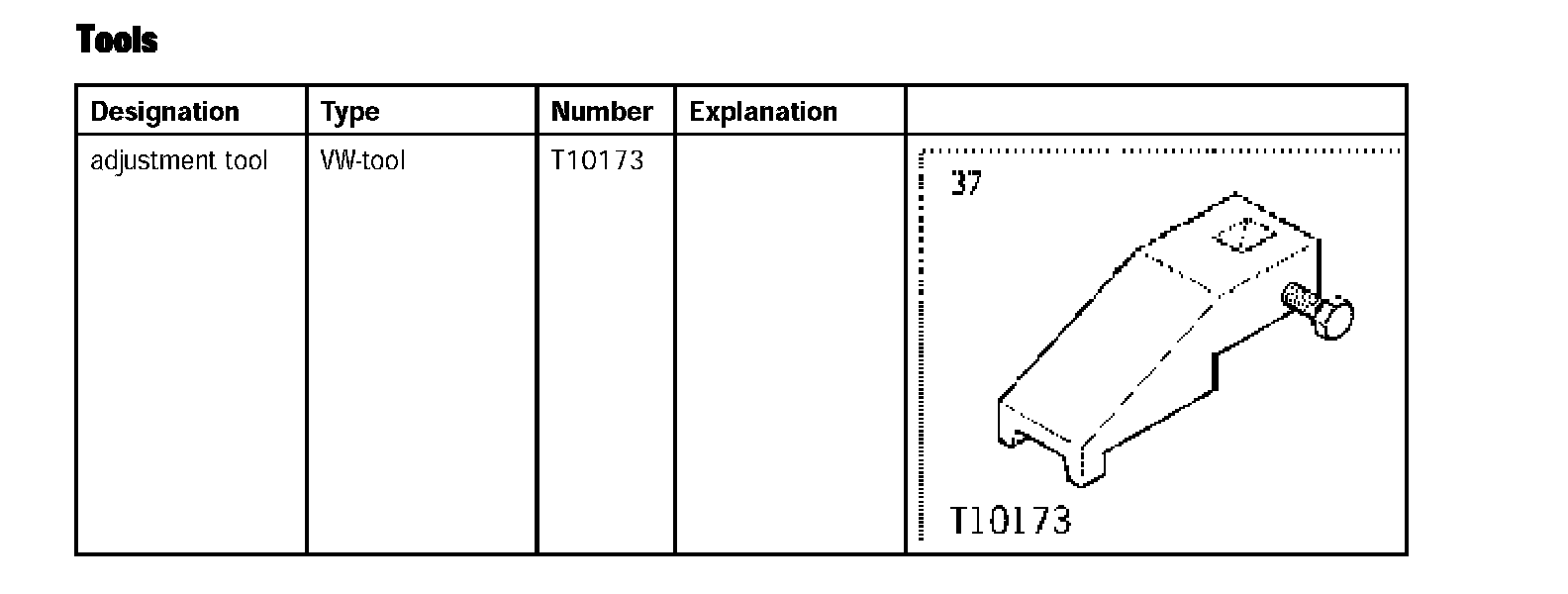

Adjusting multi-functional switchTools
Preliminary work for multi-functional switch
1. Remove engine guard.
Adjusting multi-functional switch

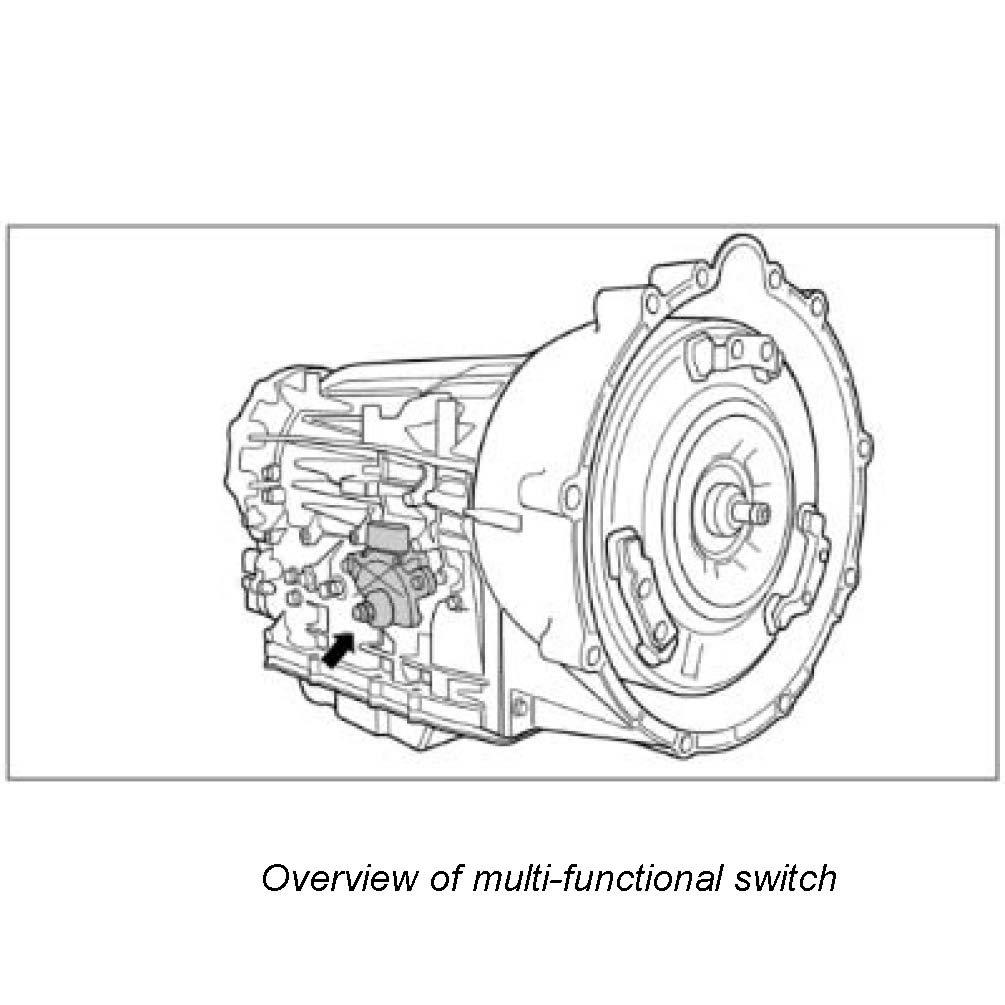

Overview Of Multi-functional Switch:
1. Move selector lever to position N.
2. Remove shield on the transmission. To do this, unscrew three fastening screws -arrow-.
3. Pull off cable to multi-functional switch.

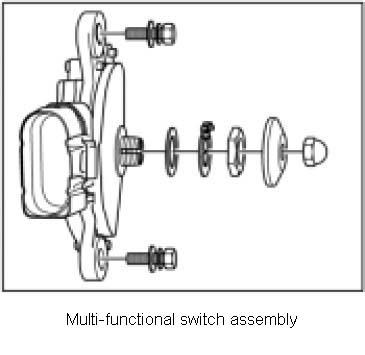

4. Remove cap nut, cap, nut with tab washer and rubber washer on the multi-functional switch.

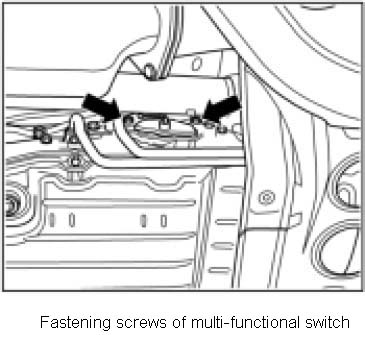

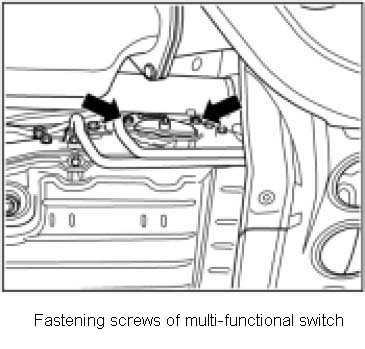

5. Loosen fastening screws -arrow-.

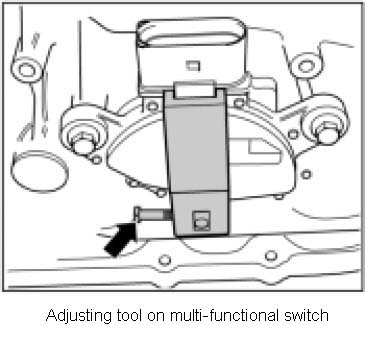

6. Position special tool adjusting tool T10173 on shaft and fix with screw -arrow-.
7. Screw in fastening screws -arrow- and remove special tool. Tightening torque: 3.5 ftlb.
8. Install cap nut, cap, nut with tab washer and rubber washer on the multi-functional switch. Tightening torque: 5 ftlb. Tightening torque: 11 ftlb.
9. Connect compact connector to multi-functional switch.

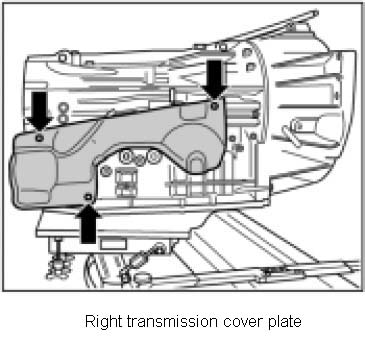

10. Install cover plate on transmission. To do this, screw in three fastening screws -arrow-. Tightening torque: 7.5 ftlb.
Subsequent work
Reworking multi-function switch
1. Fit engine guard.
