Front Axle/Technical Data on Four-Wheel Final Drive

Technical data on four-wheel final drive

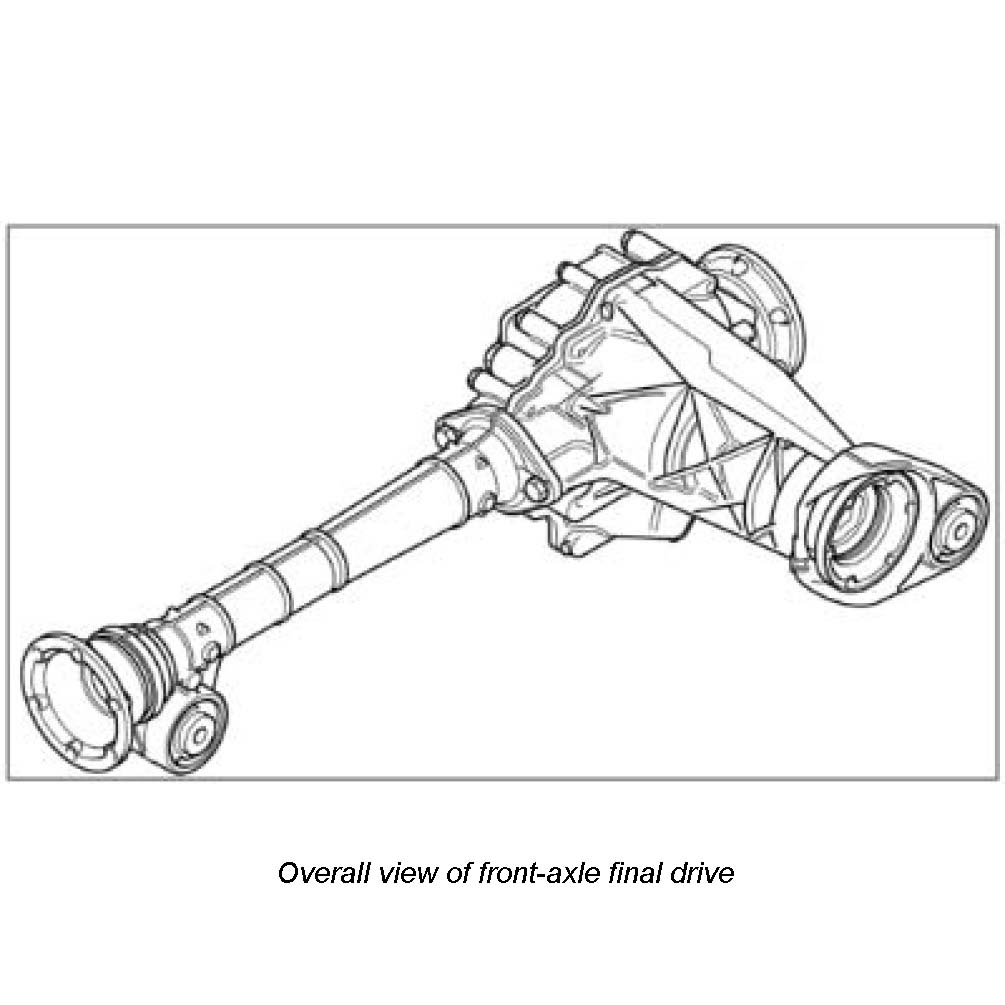

Overall View Of Front-axle Final Drive:





^ Type: V 48.20

Installed in: Cayenne

Model year: 2004

Type: Bevel wheel gear

Transmission ratio for Tiptronic: = 4.56

Transmission ratio for manual transmission: = 4.10

Bearing rolling moment: 2.0 -2.4

Filling capacity (new filling): Filling capacity: approximately 1.0 l

^ Type: V 48.00

Installed in: Cayenne S

Model year: 2003

Type: Bevel wheel gear

Transmission ratio for Tiptronic: = 4.10

Transmission ratio for manual transmission: = 3.70

Bearing rolling moment: 2.0 -2.4

Filling capacity (new filling): Filling capacity: approximately 1.0 l

^ Type: V 48.50

Installed in: Cayenne Turbo

Model year: 2003

Type: Bevel wheel gear

Transmission ratio for Tiptronic: = 3.70

Bearing rolling moment: 2.0 -2.4

Filling capacity (new filling): Filling capacity: approximately 1.0 l
