Lighting and Horns: Specifications

Bulb Table And Installation Instructions

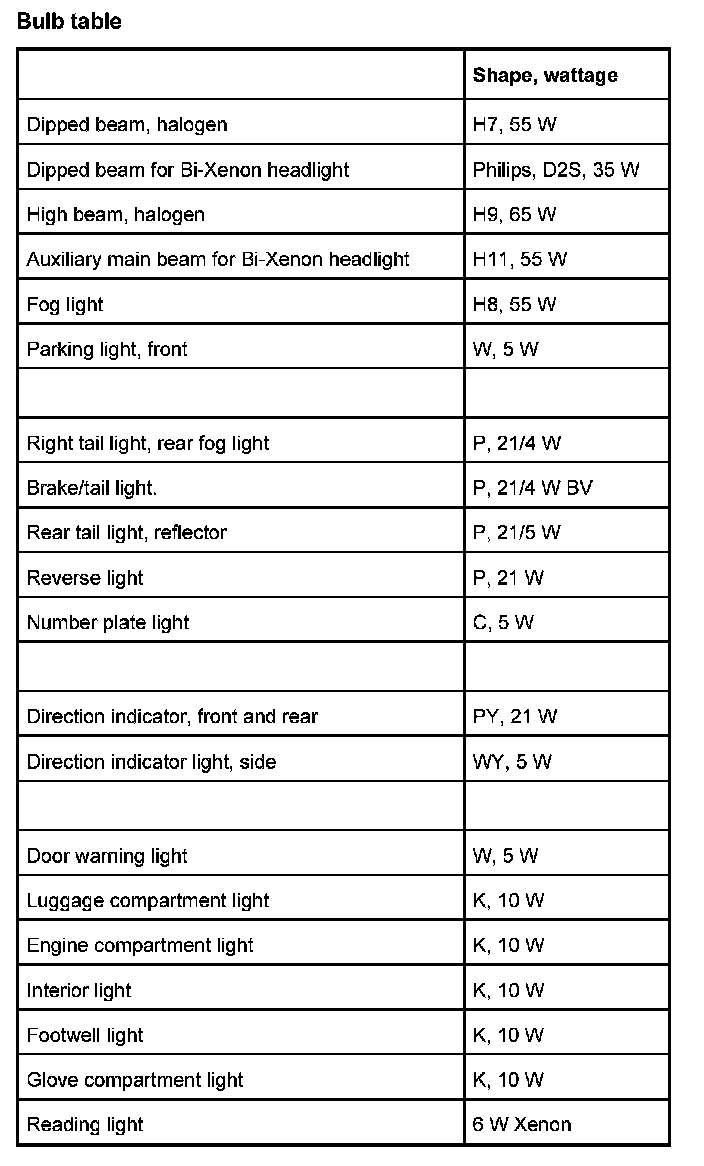

Bulb Table







Installation instructions

Installation instructions for bulbs

WARNING: Risk of injury due to high voltage to built-in Bi-Xenon headlights.

- Switch ignition off, remove ignition key and turn off light switch.

CAUTION: Danger of damage to property if bulbs are used or handled incorrectly.
- Risk of damage to bulbs and bulb housing.

- Switch off ignition and remove ignition key.
- To prevent short circuits, the load in question must be switched off while changing bulbs.
- Only bulbs specified in the bulb table may be used.
- Bulbs with a higher wattage may damage the bulb housing.
- New bulbs must be clean and free of grease. Therefore, never touch the bulbs with your bare hands. Use a cloth or soft paper when changing bulbs.
- In certain states, it is compulsory to carry spare light bulbs.
