Removal and Replacement



Undoing And Securing Fuse Box

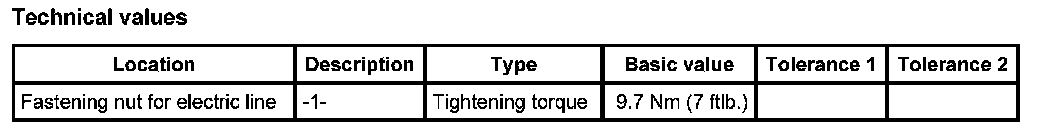

Technical Values







Preliminary work

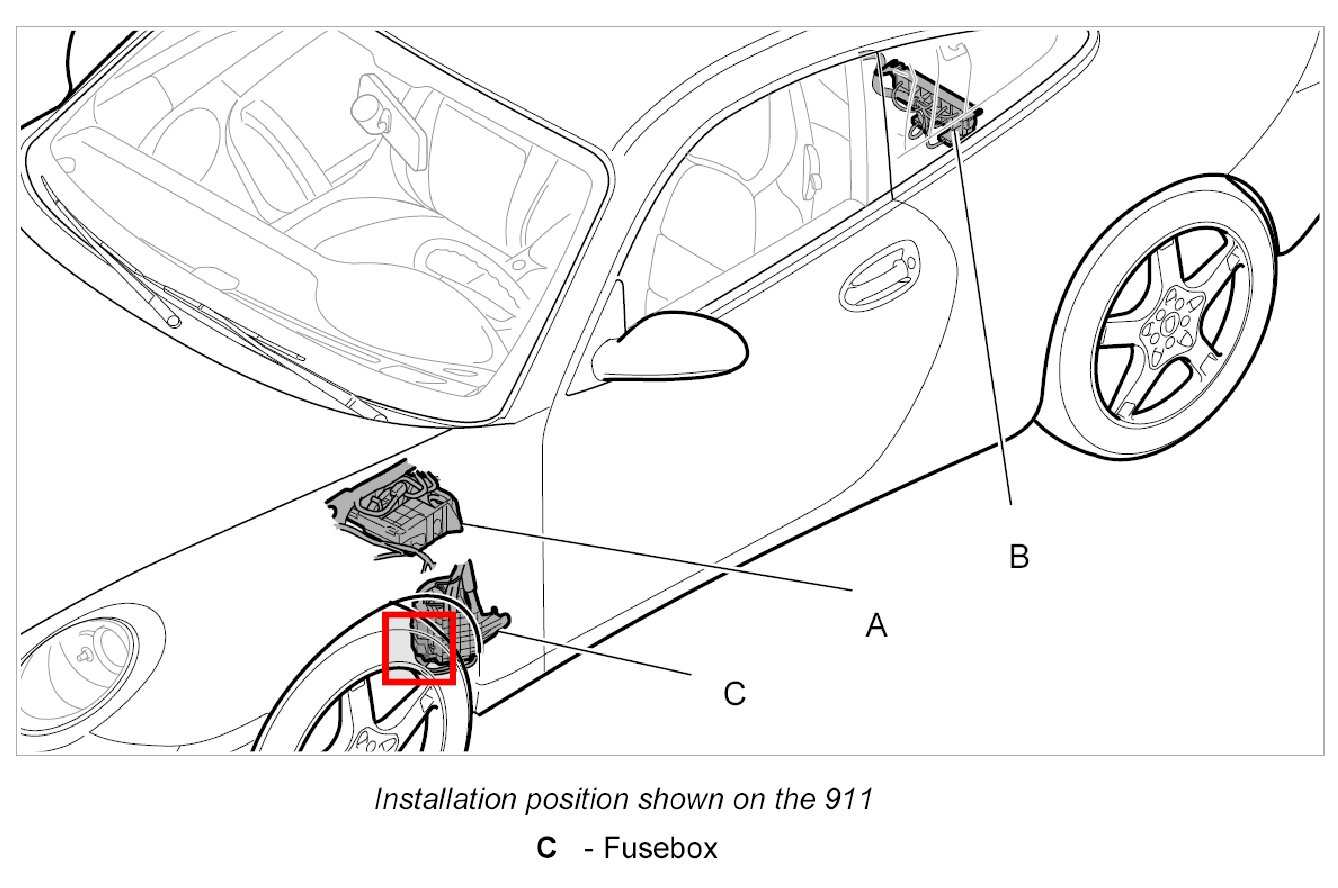

Preliminary work for fusebox
Remove front left side section trim.

Undoing fusebox

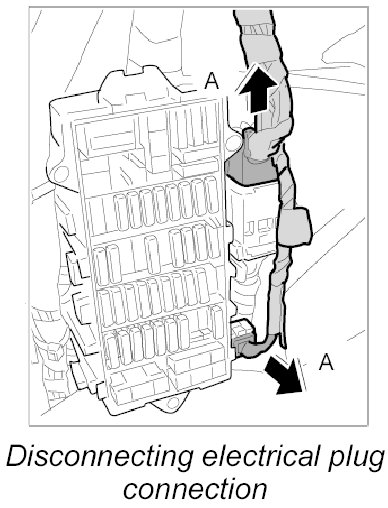

1. Releasing and unplugging electric plug connection

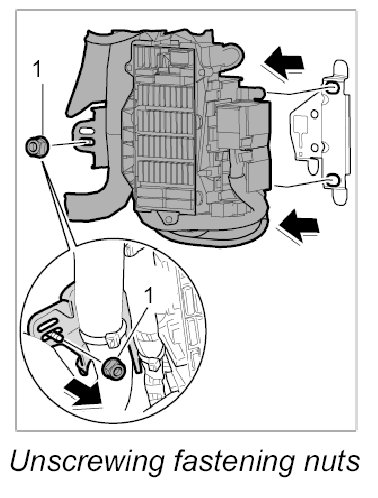

2. Unscrew the fastening nuts -1-, pull the fusebox forward and disengage it from the support.

Securing fusebox

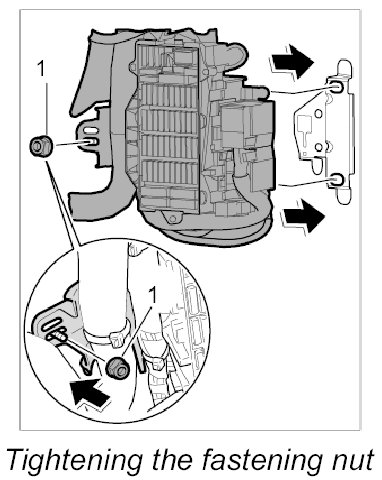

1. Engage the fusebox on the support and secure with the fastening nut -1-. Ensure that the electrical lines are not trapped or installed live. Tightening torque: 9.7 Nm (7 ftlb.)

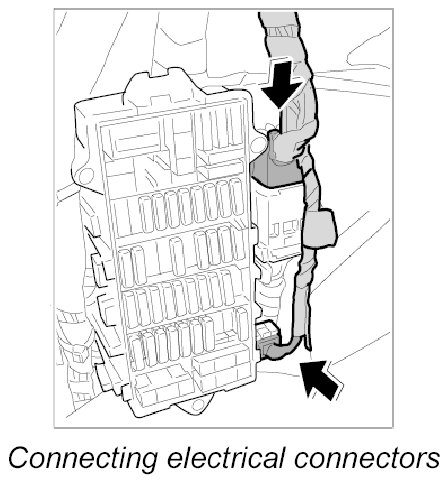

2. Insert the electrical connectors until they perceptibly engage.

Subsequent work

Subsequent work on fusebox
Install front left side section trim.
