System Specifications

Tightening torques for front axle

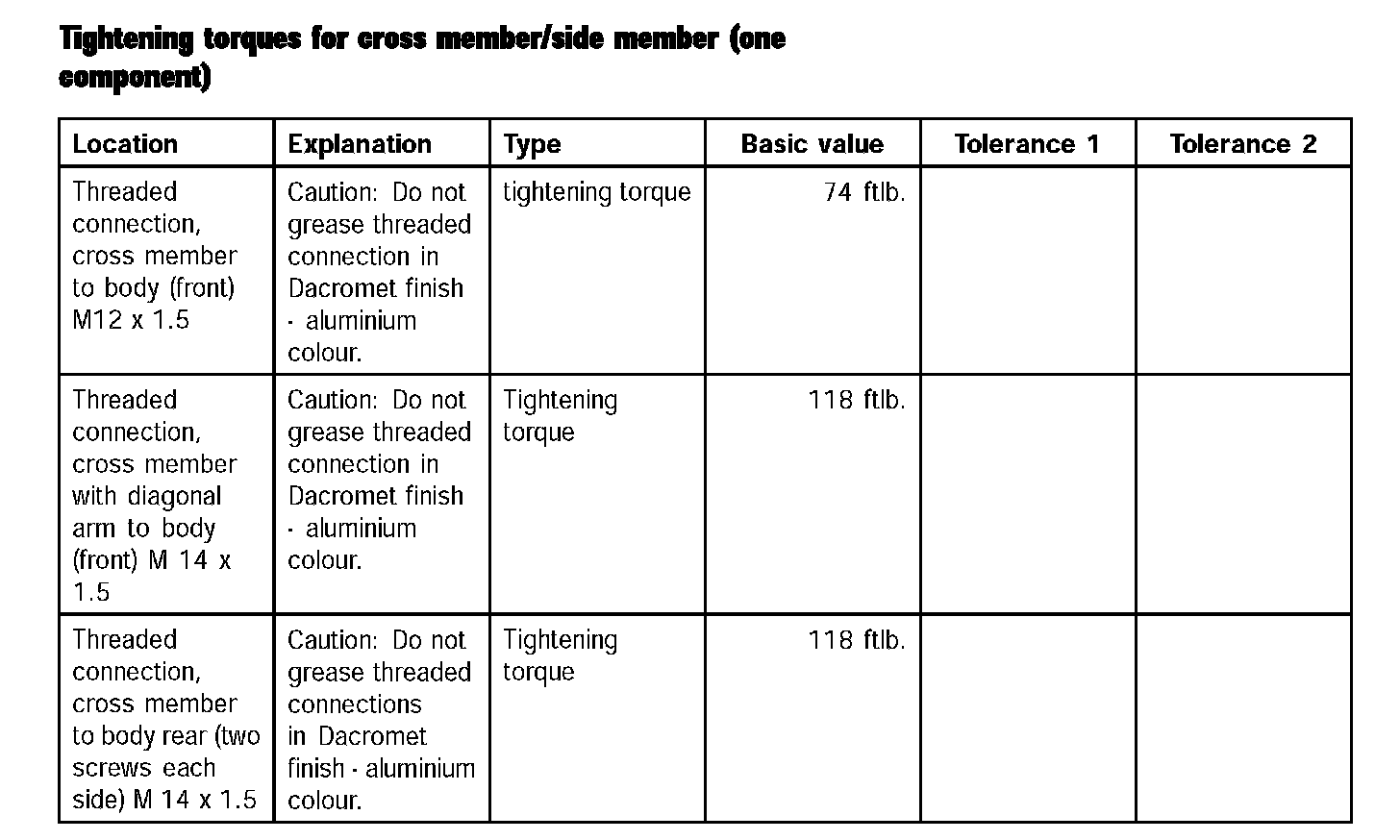

Tightening torques for cross member/side member (one component)

Tightening torques for cross member/side member (one component):

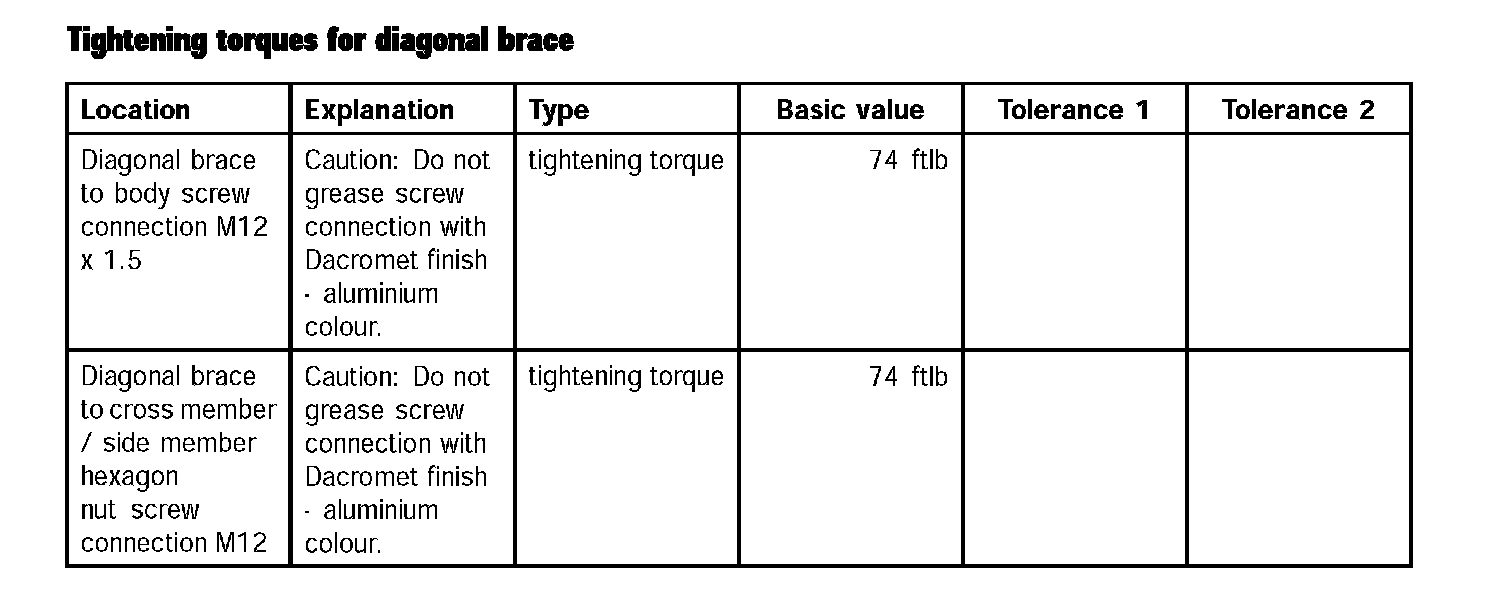

Tightening torques for diagonal brace

Tightening torques for diagonal brace:

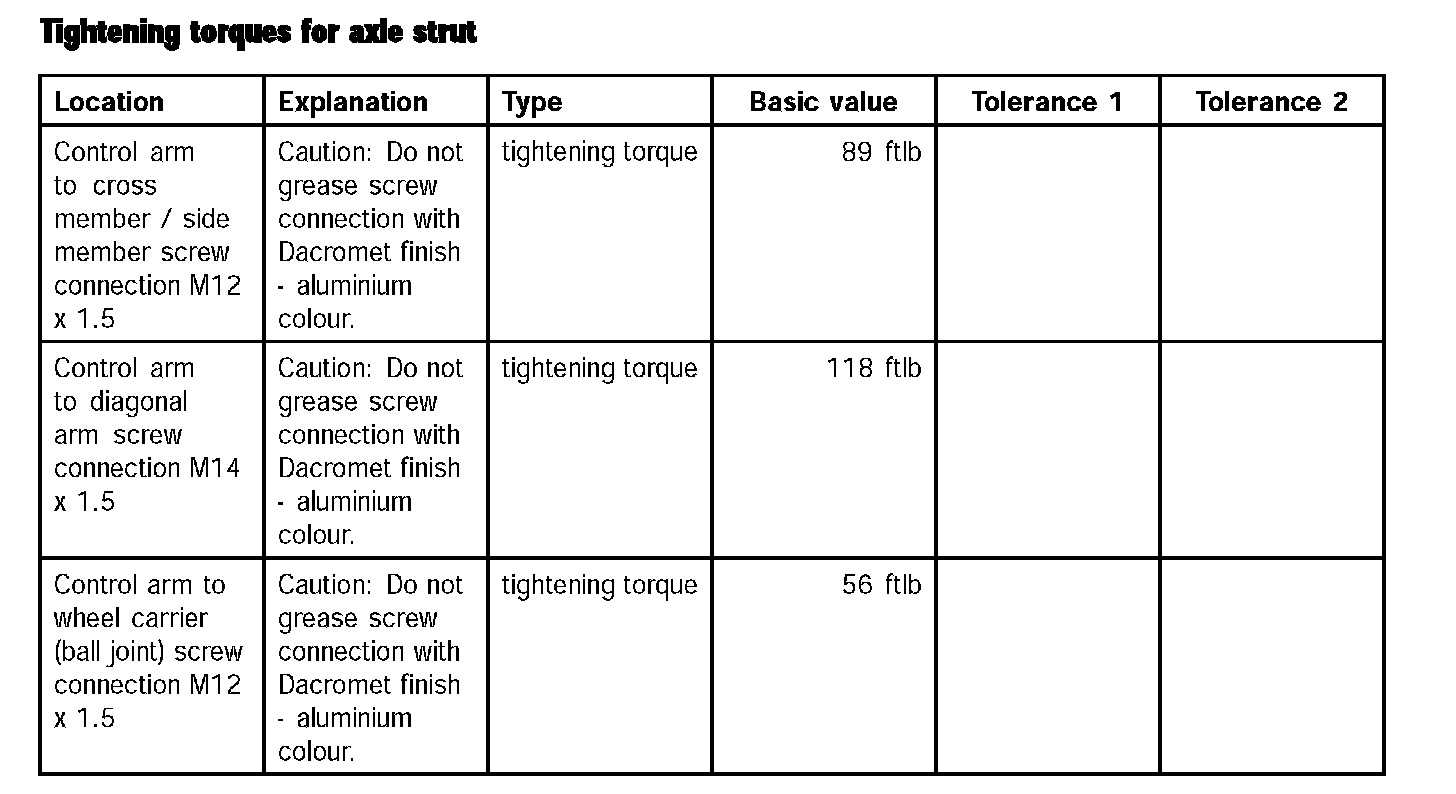

Tightening torques for axle strut

Tightening torques for axle strut:

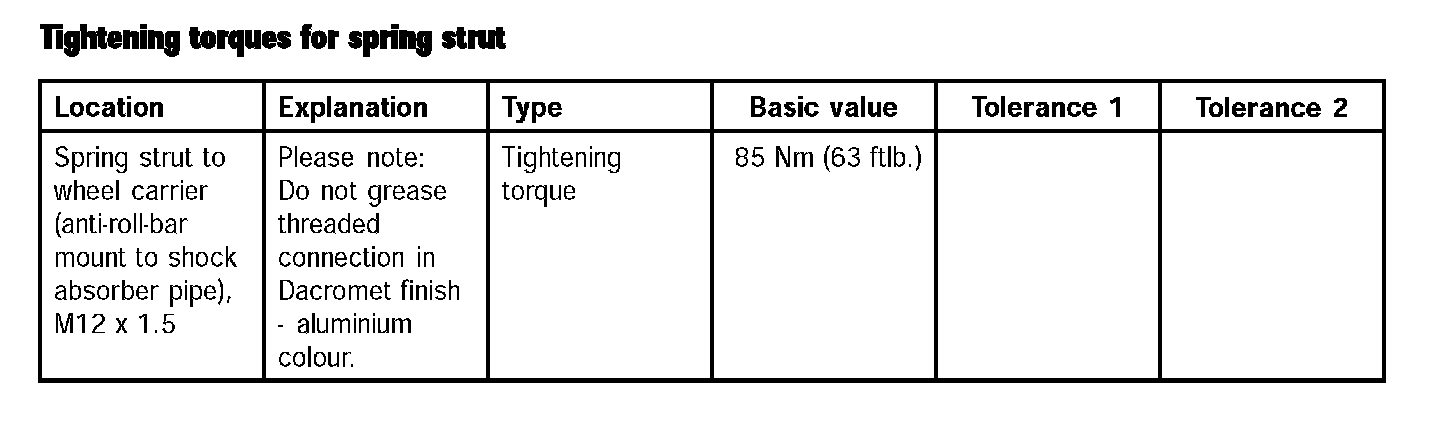

Tightening torques for spring strut

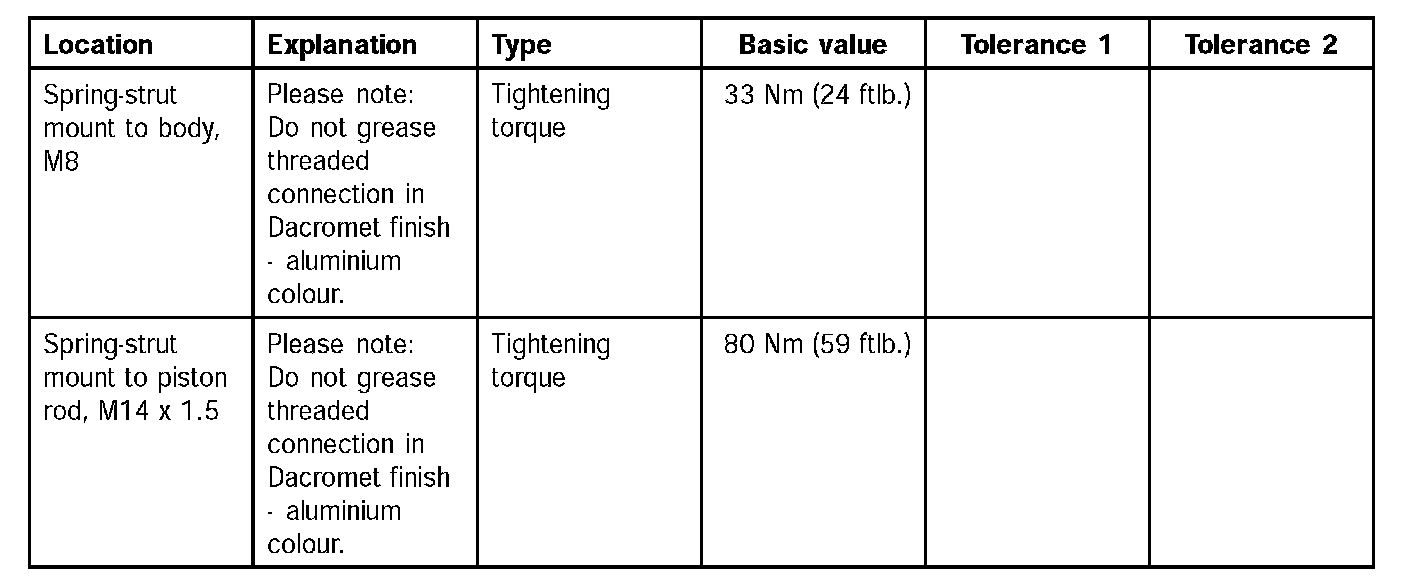

Tightening torques for spring strut (Part 1):

Tightening torques for spring strut (Part 2):

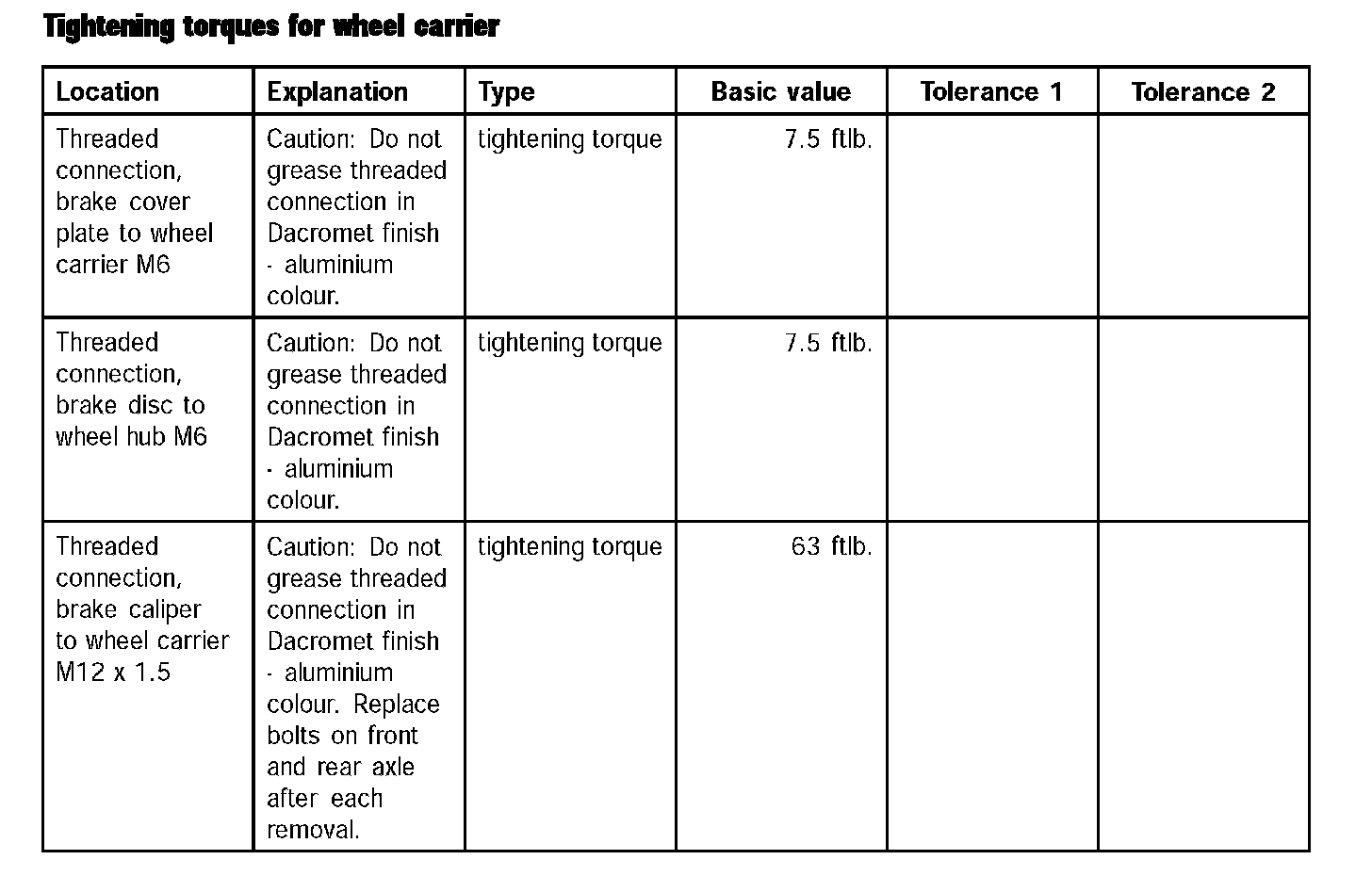

Tightening torques for wheel carrier

Tightening torques for wheel carrier (Part 1):

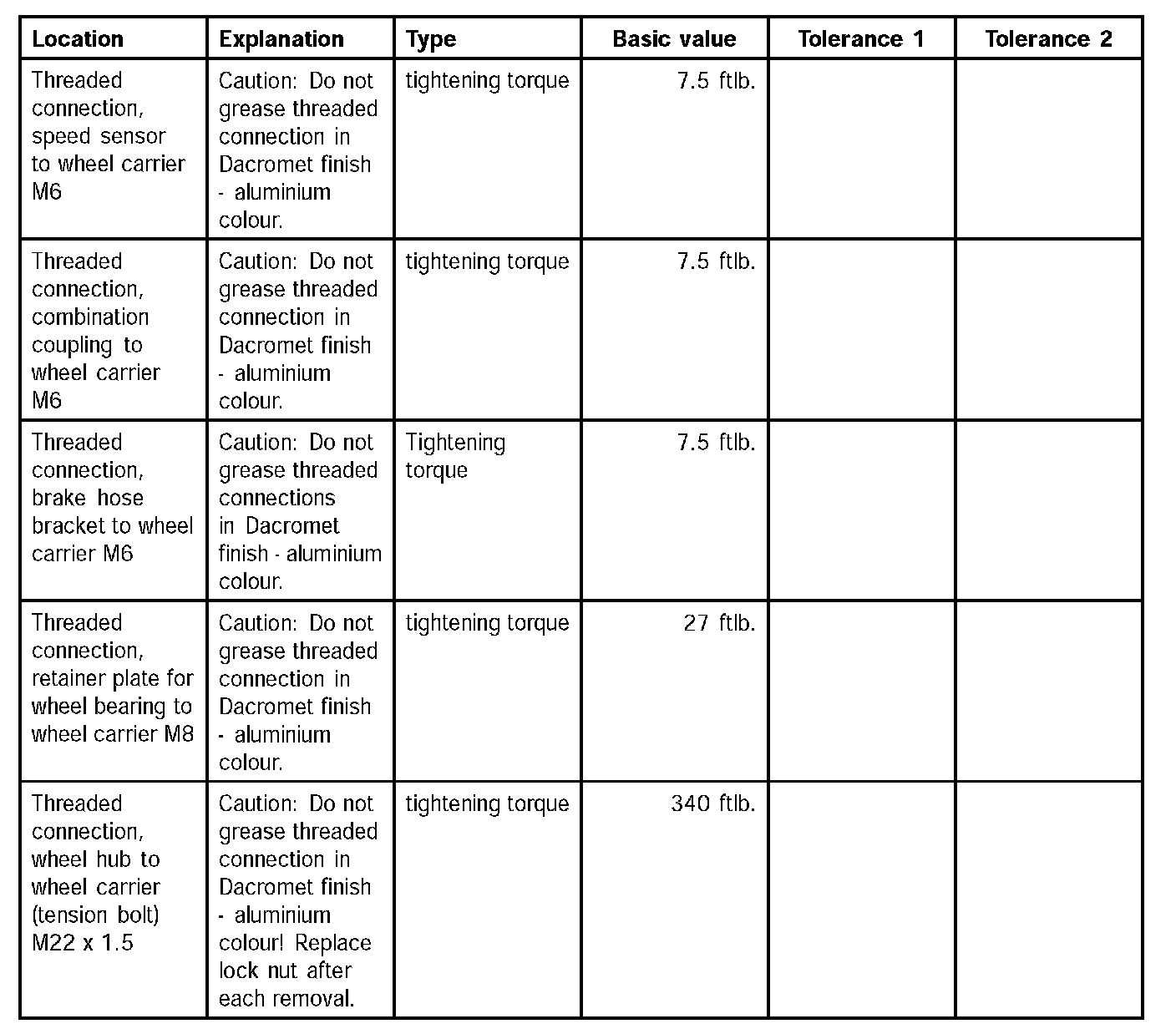

Tightening torques for wheel carrier (Part 2):

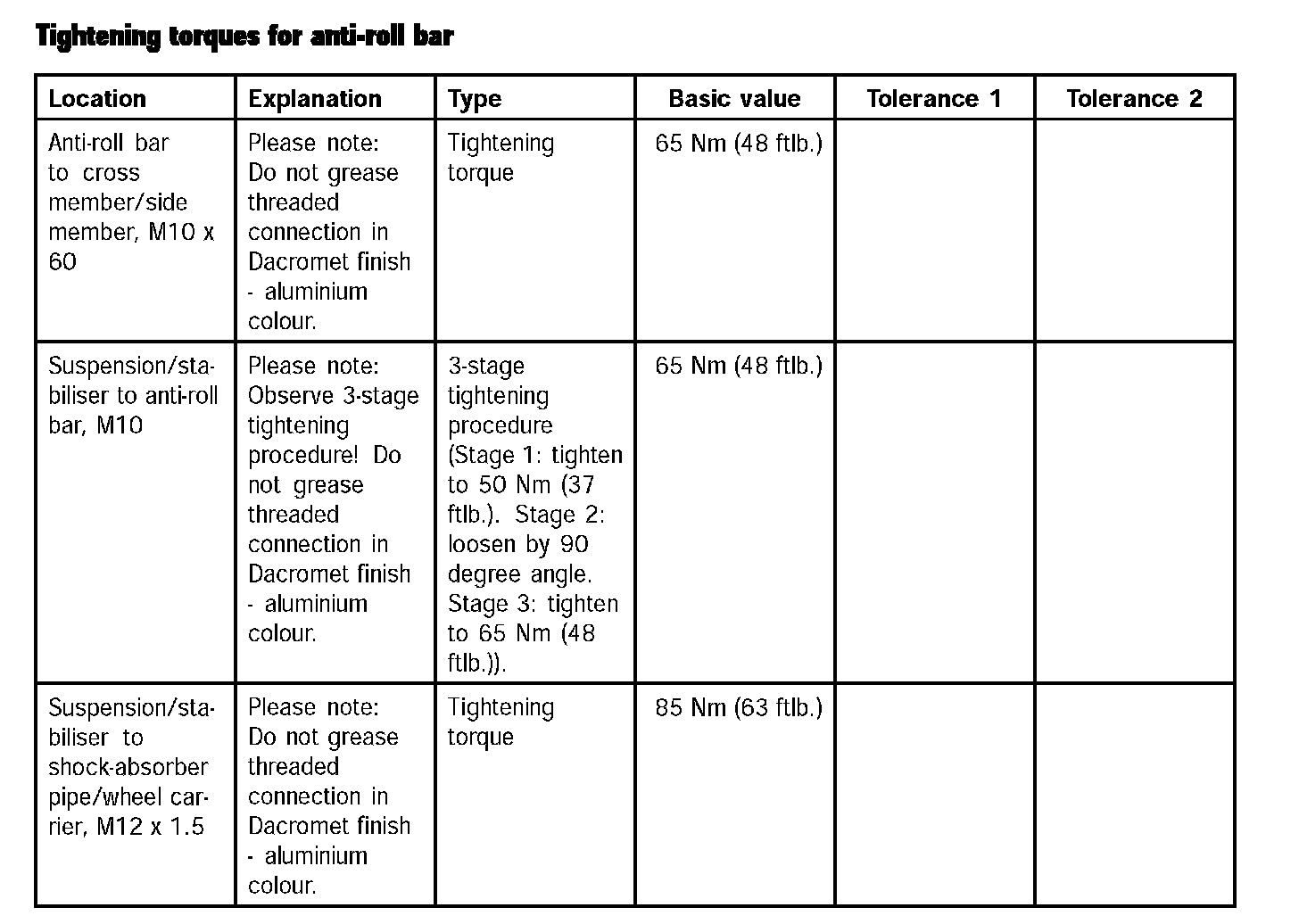

Tightening torques for anti-roll bar

Tightening torques for anti-roll bar:

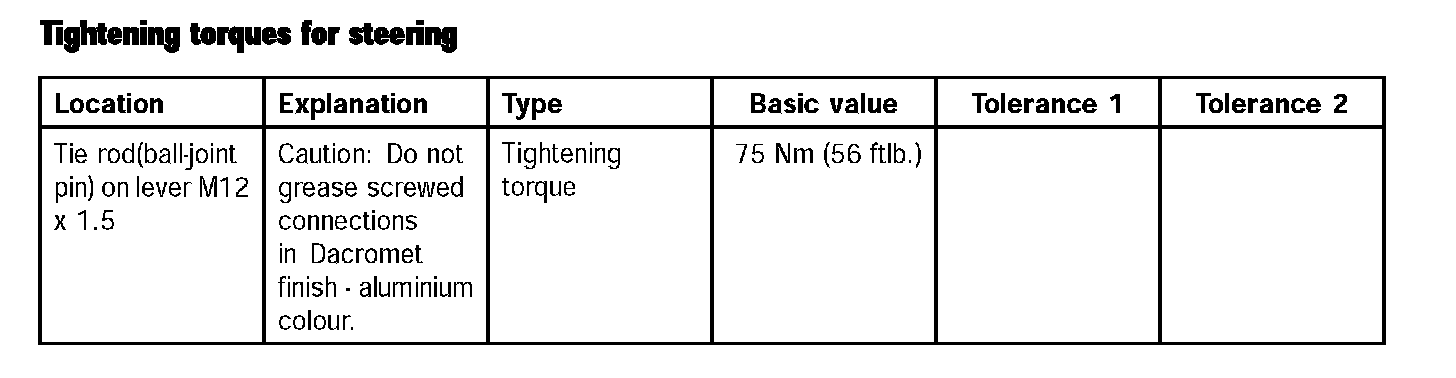

Tightening torques for steering

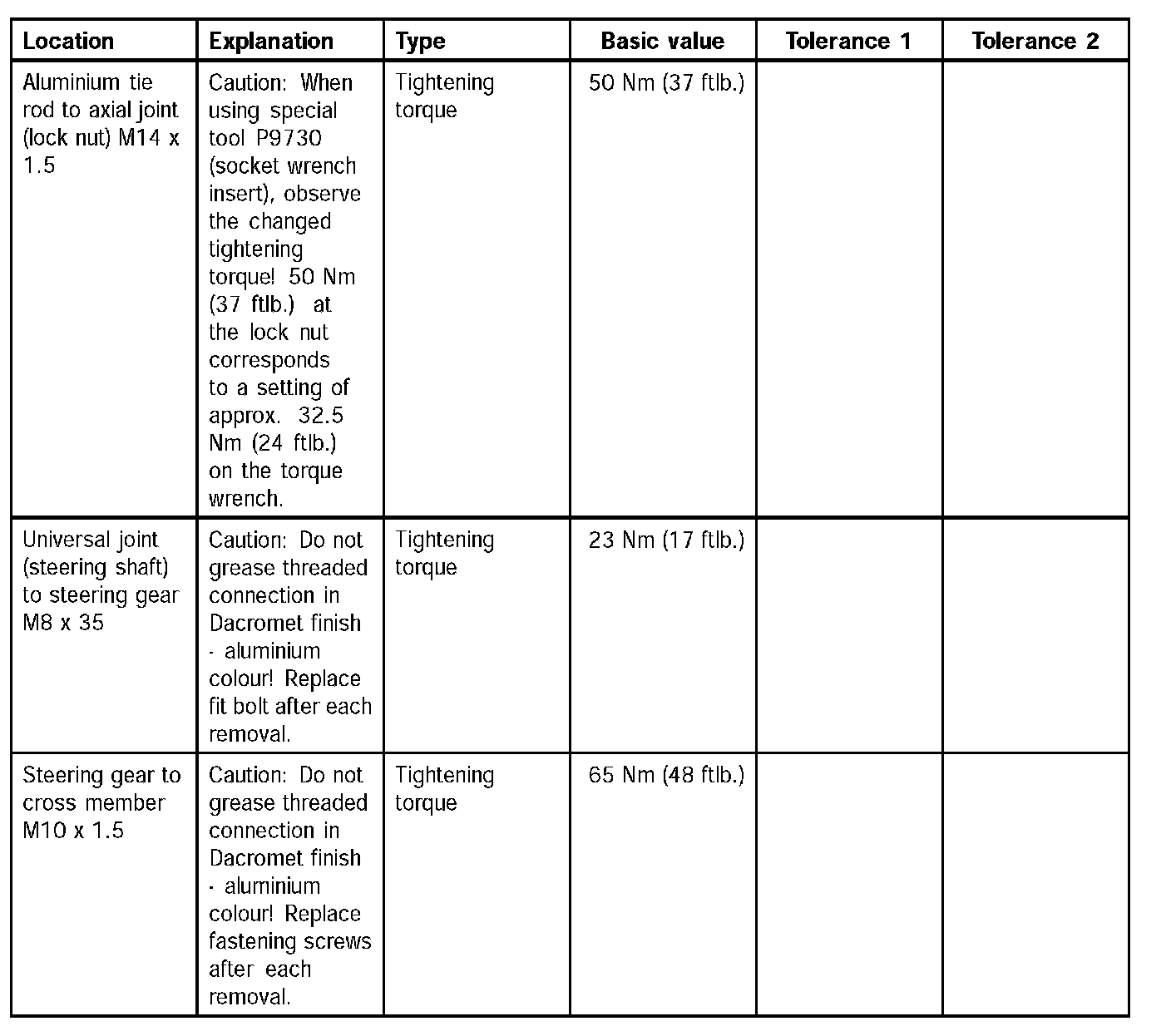

Tightening torques for steering (Part 1):

Tightening torques for steering (Part 2):

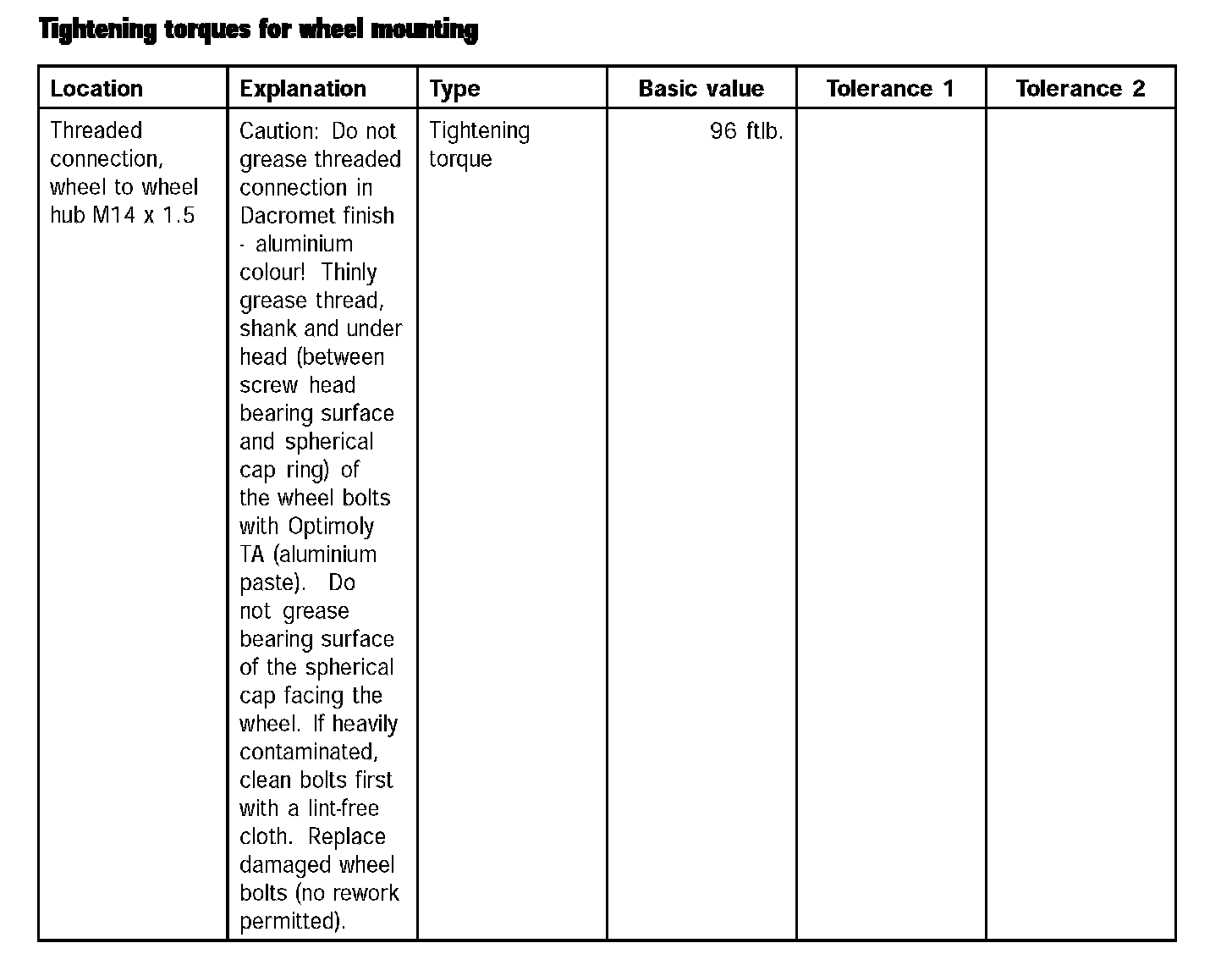

Tightening torques for wheel mounting

Tightening torques for wheel mounting:
