System Specifications

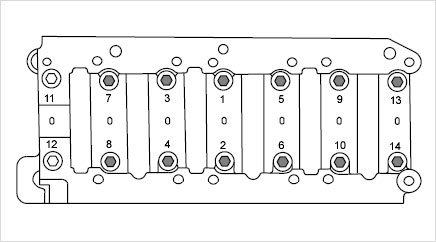

Crankshaft gear carrier
Initial tightening 15 Nm (11 ft lb.)
Torque angle 120 degrees

Vibration damper

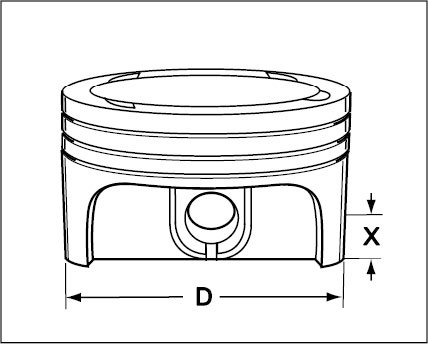

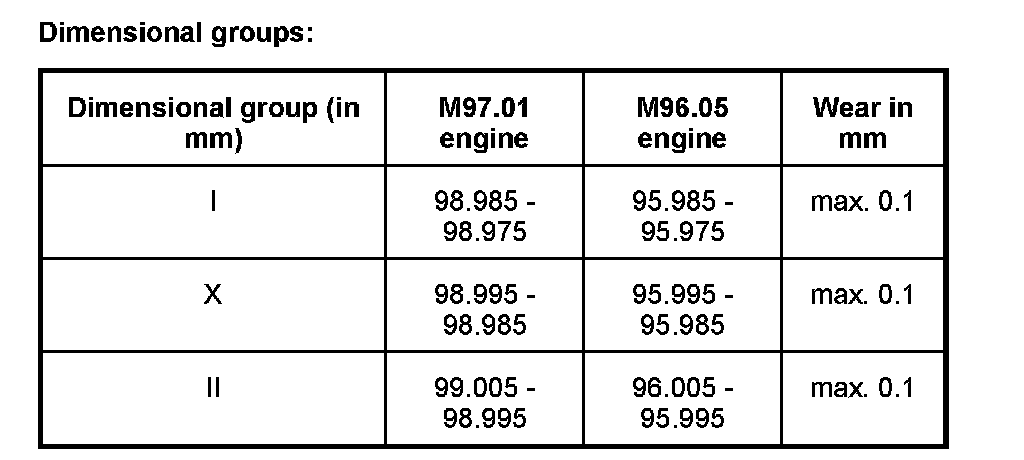

Bore
997 96 mm
997S 99 mm
