Automatic Transmission/Transaxle: Service and Repair

Replacing connectors for transmission wire harness





Preliminary work

1. Remove ATF pan.
2. Remove electrohydraulic control unit.

Replacing connectors for transmission wire harness

Information:
Note the arrangement of the cables for the connector housings to be replaced and do not get the cables mixed up.

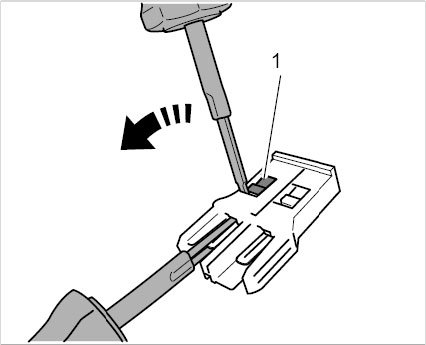

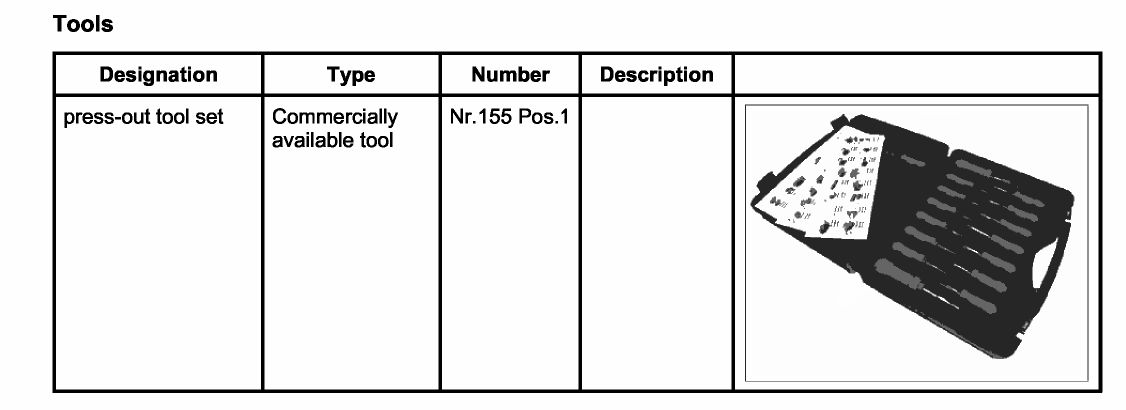

1. Hold the connector housing with the connector tab -1- up and press the release tool press-out tool set Nr.155 Pos.1, tool no. 93005 (Mibostahl set) into the openings above and below the contact -arrow- until the resistance of the locking lug on the contact is clearly overcome. Leave the tool in the connector housing.





Releasing connector at the front

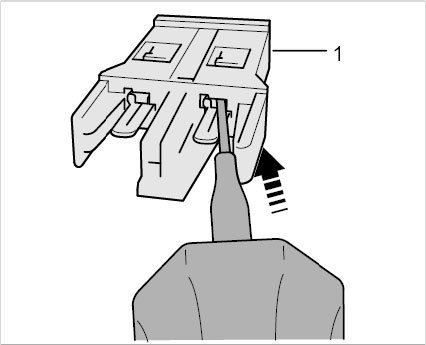

2. Position the release tool press-out tool set Nr.155 Pos.1, tool no. 95511 (Mibostahl set) at the upper connector tab -1- and break this off in an upward direction using the tool. -arrow-





Breaking off tab at the top

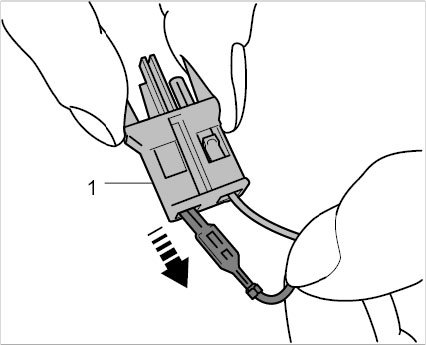

3. Pull the cable back out of the connector housing -1- at the sleeve.





Pulling out cables

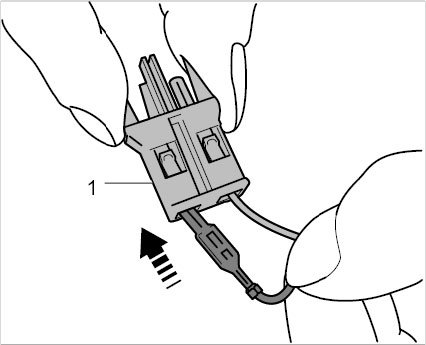

4. Press the cable into the new connector housing -1- from behind until the contact engages securely in the housing. Make sure that the cables are arranged correctly in the connector housing.





Pressing in cables
