91881900 Removing and installing console for telephone

WM 918819 Removing and installing console for telephone

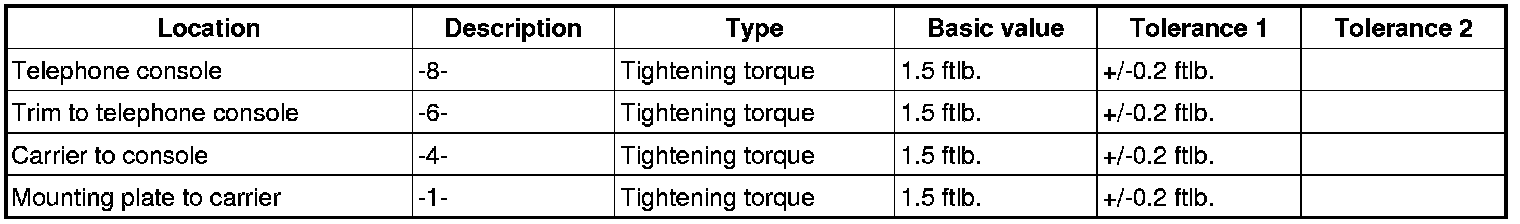

Technical values





Removing console for telephone

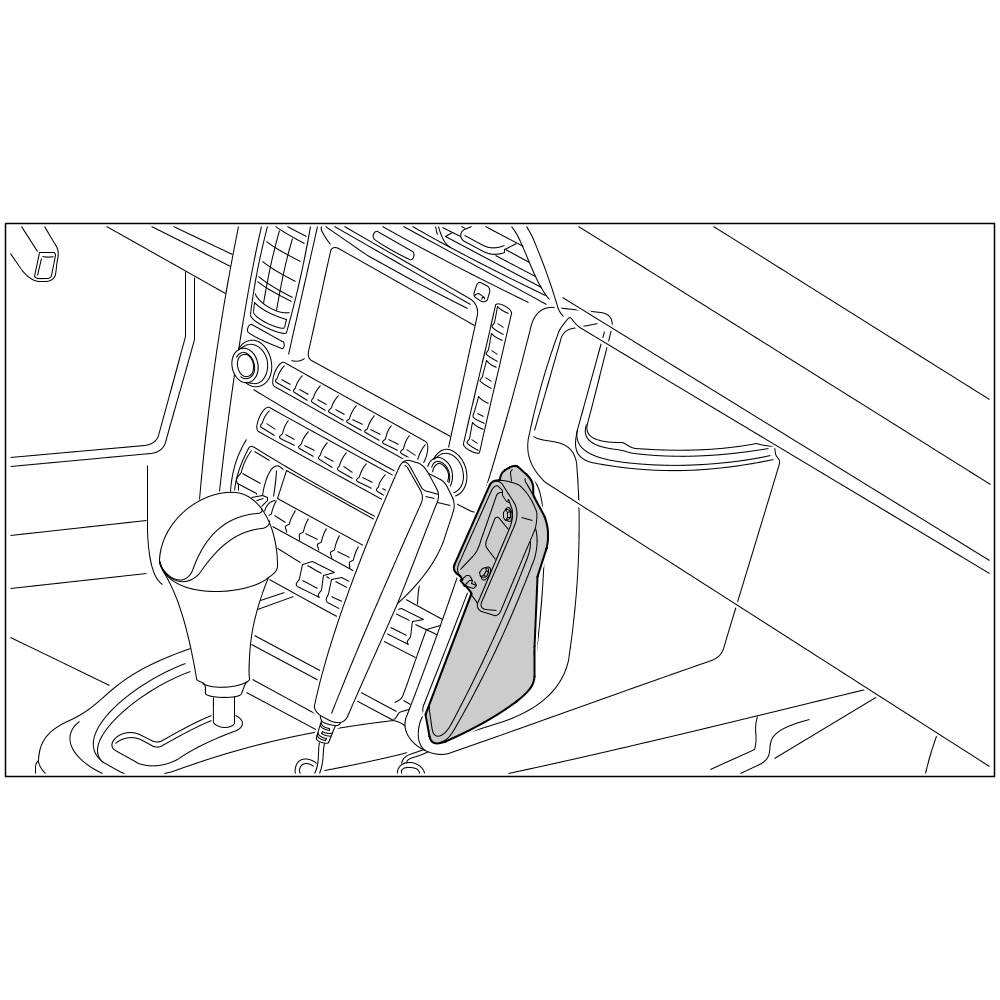

Installation position

1. Unscrew the two fastening screws -1- and remove the mounting plate -2-.

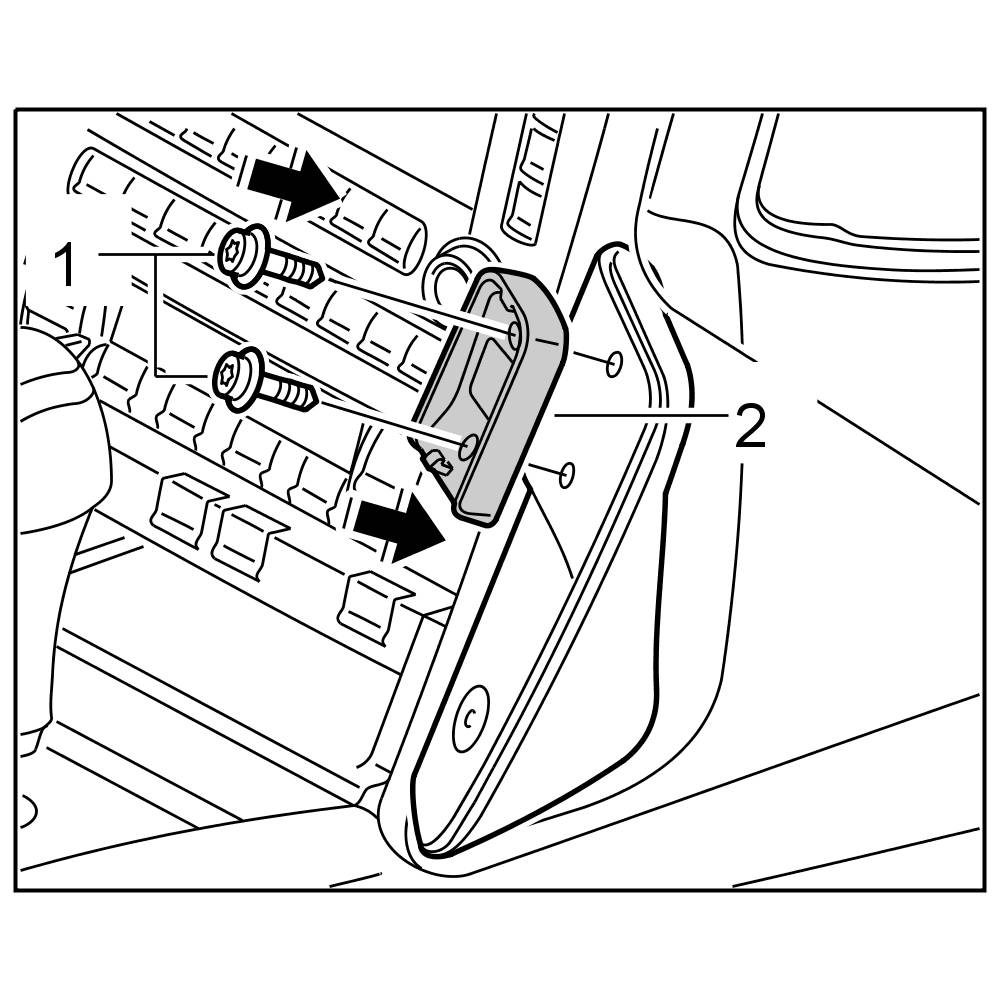

Unscrewing fastening screw -1-

2. Carefully unclip the cover -3- with a screwdriver.

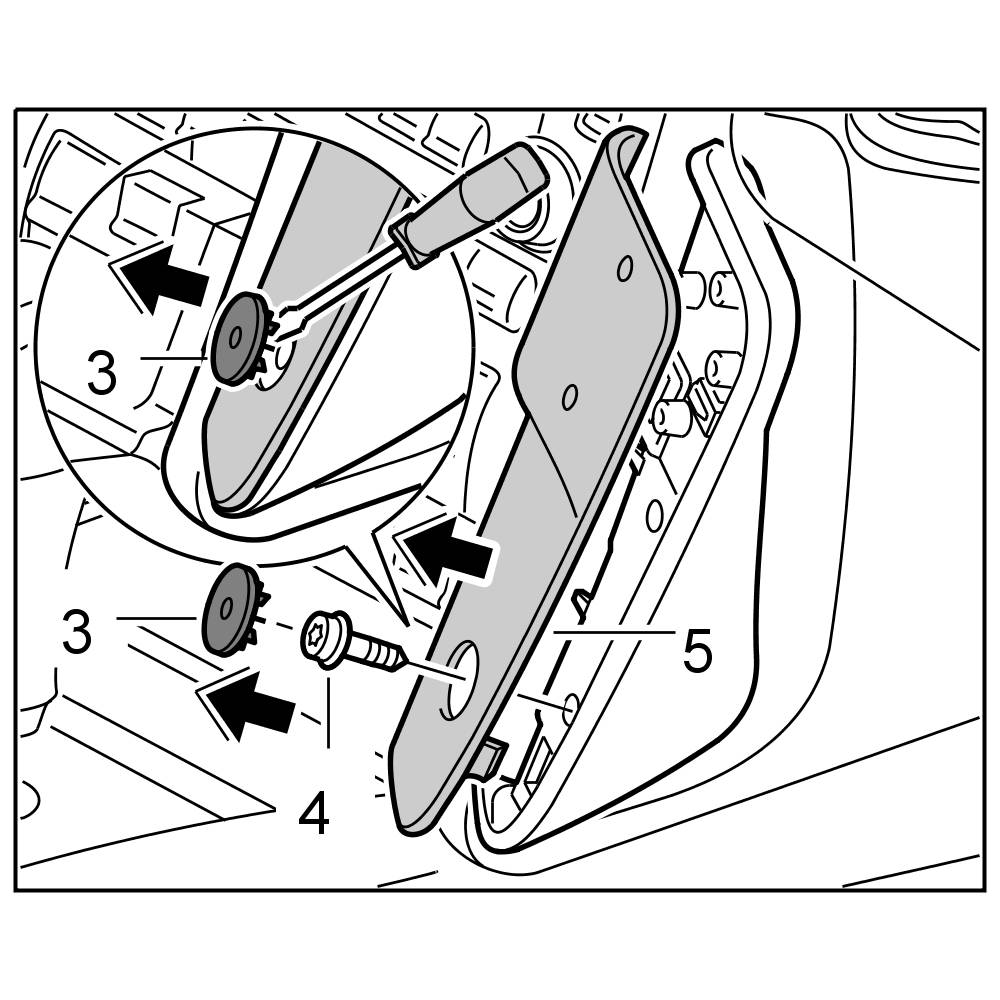

Unclipping cap

3. Unscrew the fastening screw -4- and remove the carrier -5-.
4. Unscrew the fastening screw -6- and remove the trim -7-.

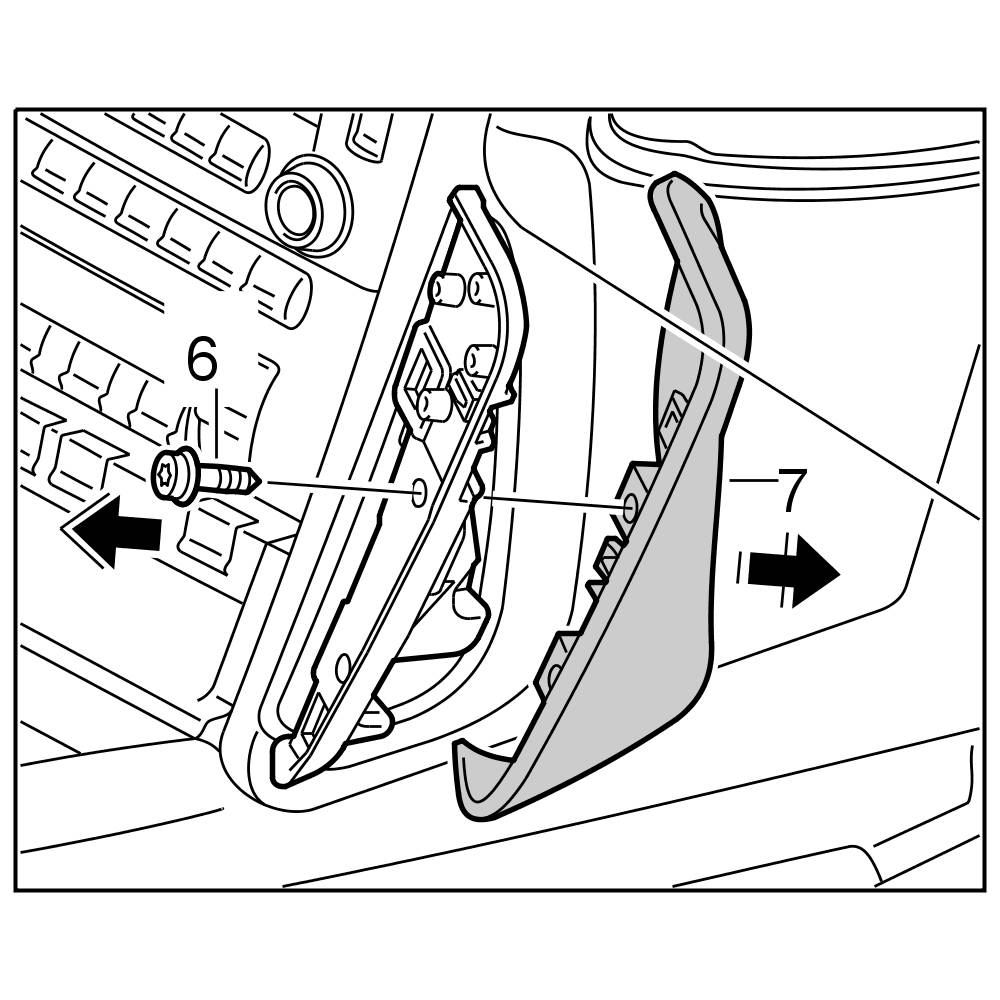

Unscrewing fastening screw and removing trim

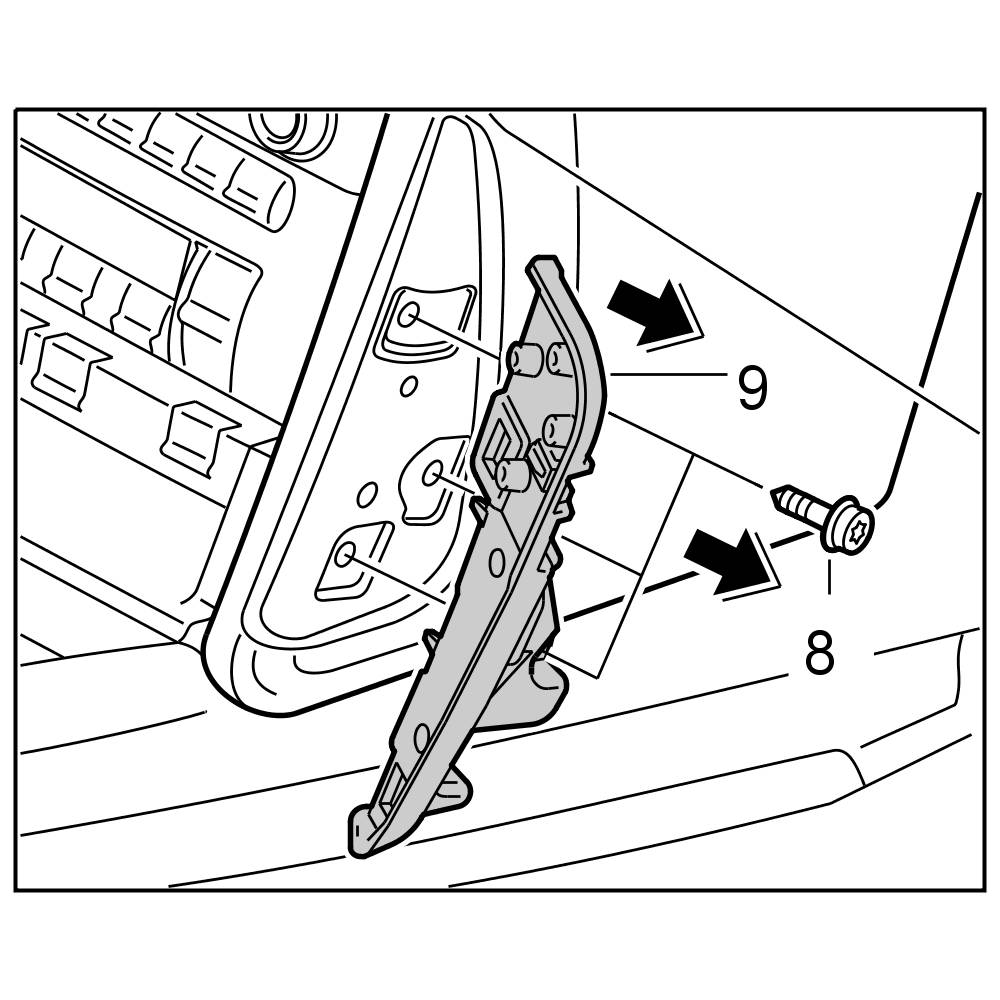

5. Unscrew the three fastening screws -8- and remove console for the telephone -9-.





Unscrewing fastening screw and removing telephone console

Installing console for telephone

1. Position console for telephone -9- and screw down with the three fastening screws -8-. => Tightening torque: 1.5 ftlb.+/-0.2 ftlb.





Positioning and securing telephone console

2. Press trim -7- on the console and screw down with the fastening screw -6-. => Tightening torque: 1.5 ftlb.+/-0.2 ftlb.

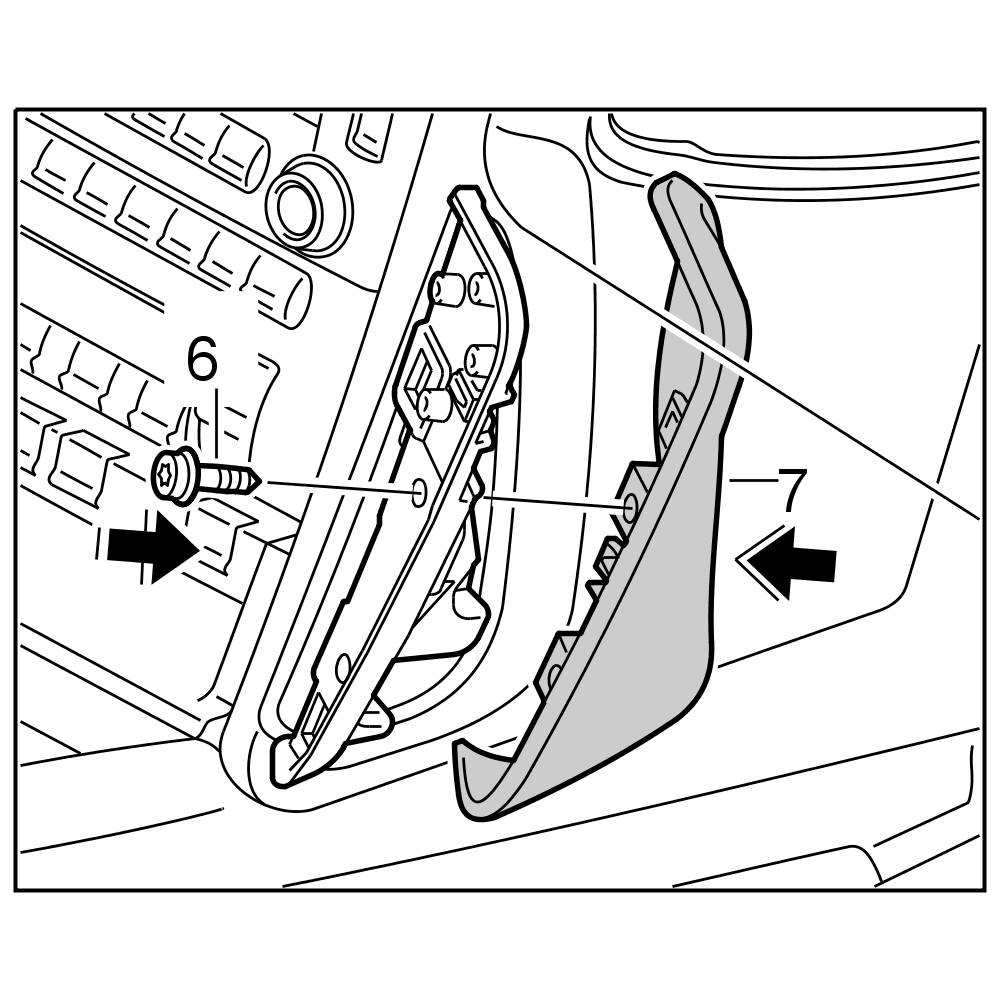

Positioning trim and securing with the fastening screw

3. Press carrier -5- on the console and screw down with the fastening screw -4-. => Tightening torque: 1.5 ftlb.+/-0.2 ftlb.

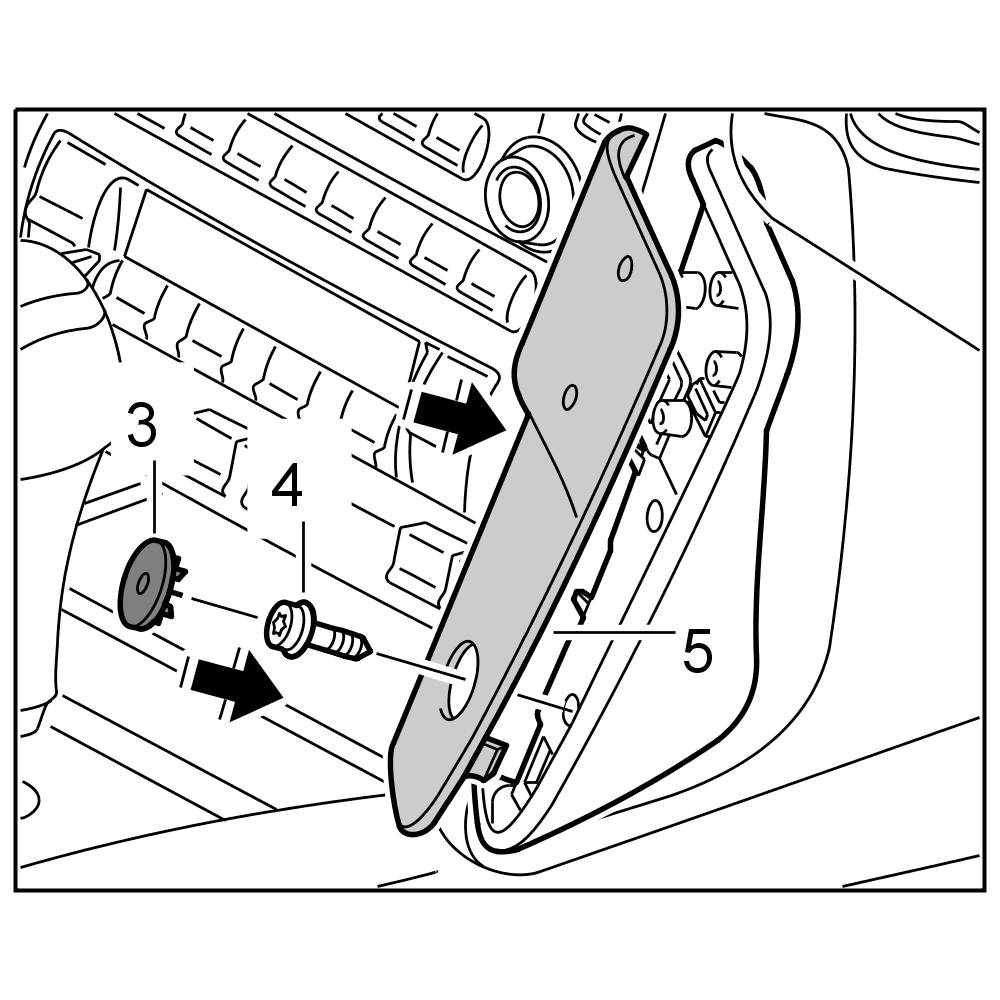

Positioning and securing carrier

4. Position the cover -4- and clip it into place.
5. Secure the mounting plate with the fastening screws -1-. => Tightening torque: 1.5 ftlb.+/-0.2 ftlb.

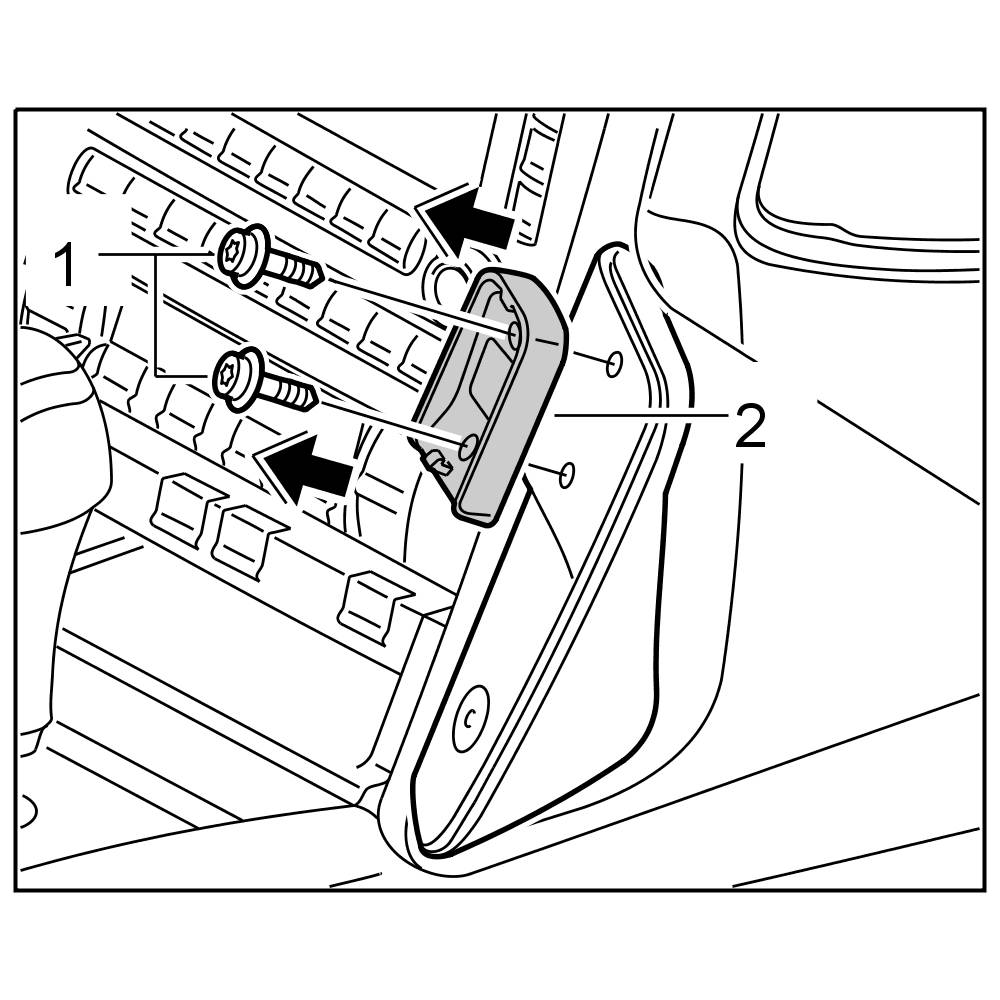

Securing mounting plate

6. Place the handset in the bracket.
