552219 Removing and Installing Front Lid

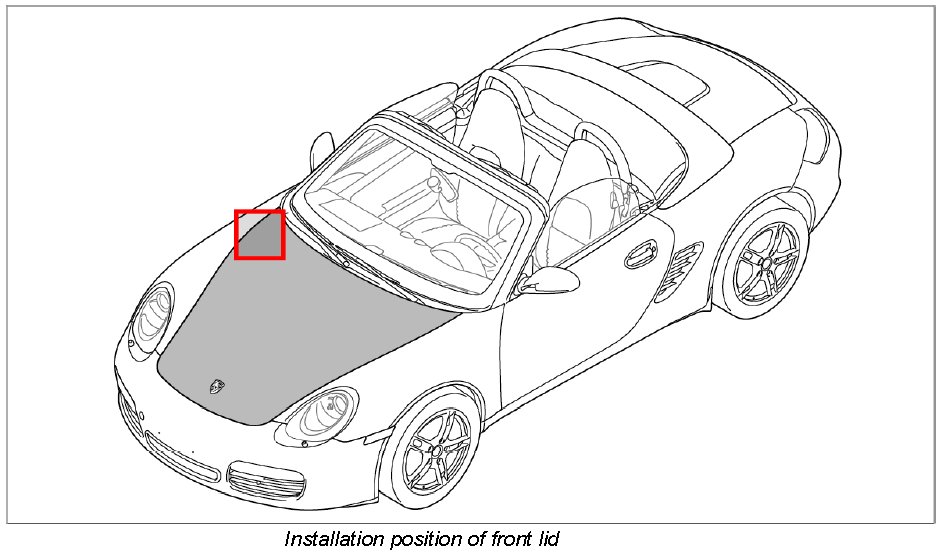

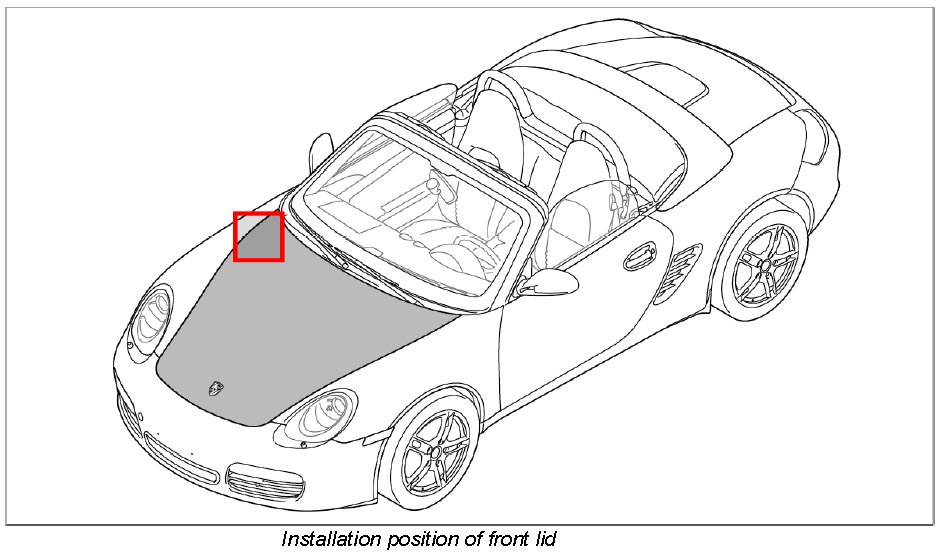

Removing And Installing Front Lid

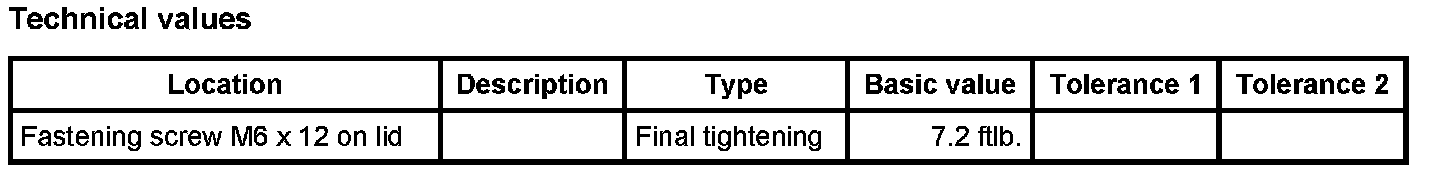

Technical values

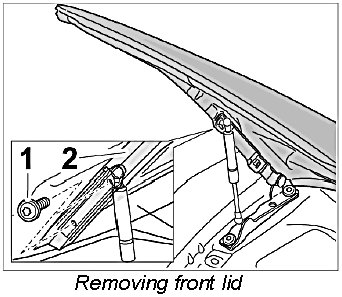

Removing front lid







INFORMATION: In addition, assembly work requires a second person to hold the lid open.

1. Unscrew fastening screws -1- from the front lid -2-.

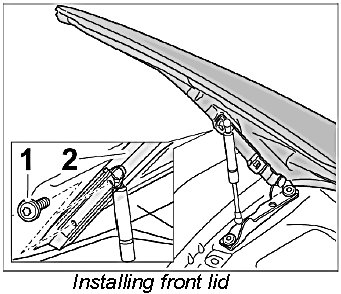

Installing front lid







INFORMATION: In addition, assembly work requires a second person to hold the lid open.

1. Position lid -2- at the left and right hinges and tighten using the fastening screws -1-. Tightening torque: Final tightening: 7.2 ftlb.







Subsequent work

Adjust front lid. Refer to Adjusting front lid.
