70301900 Removing and installing front luggage compartment cover
WM 703019 Removing and installing front luggage compartment cover
Preliminary work
Remove luggage compartment light. -> 964019 Removing and installing luggage compartment light - "Removing" section 964019 Removing and installing luggage compartment light in rear lid
Removing front luggage compartment cover
Removing luggage compartment cover

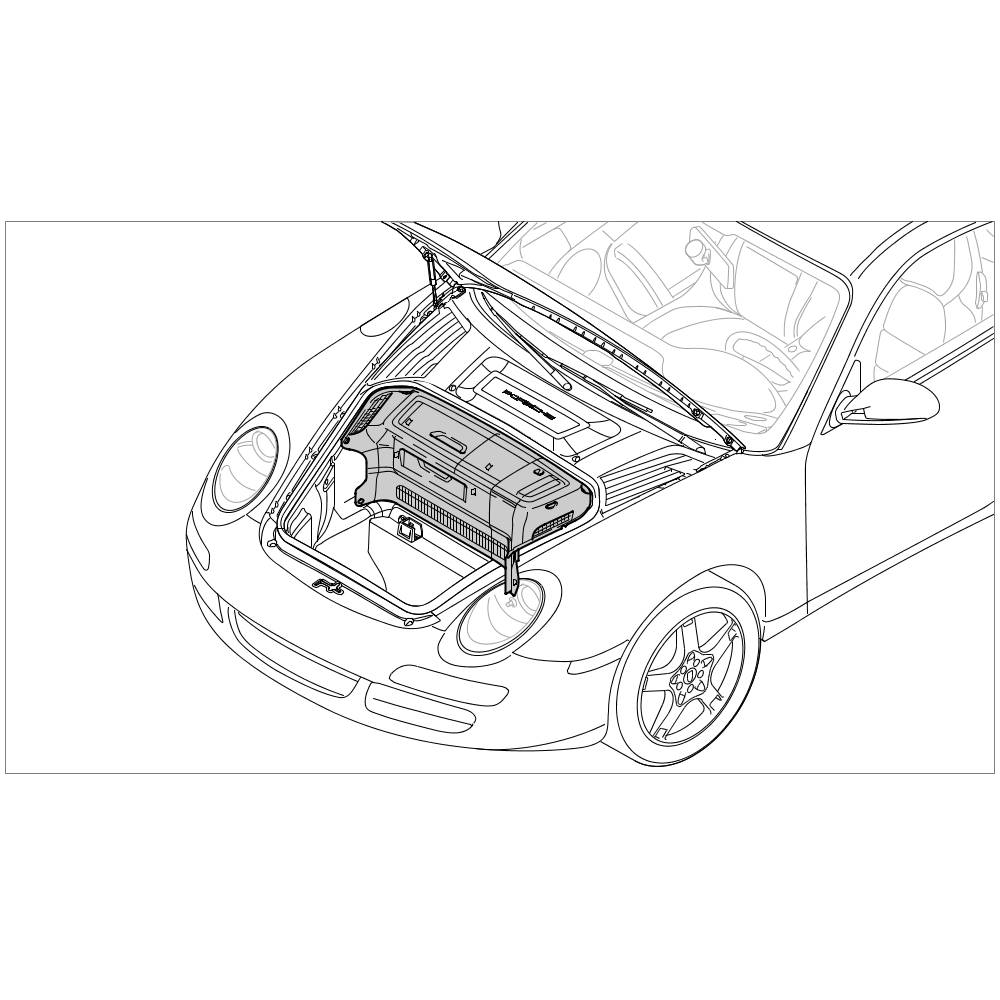

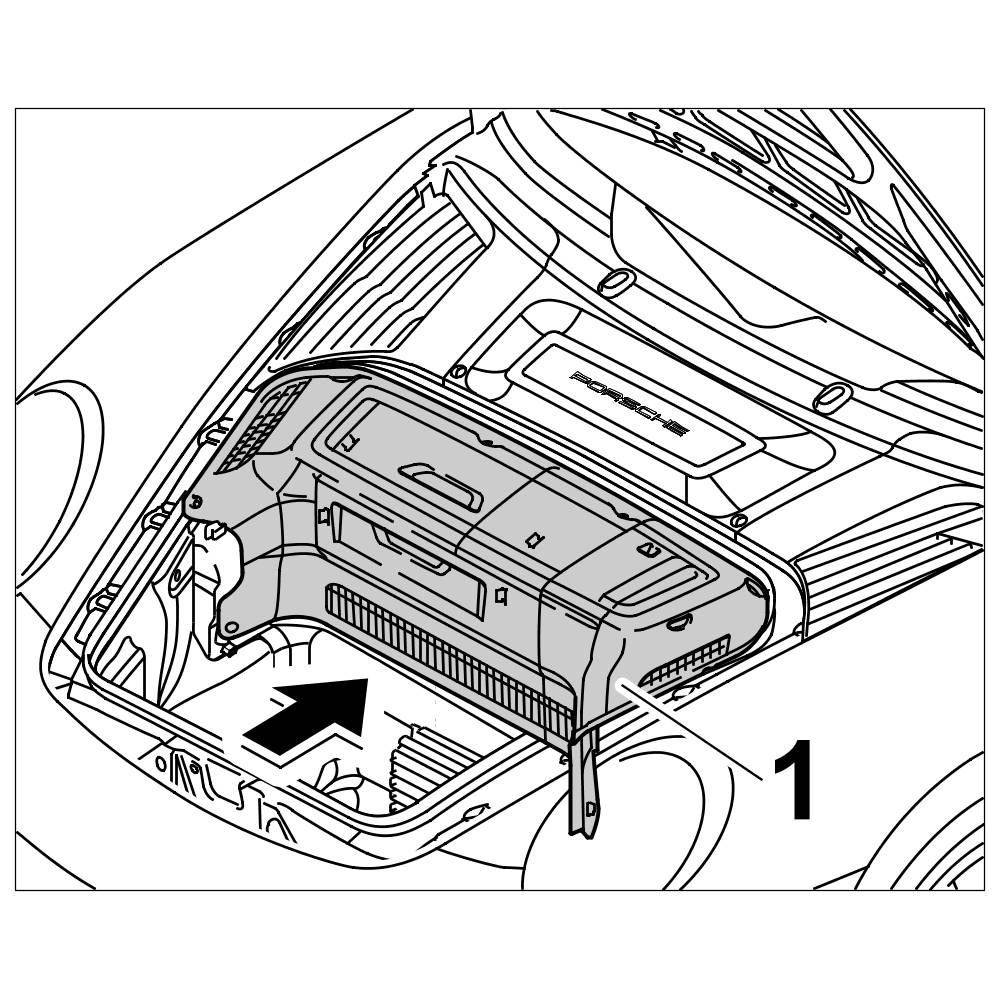

Installation position of luggage compartment cover

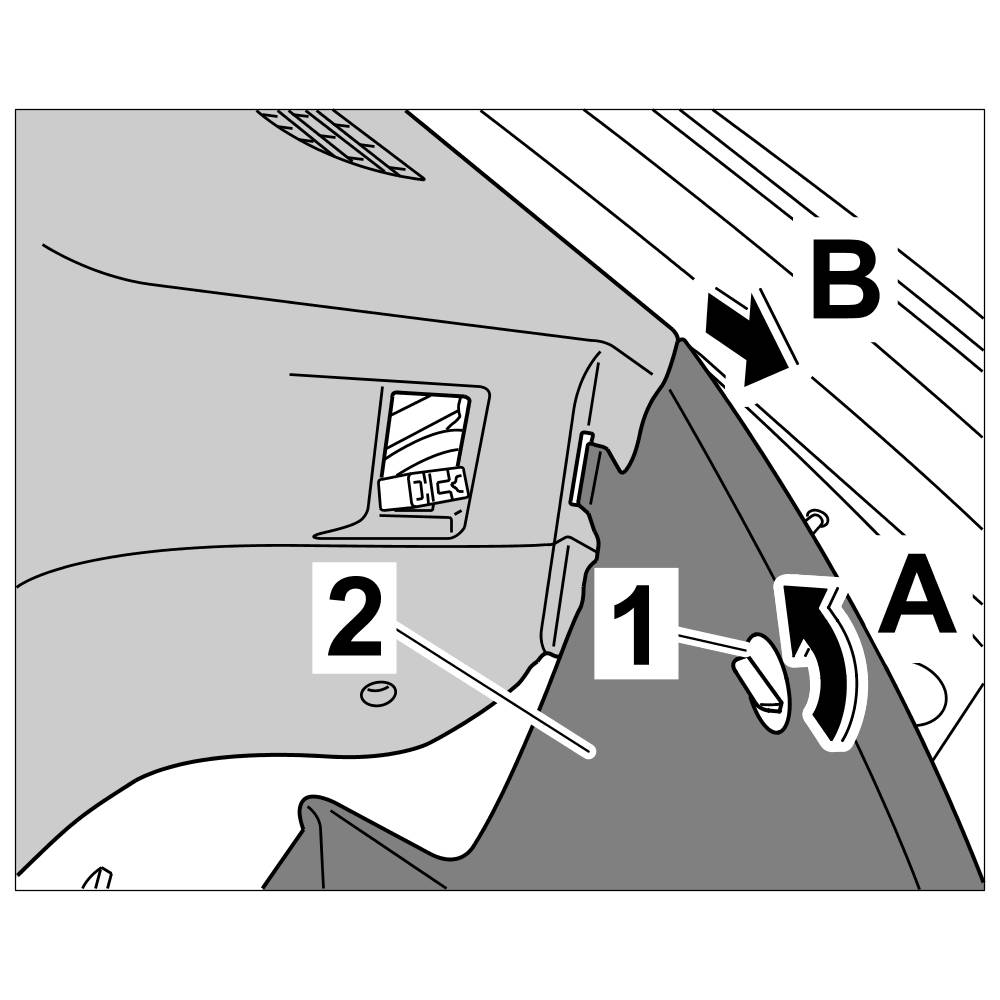

1. Unscrew plastic nut -1- ( -Arrow A- ) and loosen luggage-compartment lining on the left-hand side -2- ( -Arrow B- ).
Loosening luggage-compartment lining

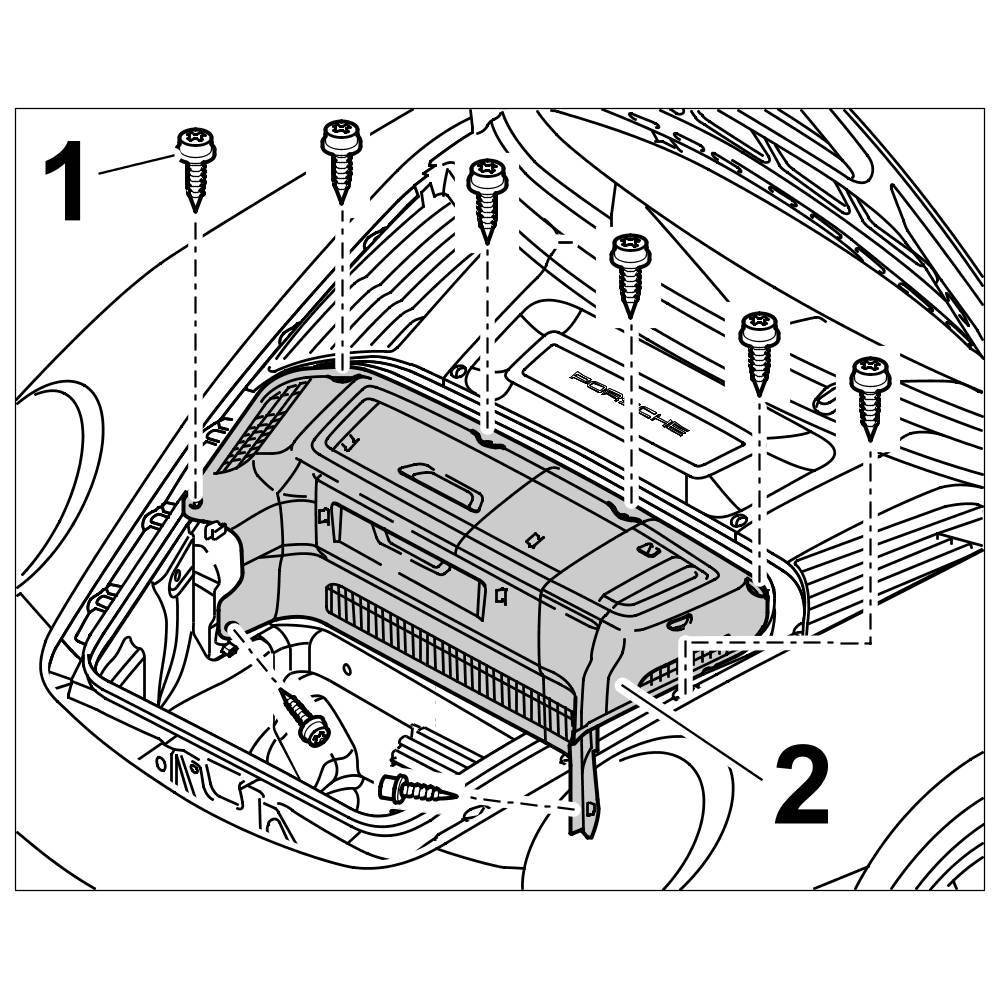

2. Unscrew fastening screws -1- from the luggage compartment cover -2-.
Loosening luggage compartment cover

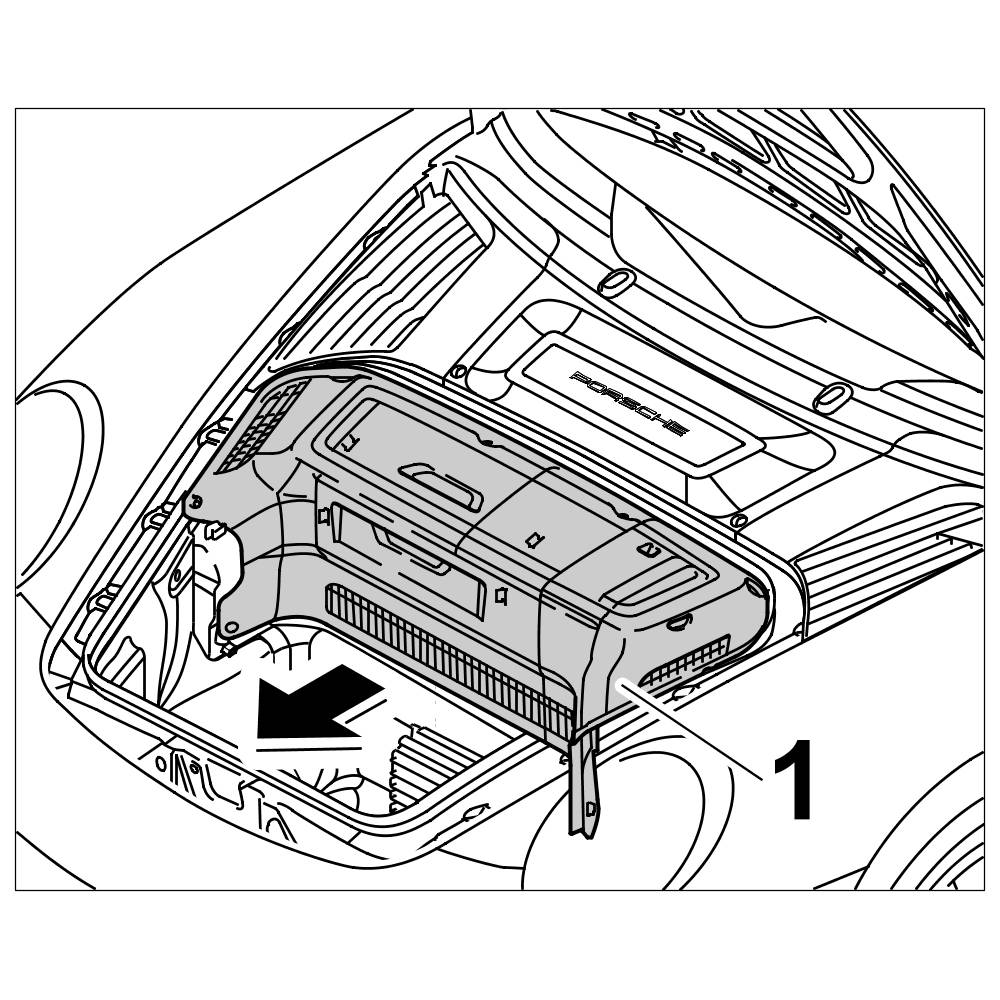

3. Remove luggage compartment cover -1- to the front.
Removing luggage compartment cover

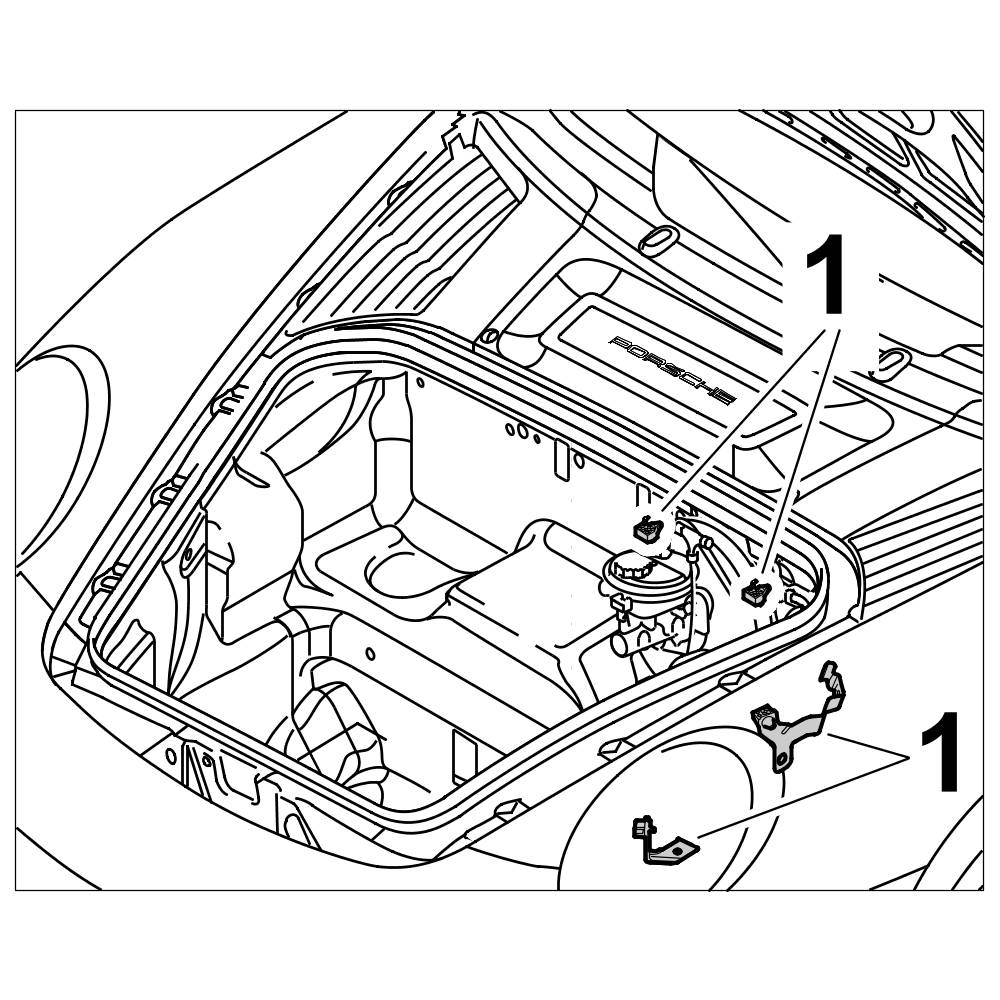

4. Check support -1- and replace if necessary.
Checking support
Removing luggage compartment cover

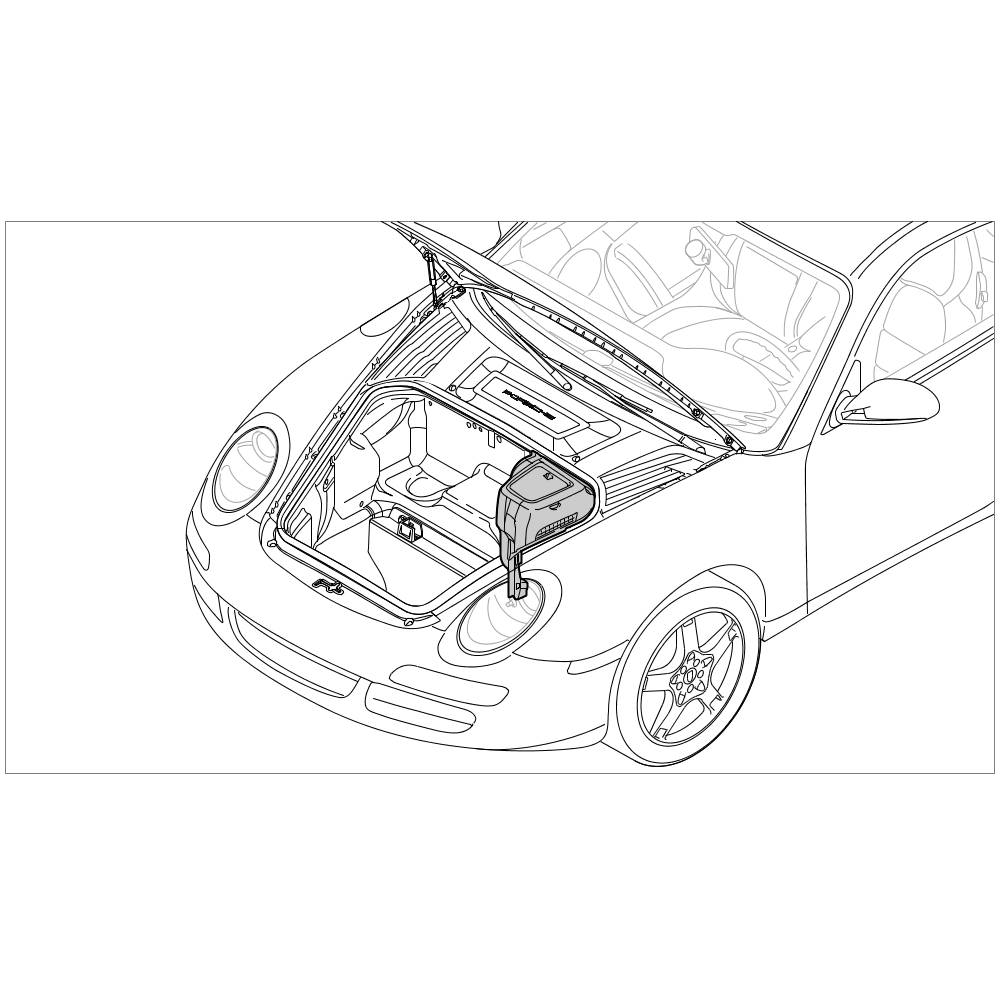

Installation position of luggage compartment cover
1. Unscrew plastic nut -1- ( -Arrow A- ) and loosen luggage-compartment lining on the left-hand side -2- ( -Arrow B- ).
Loosening luggage-compartment lining

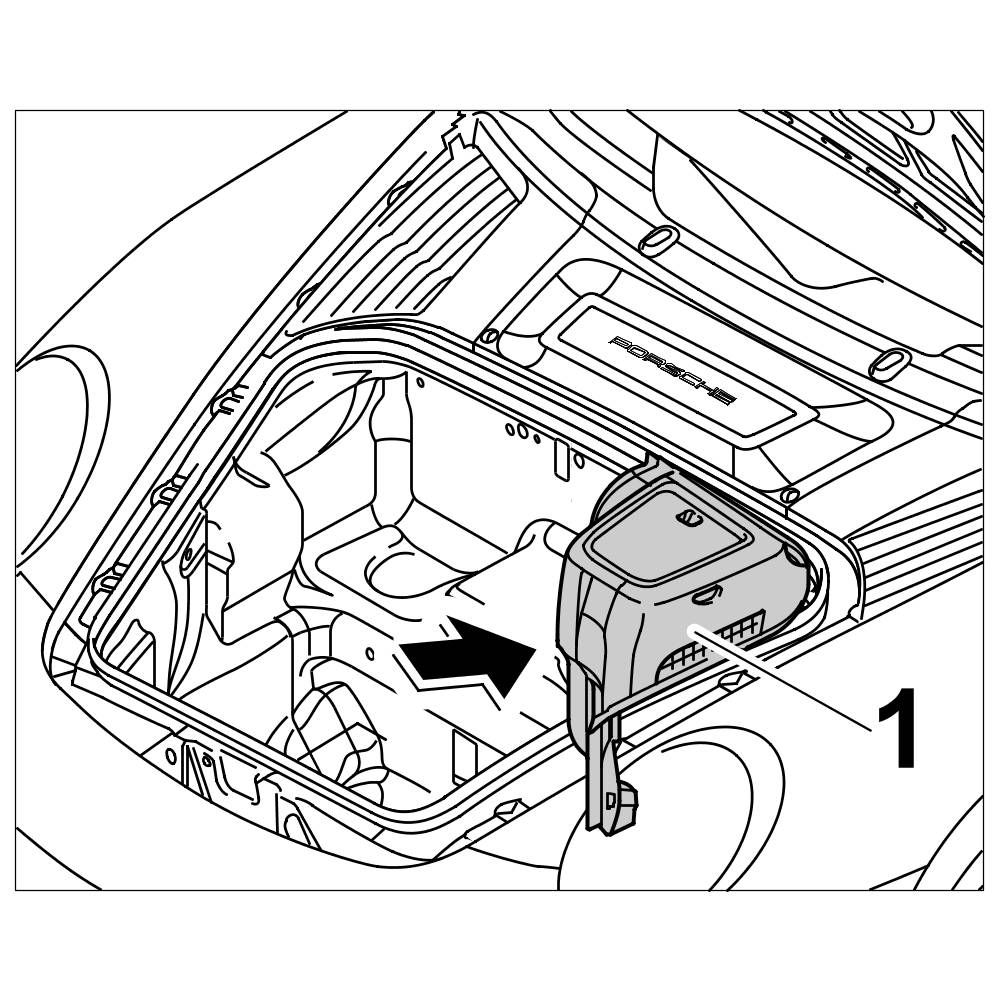

2. Unscrew fastening screws -1- from the luggage compartment cover -2-.
Loosening luggage compartment cover

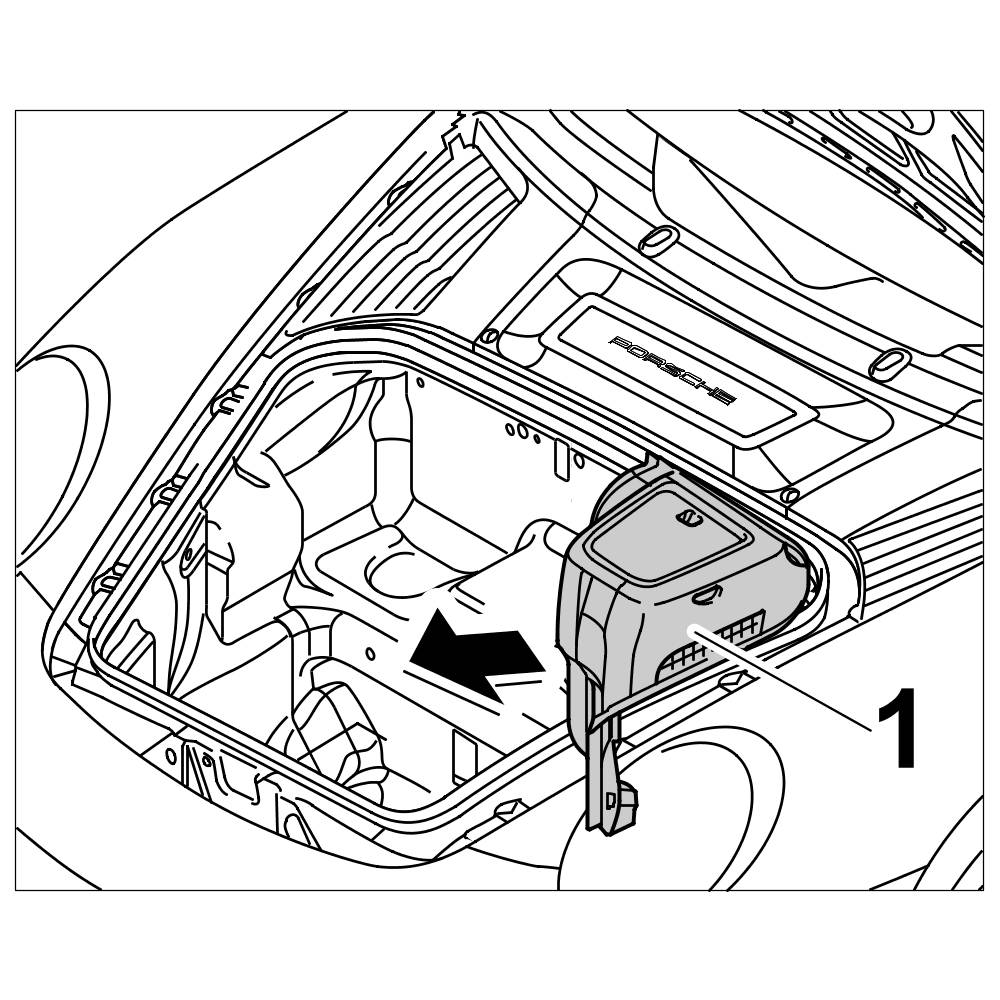

3. Remove luggage compartment cover -1- to the front.
Removing luggage compartment cover

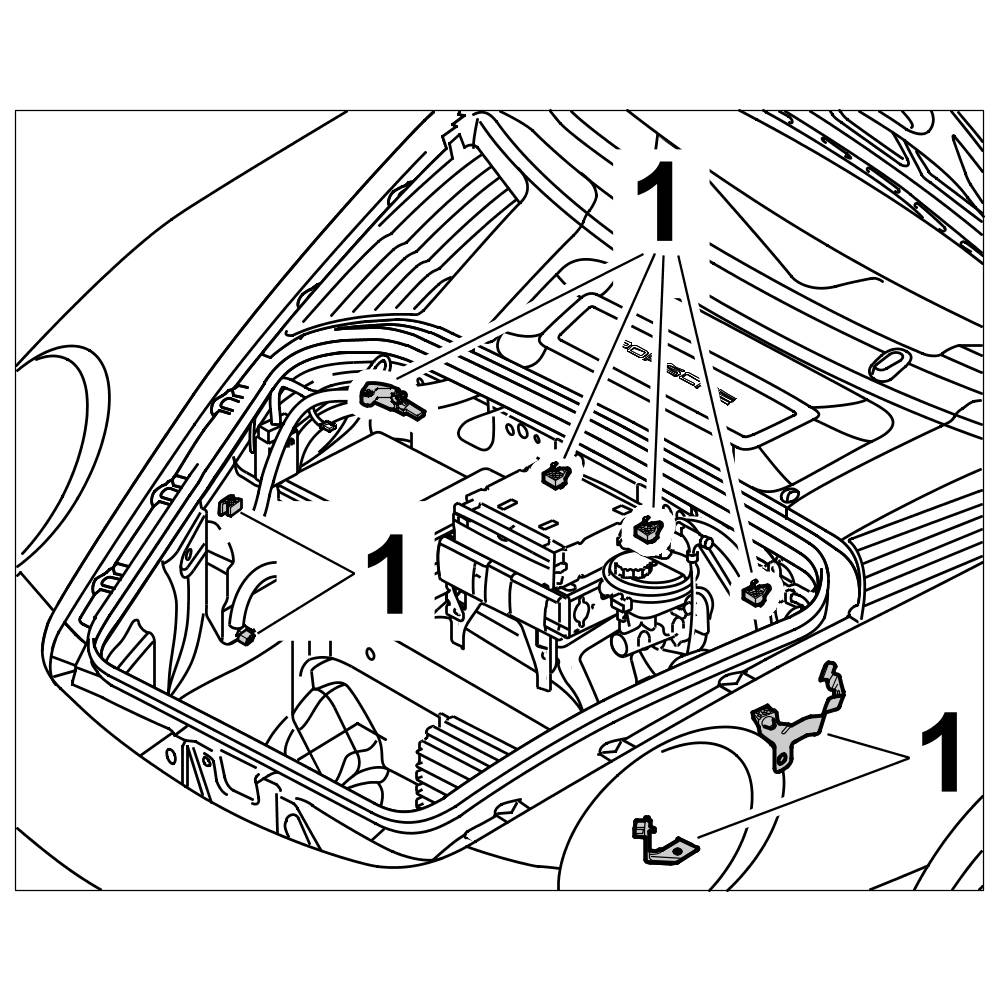

4. Check support -1- and replace if necessary.
Checking support
Installing front luggage compartment cover
Installing luggage compartment cover
1. Position luggage compartment cover -1- in the luggage compartment.
Installing luggage compartment cover

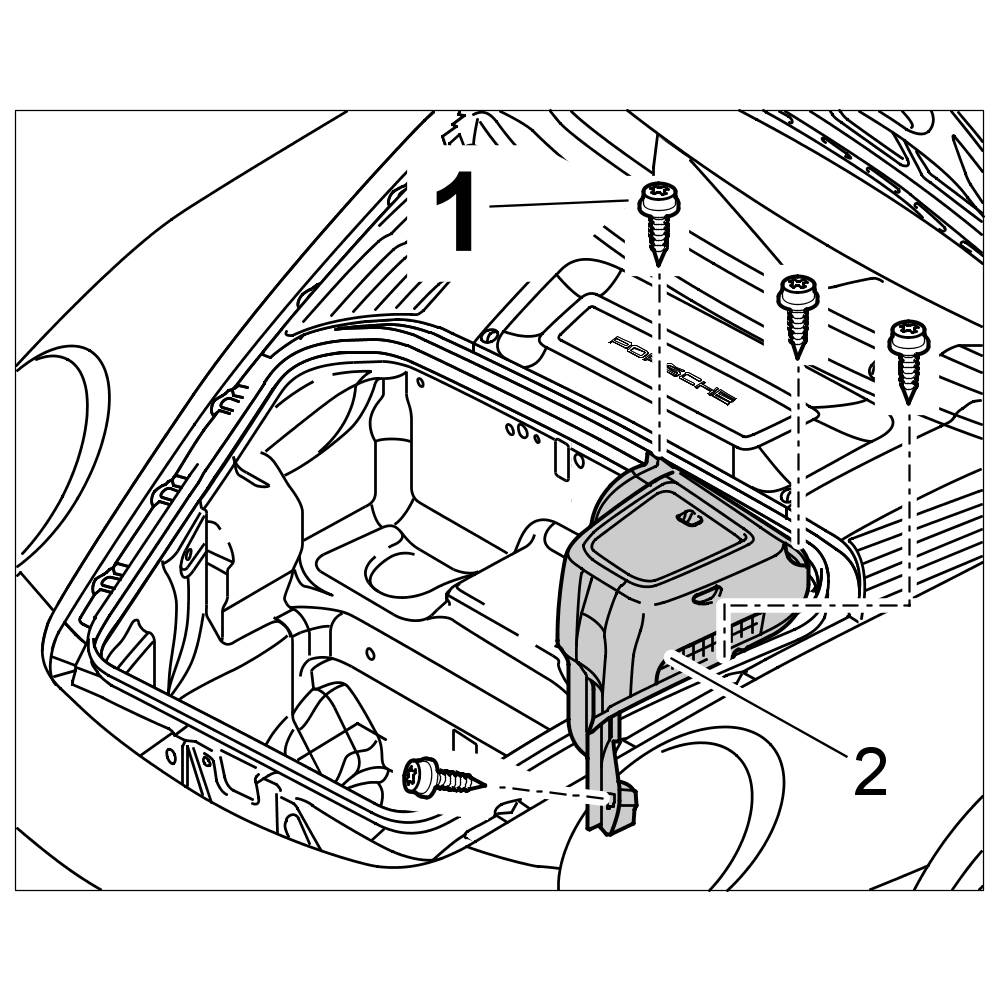

2. Screw down luggage compartment cover -2- using the fastening screws -1-.
Fastening luggage compartment cover

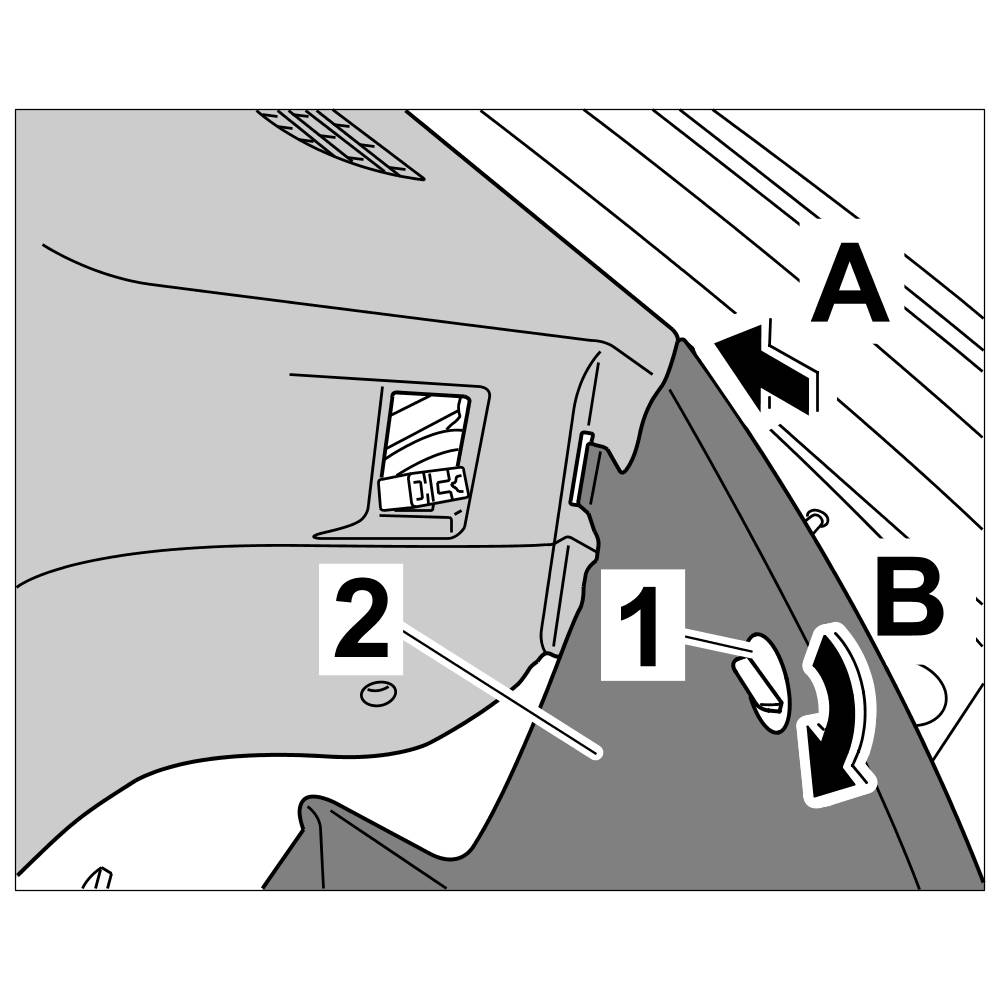

3. Run in luggage-compartment lining -2- -arrow A- and fasten with the plastic nut -1- -arrow B-.
Fastening luggage compartment lining
4. Check to ensure that lid seal is installed correctly.
Installing luggage compartment cover
1. Position luggage compartment cover -1- in the luggage compartment.
Installing luggage compartment cover
2. Screw down luggage compartment cover -2- using the fastening screws -1-.
Loosening luggage compartment cover
3. Run in luggage-compartment lining -2- -arrow A- and fasten with the plastic nut -1- -arrow B-.
Fastening luggage compartment lining
4. Check to ensure that lid seal is installed correctly.
Subsequent work
Install luggage compartment light. -> 964019 Removing and installing luggage compartment light - "Installing" section 964019 Removing and installing luggage compartment light in rear lid
