Hydraulic System: Specifications

WM 4700TW Tightening torques for brake hydraulics

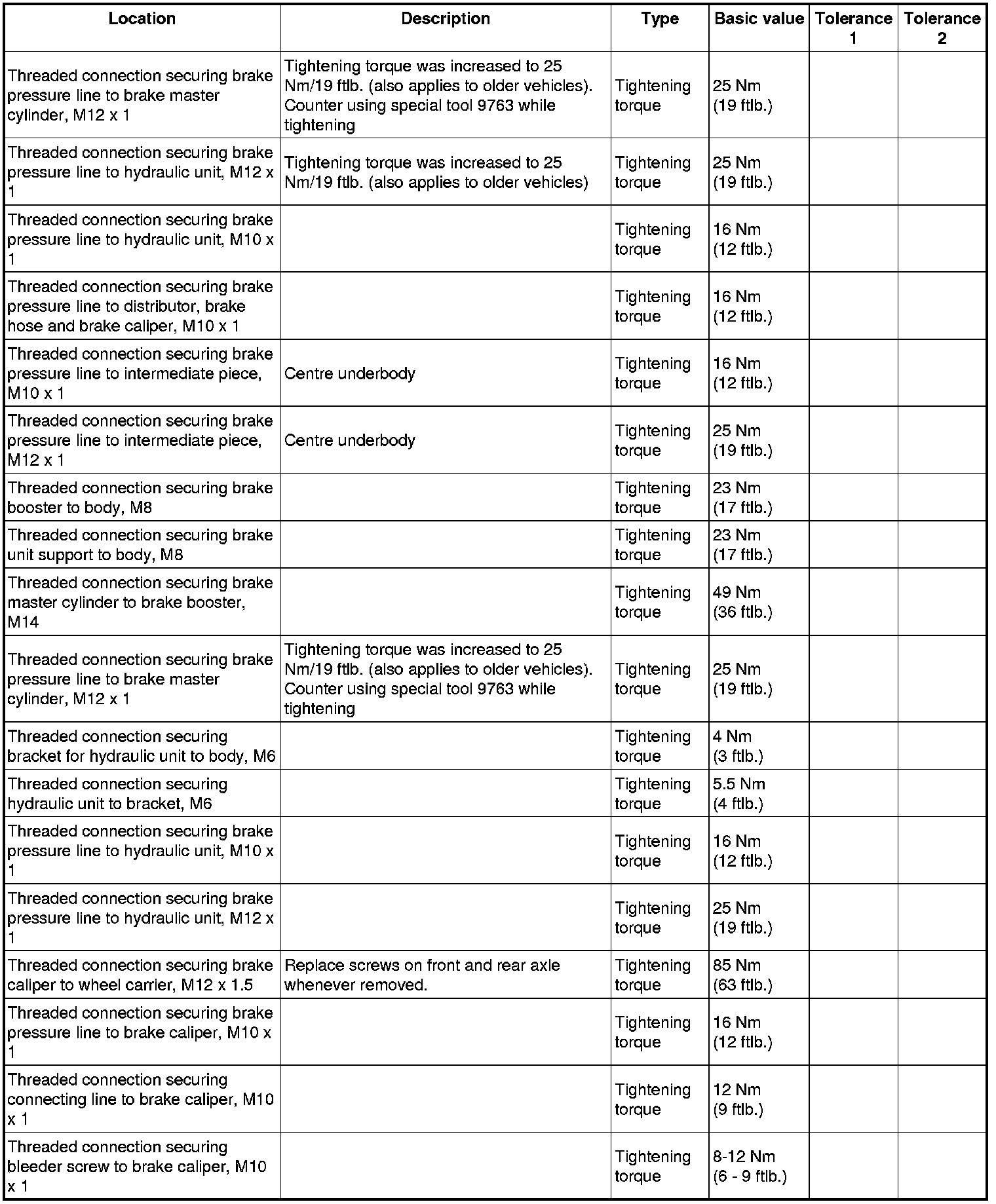

Technical values

Technical values

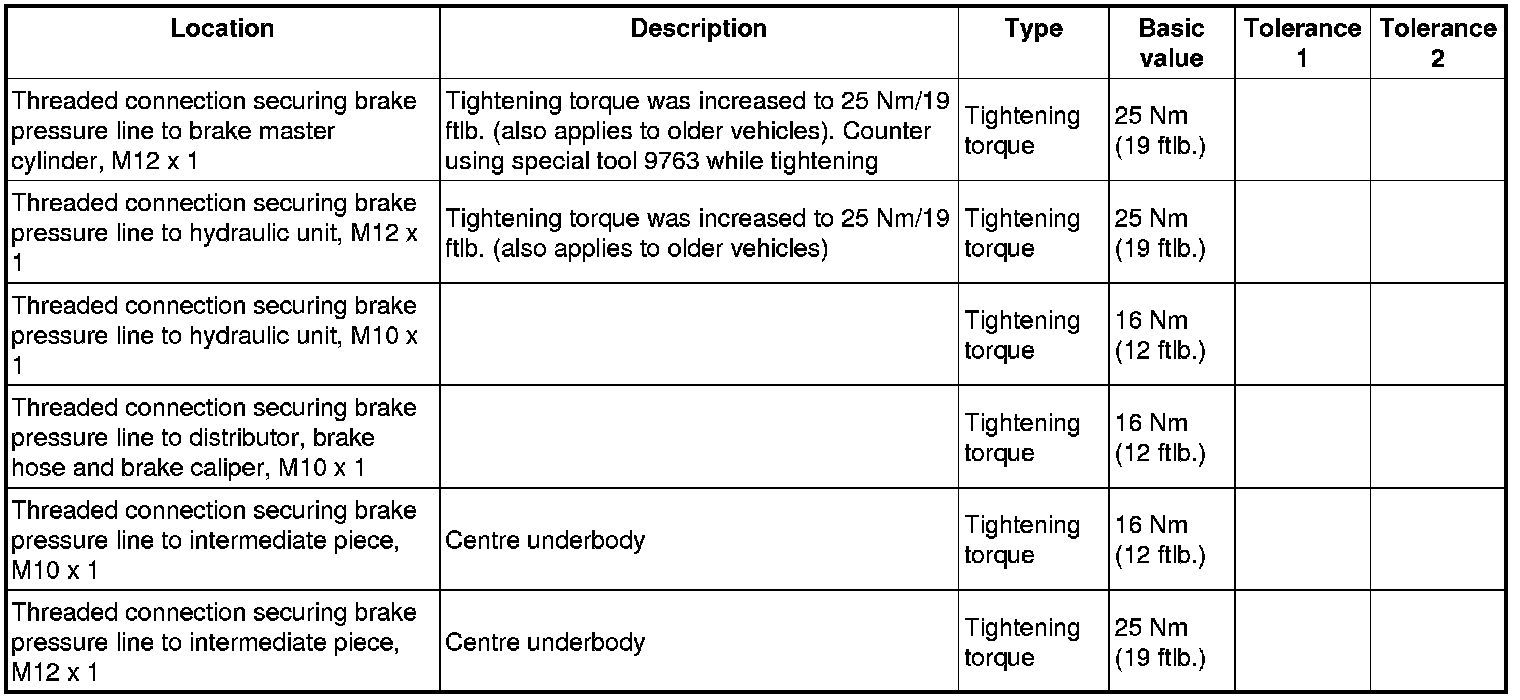

Brake pressure line

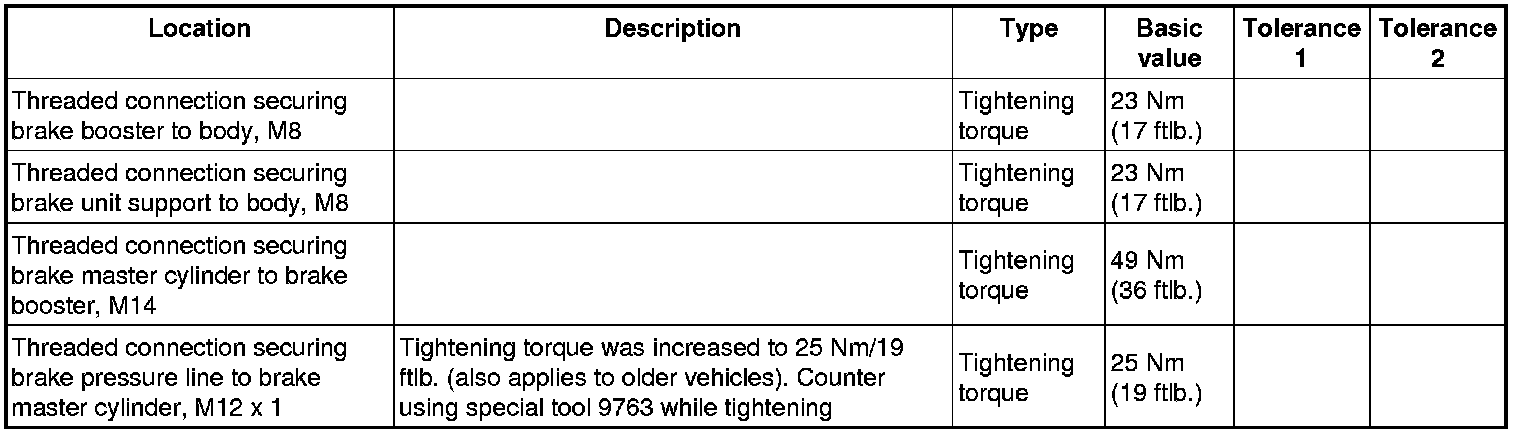

Master brake cylinder/brake booster

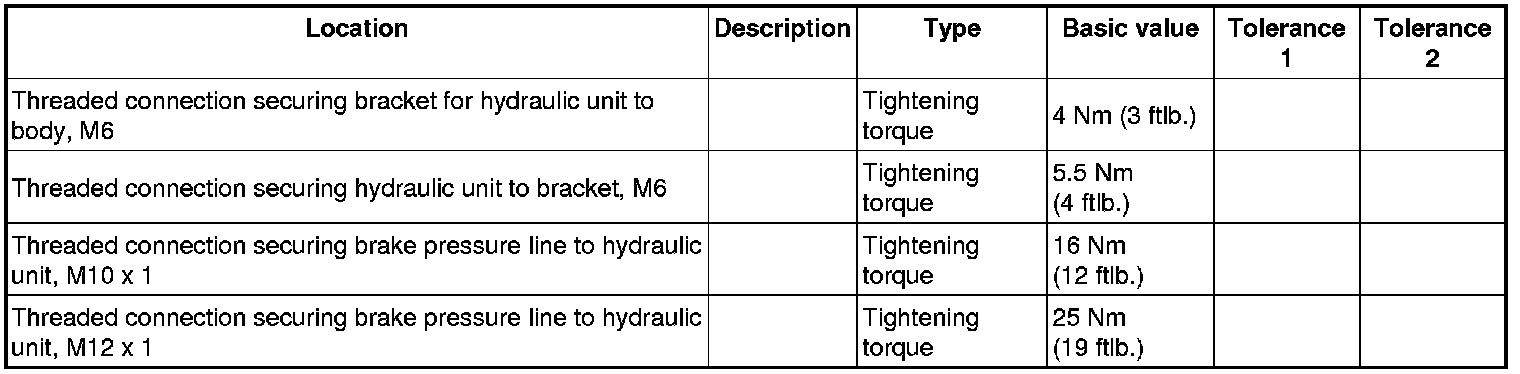

Hydraulic unit

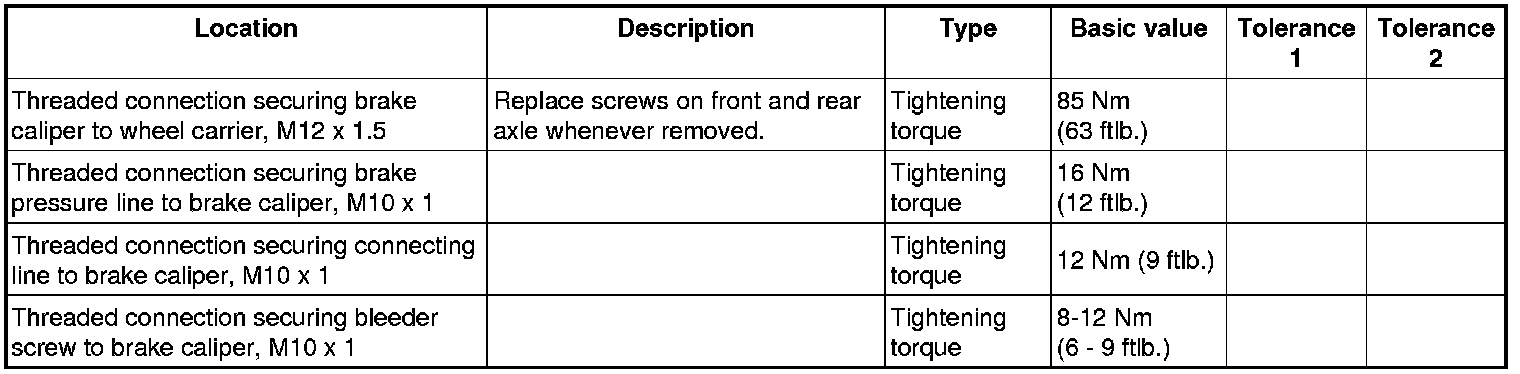

Brake caliper
