Traction Control Switch: Service and Repair

Removing and installing switch for PSM

Information

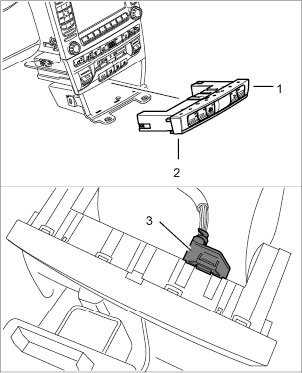

Overview of PSM switch

1 - PSM switch
2 - Switch console

The PSM switch -1- can only be removed and replaced together with the switch console -2-

Preliminary work

1. Remove shift lever knob.
2. Remove centre console trim.





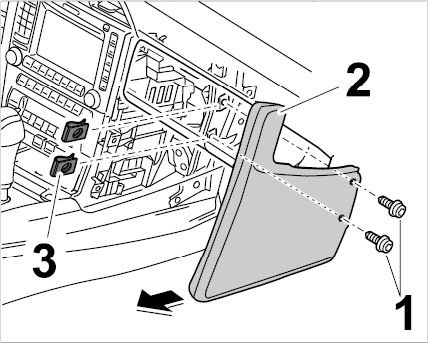

Centre console trim

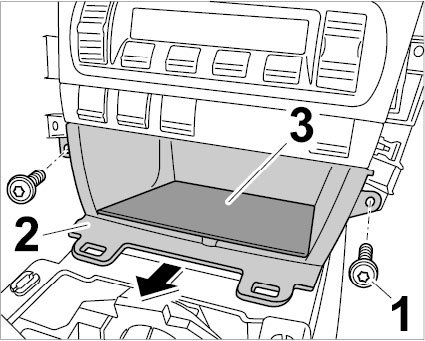

3. Remove storage box.





Removing storage box

Removing switch for PSM

1. Remove PSM switch.





PSM switch

1 - PSM switch
2 - Switch console
3 - Electric multiple plug connector

1.1. Pull out switch console -2-.
1.2. Release electric multiple plug connector -3- at the switch console -2- and pull it off.

Installing switch for PSM

1. Install PSM switch.

1 - PSM switch
2 - Switch console
3 - Electric multiple plug connector





PSM switch

1.1. Connect electric multiple plug connector -3- to the switch console -2- and lock it.
1.2. Insert and press in the switch console -2-.

Subsequent work

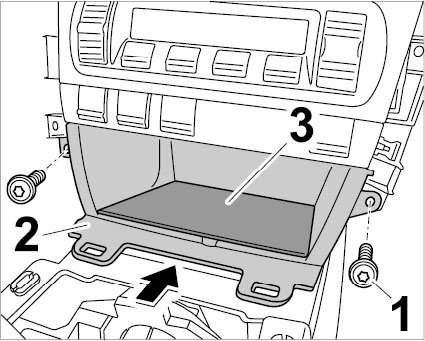

1. Remove storage box.





Storage box

2. Install centre console trim.





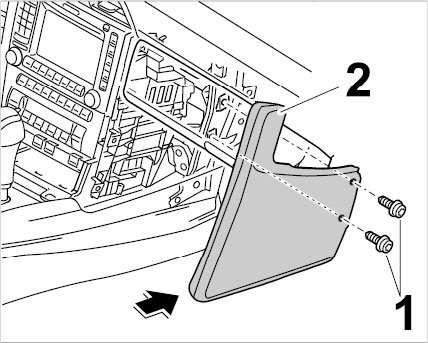

Centre console trim

3. Install shift lever knob.
