WM 100137 Disassembling and assembling engine

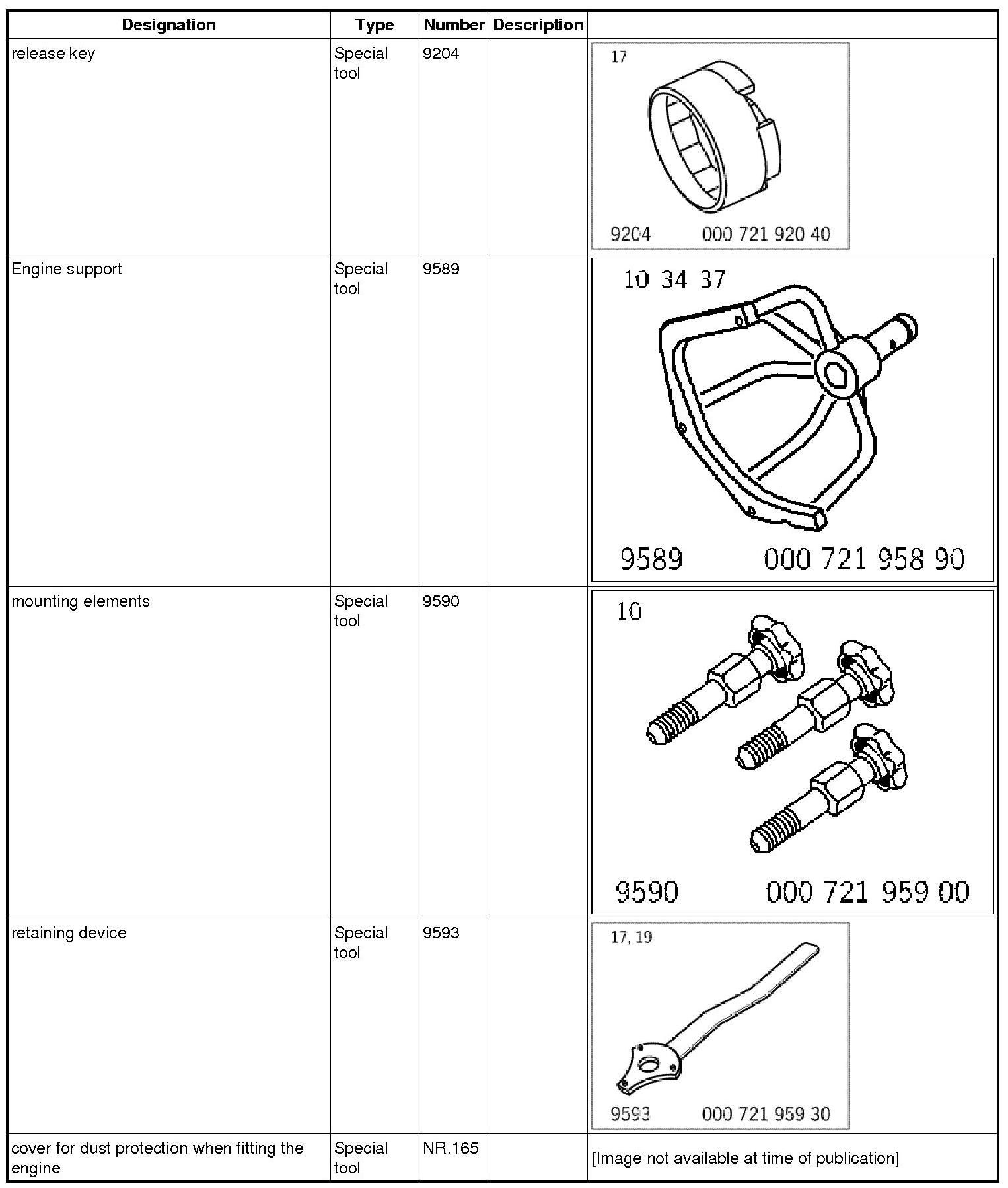

Tools

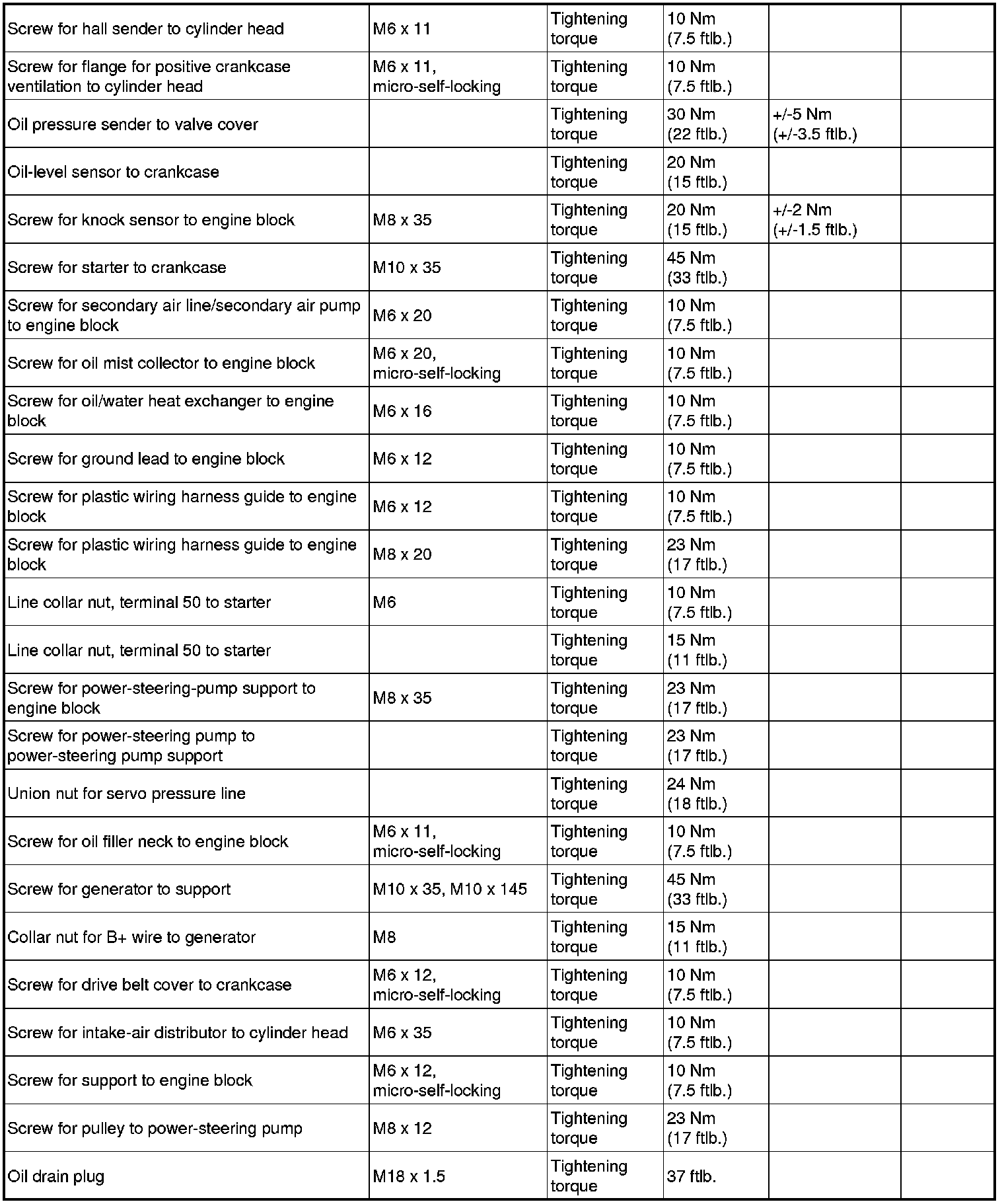

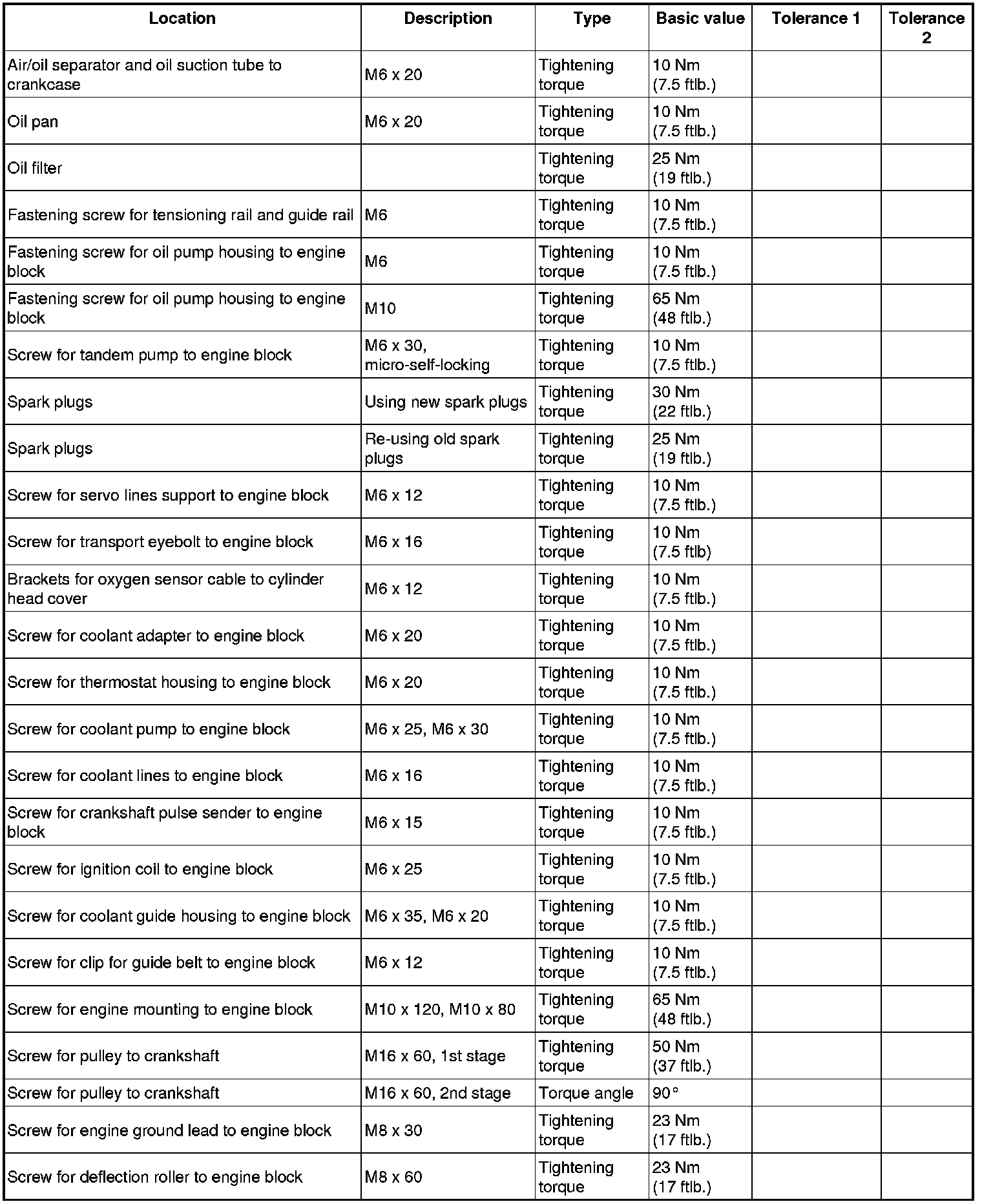

Technical values
Preliminary work for disassembling engine
1. Remove engine -> 100119 Removing and installing engine 100119 Removing and installing engine.
2. Remove transmission -> 343527 Removing and mounting transmission 34352750 Removing and mounting transmission.
3. Remove exhaust manifold -> 261019 Removing and installing exhaust manifold Service and Repair.
Tiptronic transmission:
4. Remove drive plate for converter -> 136319 Removing and installing drive plate for converter Service and Repair
Manual transmission:
5. Remove clutch -> 305019 Removing and installing clutch 30501950 Removing and installing clutch.
6. Remove flywheel -> 136019 Removing and installing flywheel Removal and Replacement.
Component overview - engine
Information
The overview graphics are shown schematically and may be different to how the components actually look.

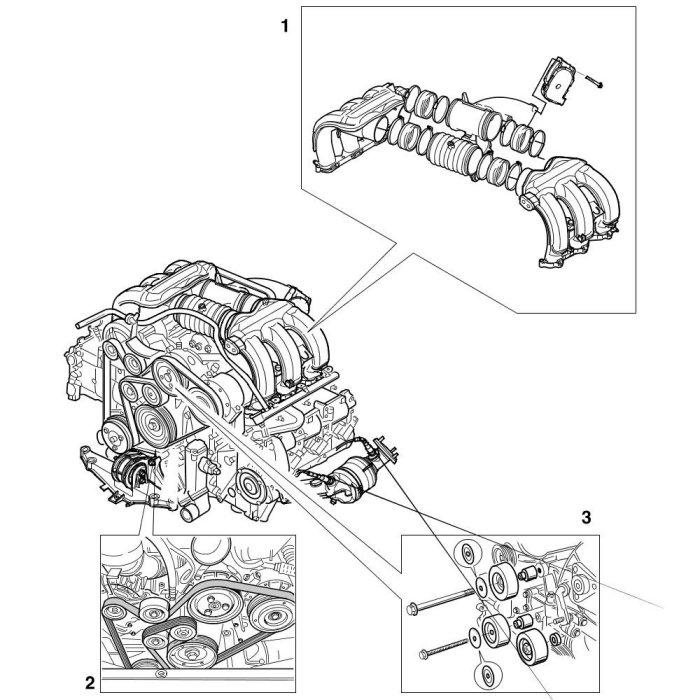

Intake system, belt drive
Overview of intake system, belt drive
- 1 - Intake distributor
- 2 - Belt drive
- 3 - Belt guide and belt tensioner
Engine lubrication, engine cooling

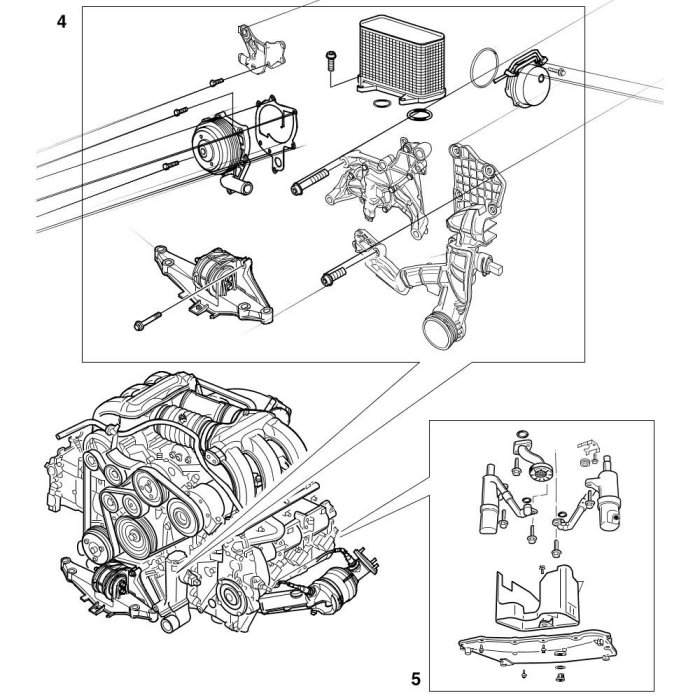

Overview of cooling, lubrication
- 4 - Oil pump, heat exchanger, water pump, coolant guide housing
- 5 - Oil pan, oil separator

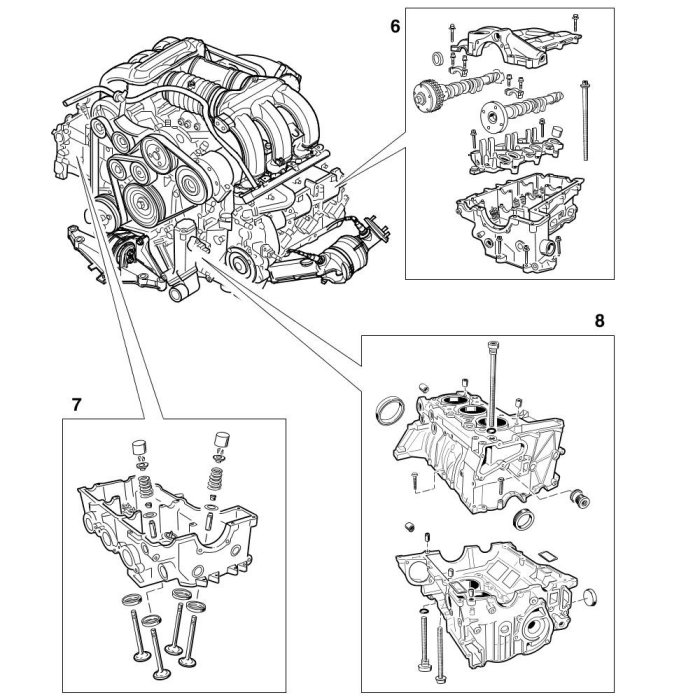

Cylinder head, crankcase
Overview of cylinder head, crankcase
- 6 - Cylinder-head cover, camshafts, flat-base tappet housing, cylinder head
- 7 - Cylinder head, flat-base tappets
- 8 - Crankcase halves

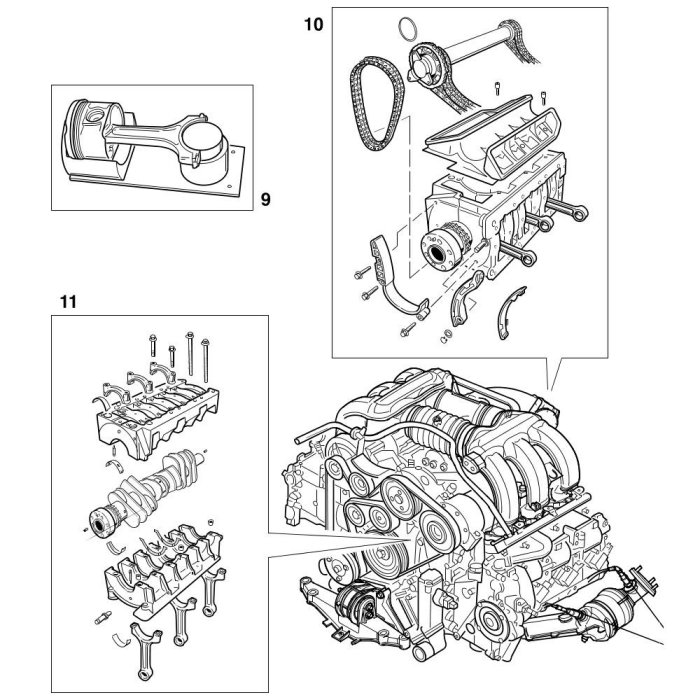

Crank drive, pistons
Overview of crank drive, pistons
- 9 - Pistons, connecting rods
- 10 - Bearing housing with intermediate shaft
- 11 - Bearing housing halves with crankshaft
Disassembling engine down to crankcase
CAUTION
Risk of damage due to particles of dirt.
- Danger of material damage due to blocked oil bores/oil ducts.
-> Absolute cleanliness is essential when working on the engine.
-> Lay removed engine parts on a clean base and make sure to cover them.
-> Use the cover for dust protection when fitting the engine NR.165 on the engine assembly support.
WARNING
Coolant is corrosive and hazardous to health.
- Risk of skin and eye irritation.
-> Wear protective gloves and goggles.
-> If you come into contact with coolant, wash off immediately with plenty of warm water.
WARNING
Pentosin is hazardous to health
- Danger of material damage and injury
-> Wear protective gloves and goggles.
-> If the eyes or skin come into contact with the fluid, wash immediately with water.
-> Collect emerging Pentosin. Clean hoses which come into contact with Pentosin thoroughly.
-> Use caps to protect the wiring against soiling and damage.
WARNING
Danger due to oil draining out and spraying when the engine is hot.
- Danger of scalding and injury
-> Allow engine to cool down.
-> Wear specified protective gear.
Information
- The central screws of the camshaft adjustment elements must be undone before removing the cylinder head cover.
Information
- The bearing housing remains screwed to the retaining device when the bearing housing and intermediate shaft are disassembled.

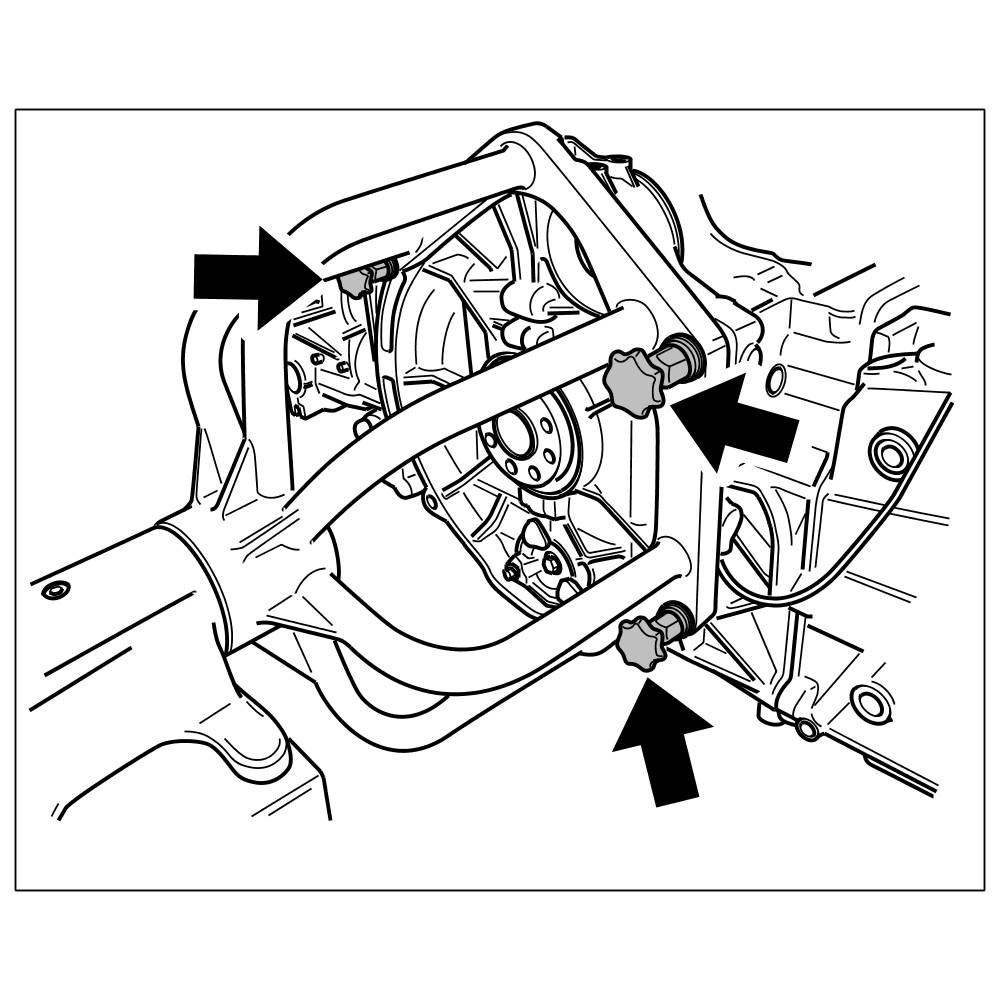

1. Engine support 9589 must be secured to the crankcase using special tool mounting elements 9590. Refit engine with support on the engine assembly support.
Engine support
2. Drain engine oil. Unscrew the oil drain plug (hexagon socket a/f 8) -> 170155 Engine oil and oil filter change Removal and Replacement.
Oil drain plug

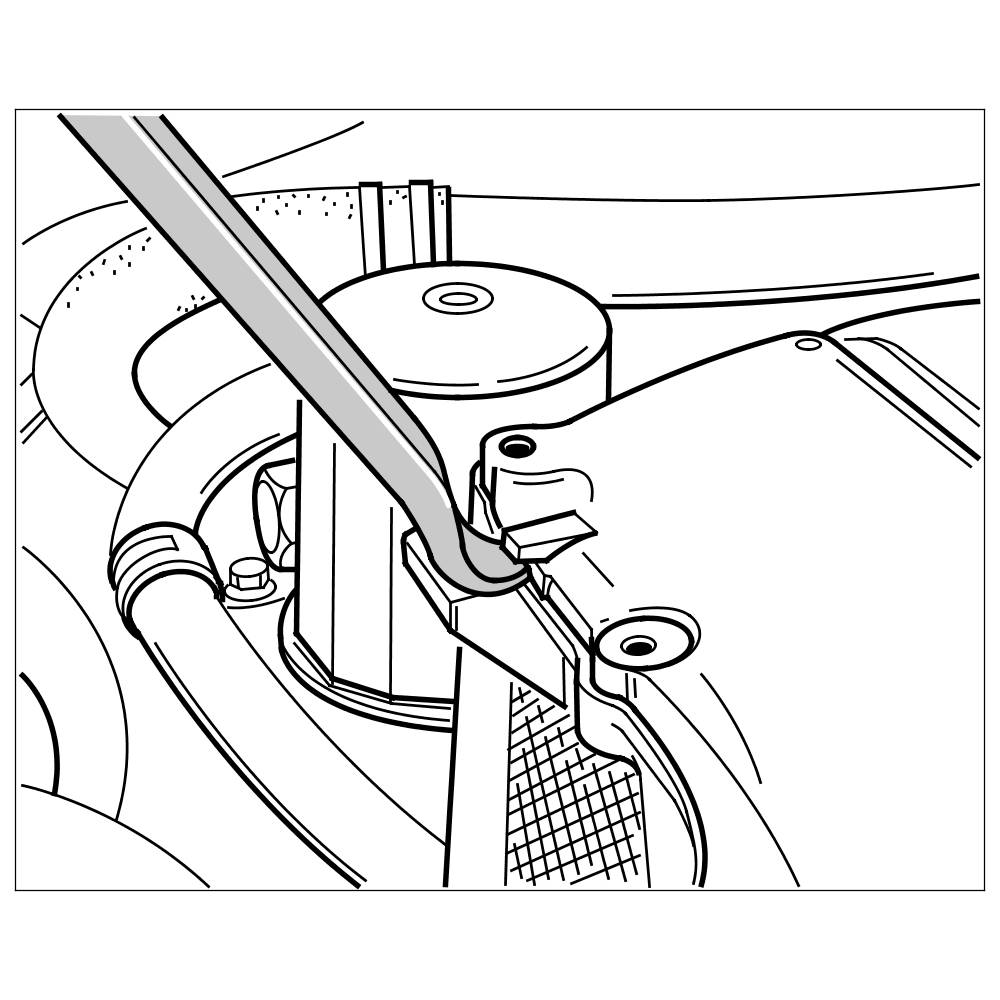

3. Remove pulley -2- of power-steering pump; to do this, counter the pulley -2- as shown using a screwdriver, then remove three Torx screws (M8 x 12) -1-.
Pulley on power-steering pump
4. Disconnect cable plug -2- of solenoid valves -3-.
5. Disconnect cable plug -4- of engine-temperature sensor -5-.
6. Disconnect cable plug -1- of all fuel injector valves.
Engine compartment temperature sensor

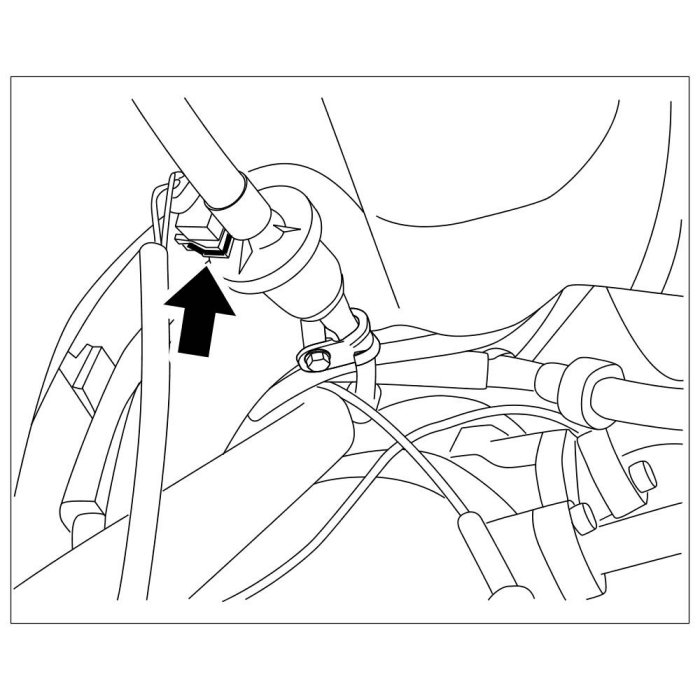

7. Disconnect cable plug -Arrow- for carbon canister solenoid valve.
Carbon canister valve

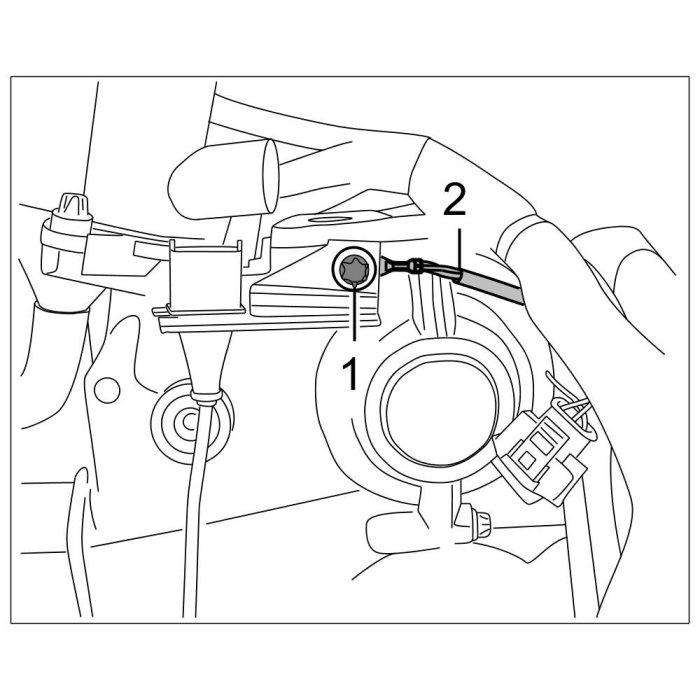

8. Loosen support for servo lines -2- by unclipping the oxygen sensor line from the support -3- and unscrewing two Torx screws (M6 x 12) -1-.
Servo line supports
9. Unscrew six fastening screws (M6 x 35) for each intake-air distributor.
10. Completely remove the intake bridge. Replace gaskets during installation.

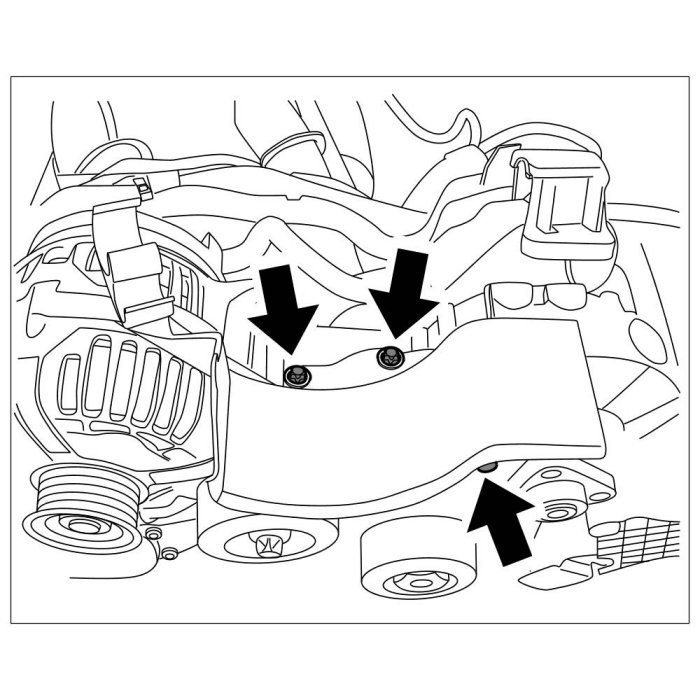

11. Remove drive belt cover by unscrewing three Torx screws (M6 x 12) -Arrows-.
Cover for pulley
12. Disconnect cable plug -1- on generator.
13. Unscrew collar nut (M8) -2- and remove ground B+ line -3-.
Generator connections

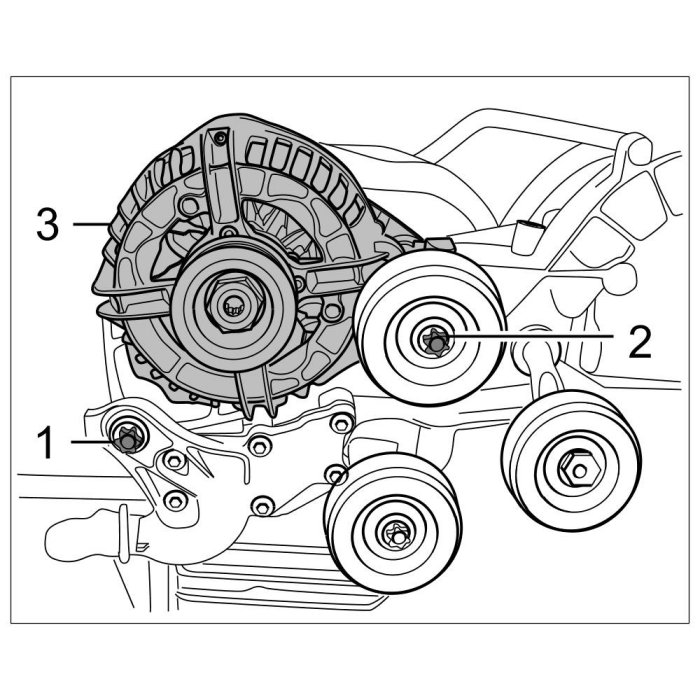

14. Remove generator -3- by unscrewing the Torx screws (M10 x 35) -1- and (M10 x 145) -2-. The deflection roller is removed together with the generator ( -3- ) -> 272219 Removing and installing generator - section on "Removing" Service and Repair.
Generator
15. Remove oil filler neck -2- by unscrewing two Torx screws (M6 x 11) -1-. Replace O-ring and screws during installation.
Oil filler neck
16. Unscrew union nut of servo pressure line (a/f 16) -1-.
17. Remove power-steering pump with the lines by unscrewing three Torx screws (M8 x 30) -3- and the Torx screw (M8 x 12) -2-.
Fastening screws for power-steering pump

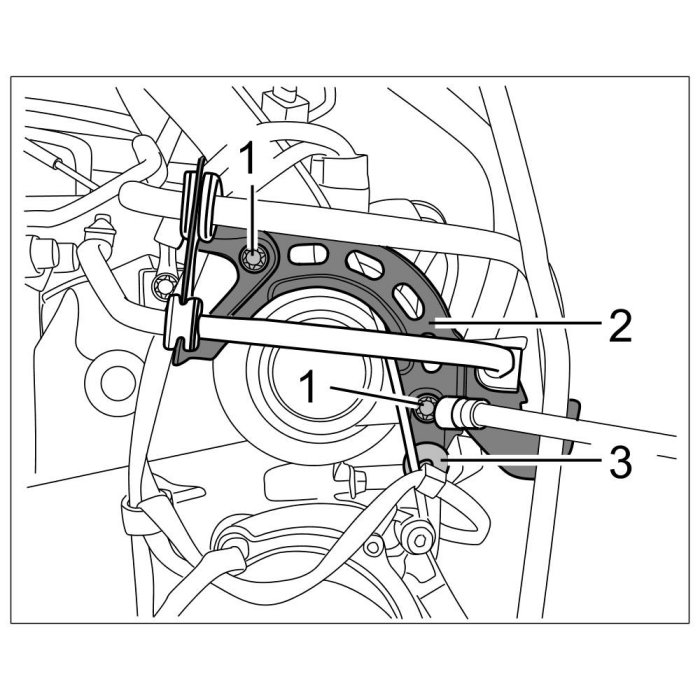

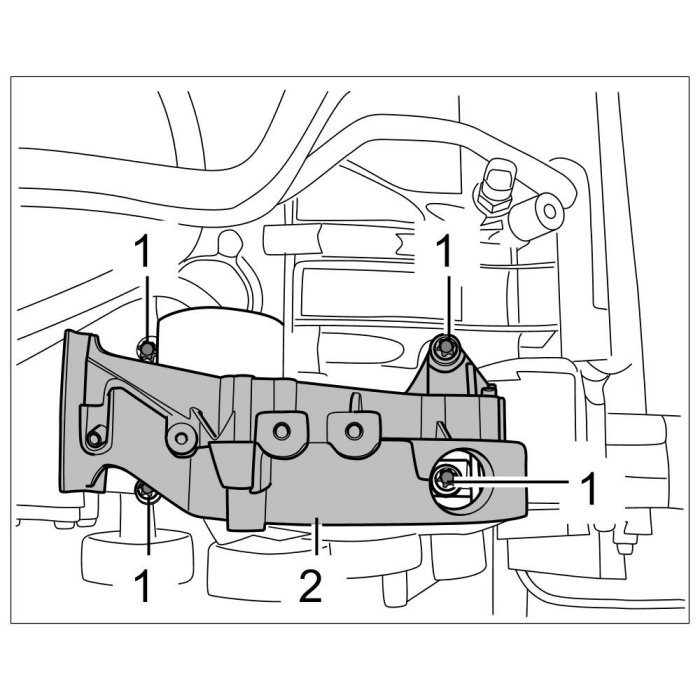

18. Remove power-steering pump support -2- by unscrewing four Torx screws (M8 x 35) -1-. The power-steering pump support -2- is also fixed with roll pins; if necessary use a rubber hammer for the removal.
Power-steering pump support

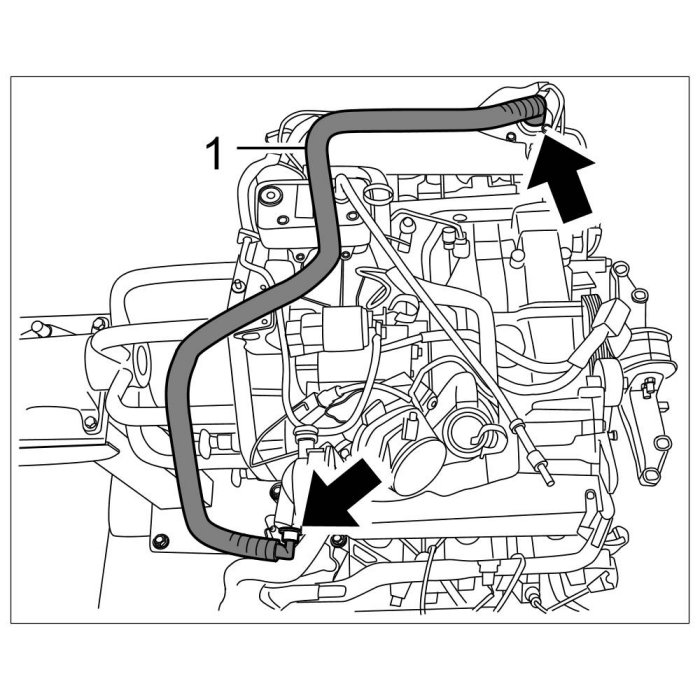

19. Remove the positive crankcase ventilation line -1- by releasing and disconnecting the rapid-action couplings -Arrows-. Replace O-rings during installation.
Positive crankcase ventilation line

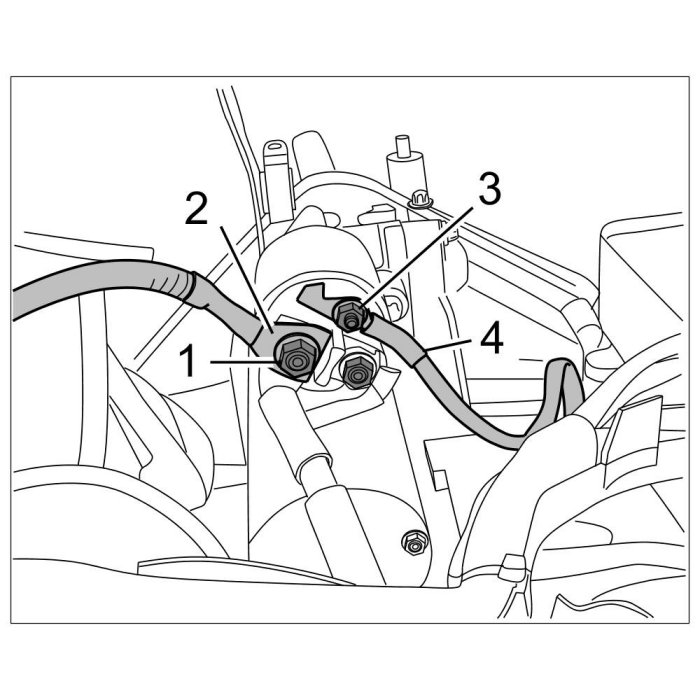

20. Unscrew collar nut (M8) -1- and remove terminal 30 line -2-.
21. Unscrew collar nut (M6) -3- and remove terminal 50 line -4-.
Electric leads on starter

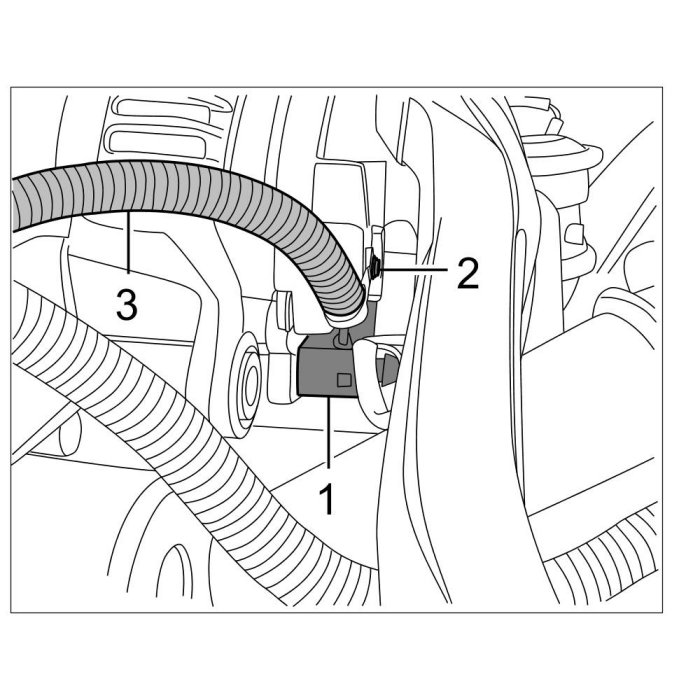

22. Remove engine wire harness; to do this, remove all remaining cable plugs, unscrew Torx screws (M6 x12) -1- of the ground straps -2- and unscrew two Torx screws (M6 x 12) and (M8 x 20) for each of the plastic cable wire harness guides.
Ground lead
Support

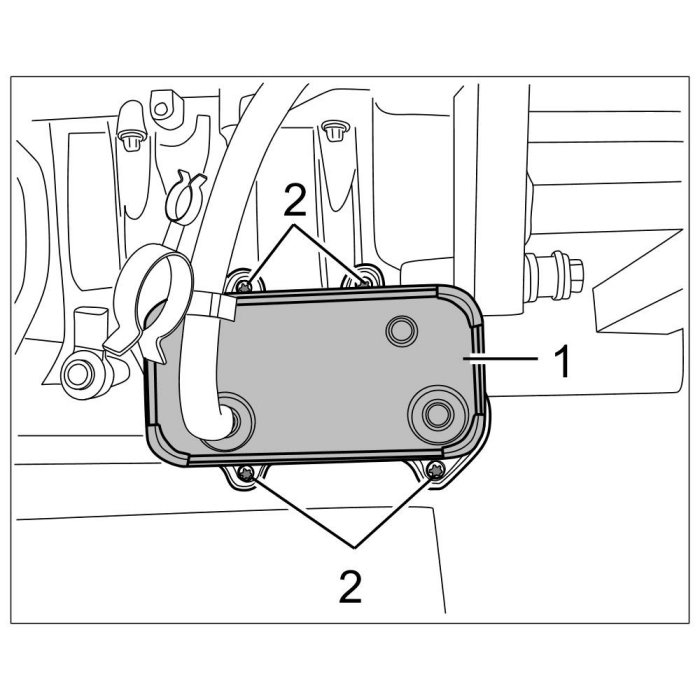

23. Remove oil-water heat exchanger -1- by unscrewing four Torx screws (M6 x 16) -2-. Replace all O-rings during installation.
Heat exchanger

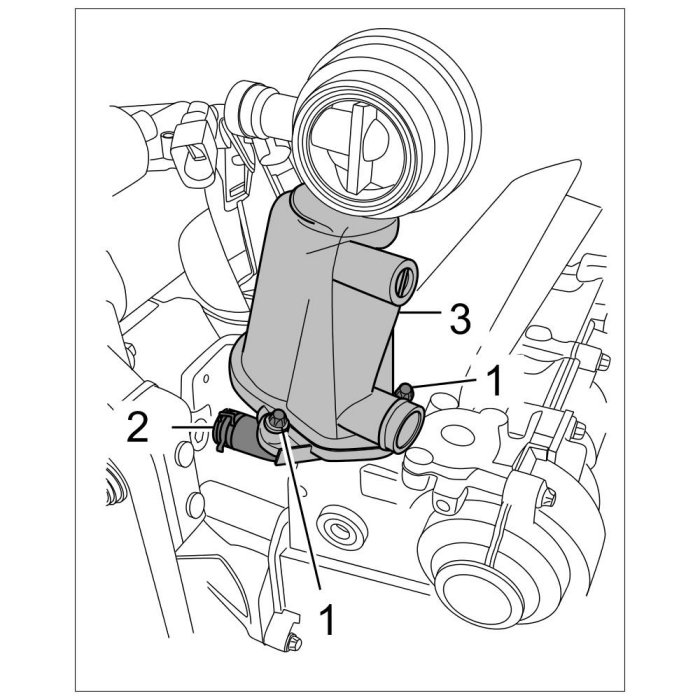

24. Remove oil mist separator -3- by unscrewing two Torx screws (M6 x 20) -1- and loosening the spring band clamp -2-. Pull oil mist separator -3- from the cylinder head and pull off the hose. Replace O-ring during installation.
Oil mist separator

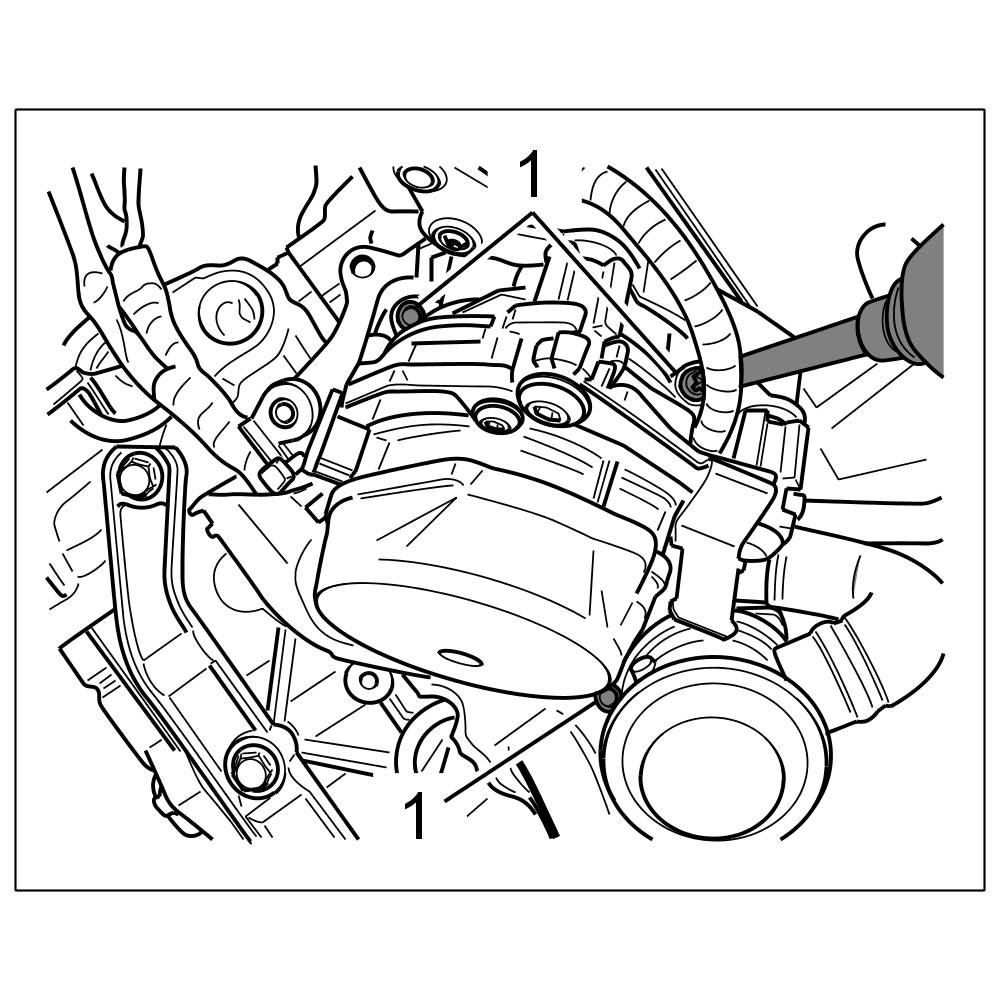

25. Unscrew three Torx screws (M6 x 20) -1- on the bracket for the secondary air pump.
Secondary air pump with bracket

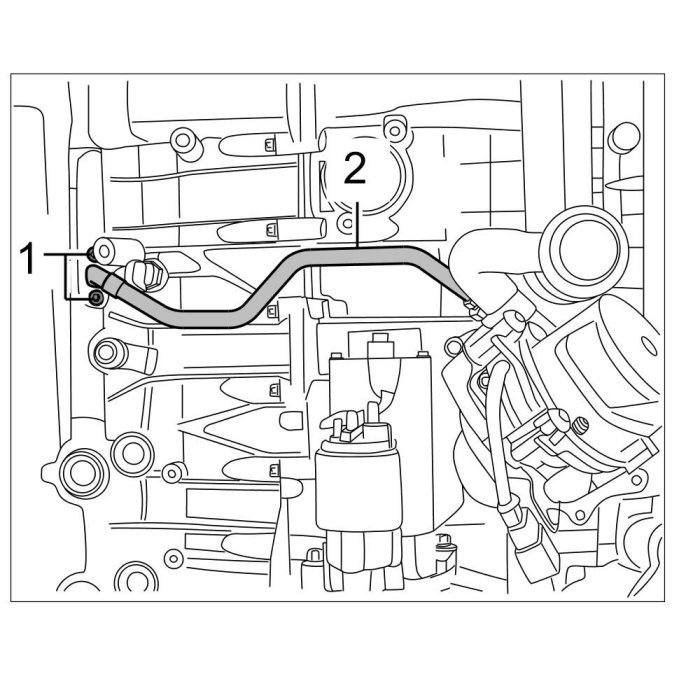

26. Unscrew two Torx screws (M6 x 20) -1- on the flange of the secondary air pump -2-. Remove secondary air pump. Replace both metal seals during installation.
Secondary air line

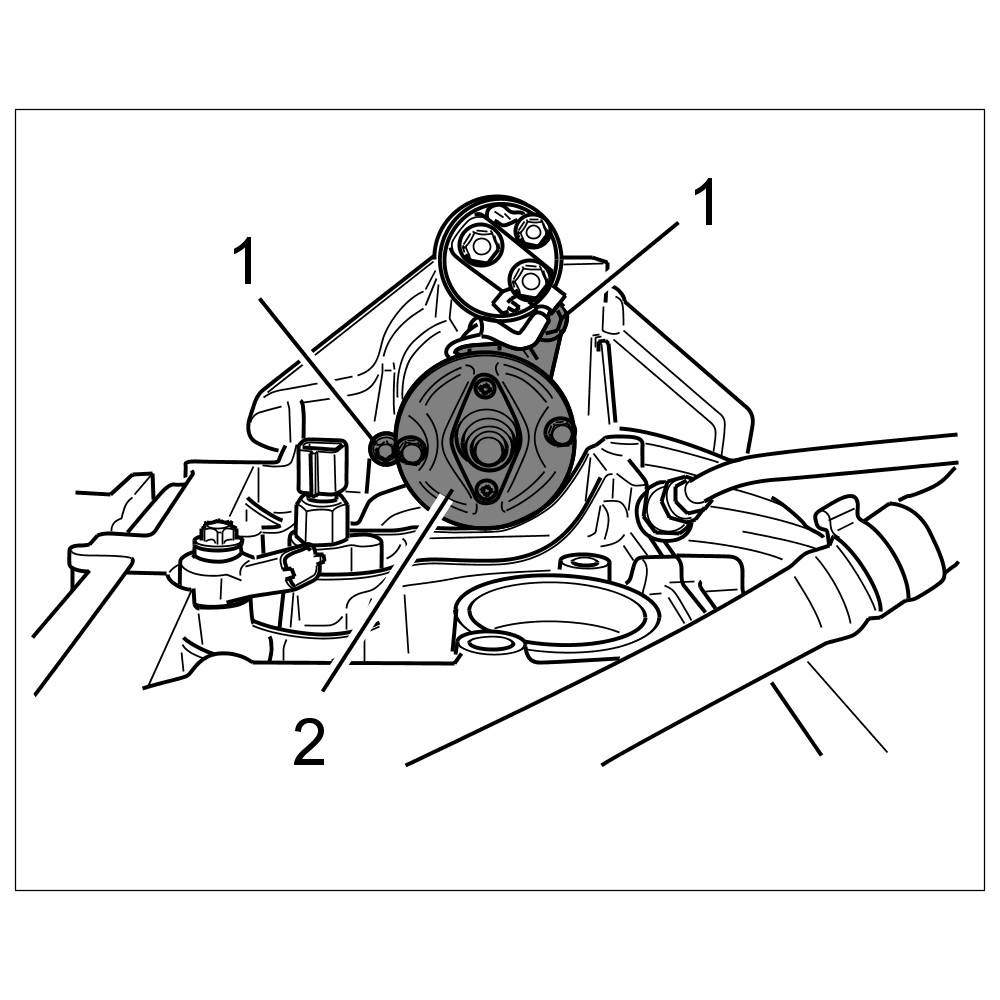

27. Remove starter -2- by unscrewing two Torx screws (M10 x 35) -1-. -> 276019 Removing and installing starter - section on "Removing" Service and Repair.
Starter

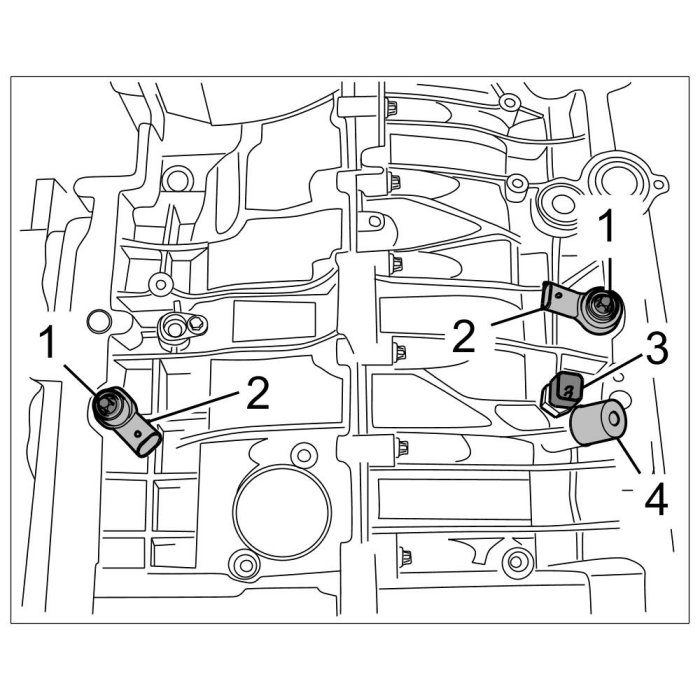

28. Remove knock sensors -2- by unscrewing one Torx screw (M8 x 35) on each -1-. Mark the position of the electric connection for re-installation.
29. Unscrew oil level sensor with a ring wrench (a/f 19) -3-. Replace copper sealing ring during installation.
30. Remove spacer sleeve -4-.
View of knock sensors

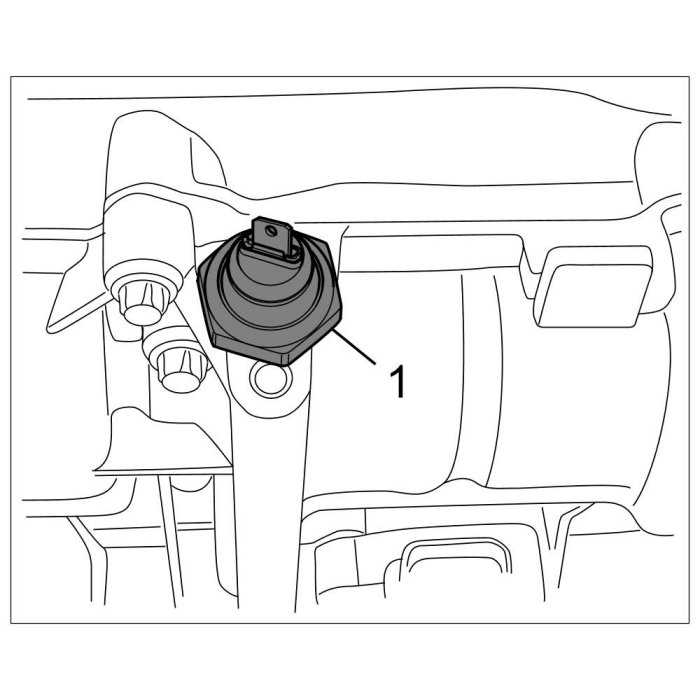

31. Unscrew oil pressure sender with a ring wrench (a/f 24) -1-. Replace aluminium sealing ring during installation.
Oil pressure sender
32. Remove connection piece for positive crankcase ventilation -2- by unscrewing two Torx screws (M6 x 11) -1-. Replace O-ring during installation.
Connection piece for positive crankcase ventilation

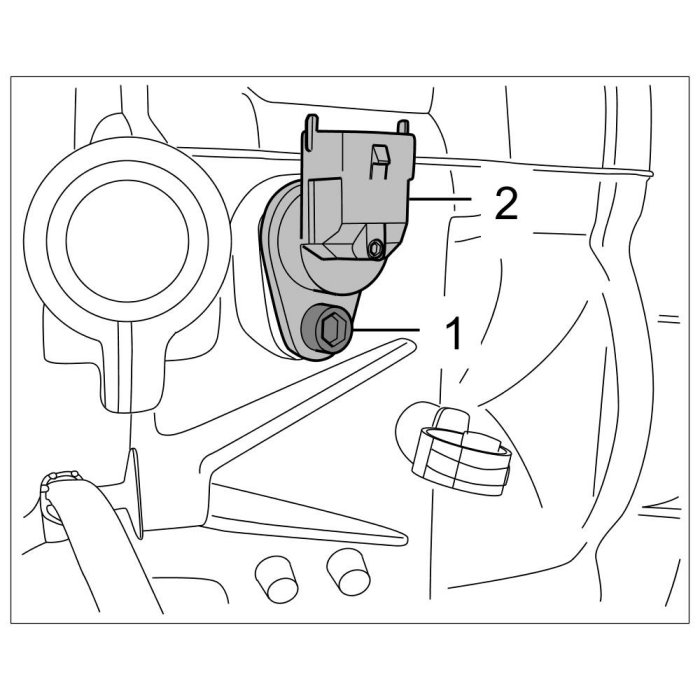

33. Remove both hall senders -2- by unscrewing one Torx screw (M6 x 11) on each -1-. Replace O-rings during installation.
Hall sender
34. Remove deflection roller by unscrewing the Torx screw (M8 x 60). Check deflection roller for damage, wear and smooth operation.

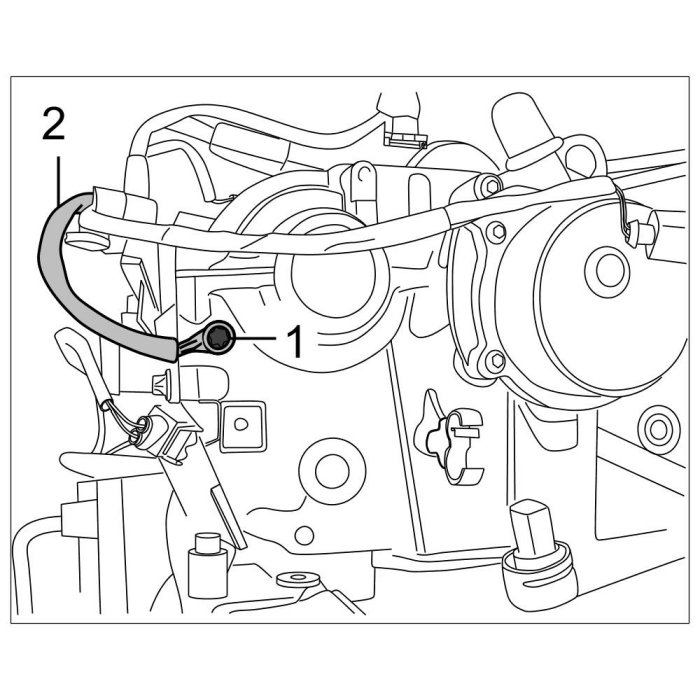

35. Remove engine ground strap on cylinder 1-3 by unscrewing the Torx screw (M8 x 30).

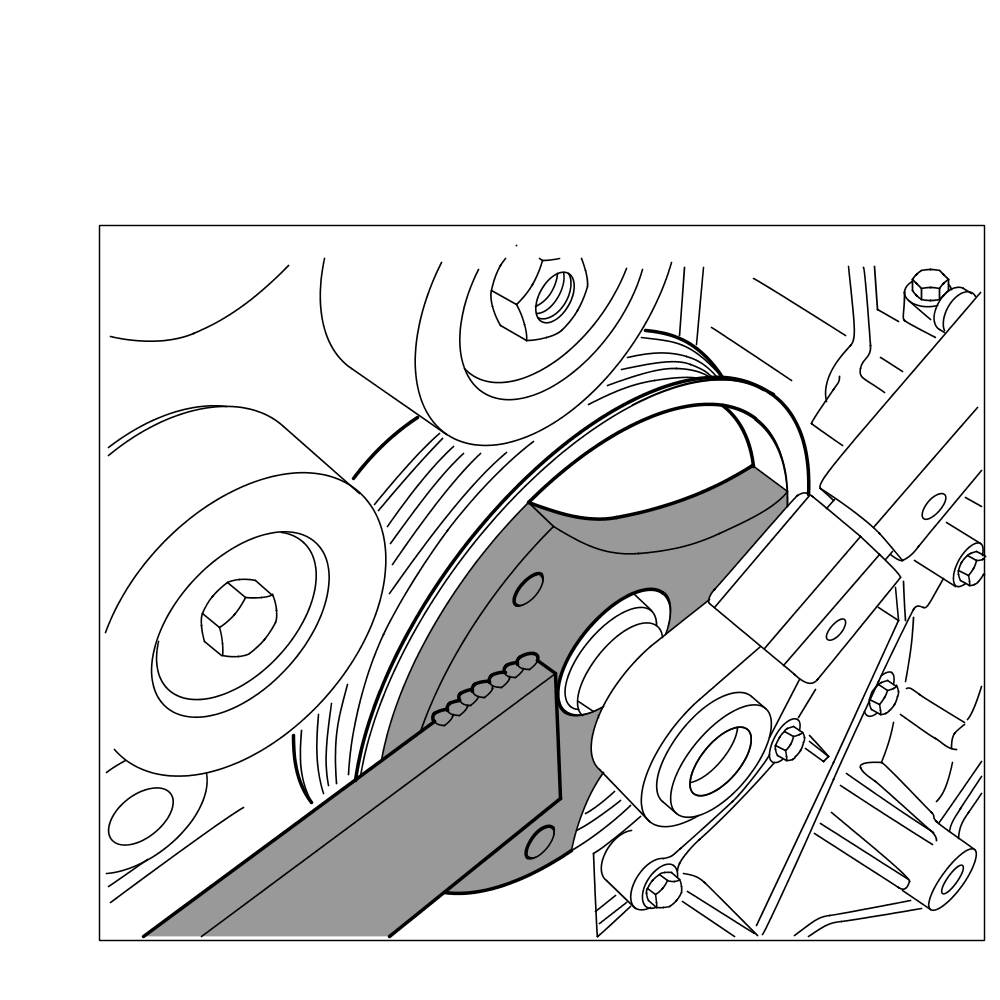

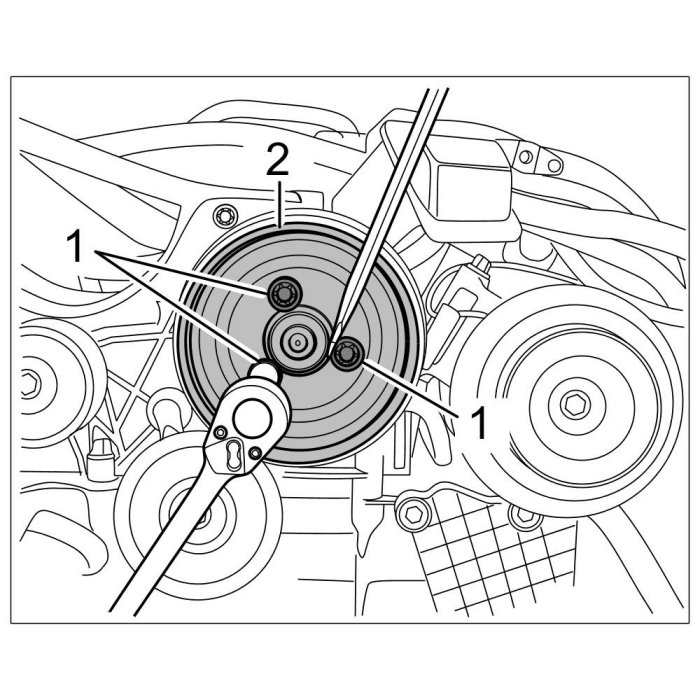

36. Remove crankshaft belt pulley by countering the belt pulley with special tool retaining device 9593 and screwing out central screw (M16 x 60).
Screw on pulley

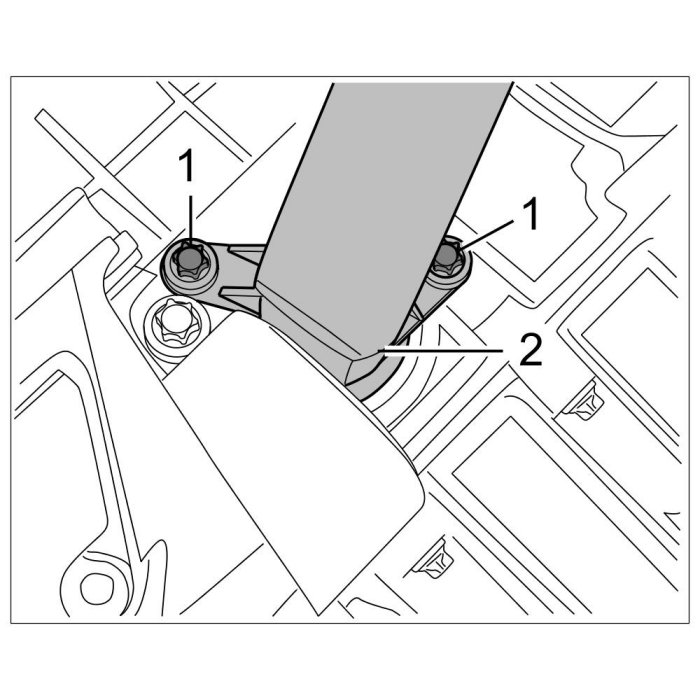

37. Remove engine mounting by unscrewing the three hexagon-head bolts (M10 x 120) and the hexagon-head bolt (M10 x 80). Only loosen the left upper hexagon-head bolt (M10 x 120); the hexagon-head bolt can be unscrewed after the engine mounting has been removed.
38. Tiptronic only: Remove clip for belt routing by unscrewing two Torx screws (M6 x 12).
39. Remove coolant guide housing by unscrewing five external Torx screws (M6 x 35) and three internal Torx screws (M6 x 20). Replace O-rings during installation.

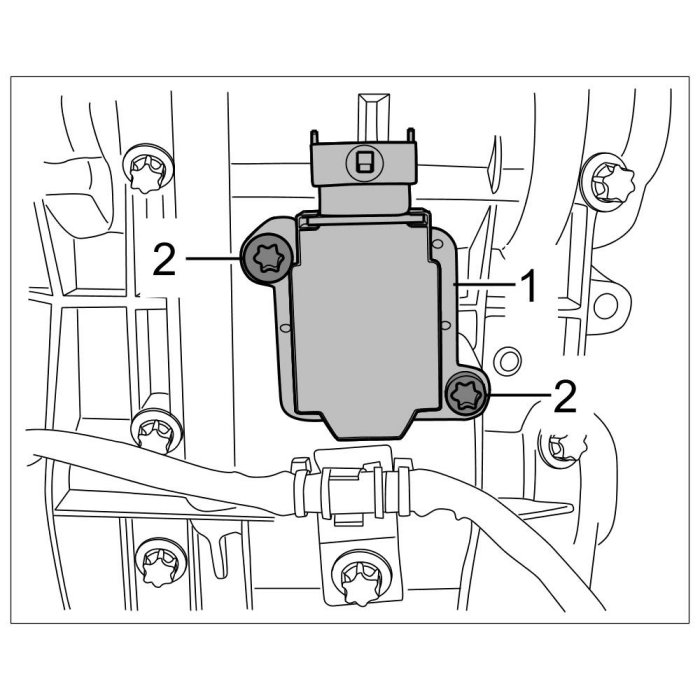

40. Remove ignition coils -1- by unscrewing two Torx screws (M6 x 25) -2-.
Ignition coil
41. Remove crankshaft pulse sender -1- by unscrewing the Torx screw (M6 x 15) -2-.
Crankshaft pulse sender

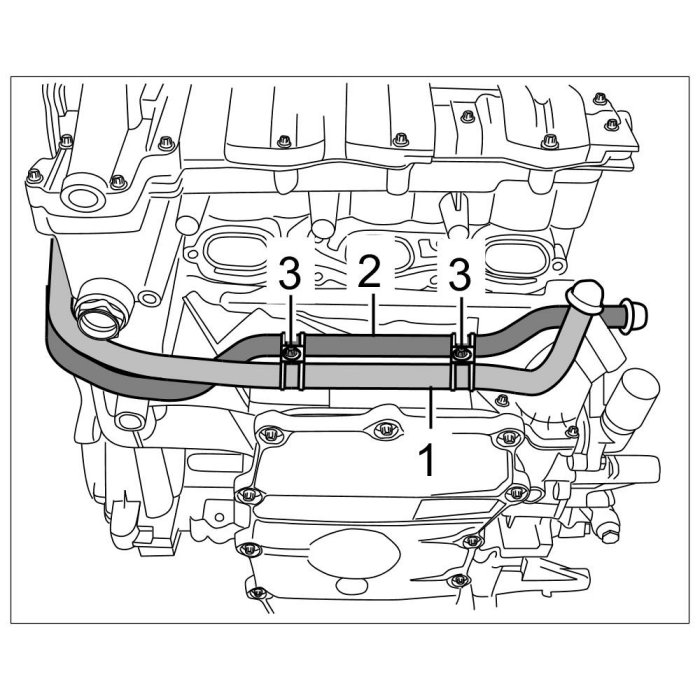

42. Remove coolant lines -1- and -2- by unscrewing two Torx screws (M6 x 16) -3-.
Coolant lines

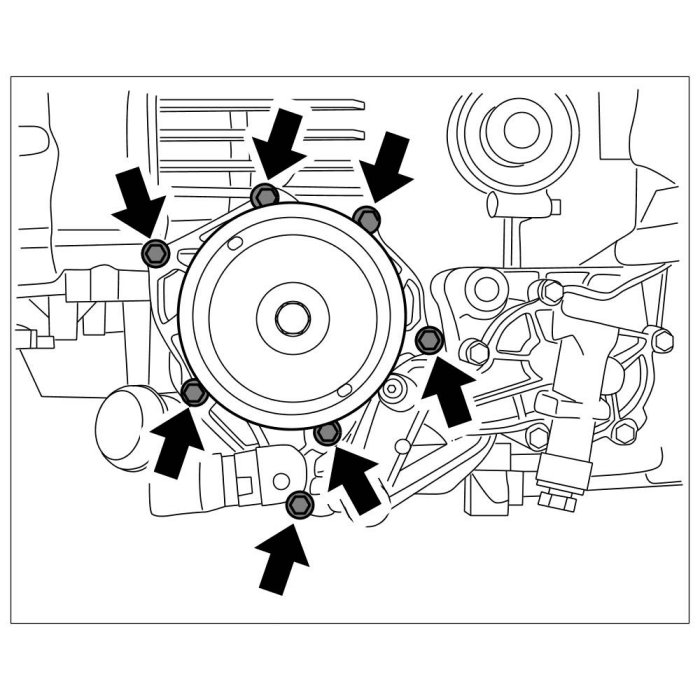

43. Remove coolant pump by unscrewing six hexagon-head bolts (M6 x 25, M6 x 30) -Arrows-. Replace metal seal during installation.
Coolant pump
44. Remove thermostat housing. Unscrew four Torx screws (M6 x 20) and remove housing complete with thermostat. Replace seal during installation.

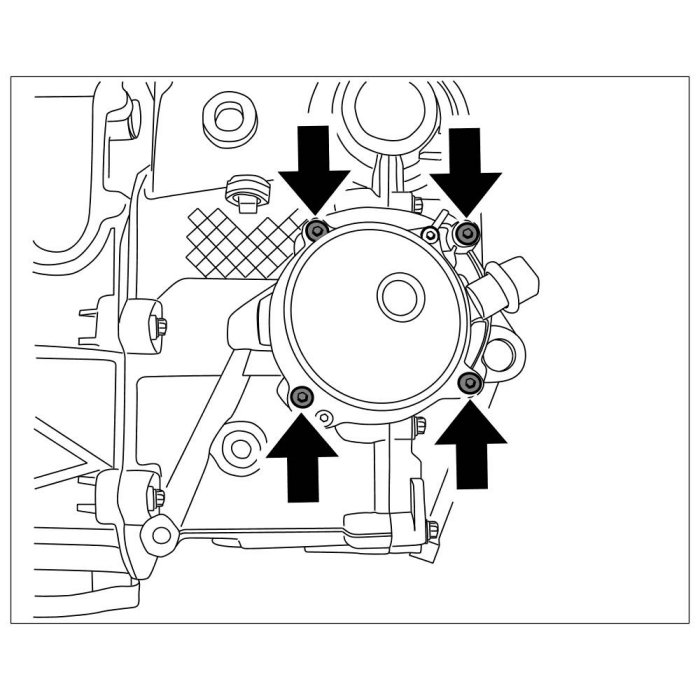

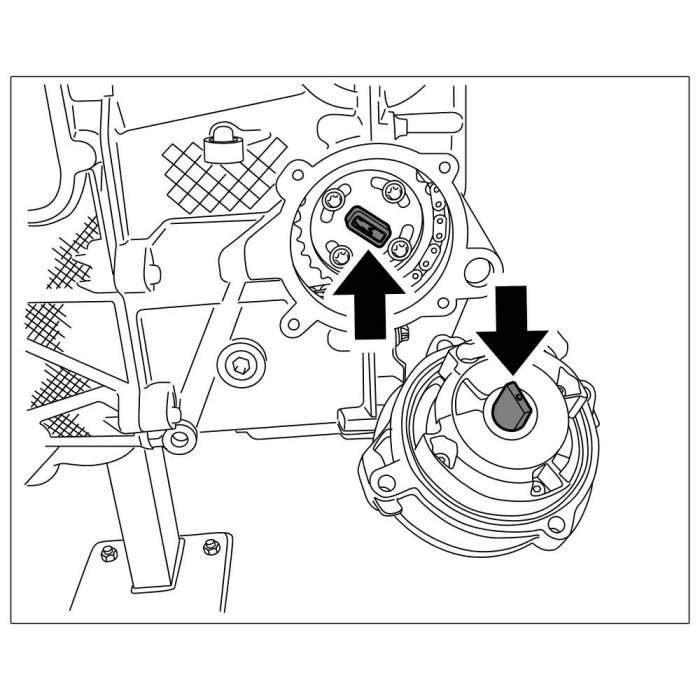

45. Remove tandem pump by unscrewing four Torx screws (micro-self-locking, M6 x 30) -Arrows-. During installation, note the position of the pump drive with respect to the groove on the camshaft sprocket. Both parts must be in line in installation position. Otherwise the pump drive must be rotated. Replace O-ring and screws during installation.
Tandem pump
Pump drive

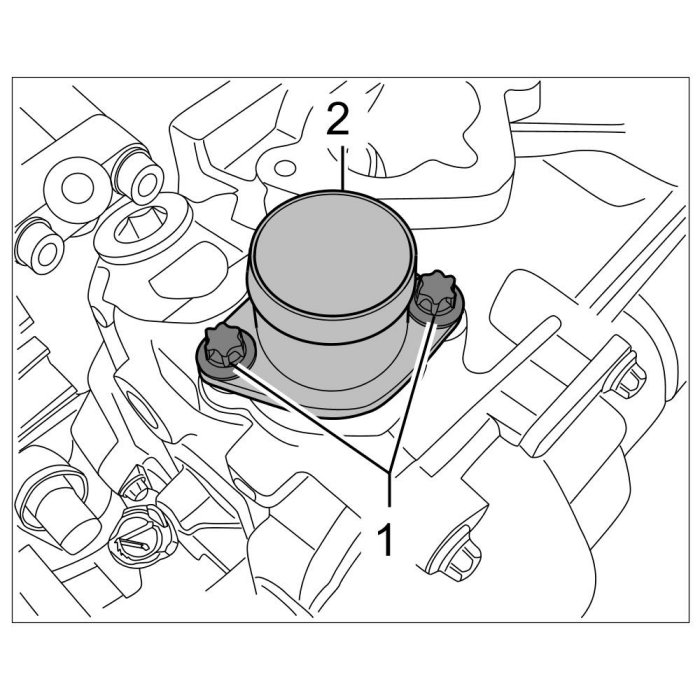

46. Remove solenoid hydraulic valve for camshaft adjustment -> 153719 Removing and installing solenoid hydraulic valve for camshaft timing - section on "Removing" Removal and Replacement.

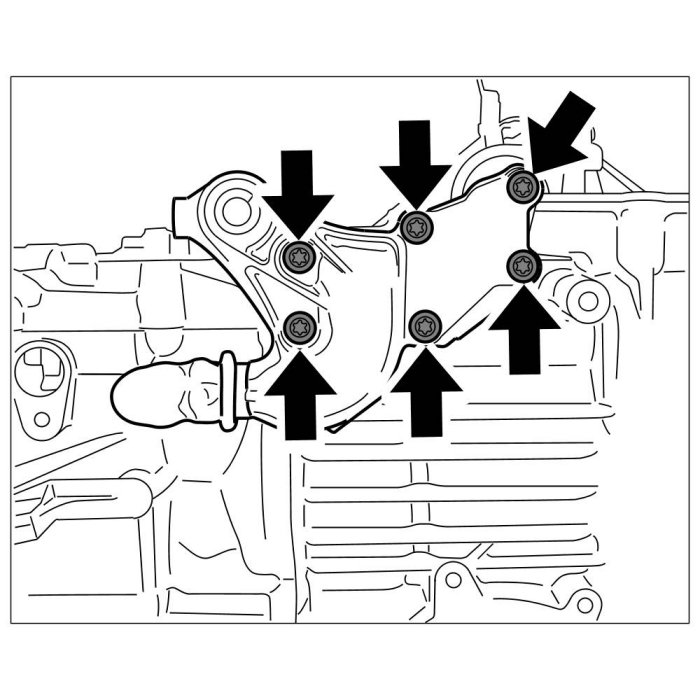

47. Remove coolant adapter by unscrewing six Torx screws (M6 x 20) -Arrows-. Replace metal seal during installation.
Coolant adapter

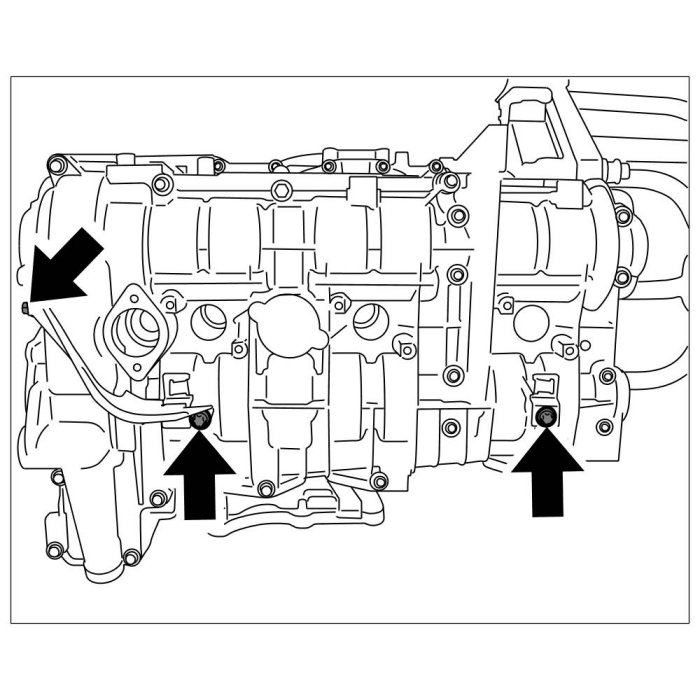

48. Remove brackets for oxygen sensor cables by unscrewing five Torx screws (M6 x 12) -Arrows-.
Brackets for oxygen sensors 1 - 3
Brackets for oxygen sensors 4 - 6
49. Remove all remaining plastic accessories (clips, supports etc.).

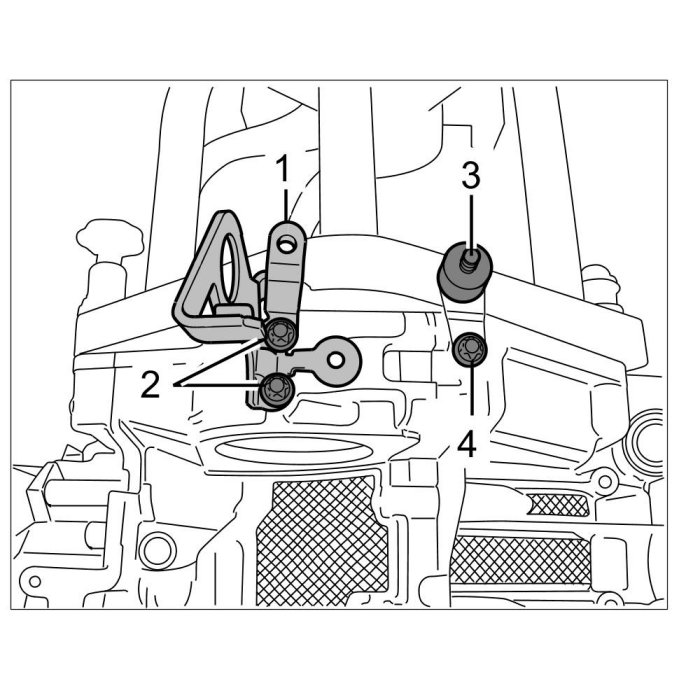

50. Remove transport eyebolt -1- by unscrewing two Torx screws (M6 x 16) -2-.
51. Remove supports -3- by unscrewing one Torx screw (M6 x 12) -4-.
Assembly eye
52. Remove spark plugs -> 287020 Removing and installing spark plugs - section on "Removing" Service and Repair.
53. Remove cylinder head cover 1 - 3 -> 158220 Removing and installing cylinder head cover - engine removed - section on "Removing" Removal and Replacement.
54. Remove camshaft 1 - 3 -> 150520 Removing and installing camshaft - section on "Removing" 150520 Removing and installing camshaft (includes adjusting timing) - engine removed.
CAUTION
Interchanged or dirty bucket tappets.
- Damage to engine components.
-> The components have been run in in the fitting bores in the housing, therefore do not interchange them.
-> Absolute cleanliness is essential.
55. Remove flat-base tappet 1 - 3 -> 157019 Removing and installing cylinder head - section on "Preliminary work" 157019 Removing and installing cylinder head.
Example of laying aside flat-base tappets
56. Remove cylinder head 1-3. Loosen and unscrew 12 Torx screws M10 x 230 from outside to inside on each cylinder head. Lift cylinder head and seal from crankcase -> 157019 Removing and installing cylinder head - section on "Removing" 157019 Removing and installing cylinder head.
57. Remove cylinder head cover 4 - 6 -> 158220 Removing and installing cylinder head cover - engine removed - section on "Removing" Removal and Replacement.
58. Remove camshaft 4 - 6 -> 150520 Removing and installing camshaft - section on "Removing" 150520 Removing and installing camshaft (includes adjusting timing) - engine removed.
CAUTION
Interchanged or dirty bucket tappets.
- Damage to engine components.
-> The components have been run in in the fitting bores in the housing, therefore do not interchange them.
-> Absolute cleanliness is essential.
59. Remove flat-base tappet 4 - 6 -> 157019 Removing and installing cylinder head - section on "Preliminary work" 157019 Removing and installing cylinder head.
60. Remove cylinder head 4 - 6. Loosen and unscrew 12 Torx screws (M10 x 230) from outside to inside on each cylinder head. Lift cylinder head and seal from crankcase -> 157019 Removing and installing cylinder head - section on "Removing" 157019 Removing and installing cylinder head.

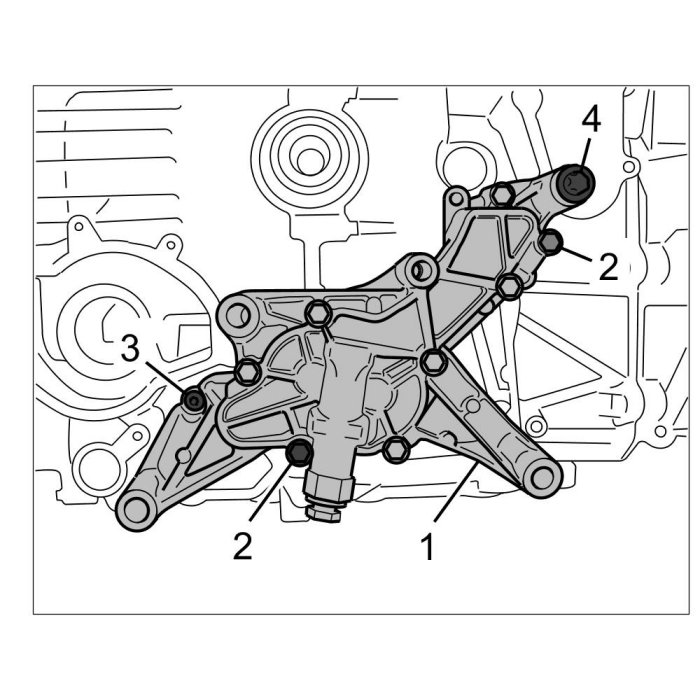

61. Remove oil pump with housing -1- by unscrewing two hexagon-head bolts (M6 x 80) -2- , two Torx screws (M6 x 20) -3- and (M10 x 100) -4-. Remove housing and ensure that the flange projection of the oil pump drive is not tilted. Replace the two O-rings during installation.
Oil pump with housing
62. Remove all carbon deposits and other residues on all six pistons with a brass brush, which will make the engraved markings -Arrow- visible. In addition, number and mark the pistons in installation position before removal.
View of installation position of pistons

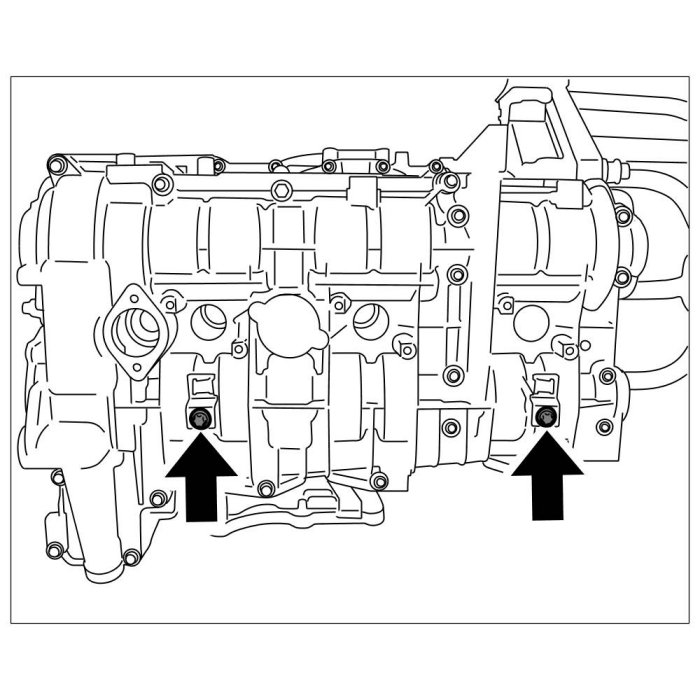

63. Unscrew aluminium screw plug (M27) for the assembly bore (piston pin).
64. Remove lower M6 guide and tensioning rail screws (hexagon socket a/f 5), remove the guide and tensioning rails from the chain spaces.
65. Remove oil filter with special tool release key 9204.
66. Unscrew 13 Torx screws M6 x 20 on the oil pan cover. Tap cover gently on the sides using a plastic hammer, then carefully lift it at the leverage bar => Lifting the oil pan cover using a plastic-coated mounting lever and remove the oil pan.
Lifting the oil pan cover

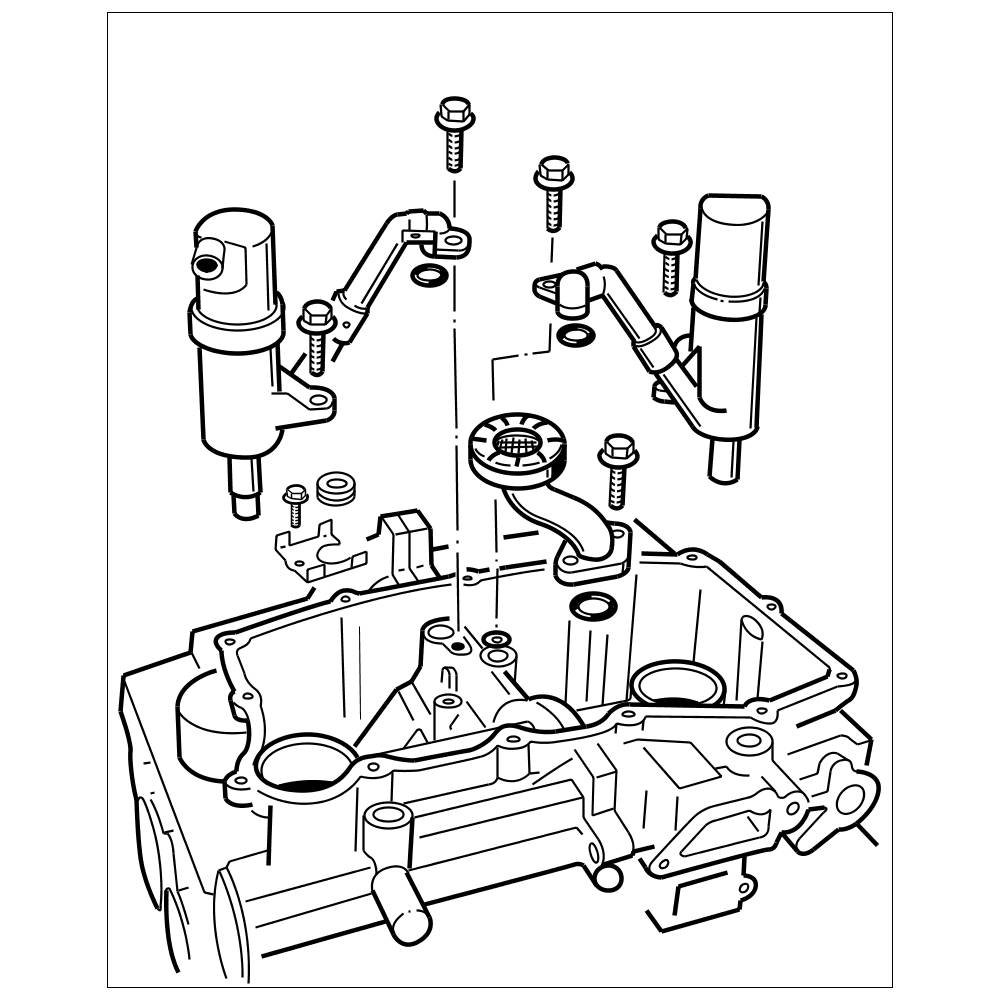

67. Remove air/oil separator (swirl pots) and oil suction pipe. To remove each separator, unscrew two M6 x 20 Torx screws and pull out the separator. Unscrew two M6 x 20 Torx screws on the oil suction pipe and remove the oil suction pipe. Replace O-rings during installation.
Components in the oil pan
68. Remove bearing cover for intermediate shaft -> 152119 Removing and installing bearing cover for intermediate shaft - section on "Removing" 15211950 Removing and installing bearing cover for intermediate shaft.
