Removing and Installing Seal For Spur-Gear Cover

WM 375019 Removing and installing seal for spur-gear cover








Preliminary work

Preliminary work

1. Raise the vehicle at the specified jacking points.
2. Remove rear muffler.

Removing seal for spur-gear cover

Removing seal for spur-gear cover

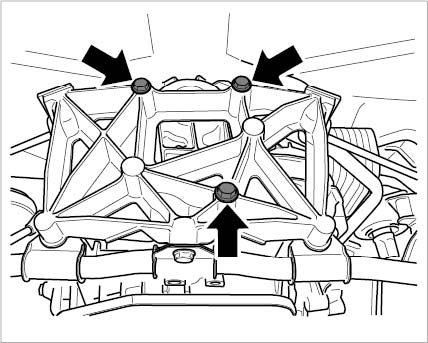

1. Unscrew fastening screws between transmission and mount for exhaust system and remove mount for exhaust system.





Fastening screws

Information
The spur gears are prevented from falling out. Remove spur-gear cover to prevent wheels from falling out. Wheels that fall out must not be reinstalled. If this happens, the transmission must be replaced.

2. Unscrew fastening screws for spur-gear cover and remove spur-gear cover.
3. Prevent spur gearing from falling out.

Installing seal for spur-gear cover

Installing seal for spur-gear cover

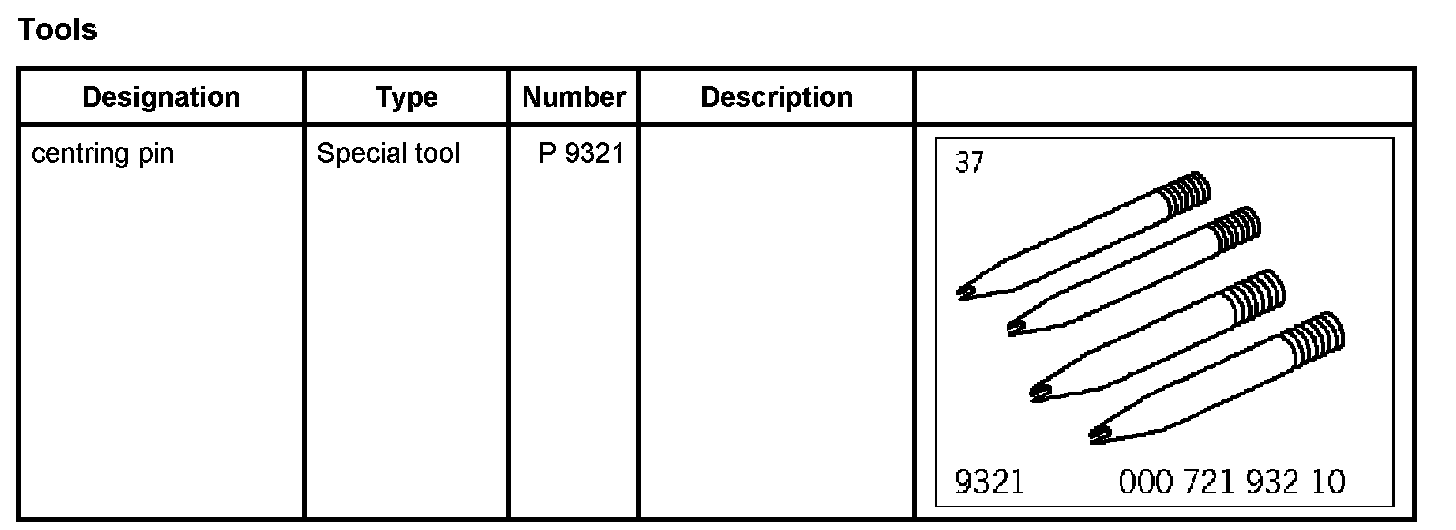

1. Screw in centering pin P 9321 in transmission housing.
2. Position new seal on transmission housing.
3. Position spur-gear cover on transmission housing, screw in screws -1, 2 and 3- and tighten evenly by hand.





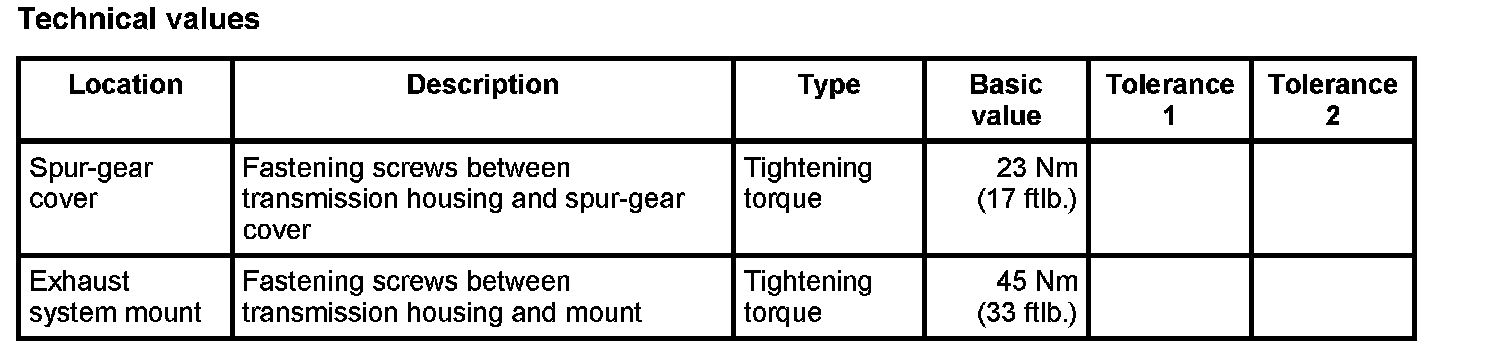

Spur-gear cover

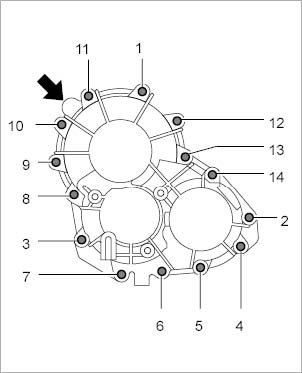

4. Screw in remaining screws and tighten in sequence -1...14-.

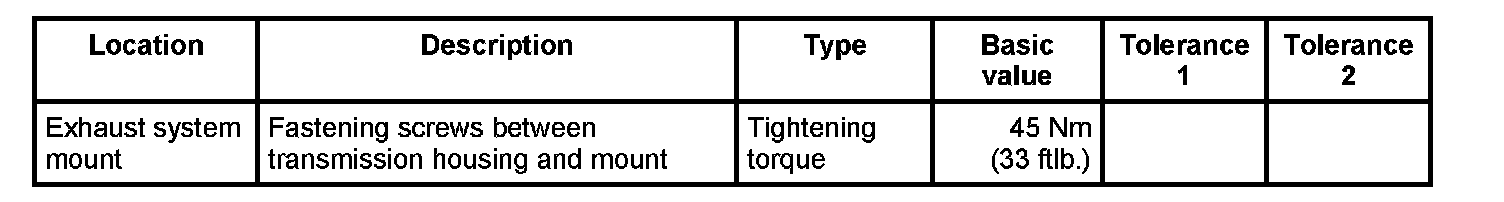

5. Install engine mount for exhaust system and tighten fastening screws between transmission and engine mount for exhaust system.





Fastening screws





Subsequent work

Subsequent work

1. Install rear mufflers.
2. Check and if necessary, top up the ATF.
