Windscreen Washer System Wiper - Sheet 2B

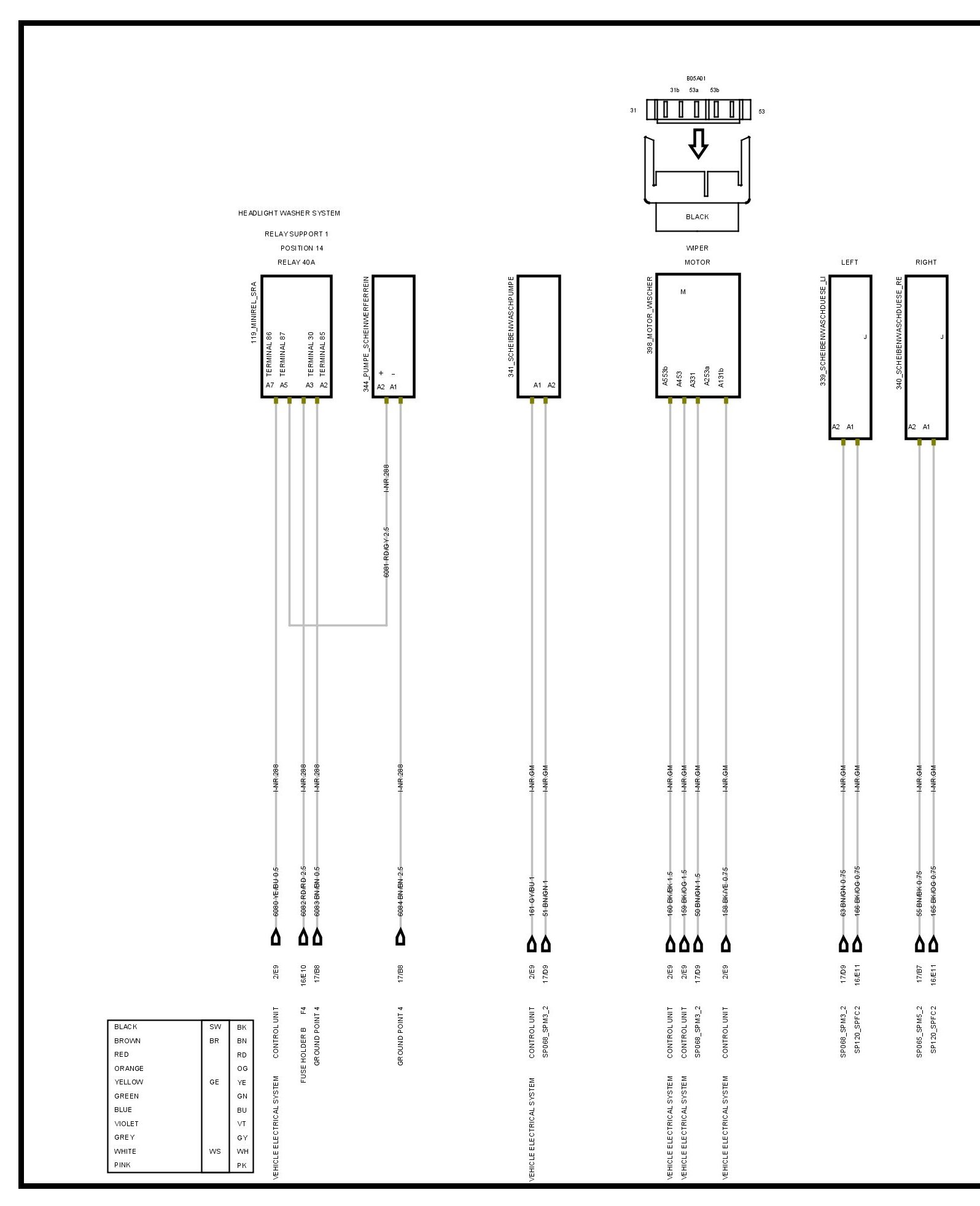

Windscreen Washer System Wiper - Sheet 2B (Part 1):

Windscreen Washer System Wiper - Sheet 2B (Part 2):

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
