635019 Removing and Installing Rear Bumper

WM 635019 Removing and installing rear bumper

Additional assembly instructions for installation of the bumper

Correct assembly of the heat shields

CAUTION

Damage will result if heat shields are fitted incorrectly!

- Observe the following points during assembly!

-> Make sure the heat shields overlap correctly (arrows).
-> There should not be any continuous gaps along the entire length of the heat shields.
-> A gap of up to 2 mm wide and 30 mm long is permissible locally.
-> At least more than 80 % of the total sealing area should be sealed off without gaps.

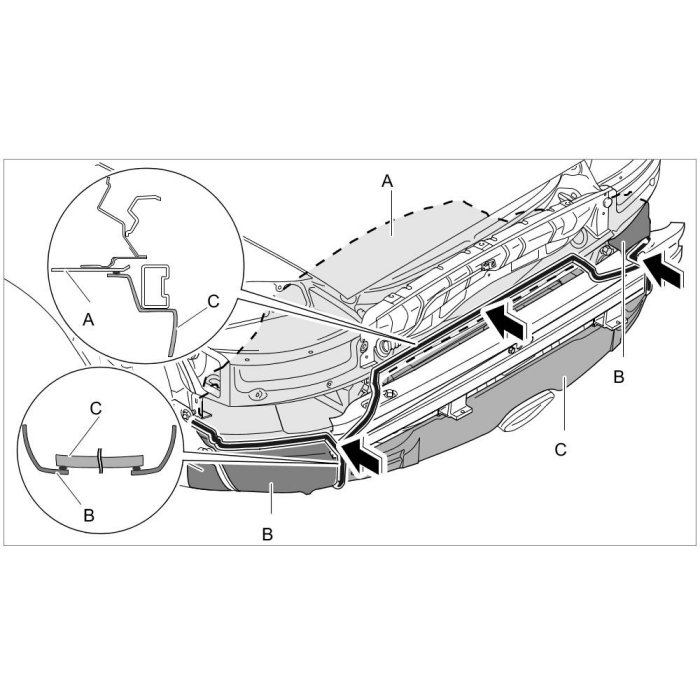

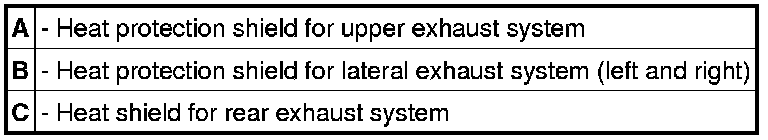

Correct assembly of the heat shields
