Removing and Installing Shelf

Removing And Installing Shelf

Preliminary work
1. Remove centre console cover. Refer to Removing and installing centre console cover on "removing"

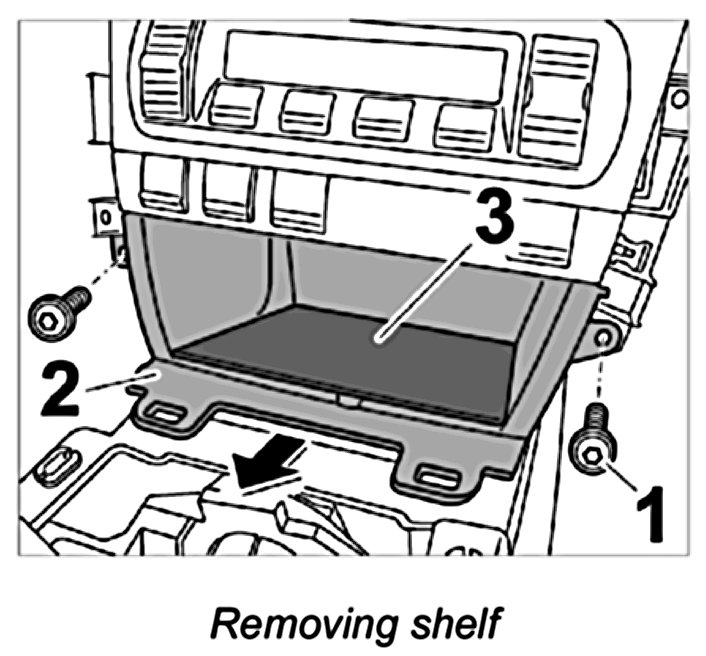

Removing shelf






1. Unscrew fastening screws -1- and take off shelf -2- with mat -3-.






Installing shelf






1. Position shelf -2- and screw down using the fastening screws -1-.






2. Insert the mat -3-.

Subsequent work
1. Install centre console cover. Refer to Removing and installing centre console cover on "installing"
