706819 Removing and Installing C-Pillar Trim Panel
WM 706819 Removing and installing C-pillar trim panel
Technical values
Removing C-pillar trim panel
Loosening seat belt and fitting

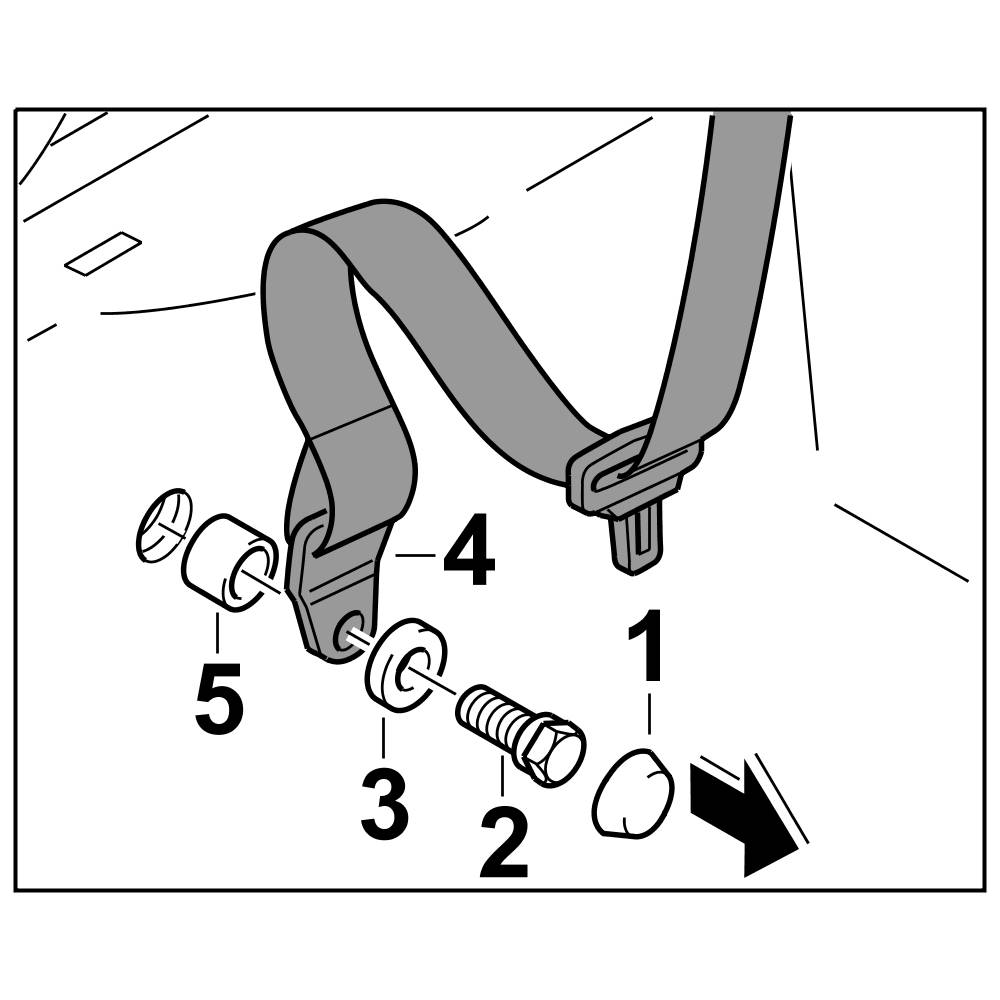

1. Lever off cap -1- with a screwdriver -arrow-.
Removing seat belt and fitting
2. Unscrew fastening screw -2-. Remove washer -3- , seat belt mount -4- and spacer sleeve -5-.
Removing seat belt rose
1. Unclip rose -1- with a plastic wedge -Arrow A-.
Removing collar
2. Pull rose -1- out of seat belt -2- -Arrow B-.
Removing C-pillar trim panel
Information
Only for vehicles with luggage mesh.
1. Disengage luggage mesh at top and fold to the rear.

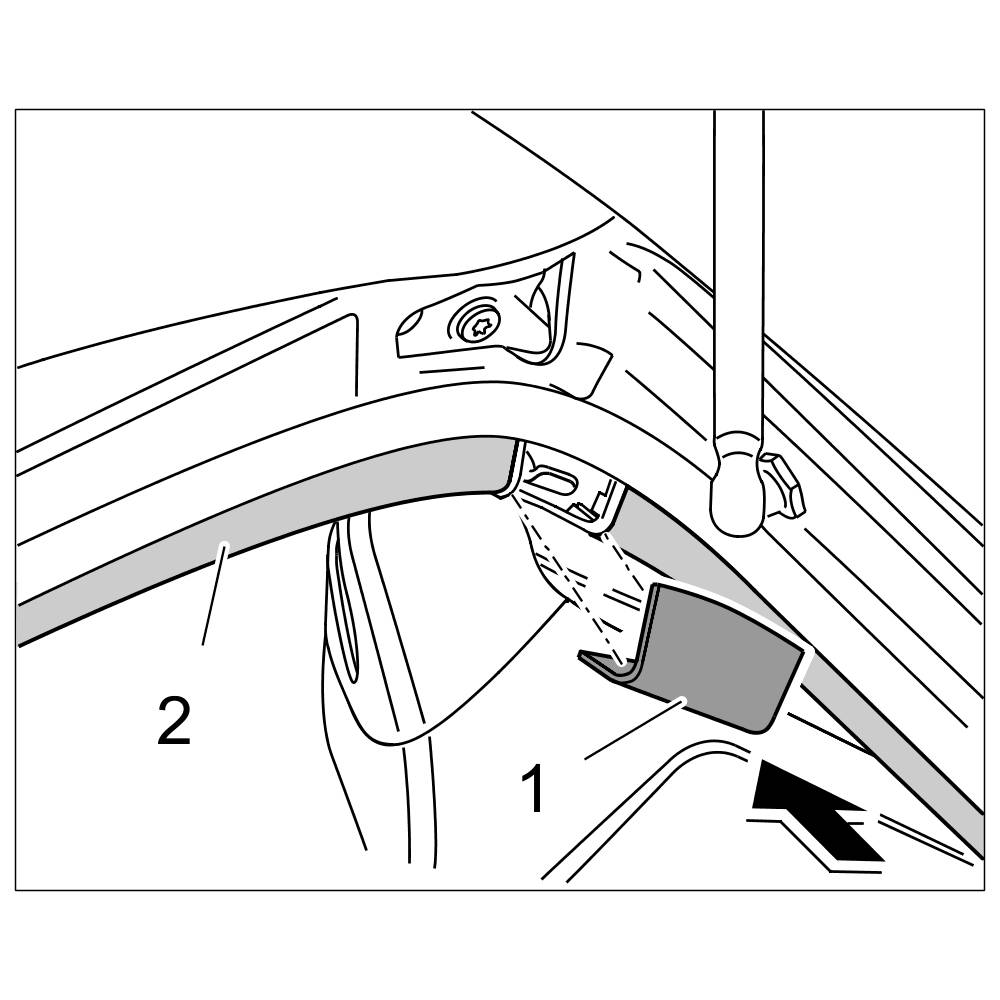

2. Unclip cap -1- from C-pillar trim panel -2-.
Removing lid

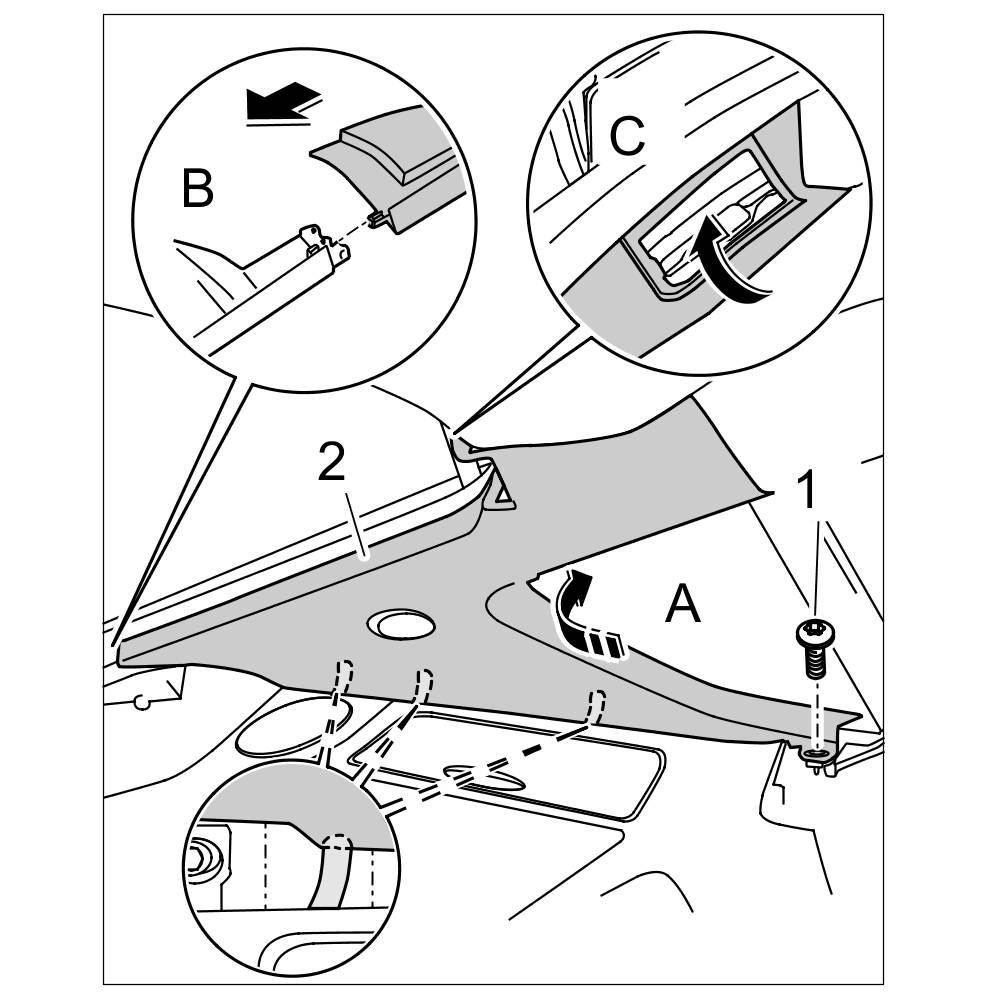

3. Unscrew fastening screw -1-.
Removing C-pillar trim panel
4. Pull out C- pillar trim panel -2- slightly at the top -Arrow A-.
Information
- To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.
5. Unclip C- pillar trim panel -2- with a plastic wedge and remove in direction of arrow -B, C-.

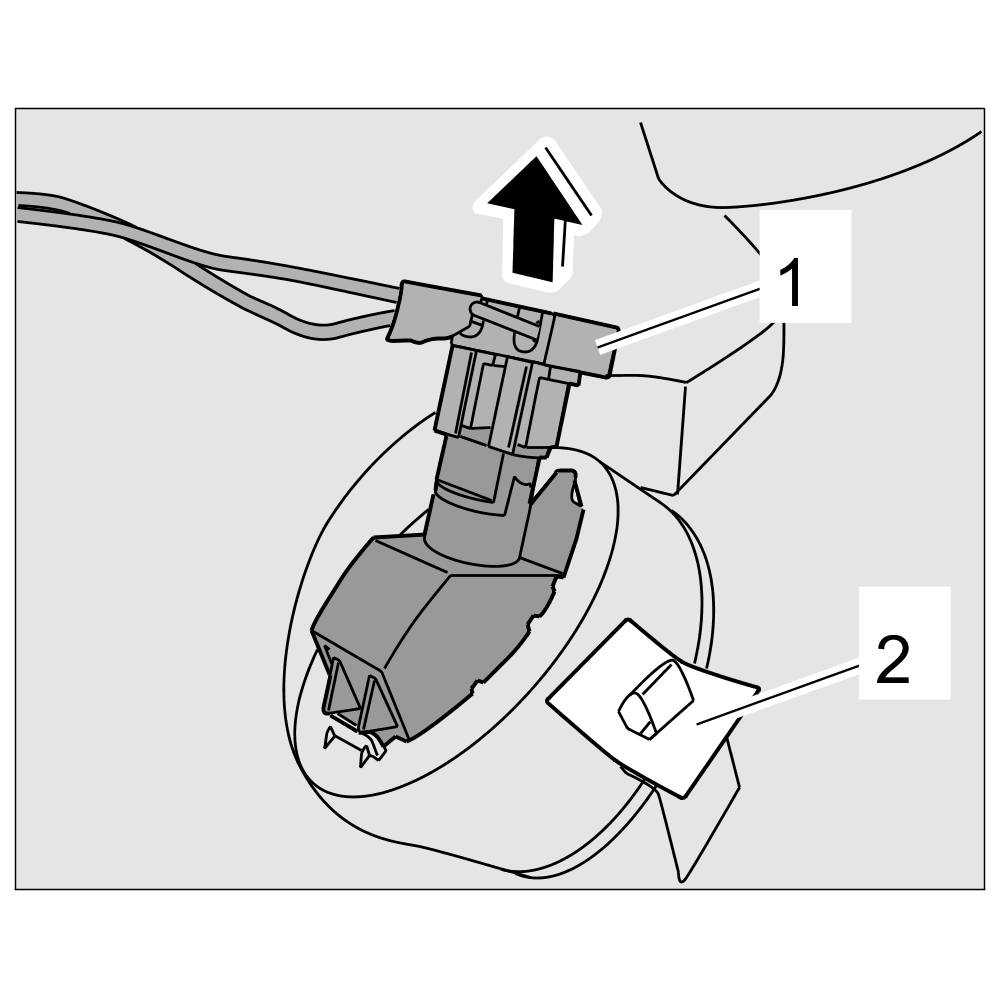

6. Pull off connector for interior light.
Pulling off connector for interior light -1-
7. Check clamps -2- , and replace if necessary.
Installing C-pillar trim
Installing C-pillar trim panel
1. Push in connector for interior light -1-.
Pushing in connector for interior light

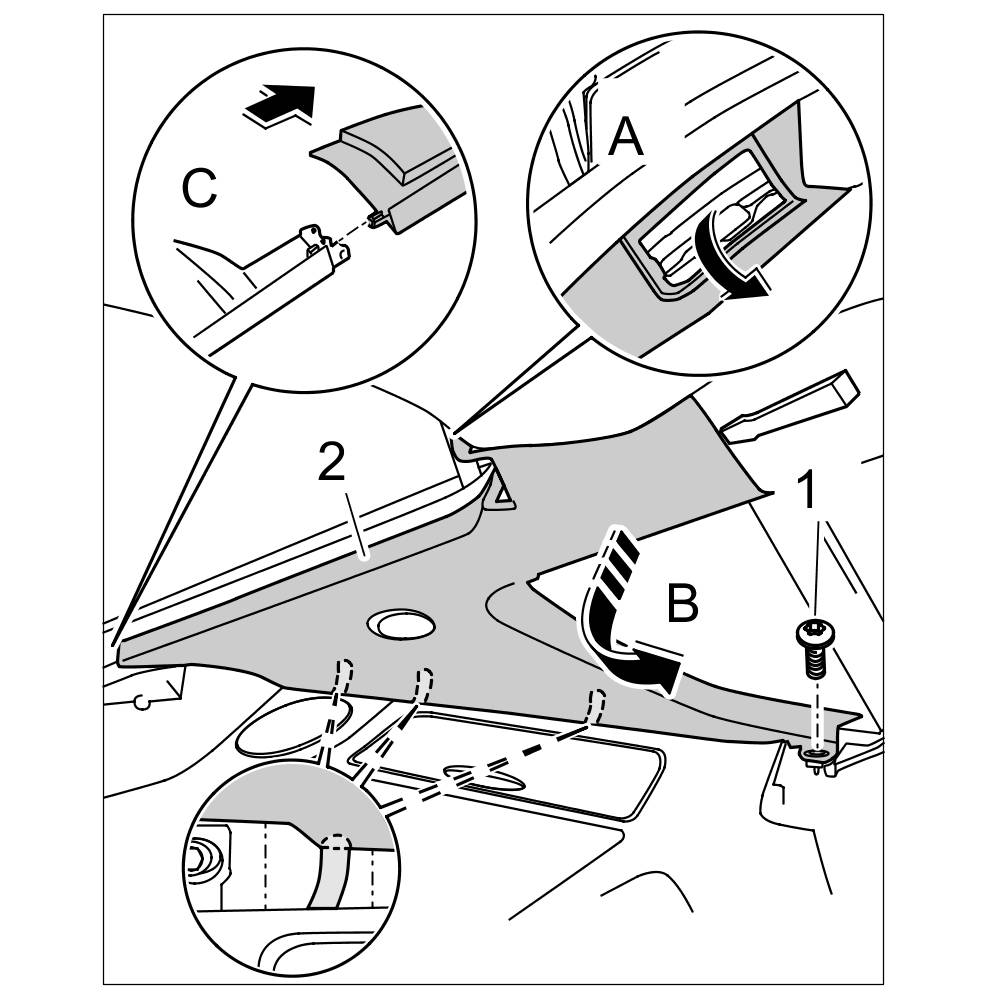

2. Insert C-pillar trim panel -2- in direction of arrow -A, B, C- and press in until the clamps engage.
Installing C-pillar trim
3. Tighten fastening screw -1-.
4. Clip cap -1- into C-pillar trim panel -2-.
Installing cap
Information
Only for vehicles with luggage mesh.
5. Fold luggage mesh forwards and engage at the top.

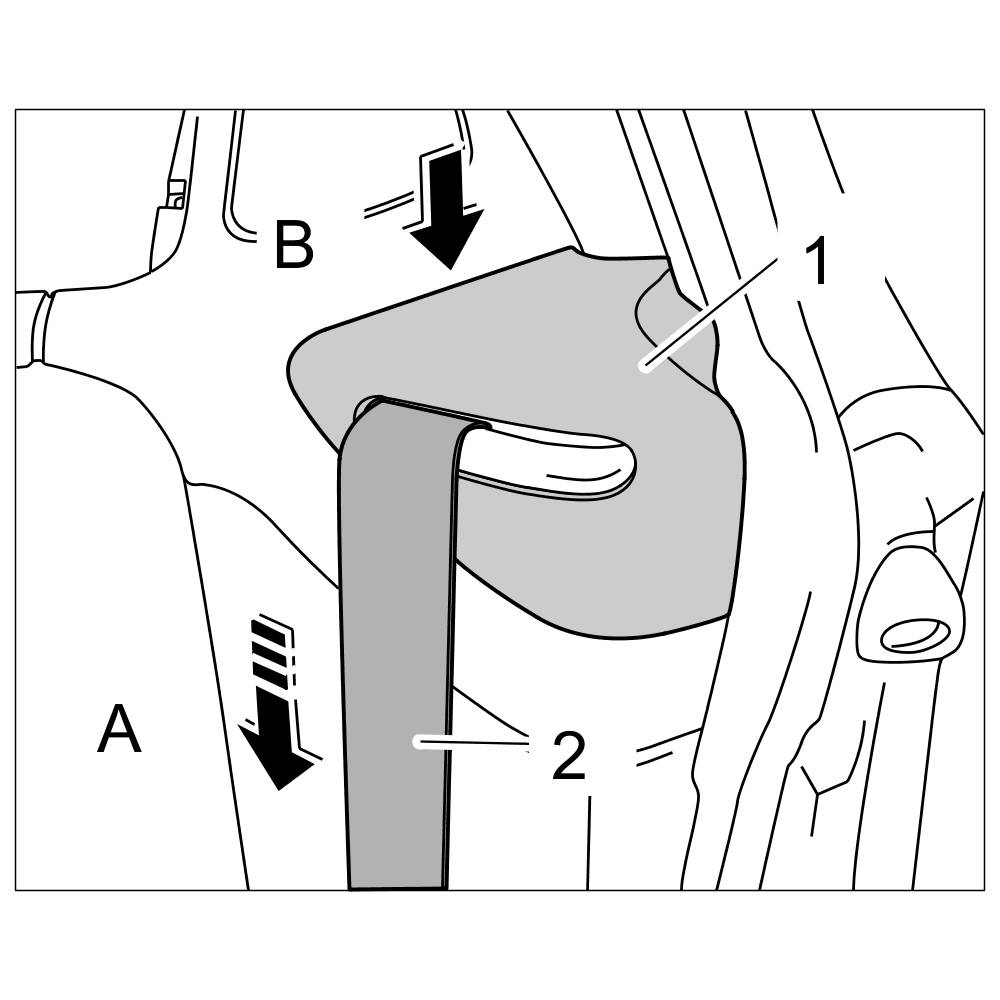

Installing rose for seat belt
1. Pull seat belt -2- through the rose -1- -Arrow A-.
Installing collar
2. Press in the rose -1- until the locking tabs engage -Arrow B-.
Securing seat belt and fitting
Information
Ensure that belt strap can run properly!

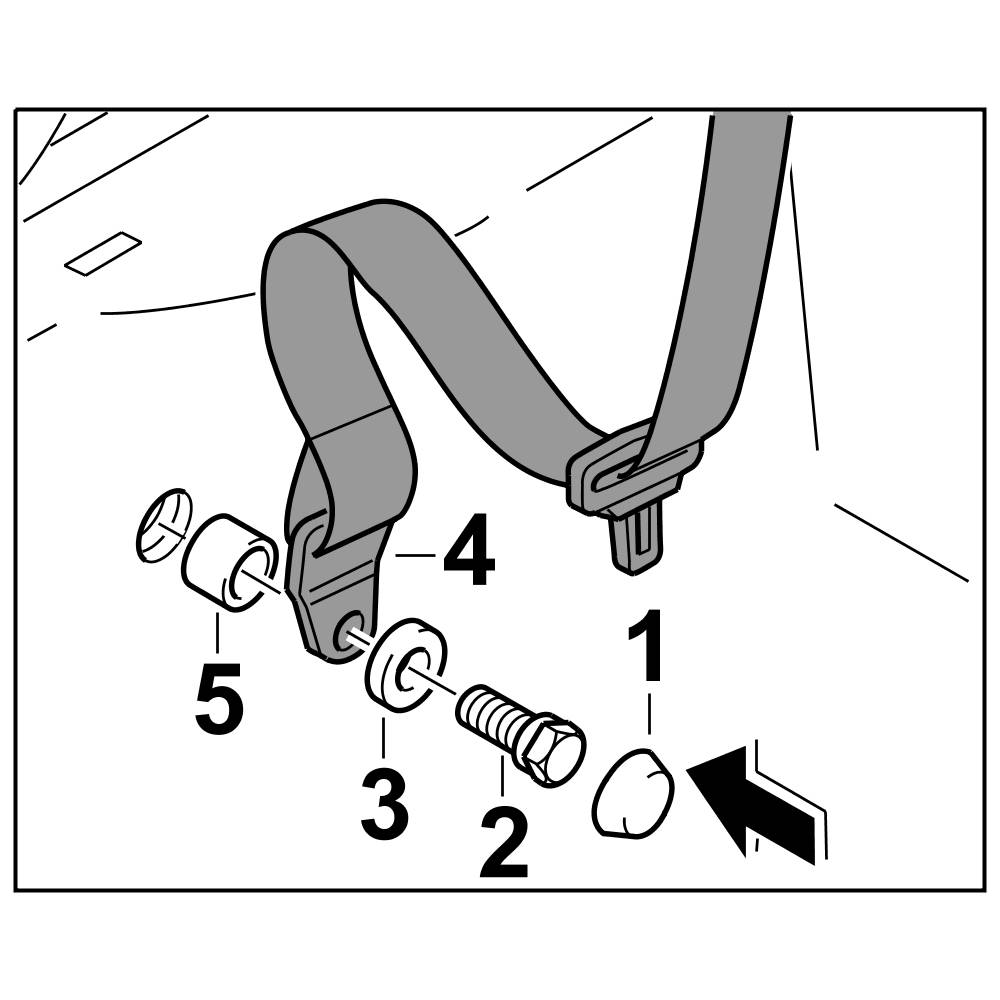

1. Secure fastening screw -2- , washer -3- , seat belt with fitting -4- and spacer sleeve -5- on the body. => Tightening torque: 50 Nm (37 ftlb.)+/-10 %
Securing seat belt and fitting
2. Press cap -1- onto the fastening screw -2- ( -arrow- ).
