708319 Removing and installing front roof trim panel

WM 708319 Removing and installing front roof trim panel

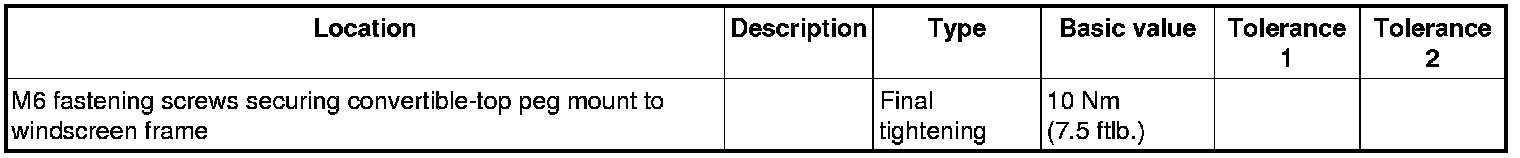

Technical values





Preliminary work

1. Remove sun visor. -> 682319 Removing and installing sun visor - section on "Removing" 682319 Removing and installing sun visor
2. Remove front lock. -> 610519 Removing and installing front lock - section on "Removing"

Removing front roof trim panel

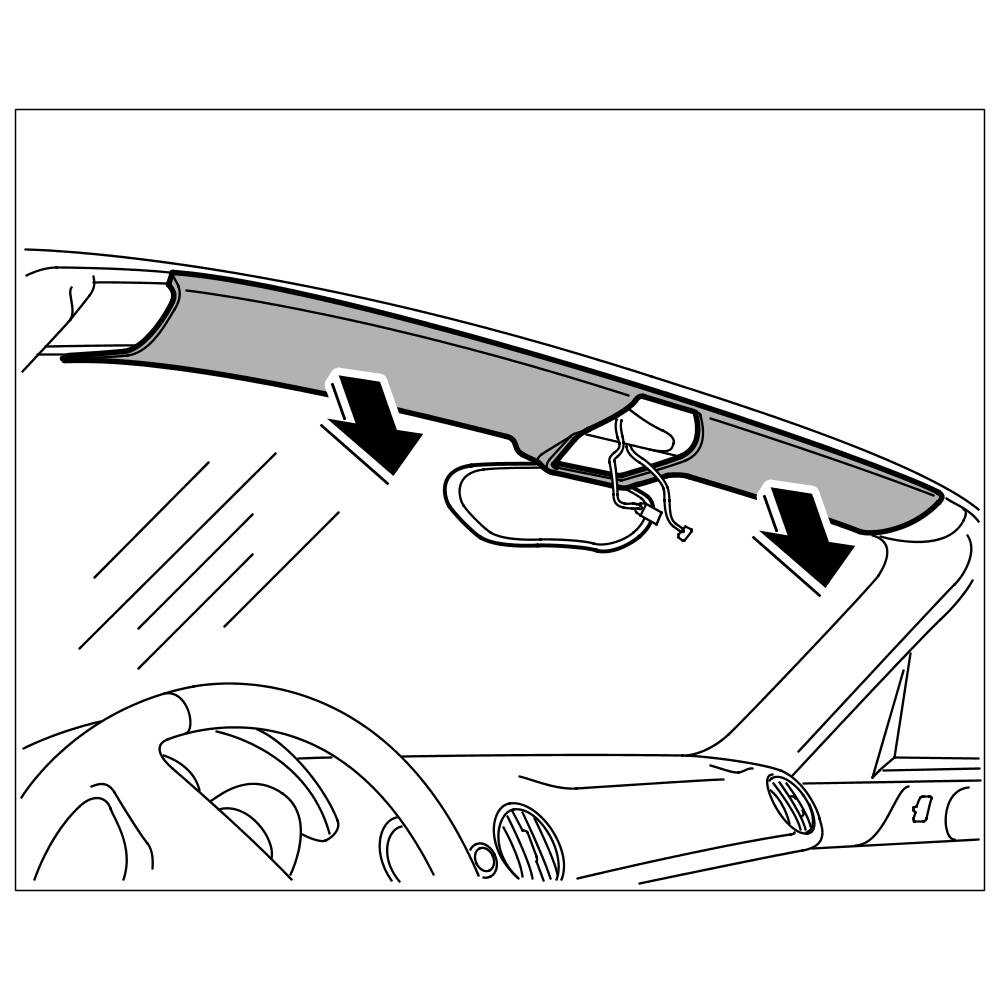

Installation position of front roof trim panel

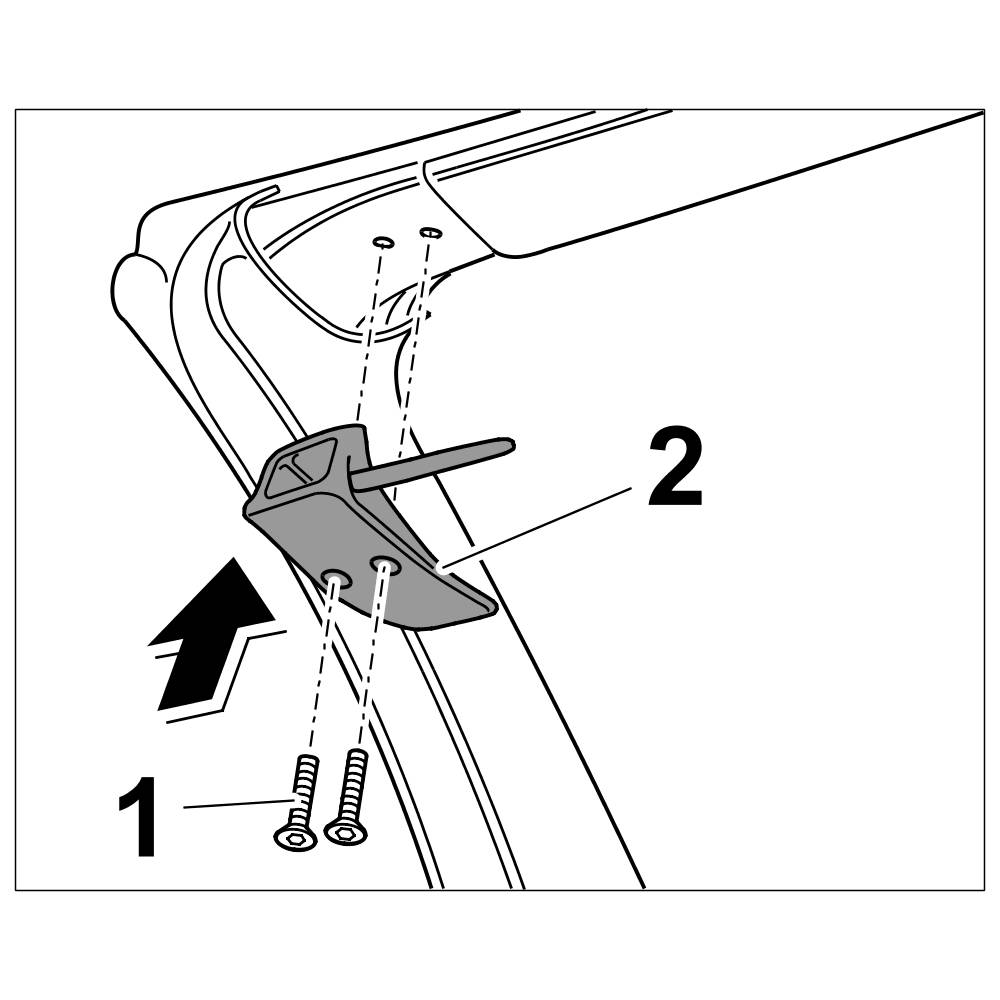

1. Unscrew fastening screws -1- and remove convertible-top peg mount -2- downwards -arrow-.





Removing convertible-top peg mount

2. Unclip front roof trim panel and remove by pulling downwards -arrows-.





Removing front roof trim panel

Installing front roof trim panel





Installation position of front roof trim panel

1. Fit front roof trim panel to windscreen frame from below -arrows- and clip it into position.





Installing front roof trim panel

2. Place convertible-top peg mount -2- on windscreen frame from below -arrow- , position it correctly and screw down hand-tight using the fastening screws -1-.





Installing convertible-top peg mount

3. To prevent rattling noises, the two convertible-top peg mounts (left and right) must be facing outwards with respect to the centring pins fitted on the convertible top or hardtop when tightening the screws.
The convertible top must be closed or the hardtop must be fitted in order to check the adjustment.
4. Tighten fastening screws -1-. Tightening torque => Final tightening: 10 Nm (7.5 ftlb.)

Subsequent work

1. Install front lock. -> 610519 Removing and installing front lock - section on "Installing"
2. Install sun visor. -> 682319 Removing and installing sun visor - section on "Installing" 682319 Removing and installing sun visor
