722419 Removing and installing cushion carrier for front backrest
WM 722419 Removing and installing cushion carrier for front backrest
Preliminary work
Remove padding for backrest. -> 741719 Removing and installing padding for front backrest - section on "Removing" 741719 Removing and installing padding for front backrest (folding sports bucket seat)
Preliminary work
1. Remove padding for front backrest. -> 741719 Removing and installing padding for front backrest - section on "Removing" 741719 Removing and installing padding for front backrest (folding sports bucket seat)
2. Remove side airbag. -> 696319 Removing and installing side airbag - section on "Removing" 69631900 Removing and installing side airbag
3. Remove control button for backrest release. -> 723119 Removing and installing control button for backrest adjustment - section on "Removing" 723119 Removing and installing control button for backrest adjustment
Removing cushion carrier for front backrest

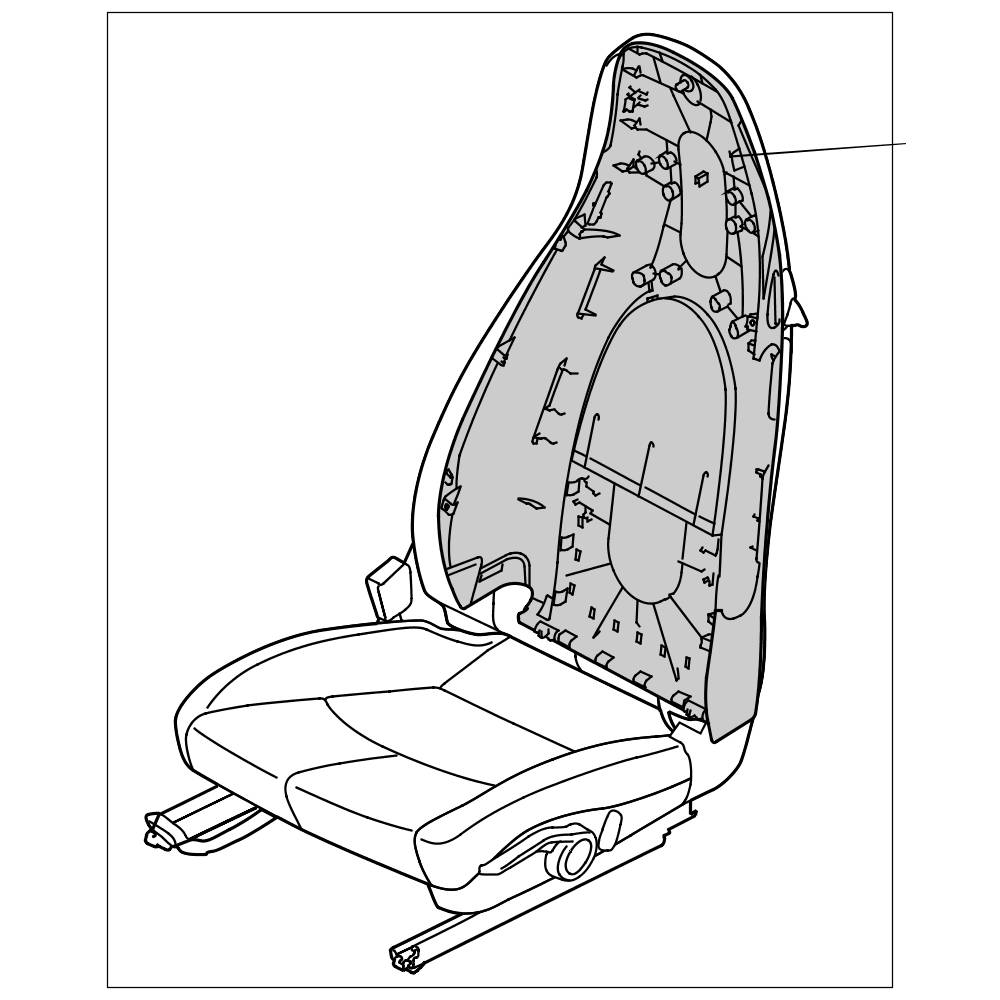

Installation position of cushion carrier for front backrest

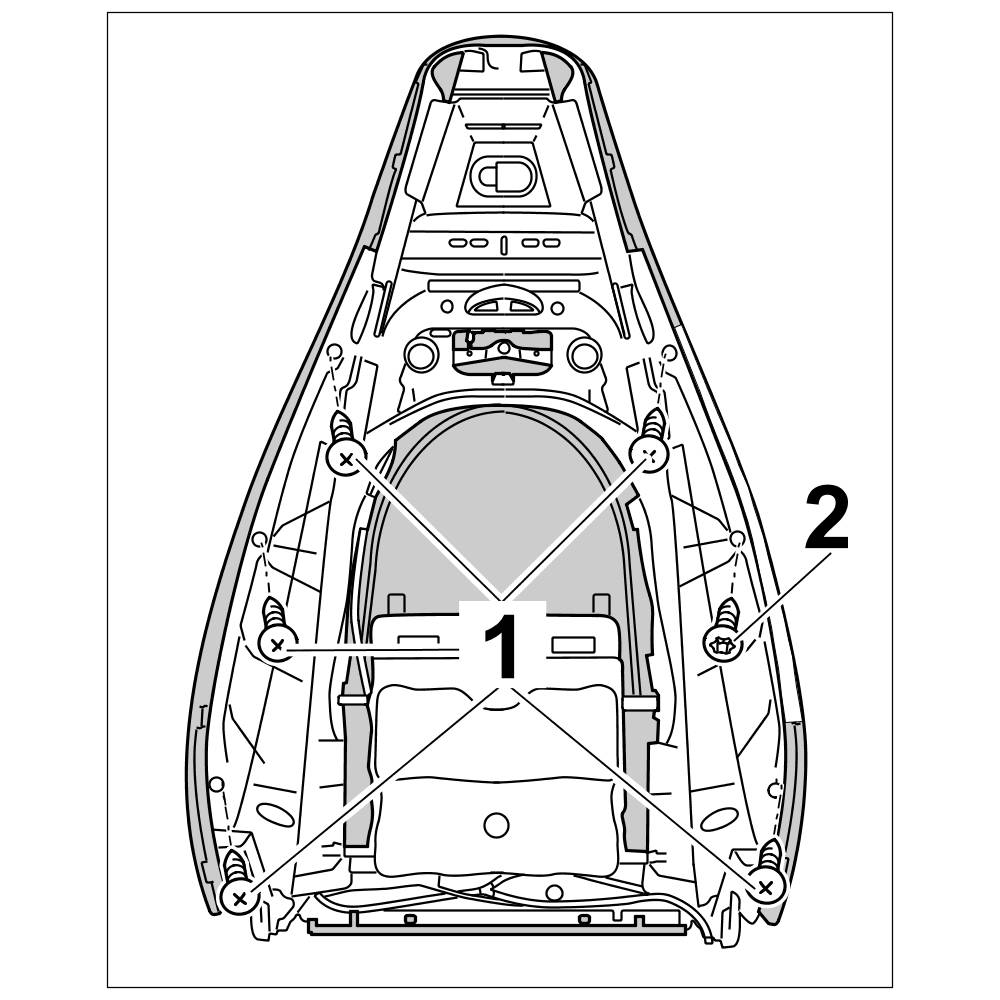

1. Unscrew fastening screws -1, 2-.
Loosening cushion carrier

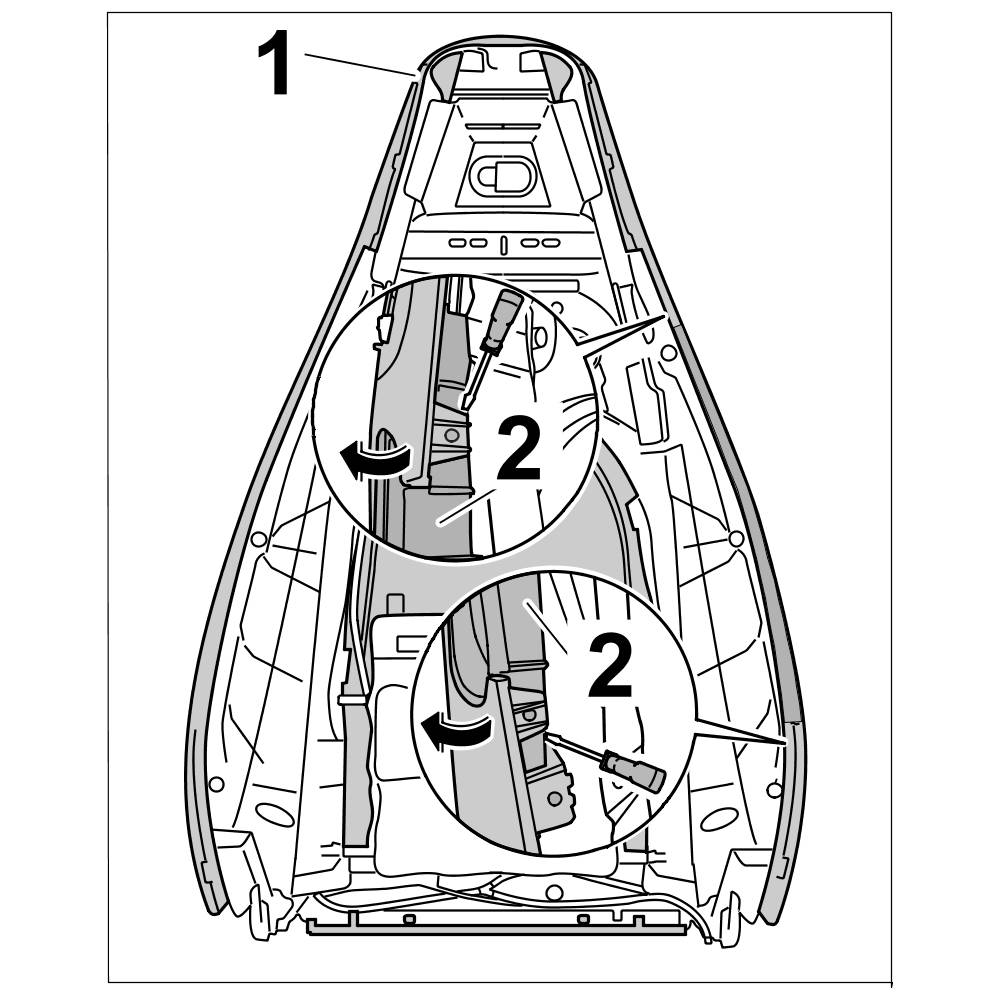

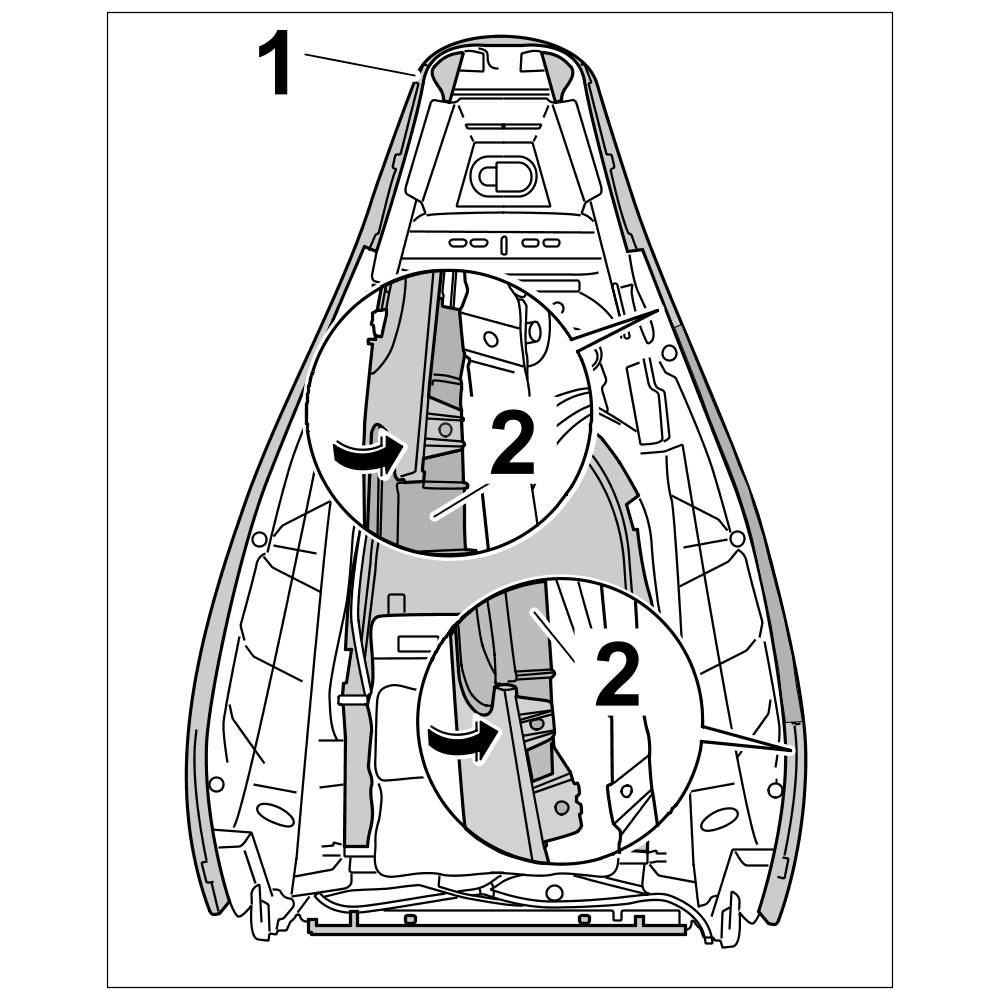

2. Pull frame for side airbag -2- out slightly and unclip locking lugs on the cushion carrier -1- using a screwdriver -arrows-.
Loosening cushion carrier at the sides

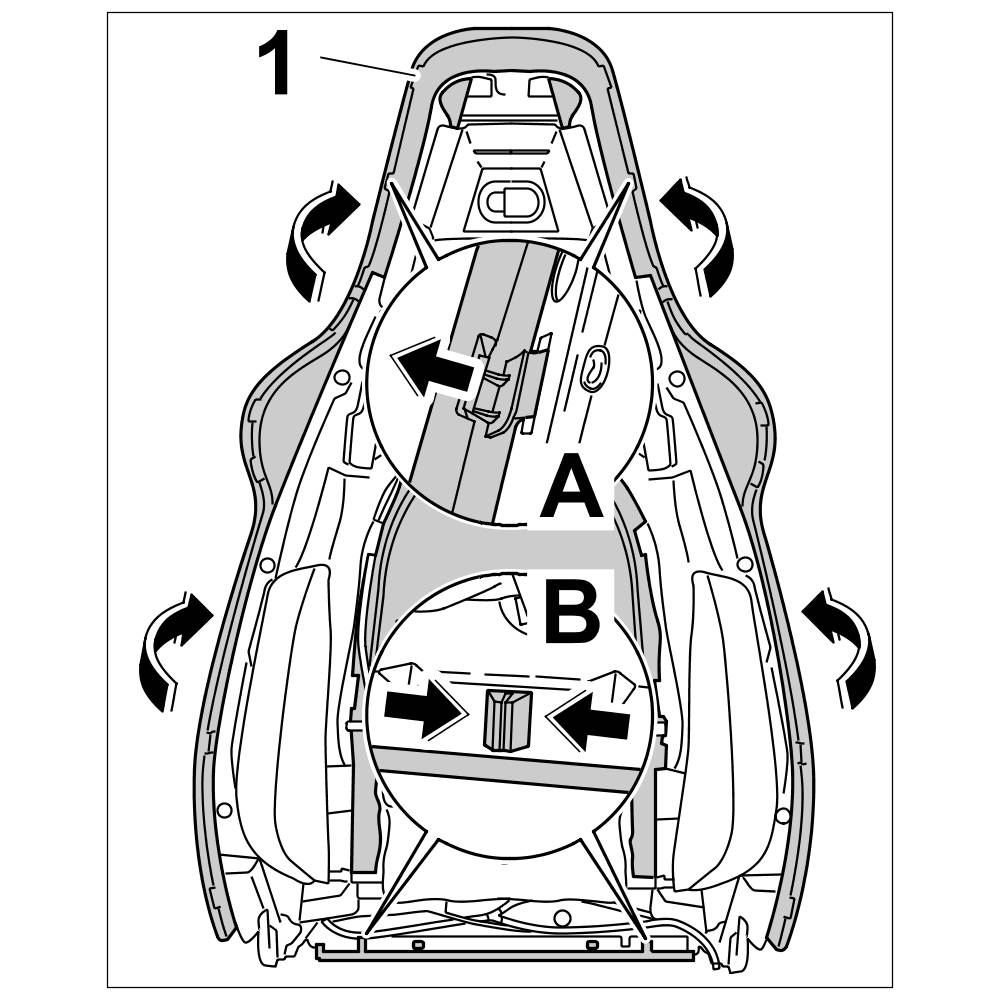

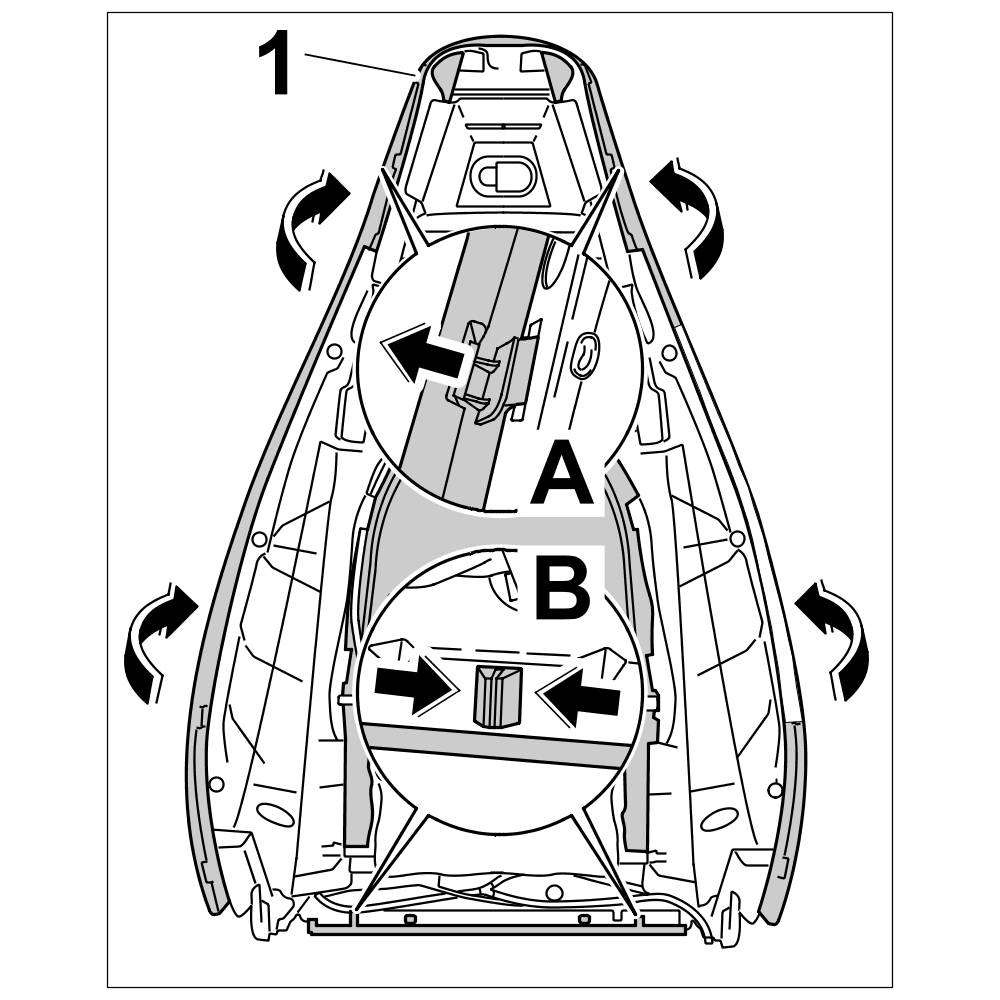

3. Release locking lugs at the top in direction of arrow -inset A-.
Removing cushion carrier
4. Press lower locking tabs together and unclip cushion carrier -1- ( -inset B- ).
5. Press cushion carrier -1- out slightly close to the backrest release -arrows-.
Removing cushion carrier for front backrest
Installation position of cushion carrier

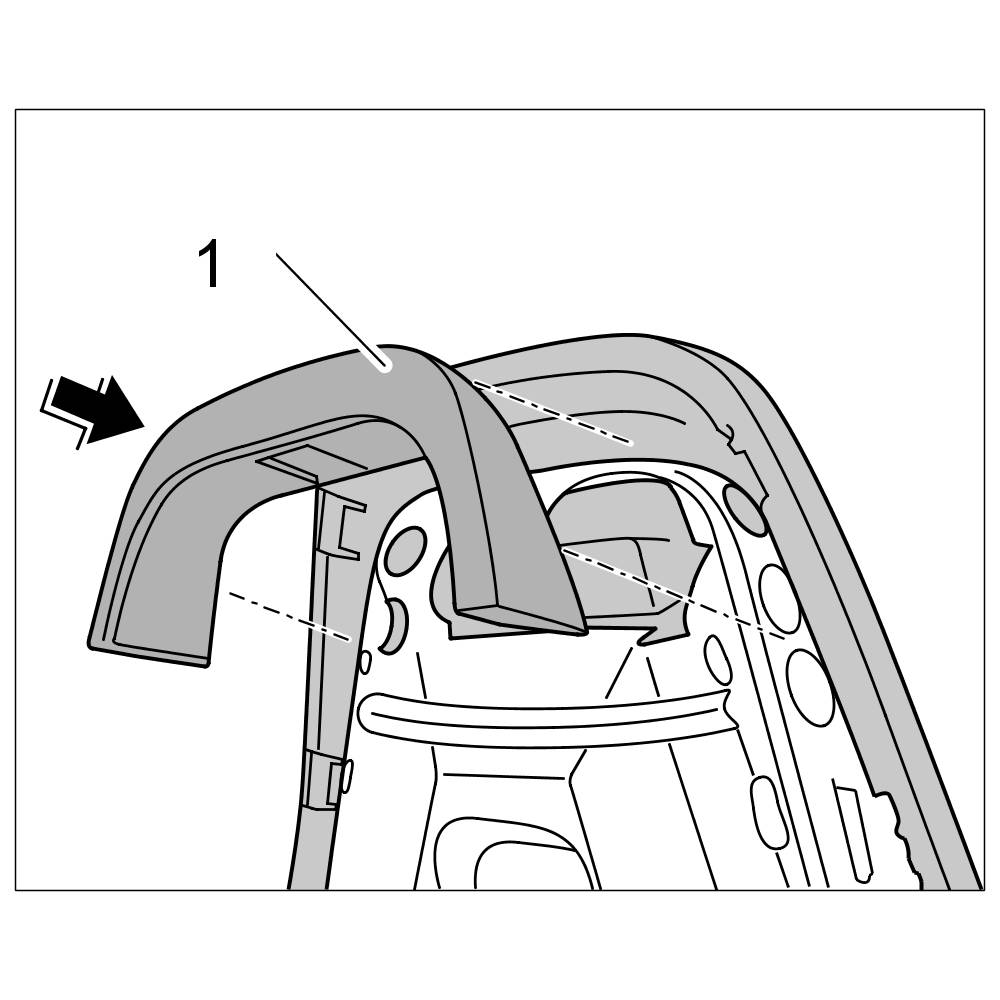

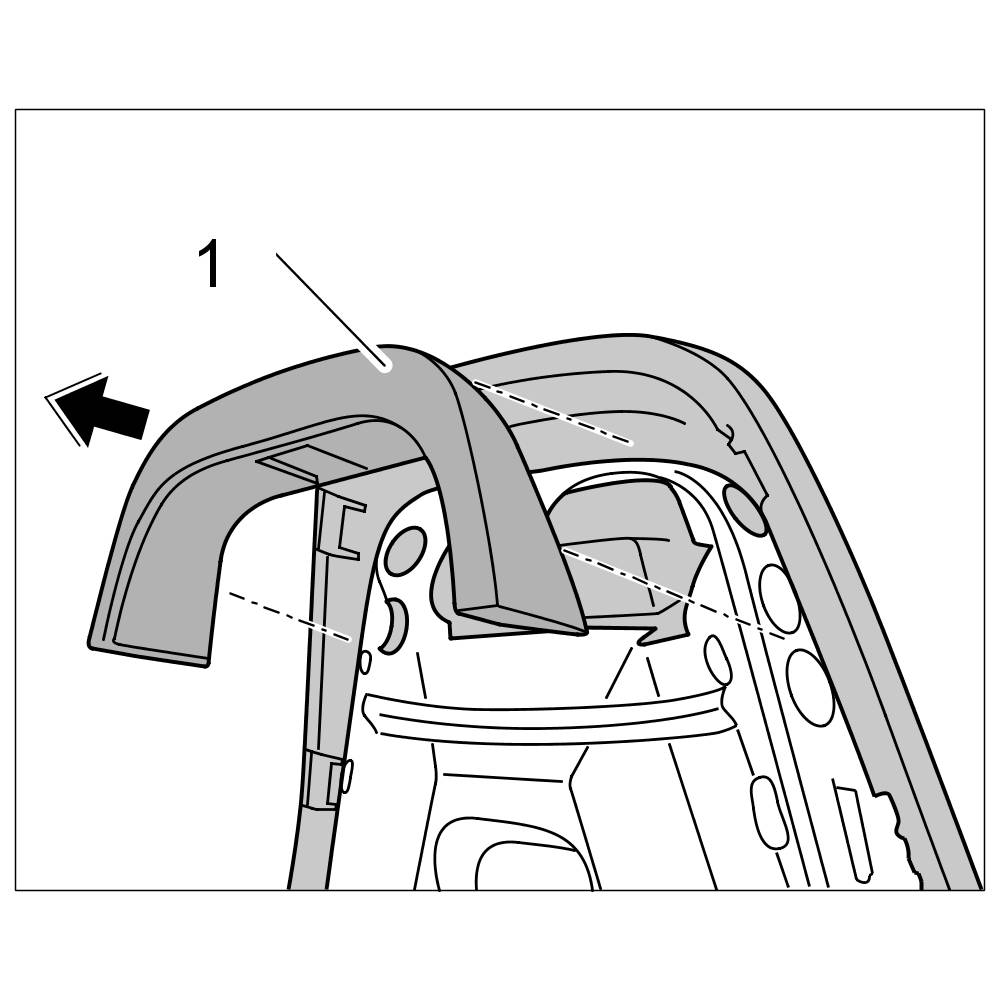

1. Remove foam part of headrest -1-.
Removing foam part of headrest

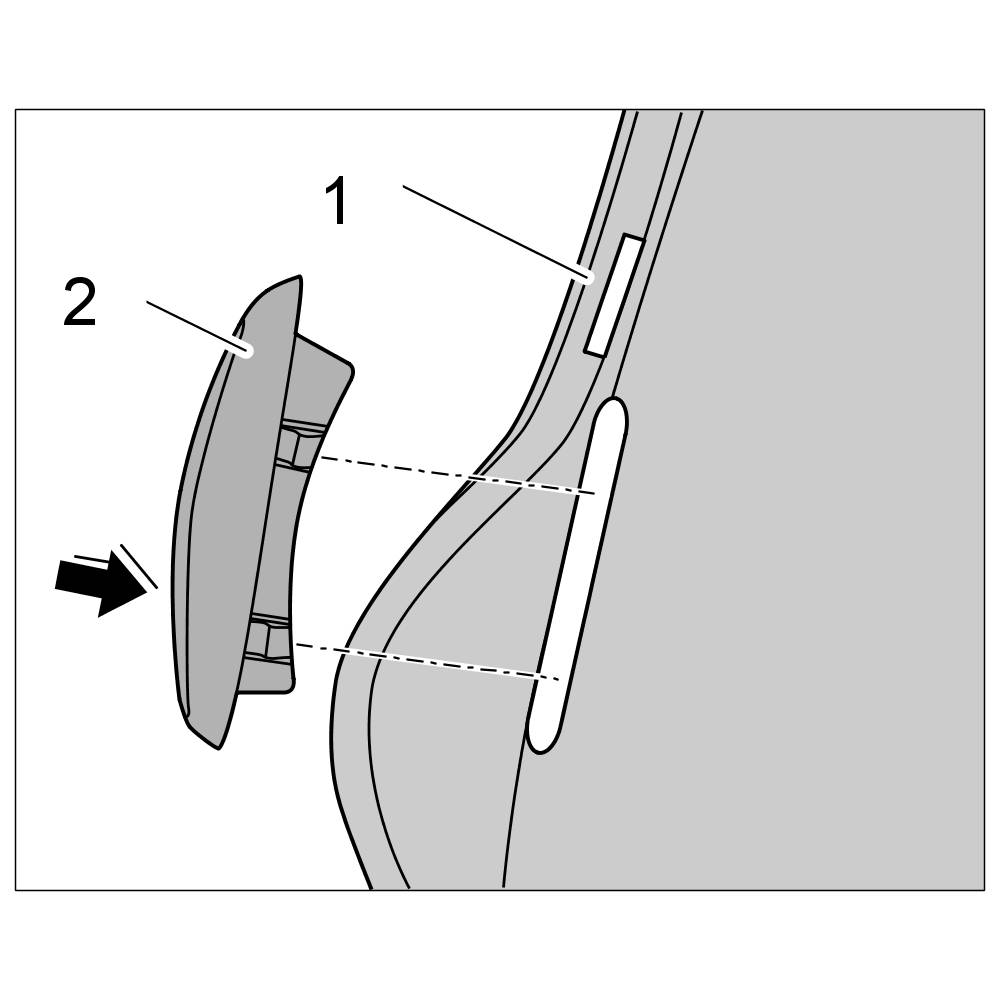

2. Insert a plastic wedge between the cushion carrier -1- and the collar -2- and unclip collar.
Removing collar
3. Undo fastening screws -1-.
Loosening cushion carrier

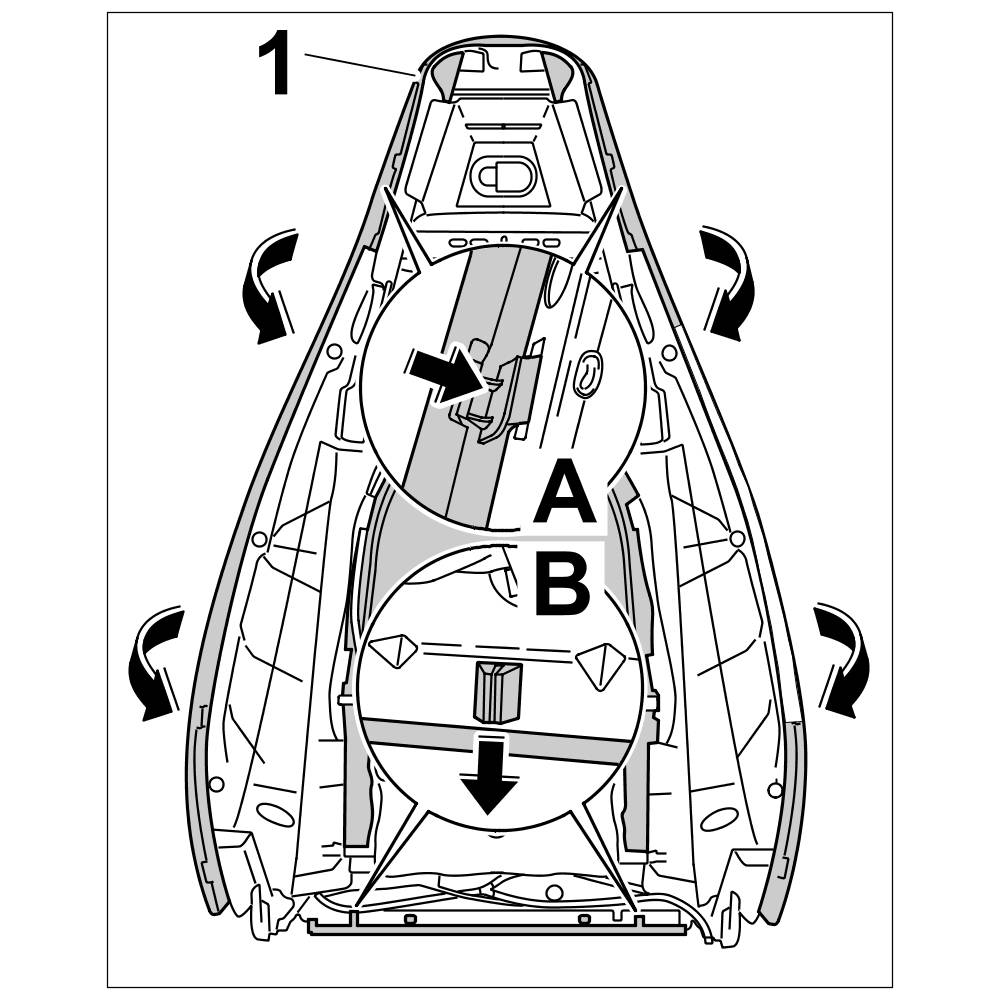

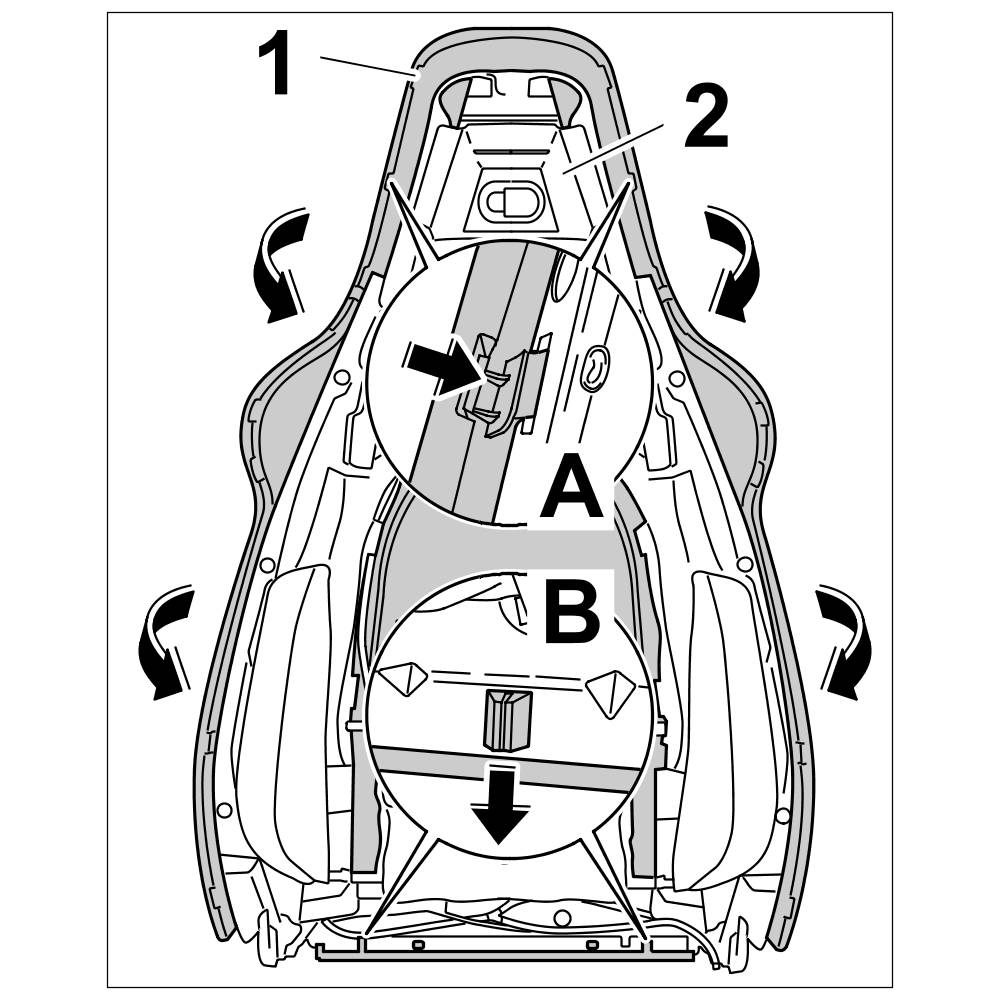

4. Release upper locking tabs in direction of arrow -Inset A-.
Removing cushion carrier
5. Press lower locking tabs together and unclip cushion carrier -1- ( -Inset B- ).
6. Press cushion carrier -1- outward slightly close to the backrest release and remove it.
Installing cushion carrier for front backrest
1. Press cushion carrier -1- outward slightly in area of backrest release and position it on the backrest frame -2- until the locking tabs engage at the top -Inset A- and bottom -Inset B-.
Installing cushion carrier
2. Press cushion carrier -1- at the sides into the frame for the side airbag -2- until the locking tabs engage.
Fastening cushion carrier at the sides

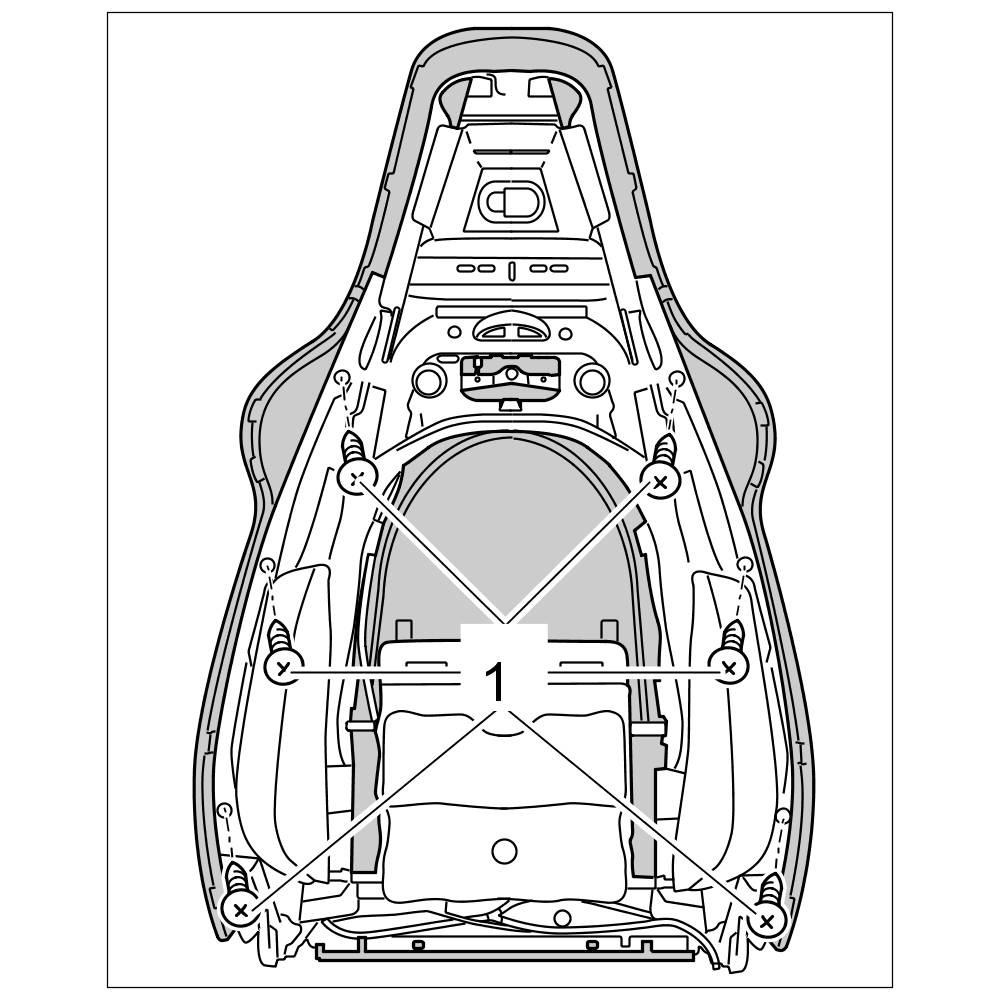

3. Tighten fastening screws -1, 2-.
Securing cushion carrier
Installing cushion carrier for front backrest
Installation position of cushion carrier
1. Press cushion carrier -1- outward slightly close to the backrest release and position it on the backrest frame -2- until the locking tabs engage at the top -Inset A- and bottom -Inset B-.
Installing cushion carrier
2. Tighten fastening screws -1-.
Securing cushion carrier
3. Position collar -2- on the cushion carrier -1- and press in until it clicks into place.
Installing collar
4. Fit foam part of headrest -1-.
Fitting foam part of headrest
Subsequent work
Install padding for backrest. -> 741719 Removing and installing padding for front backrest - section on "Installing" 741719 Removing and installing padding for front backrest (folding sports bucket seat)
Subsequent work
1. Install control button for backrest release. -> 723119 Removing and installing control button for backrest adjustment - section on "Installing" 723119 Removing and installing control button for backrest adjustment
2. Install side airbag. -> 696319 Removing and installing side airbag - section on "Installing" 69631900 Removing and installing side airbag
3. Install padding for front backrest. -> 741719 Removing and installing padding for front backrest - section on "Installing" 741719 Removing and installing padding for front backrest (folding sports bucket seat)
