Removing and Installing Control Module Trim Panel

Removing And Installing Control Module Trim Panel

Technical values







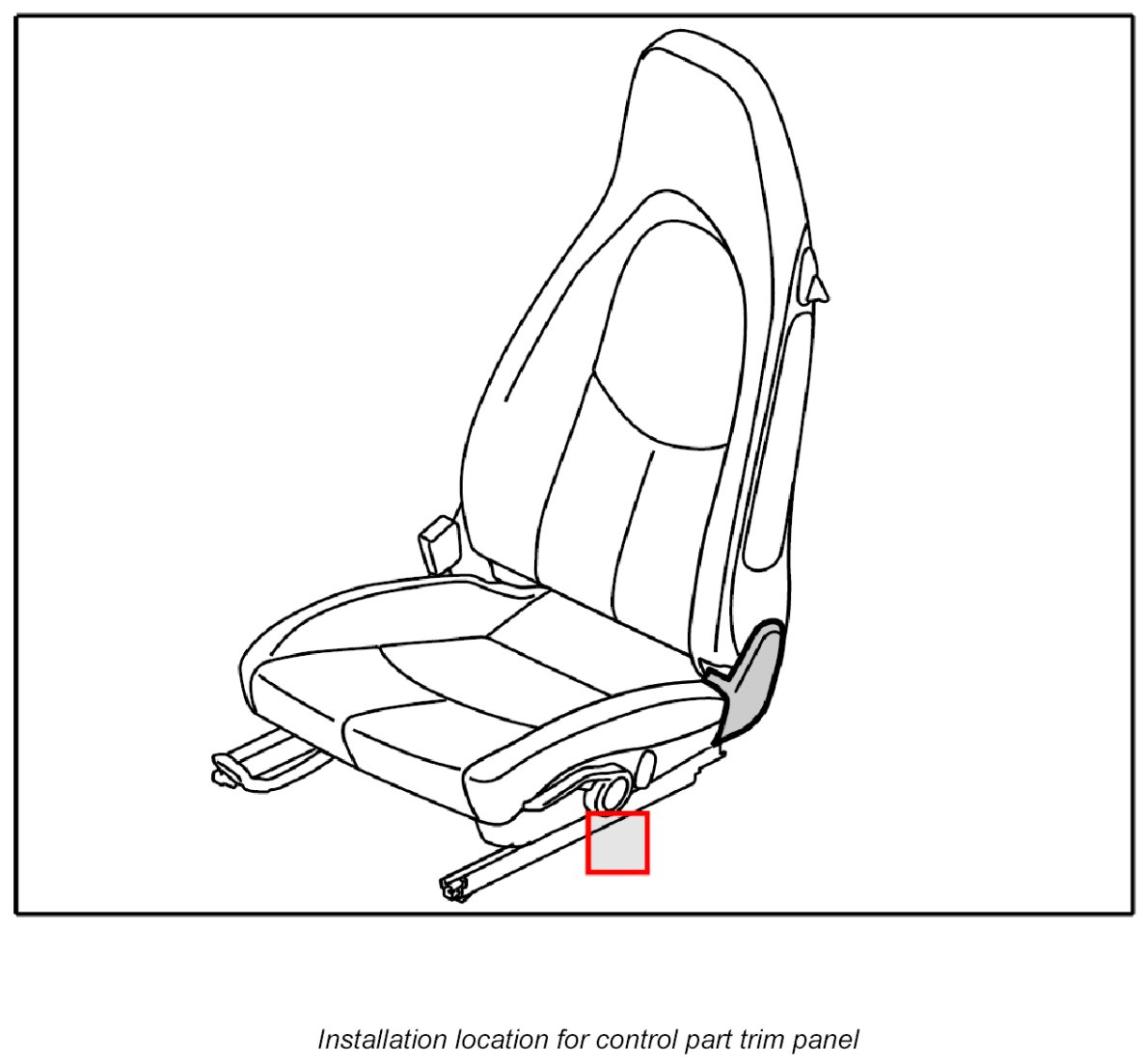

Removing control module trim panel

Preliminary work
1. Remove front seat. Refer to Removing and installing front seat.

Removing control part trim panel

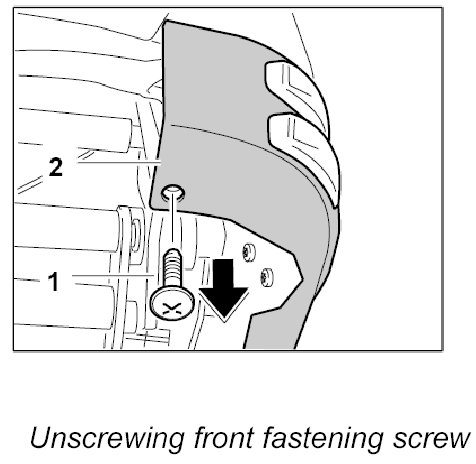

1. Unscrew front fastening screws 1 from the control part trim panel 2.

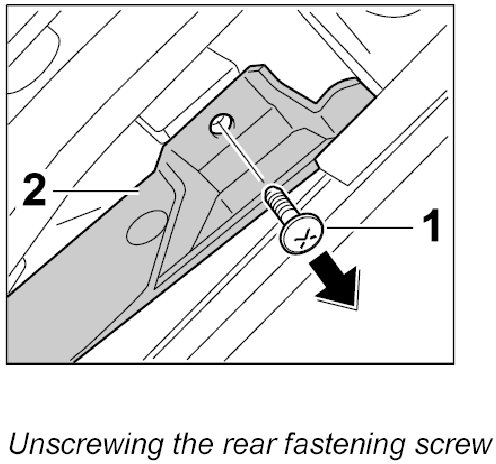

2. Unscrew rear fastening screws 1 from the control part trim panel 2.

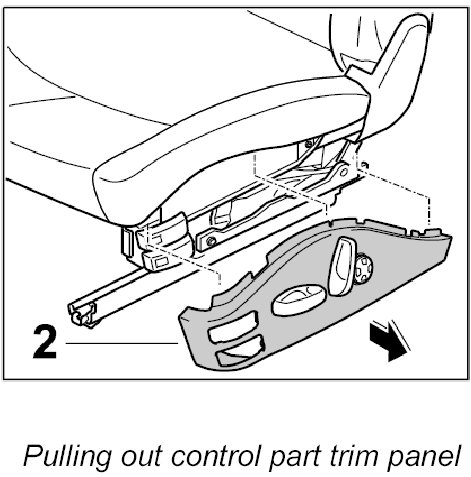

3. Pull out control part trim panel 2 from the cushion in direction of arrow.







4. Disconnect electric plug connection 3 and 4, unscrew fastening screws 5 from the tip switch 6 and take off the tip switch from the control part trim panel 2.

Removing control part trim panel (with mechanical lever)

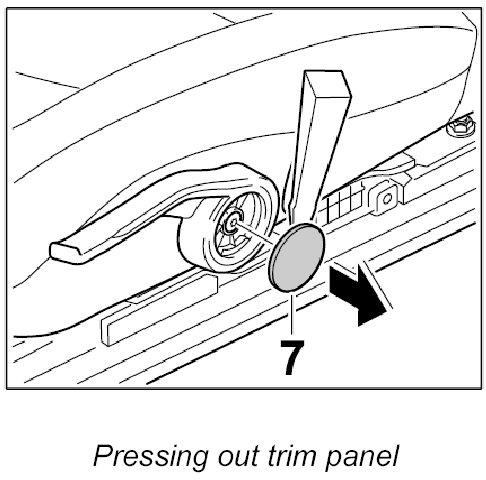

1. Press out trim panel 7 using a plastic spatula.

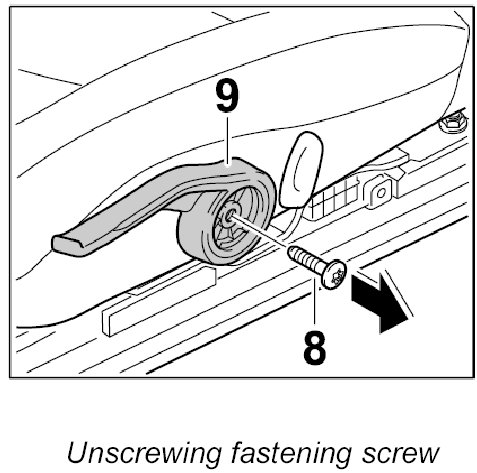

2. Unscrew fastening screw 8 from the lever 9 and remove lever.
3. Removing control part trim panel, work step 1, 2, 3

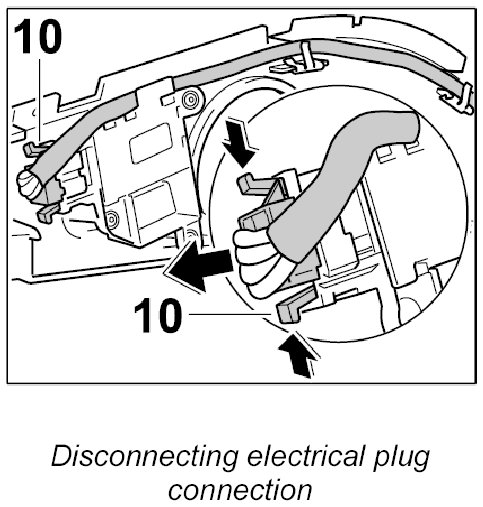

4. Disconnect electric plug connection 10 by pressing together the lugs arrow.

Installing control part trim panel

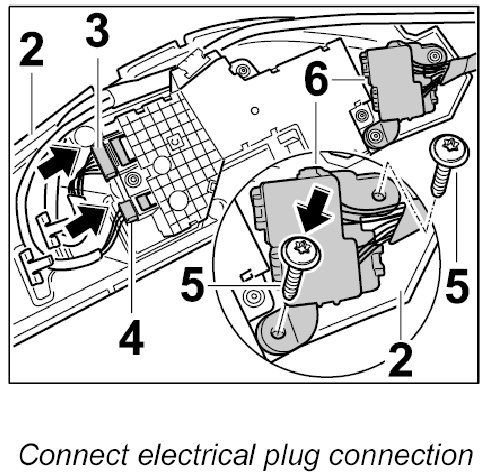

1. Position tip switch 6 on the control part trim panel 2 and screw down with the fastening screws 5. Plug in electrical plug connection 3 and 4.

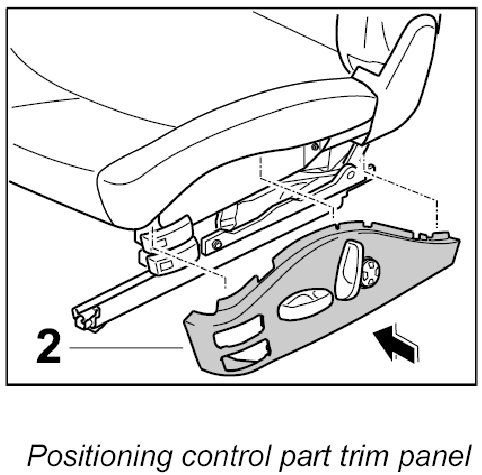

2. Insert control part trim panel 2 into the cushion in direction of arrow.

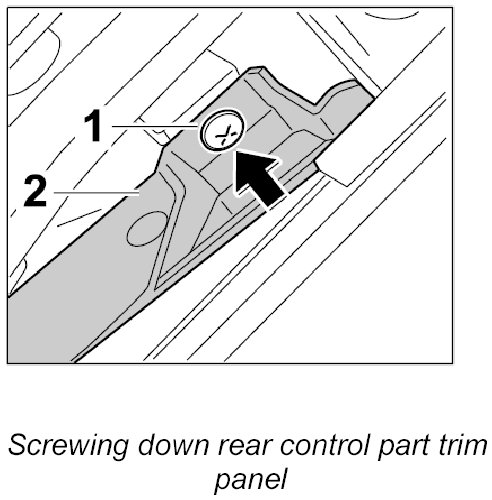

3. Screw down rear control part trim panel 2with the fastening screws 1. Tightening torque: 2 ftlb.

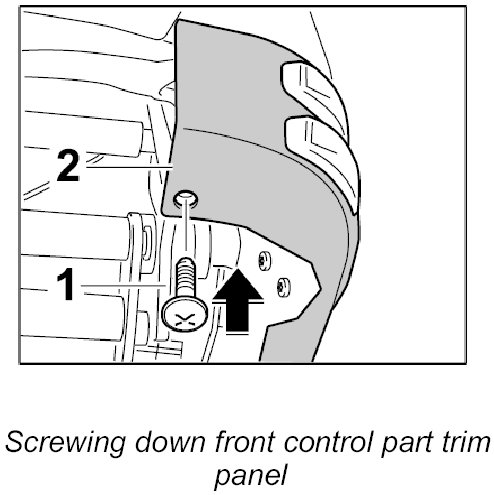

4. Screw down front control part trim panel 2with the fastening screws 1. Tightening torque: 2 ftlb.

Installing control part trim panel (mechanical)

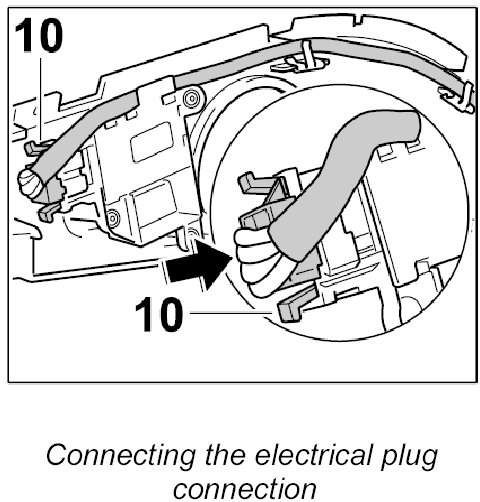

1. Connect electrical plug connection 10.
2. Procedure: Installing control part trim panel, work step 2, 3, 4

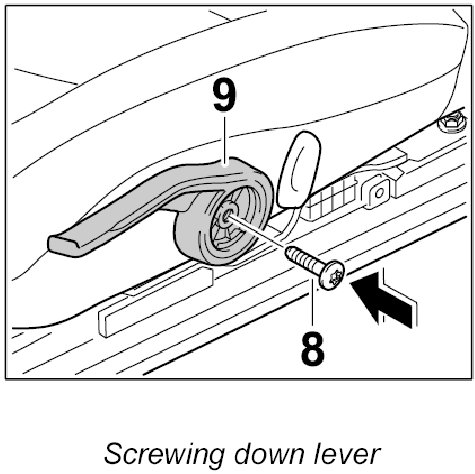

3. Position lever 9 on seat, screw down fastening screw 8. Tightening torque: 4.5 ftlb.

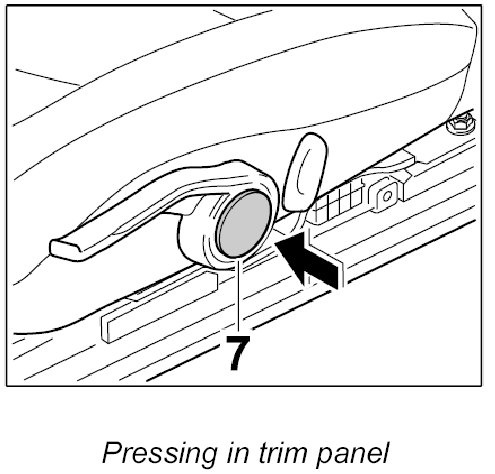

4. Press in trim panel.

Subsequent work

1. Install front seat. Refer to Removing and installing front seat.
