Technical Data, Engine

WM 1001TW Technical data, engine

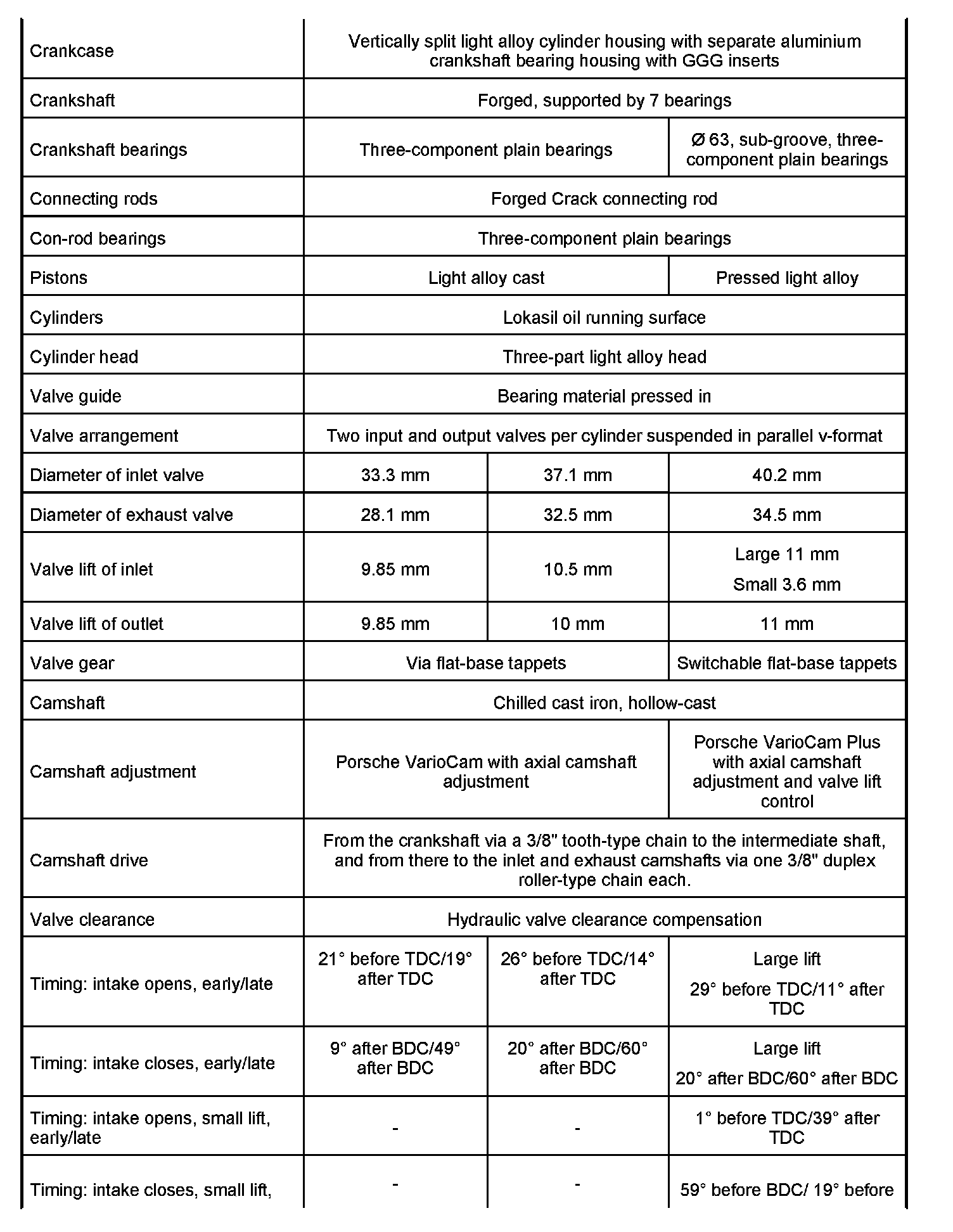

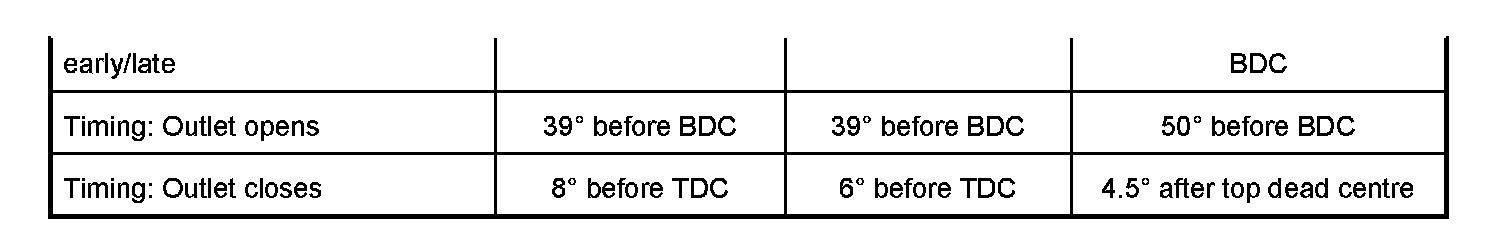

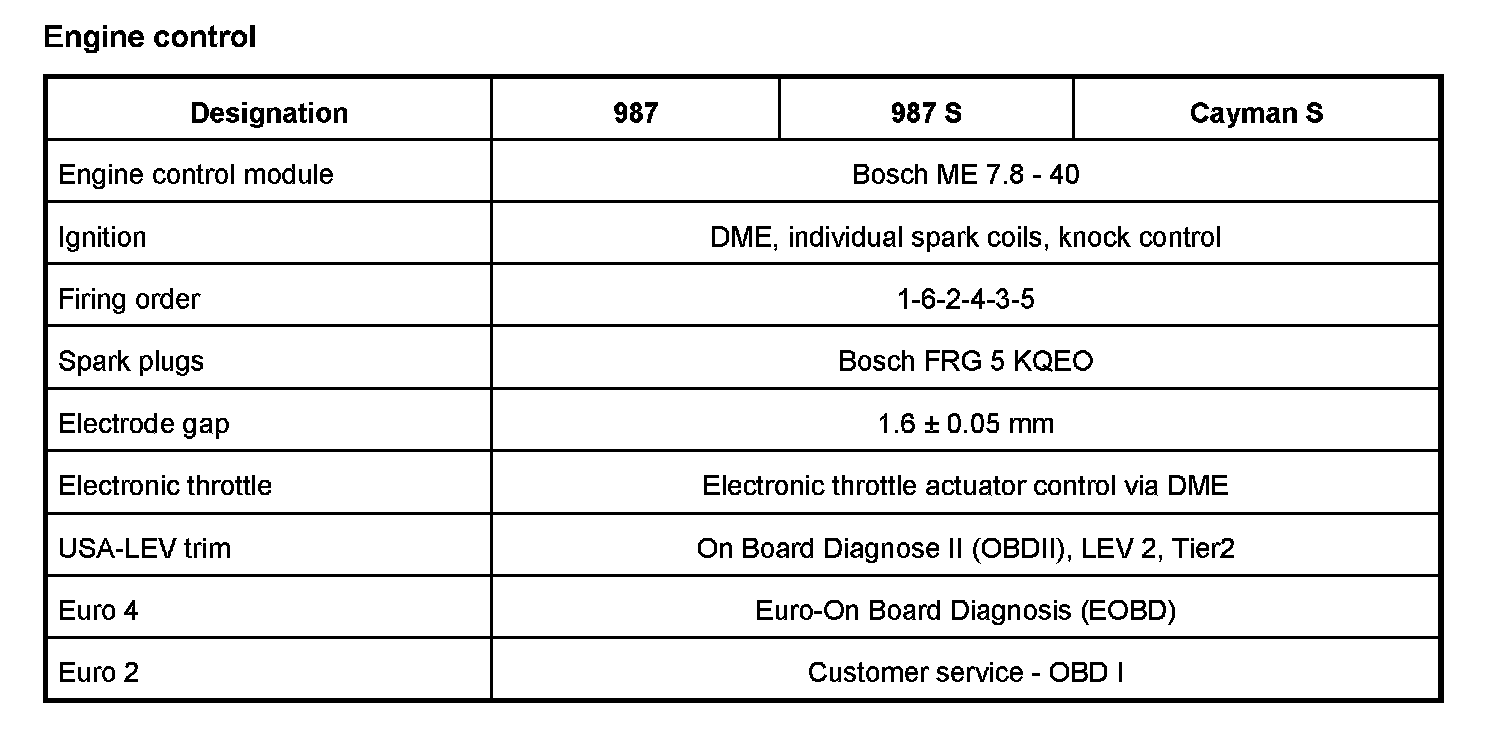

Technical values

















Cylinder Head

Cylinder Head Side 1-3

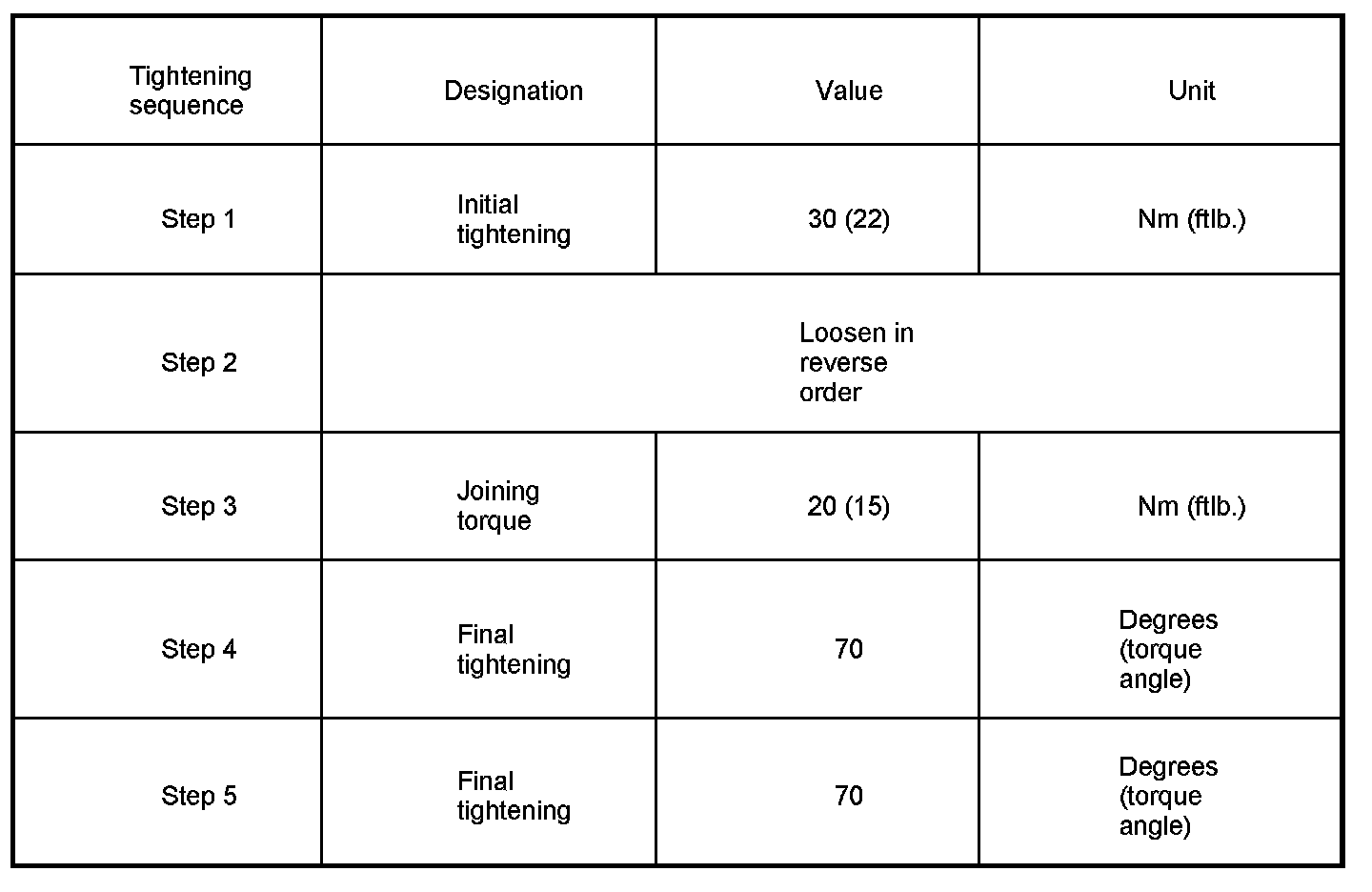

1. Screw in twelve M10 Torx screws evenly and tighten according to the prescribed tightening sequence -1 to 12- in 5 steps (see table).








2. Screw in and tighten four Torx screws with M6 x 30 captive washers (10.9) -1 to 4- at the chain slot. Use of a magnetic bit is recommended so that the screw to be fitted in the slot -item 4- cannot fall into the crankcase. Tightening torque: 13 Nm (9.5 ftlb.)





3. Cylinder head side 4-6 is installed in the same way as the assembly sequence for side 1-3.

Camshaft Bearing Cap Torque and Sequence

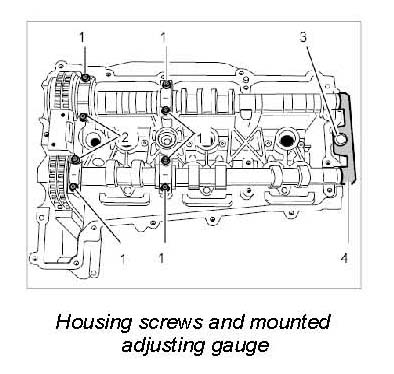

1. Fasten housing screws for the inlet and outlet camshafts and the auxiliary screw of the adjusting gauge.
2. Turn the screws further alternately by approx. 90° each until the specified tightening torque is reached. This enables the camshafts to be mounted without any distortion.





3. Tighten housing screws M6 -1 and 2-. Tightening torque: 10 Nm (7.5 ftlb.)
4. Tighten fastening screw M8 -3- for adjusting gauge -4-. -> Tightening torque: 23 Nm (17 ftlb.)

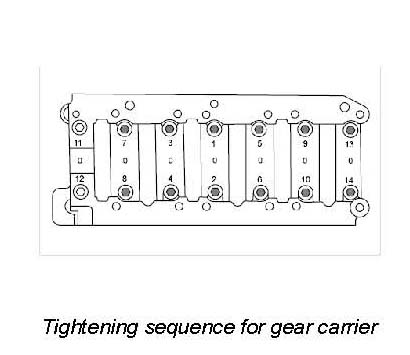

Gear Carrier





Initial tightening 15 Nm (11 ftlb.)
Torque angle 120°

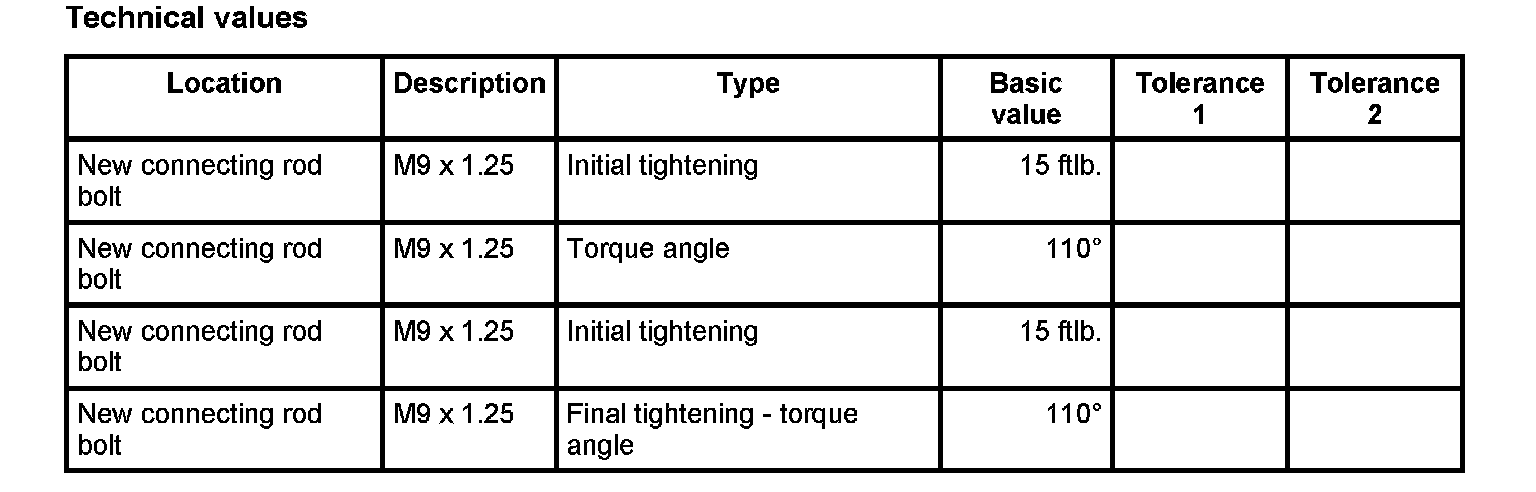

Connecting rod bolt





Belt Pulley
Initial tightening
Tightening torque 37 ftlb.
Final tightening
Torque angle 90°

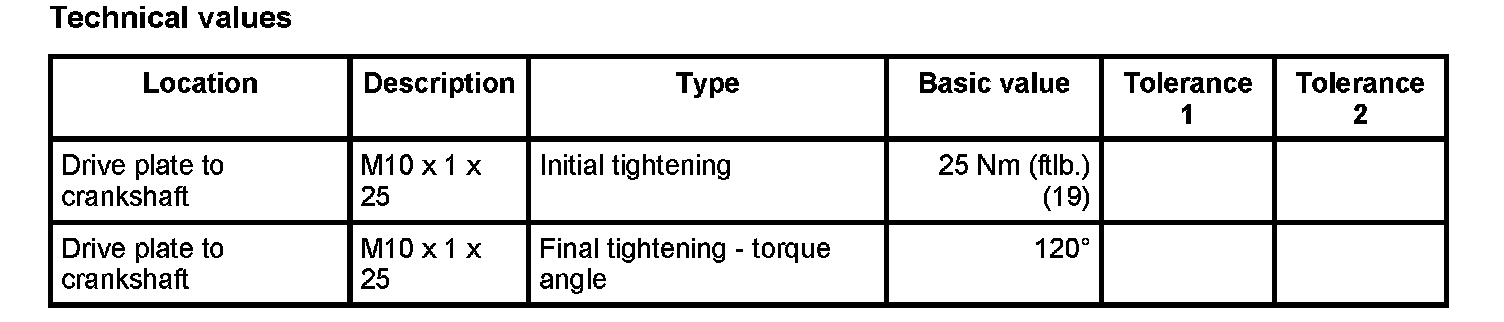

Drive Plate





Tighten fastening screws in diagonally opposite sequence.

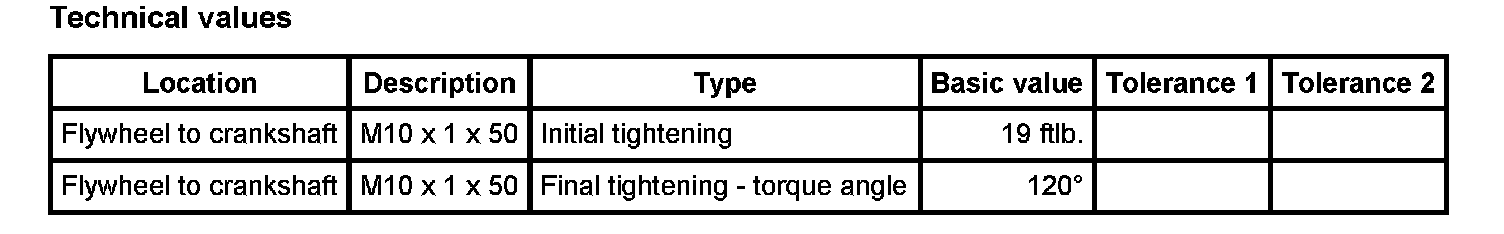

Flywheel





Tighten fastening screws in diagonally opposite sequence.

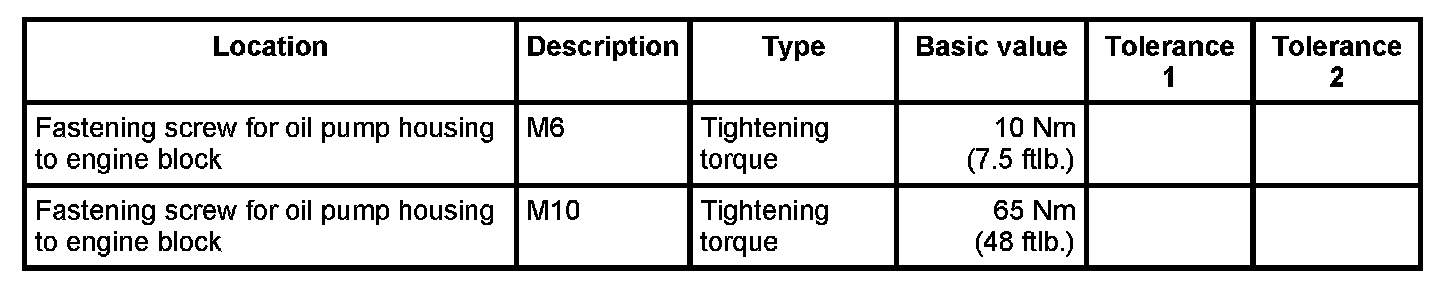

Oil pump housing





Exhaust manifold
Fit exhaust manifold with new screws M8 x 26. Tighten screws from the inside out and in diametrically opposite sequence.
Tightening torque 23 Nm (17 ftlb.)
