Removing and Installing Trim Panel (Steering-Column Switch)

WM 481319 Removing and installing trim panel (steering-column switch)

Removing and installing trims
1. Adjust steering wheel to lower position.

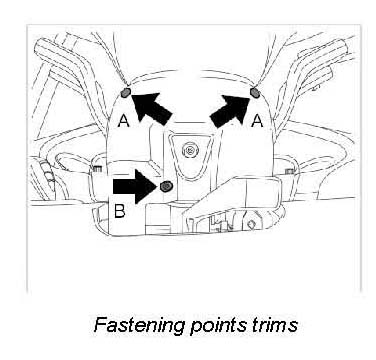

2. For the top trim panel, unscrew the two Torx screws (T10) -A-.





3. Pull upper trim panel upwards, disconnect plug, remove wiring harness from the guide and unclip leather trim panel -arrows-.





4. For removing the lower trim panel, unclip right wiring harness and unscrew the Torx screw (T10) -B-.

Install in reverse order. Check wiring harness for correct routing.
