Hood: Adjustments

552215 Adjusting Front Lid

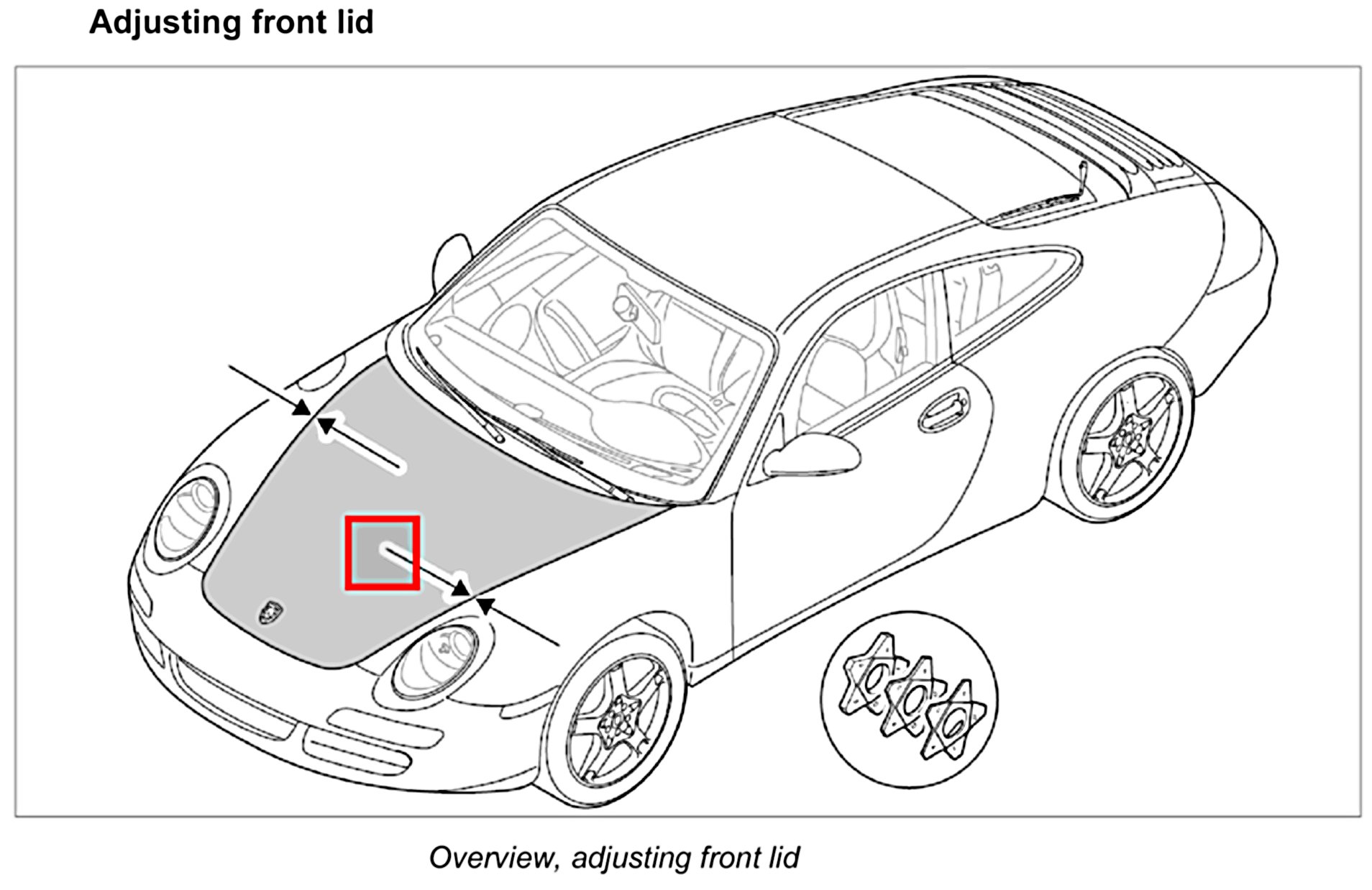

Adjusting front lid

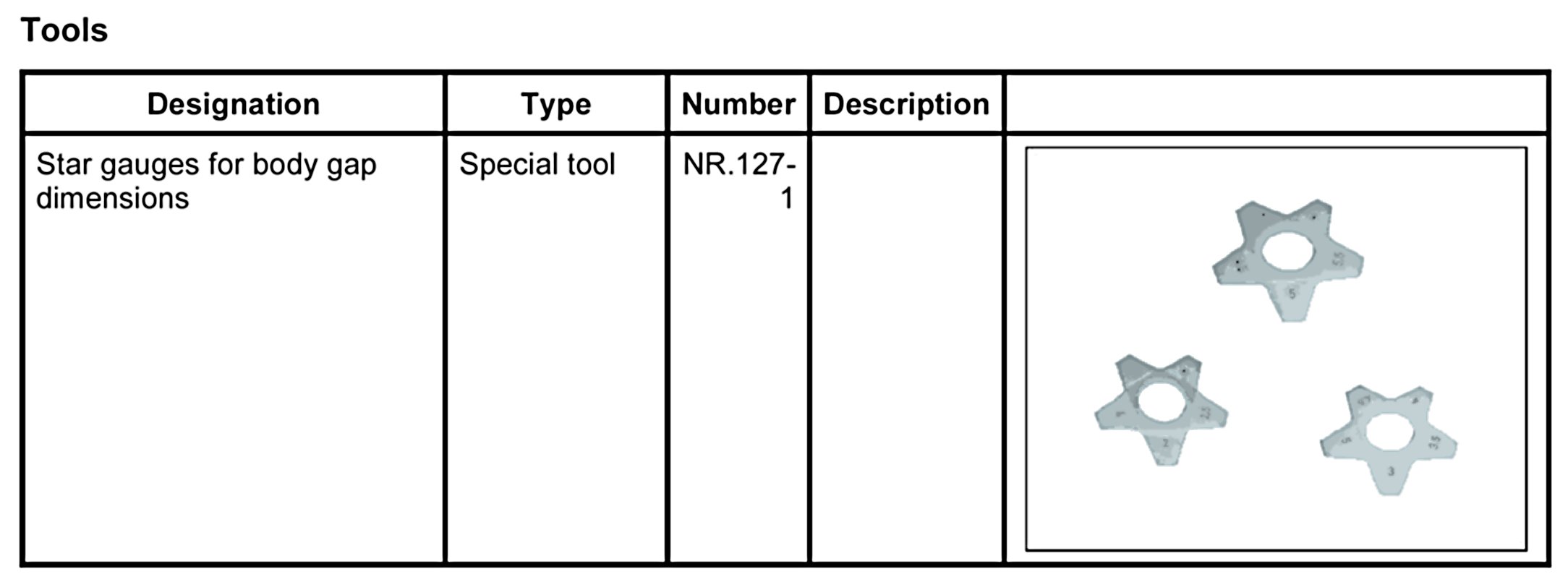

NOTE: Use star gauges to set and measure the gap dimensions. Star gauges for body gap dimensions NR.127-1

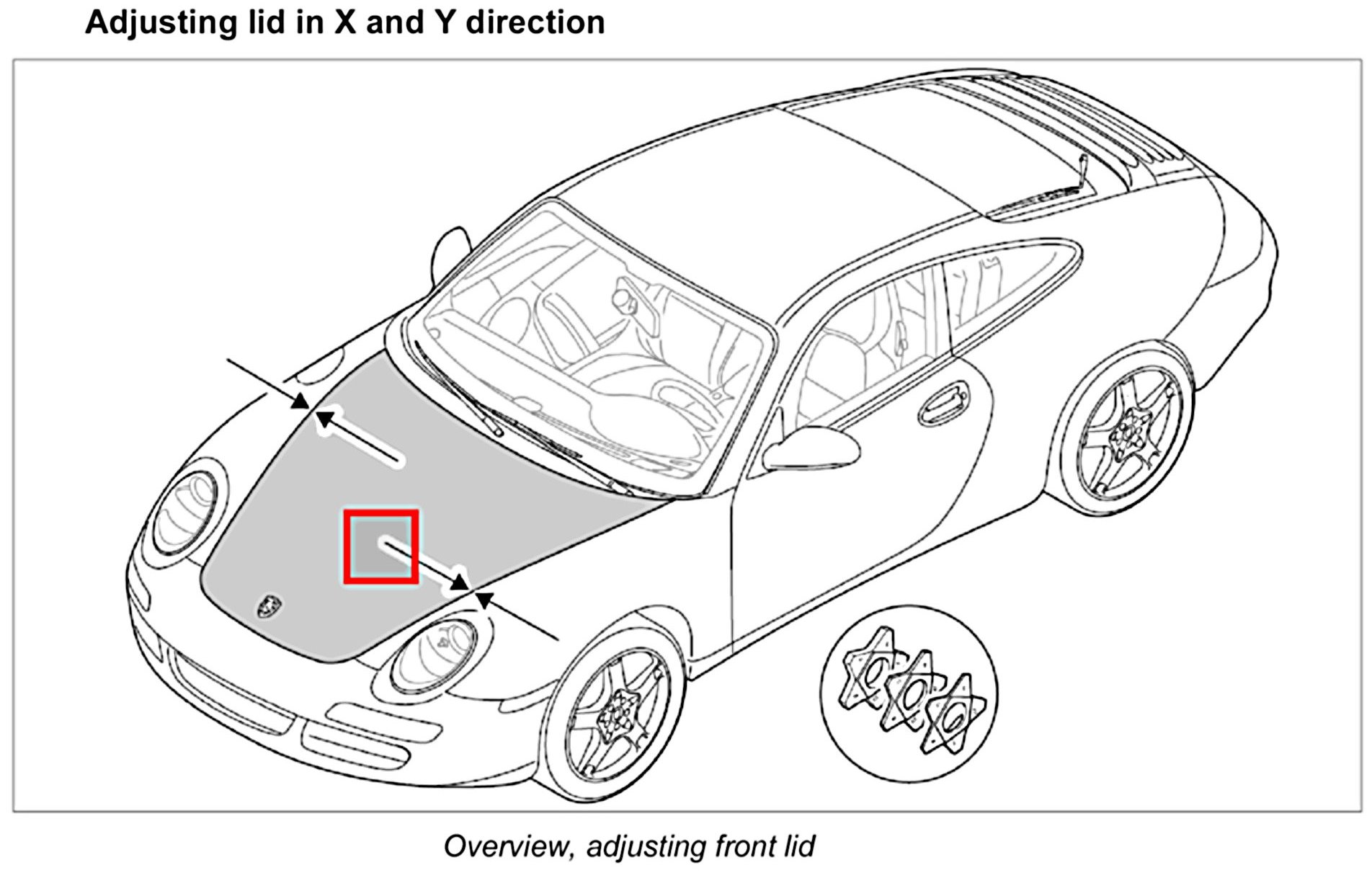

1. Check gap dimensions on body.

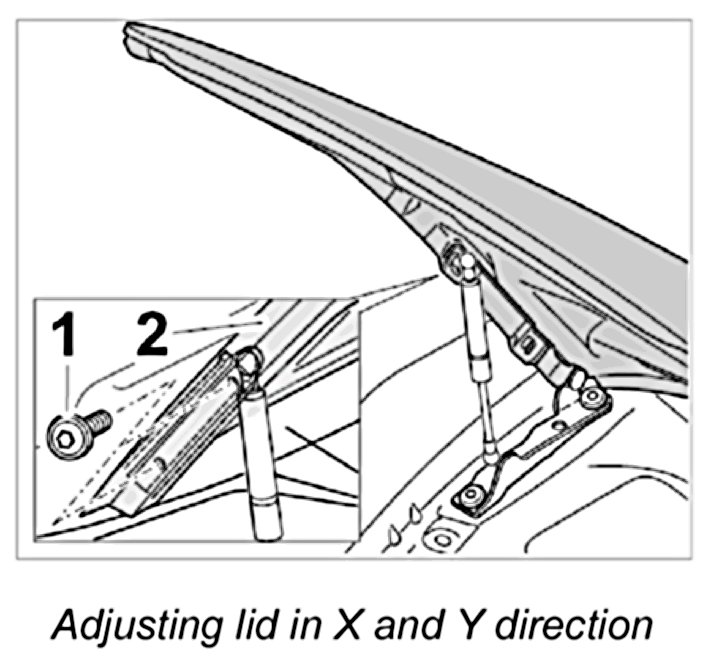

2. Undo fastening screw -1- on both sides on front cover -2-.

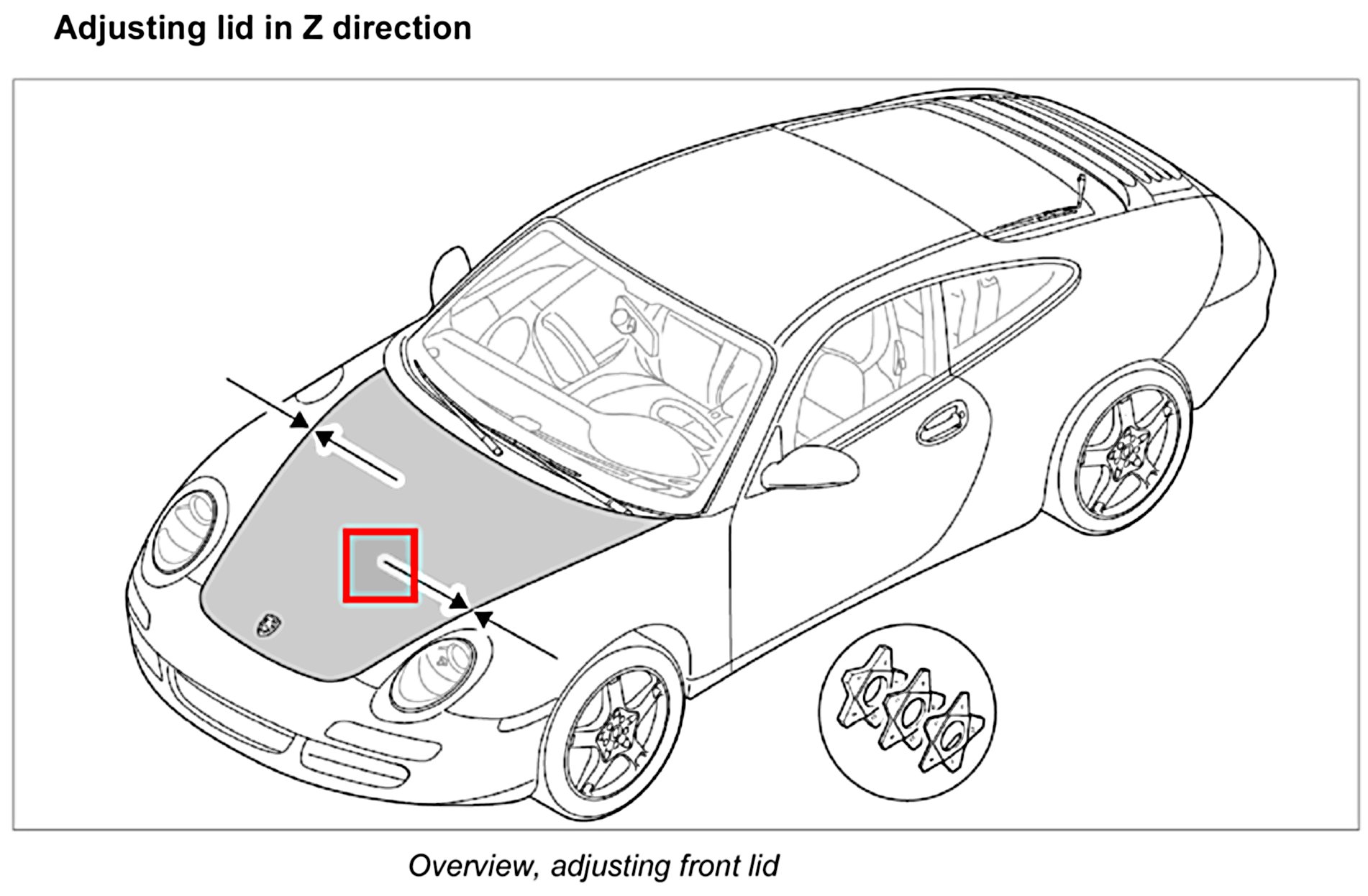

Adjusting lid in Z direction






NOTE: Use star gauges to set and measure the gap dimensions. Star gauges for body gap dimensions NR.127-1.

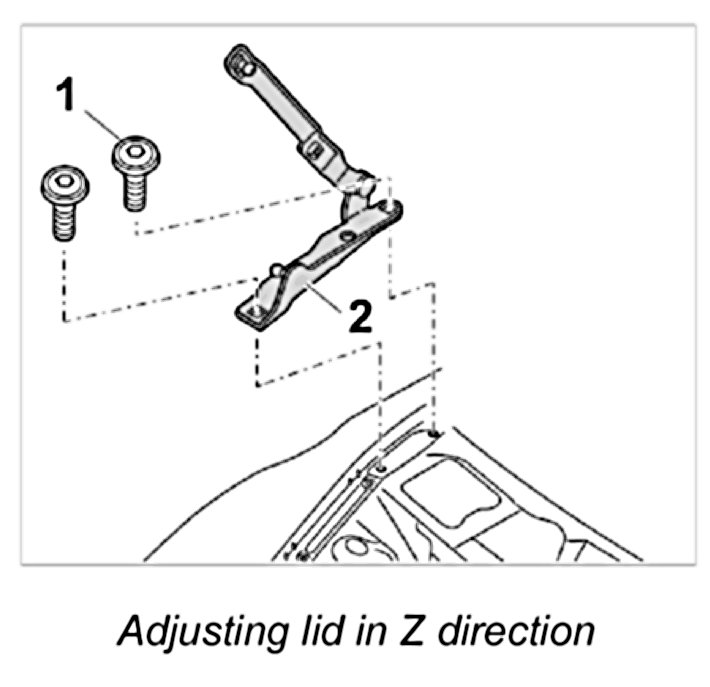

1. Undo fastening screws -1- on both front lid hinges -2-.

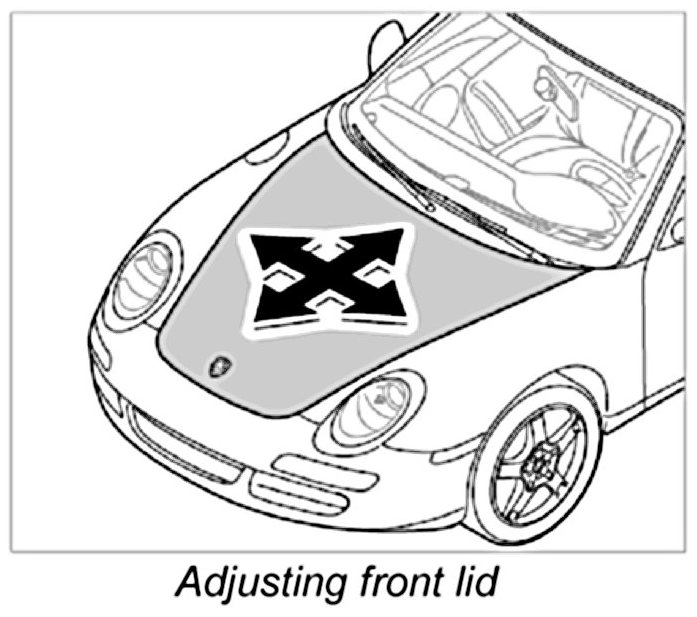

Adjusting front lid






1. By moving the front lid -2- at the hinges -2-, adjust the contours according to the wings, main headlights and front spoiler.






2. Tighten fastening screws -1-.

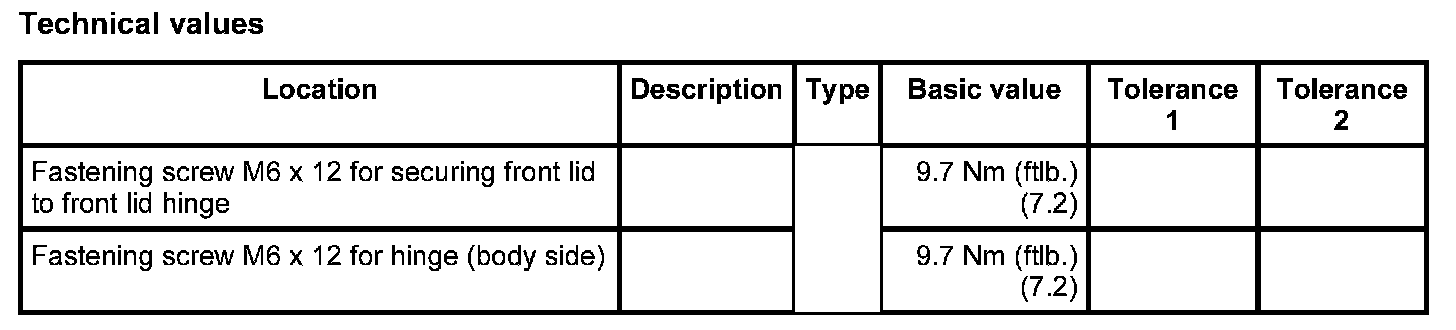

Tightening torque: 9.7 Nm (ftlb.) (7.2)

3. Tighten fastening screws -1-.

Tightening torque: 9.7 Nm (ftlb.) (7.2)
