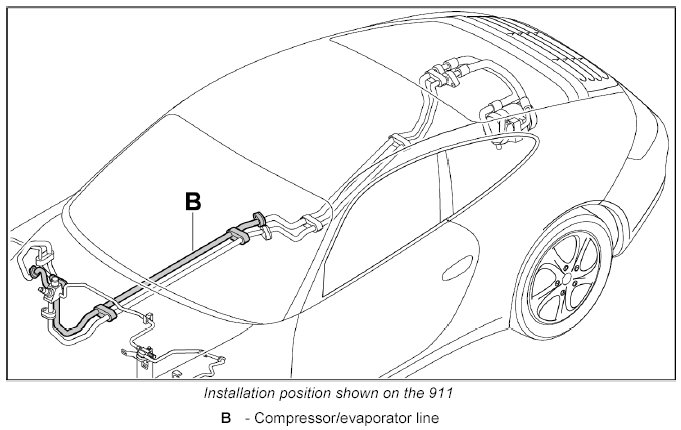

Laying Compressor/Evaporator Line

Laying Compressor/Evaporator Line

INFORMATION:
- Close off all lines and connections using suitable plugs during removal.
- Before re-installing the component, check the O-rings of the refrigerant lines for damage and replaced them if necessary.







Remove the compressor/evaporator line and the compressor/condenser line together.
