Power Supply - Sheet 16

Power Supply - Sheet 16

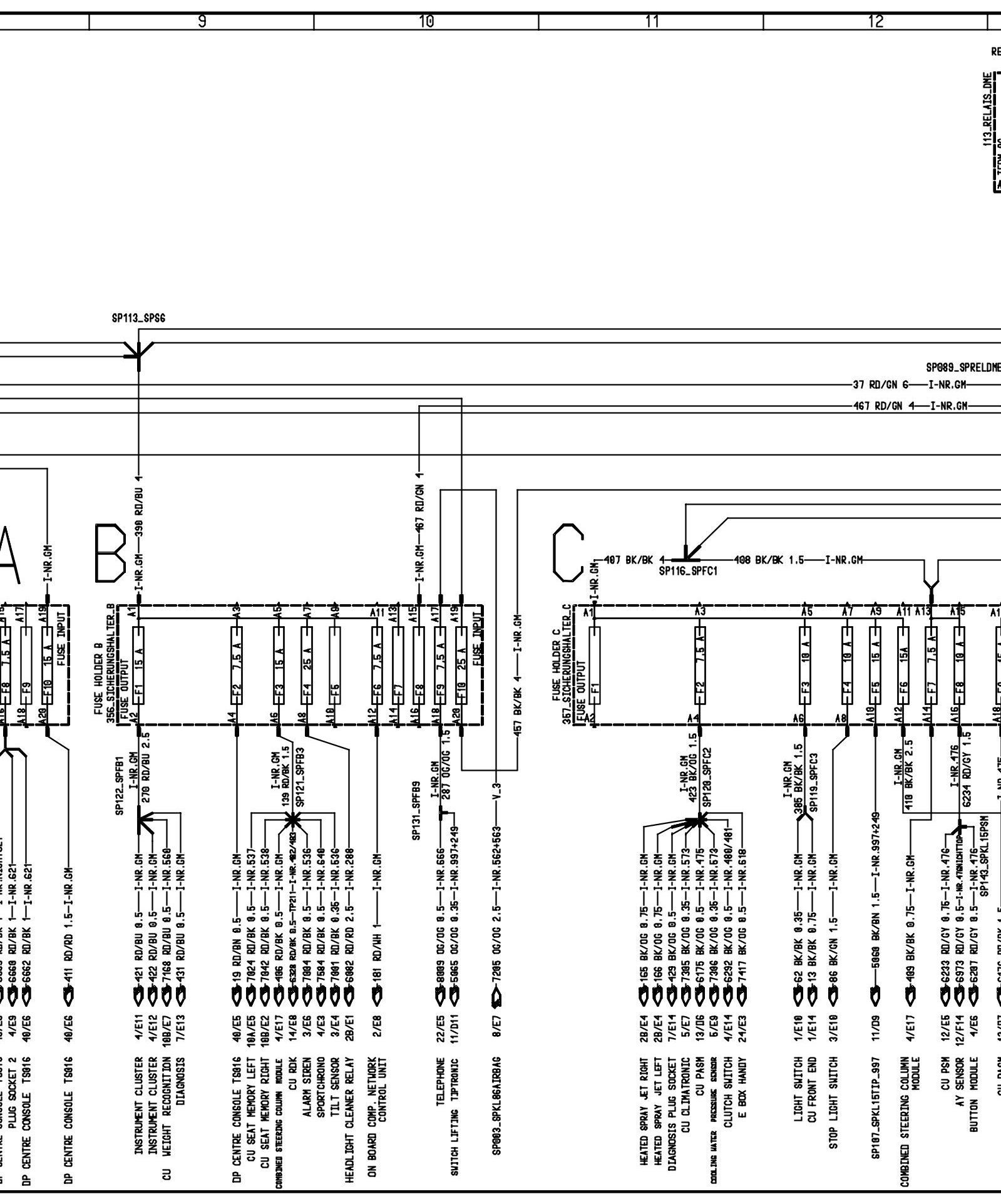

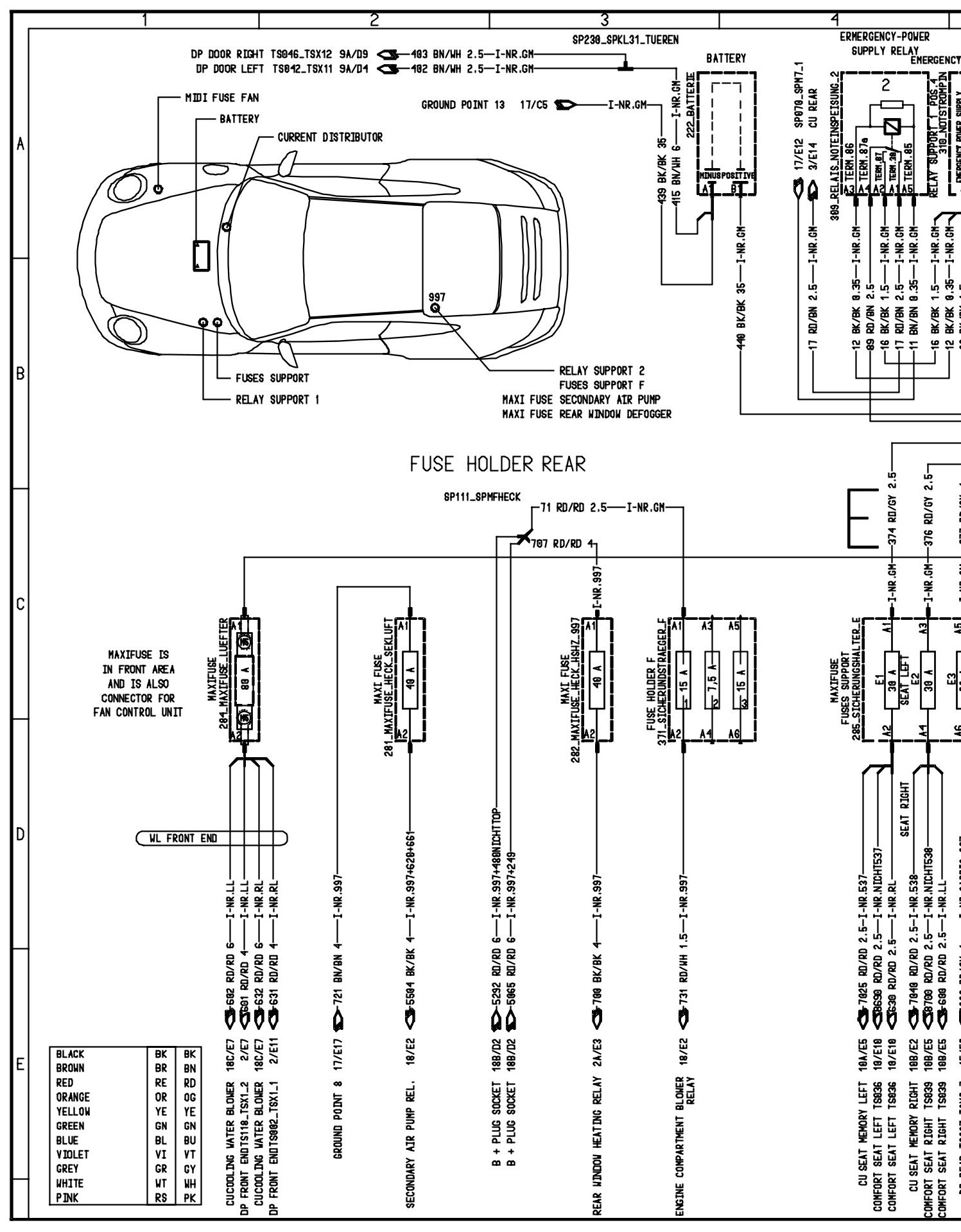

Power Supply - Sheet 16 (Part 1):

Power Supply - Sheet 16 (Part 2):

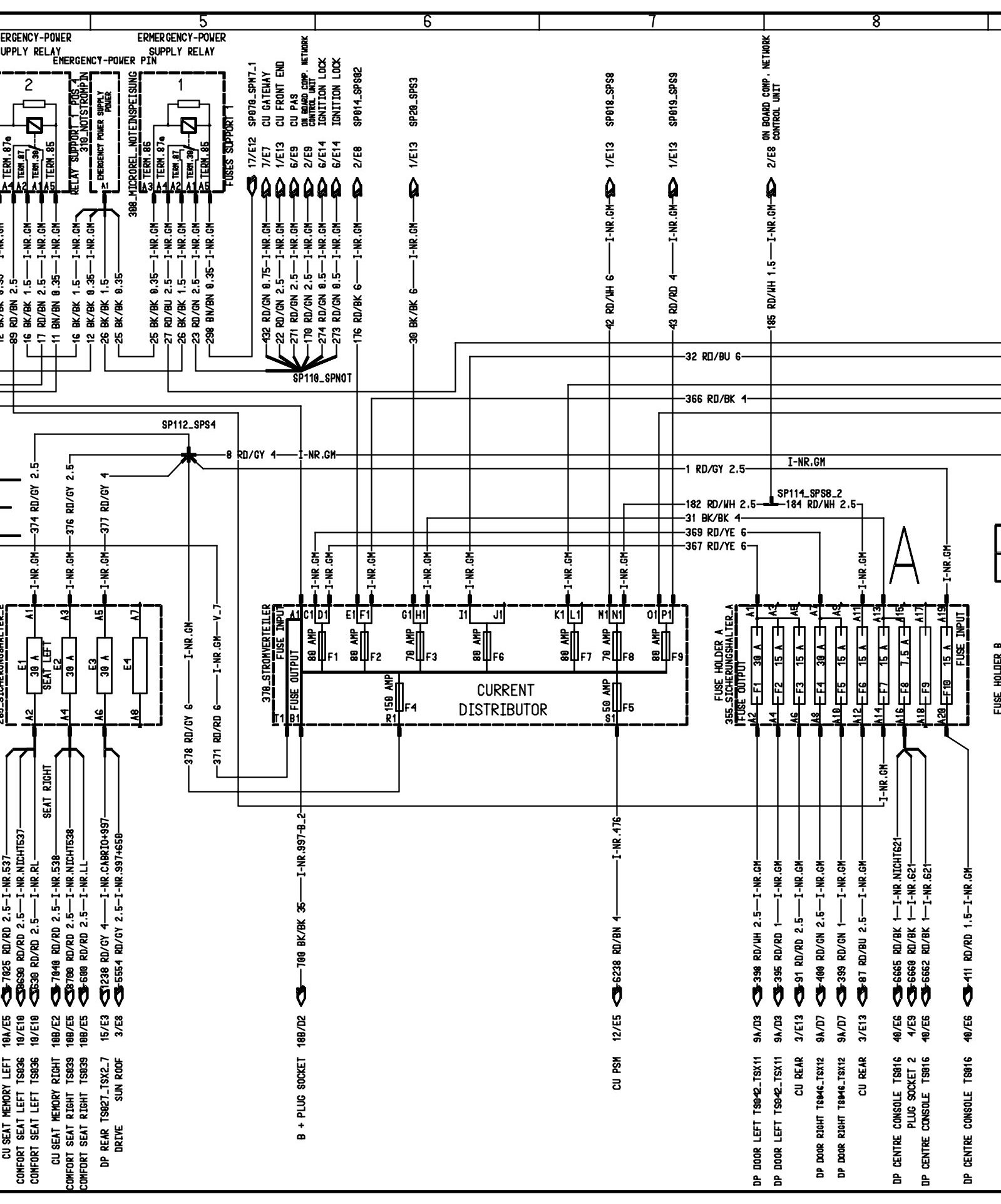

Power Supply - Sheet 16 (Part 3):

Power Supply - Sheet 16 (Part 4):

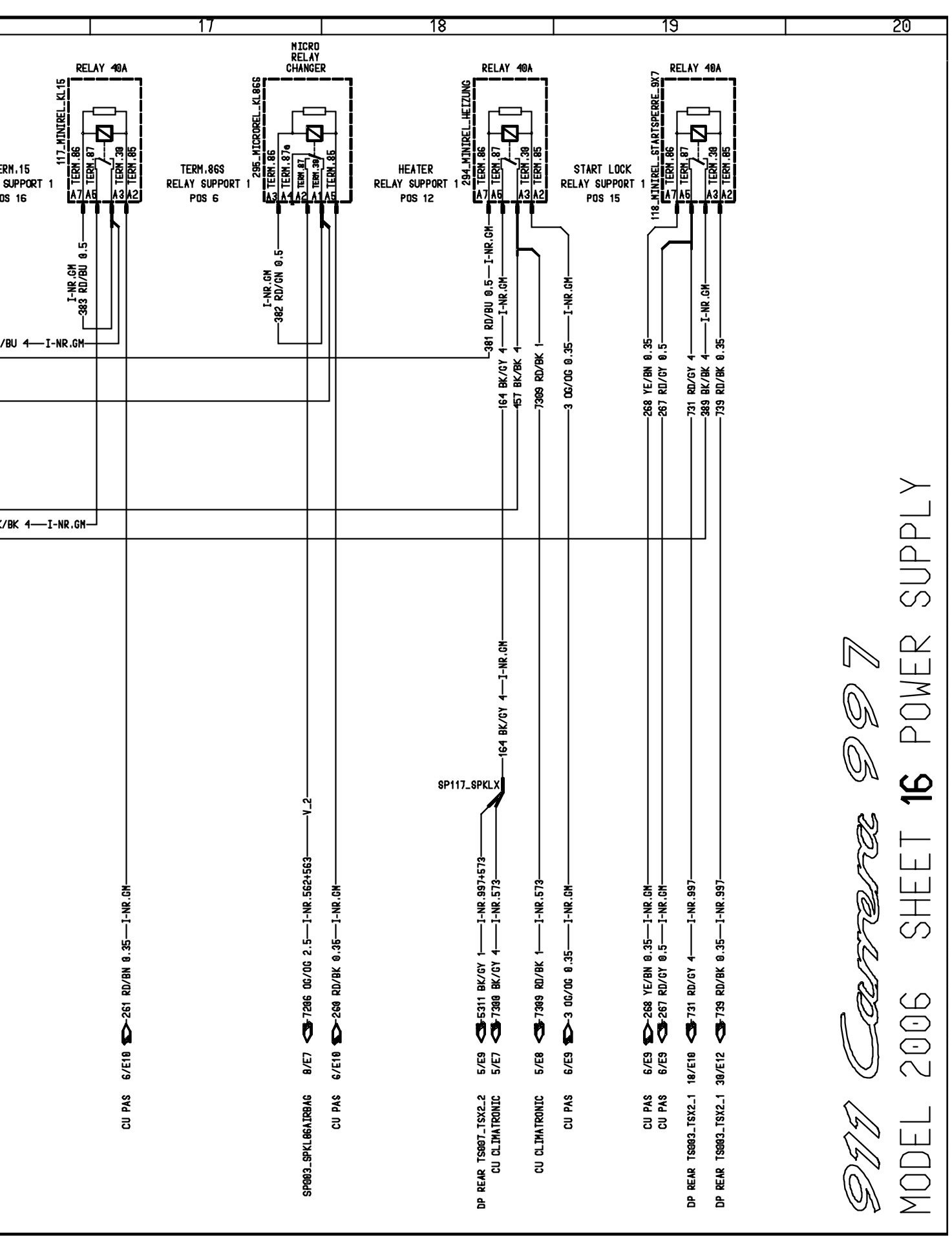

Power Supply - Sheet 16 (Part 5):

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
