Electrical Diagrams

CU PASM - Sheet 13

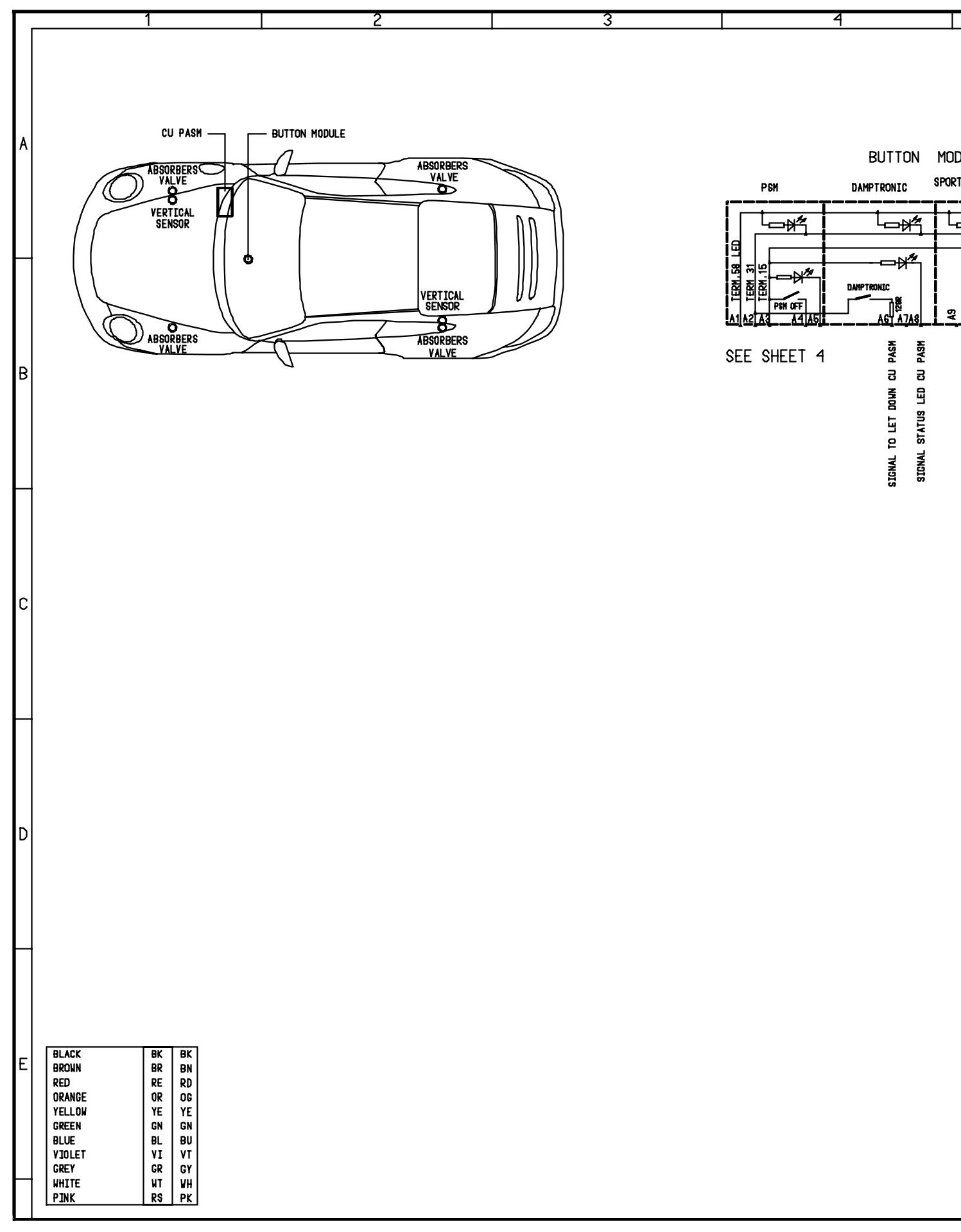

CU PASM - Sheet 13 (Part 1):

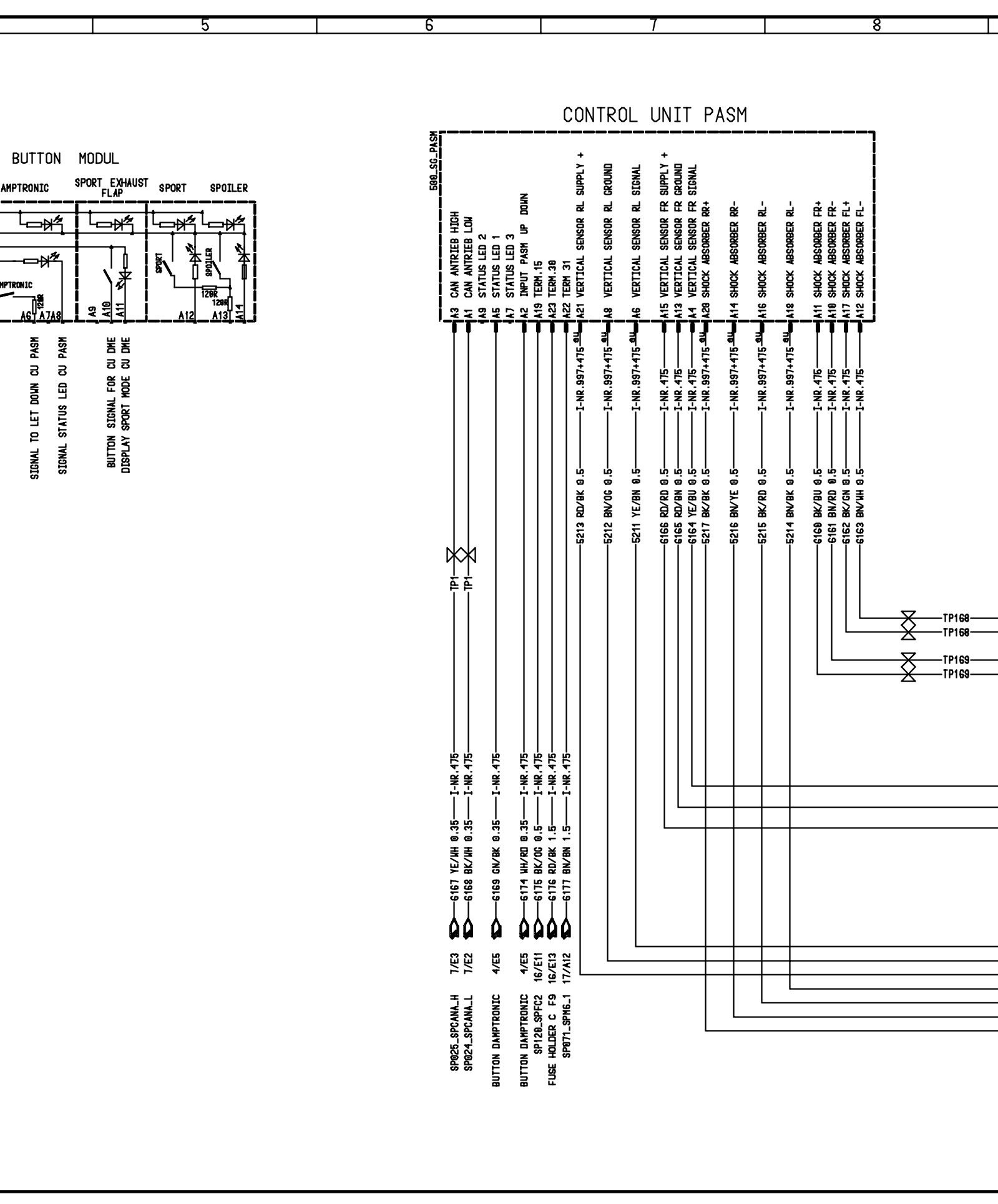

CU PASM - Sheet 13 (Part 2):

CU PASM - Sheet 13 (Part 3):

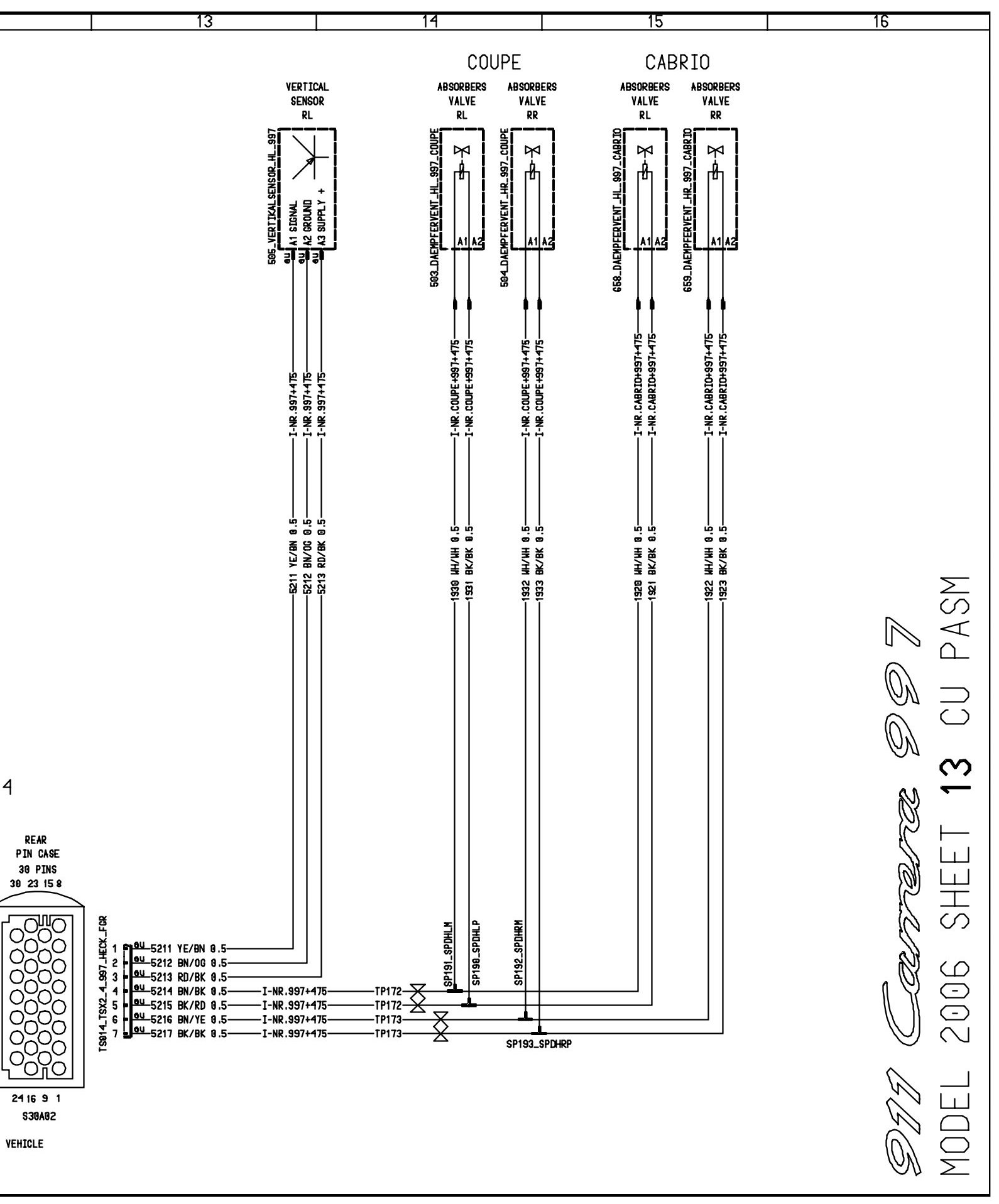

CU PASM - Sheet 13 (Part 4):

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
